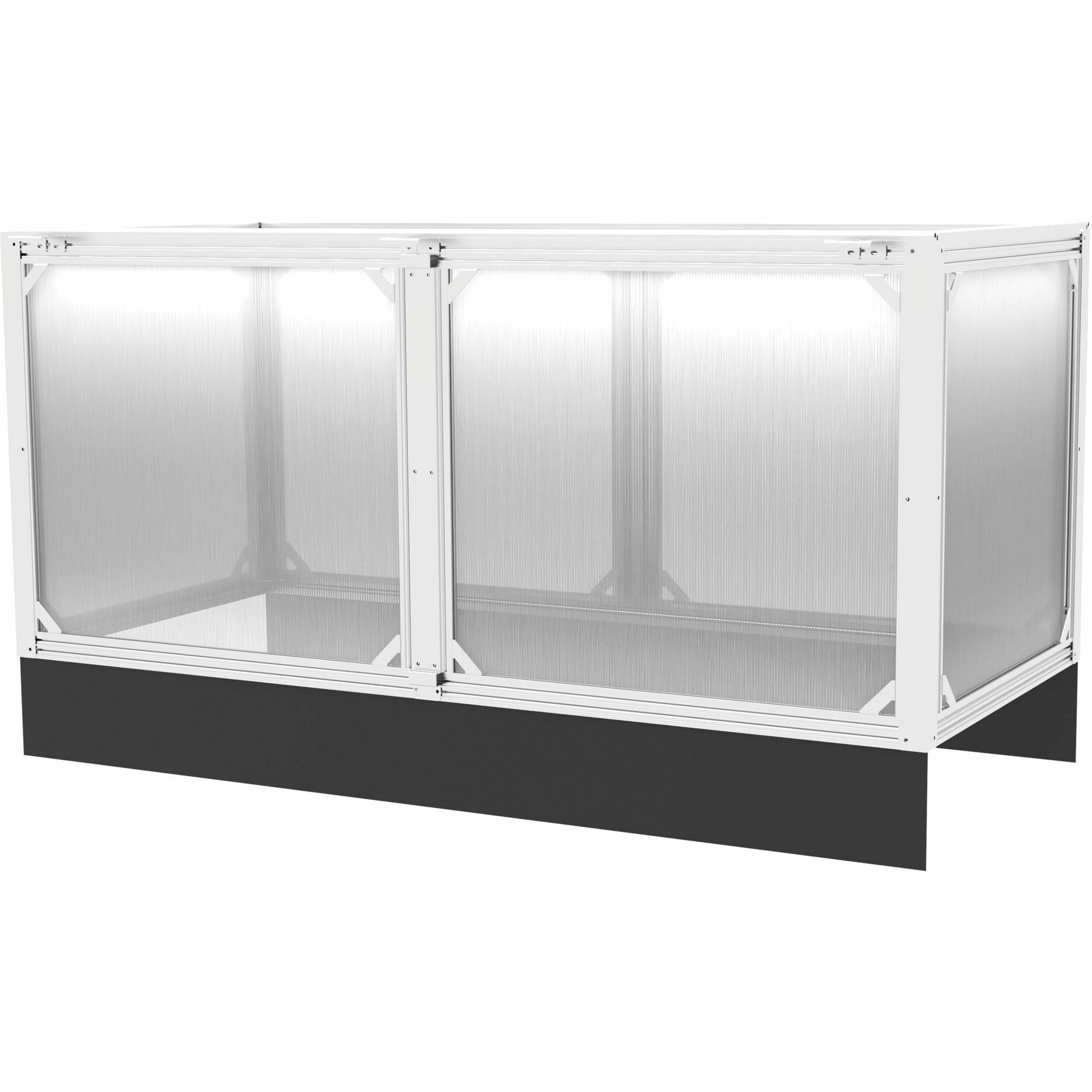

RAPIDPOD AISLE CONTAINMENT SYST STEM KIT - 42INH X 42INW X 96INL (8

Provides Customizable, Scalable, Field-Configurable Airflow Management

The RapidPod® Aisle Containment System is a quick-to-deploy structure that improves cooling efficiency in hot aisle/cold aisle rack configurations. The system keeps hot and cool air separated for better temperature control and equipment performance. Whether used for vertical or horizontal aisle containment, the RapidPod system has the flexibility to accommodate the dimensions of the aisle and the rack enclosures within it.

Optimized Cooling

Aisle containment keeps hot and cold air separated for more efficient cooling, better temperature control and improved equipment performance. The increased cooling efficiency saves energy and lowers air conditioning costs.

Customized Configurations

Choose standard-size pod kits for rapid deployment or prebuilt panel options that are fully customizable for vertical (hot aisle) or horizontal (cold aisle) configurations. The RapidPod system is expandable to facilitate future modifications or expansions.

Configurable with End of Row Doors

End of row doors (EoRD) block obvious escape routes for air and eliminate air recirculation and air mixing to increase efficiency. Choose from swing, café and sliding door styles.Note: Doors and installation brackets are sold separately.

Flexible Solutions to Fit a Variety of Locations

The extruded aluminum framing structure can be rack- or ceiling-supported and is scalable to fit the size of the rack row. The low-profile framing system allows installation in tight areas.Note: Customizable rack and ceiling mounting brackets are sold separately.

Convenient Setup

Made to be configured in the field, the RapidPod system can be assembled with standard hand tools. The frame, window panels, flap seals and necessary hardware are included. Modular panels, available in transparent or semi-transparent polycarbonate, can be removed without tools for easy maintenance access.

Silver

aluminum frame

Unit Dimensions (hwd / in.) 42.000 x 42.000 x 96.000

Unit Weight (lbs.) 182

• 4 x Assembly panels, 42 x 48 in.
• 2 x Assembly panels, 42 x 42 in.
• 4 x Panelized corner brackets, 42 in.
• 8 x Trapezoid gusset brackets
• 4 x Formed panel joiner brackets, 42 in.
• 12 x Threaded rods
• 104 x Screws, 5/16-18
• Flap seal, 16 ft.
• 3/4 in. D-bulb top seal, 28 ft.
• Rack-mounting kit

• Data Center
• Computer Room

• Ceiling Mountable
• Rack Mountable

Eaton 300 mm (In-Row Cooler); 600 mm (Standard); 750 mm (Wide)
