RACK FAN FRONT DOOR KIT FO 42U RACK ENCLOSURE 12 120V FANS 5-15P

Increases airflow through your rack server to prevent equipment from overheating and helps keep air intake clean.

Rack Cooling Fans for 42U Standard-Width Enclosures

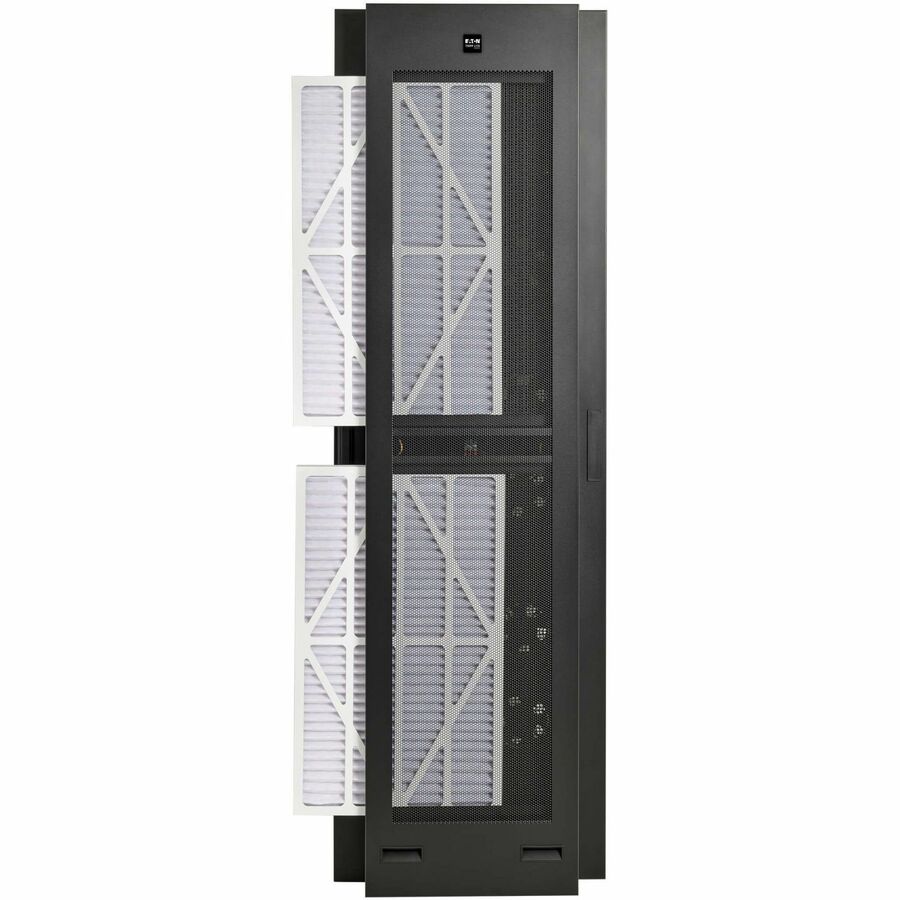

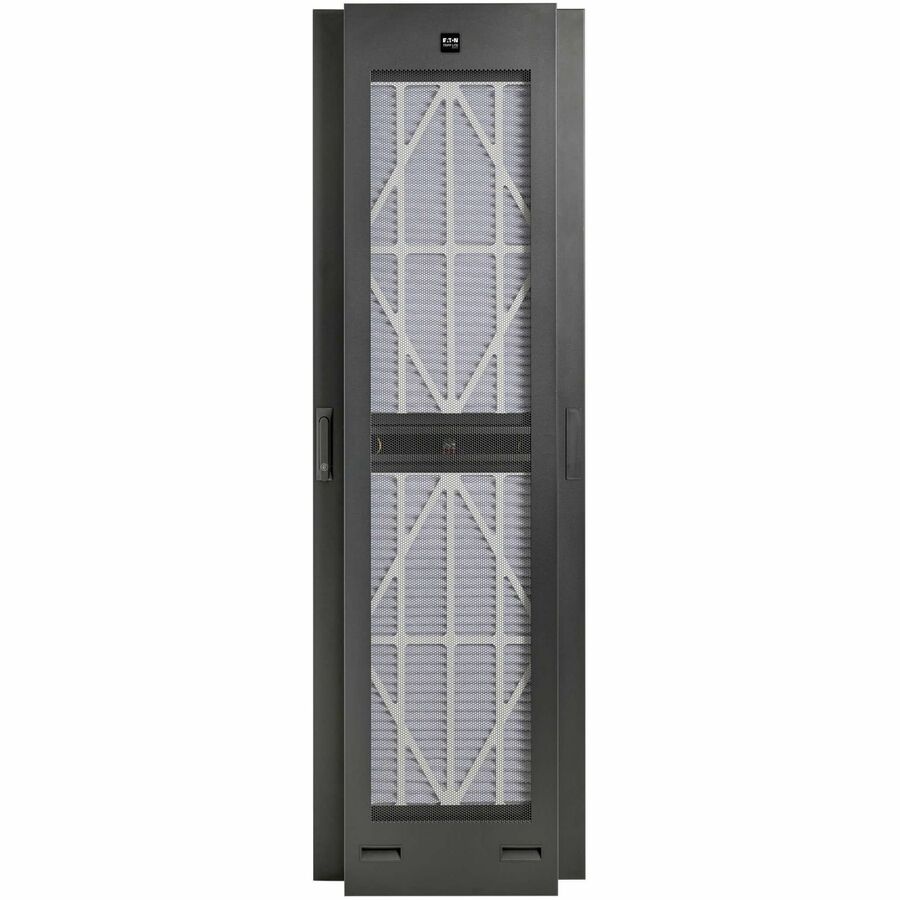

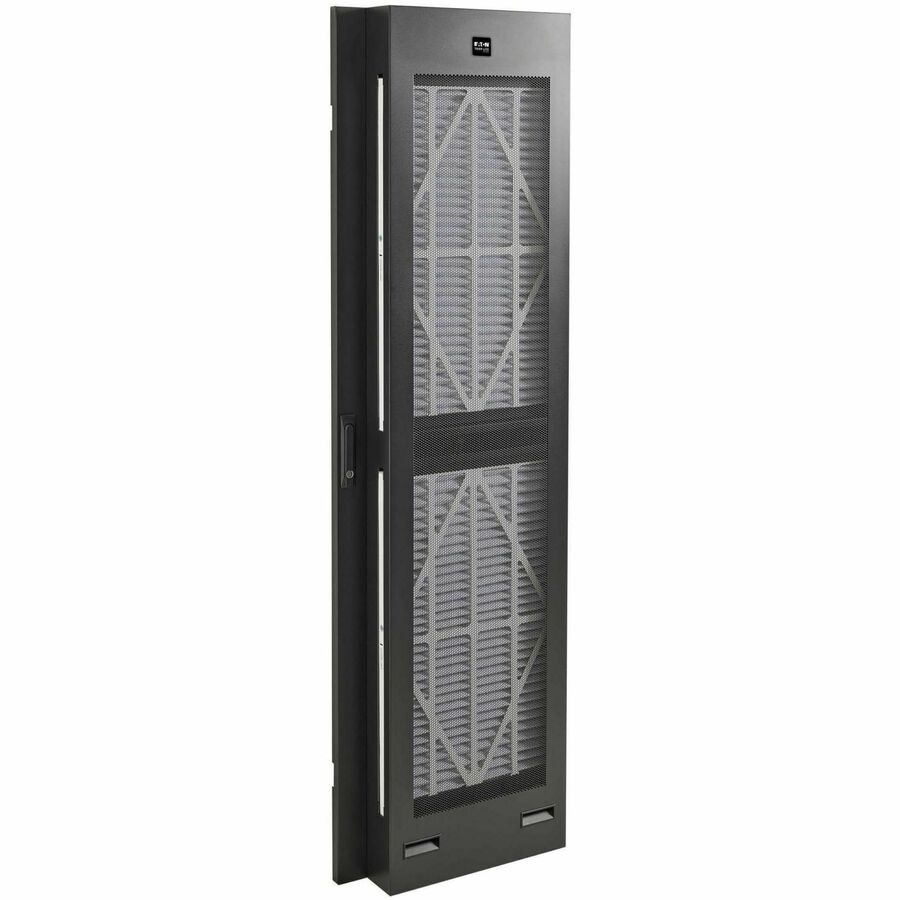

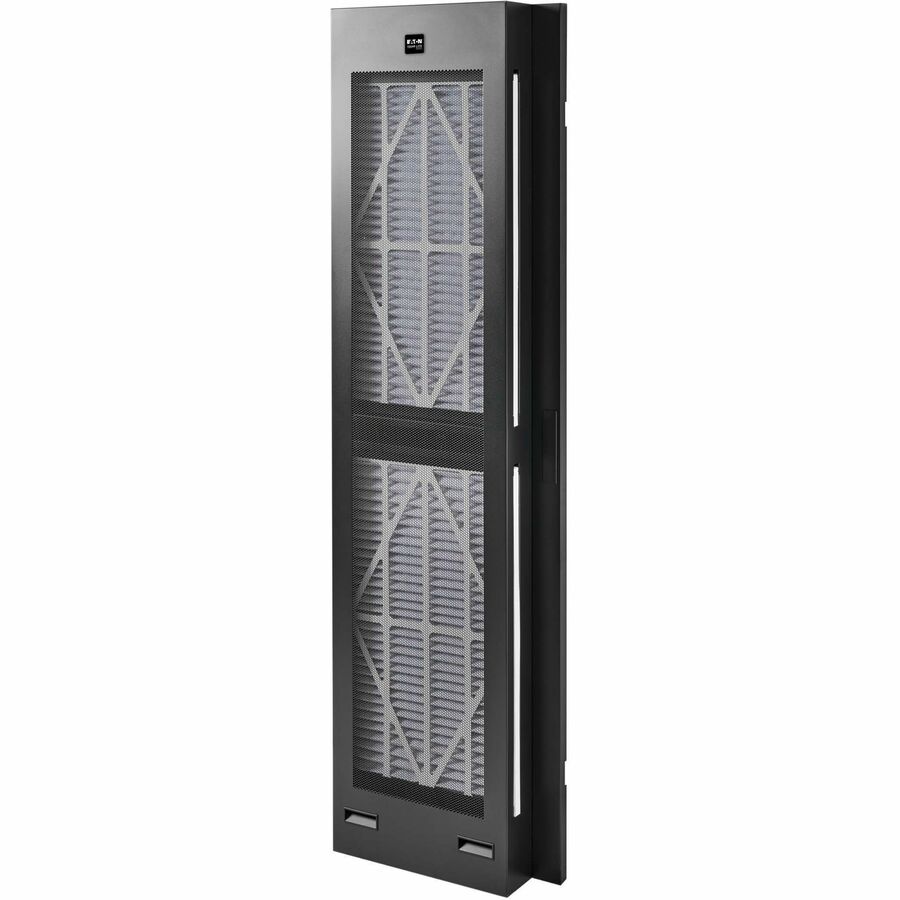

The SmartRack® SRFFD4224 is a server rack door with cooling fans and air filters integrated into it. Designed specifically for SmartRack's 42U standard-width rack enclosures, these fans help keep rack mounted equipment cool to maintain top performance and avoid failures that can lead to costly downtime, damage or data loss.

Increases Airflow and Helps Keep Air Intake Clean

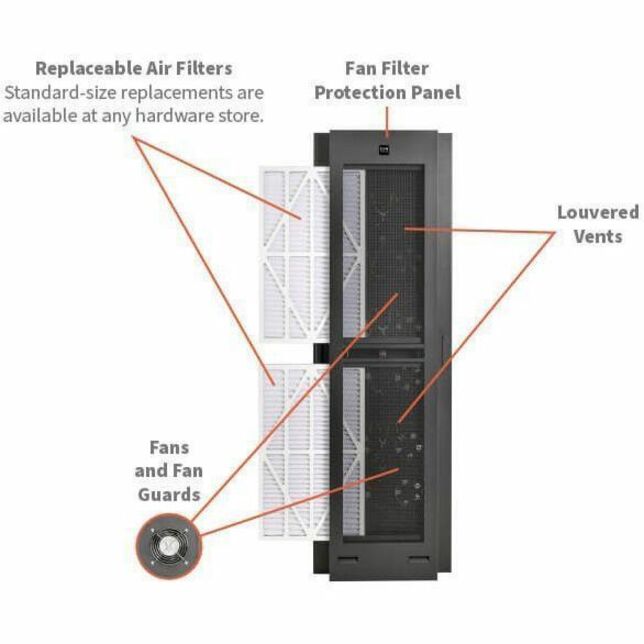

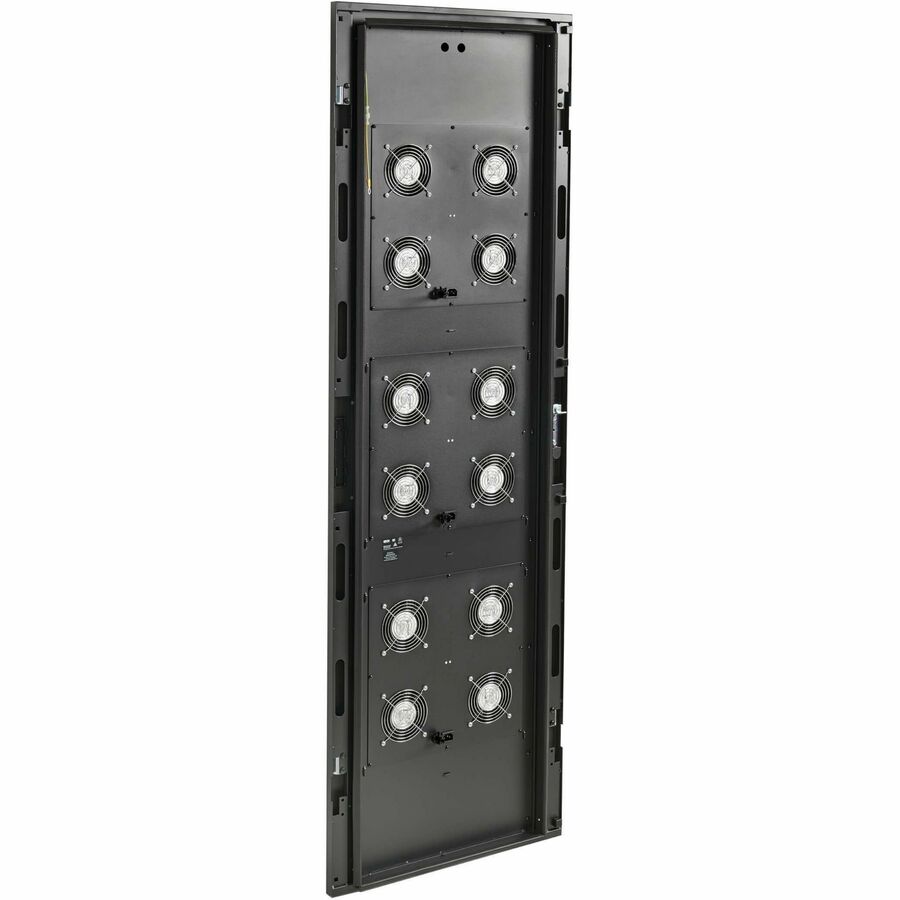

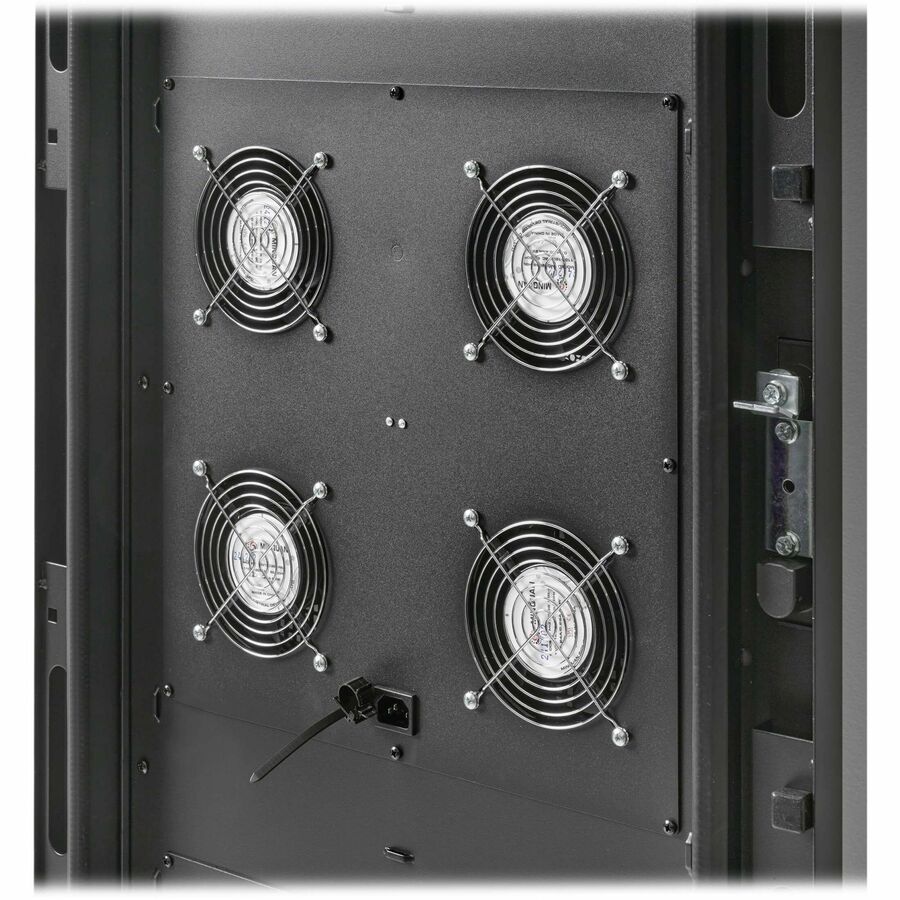

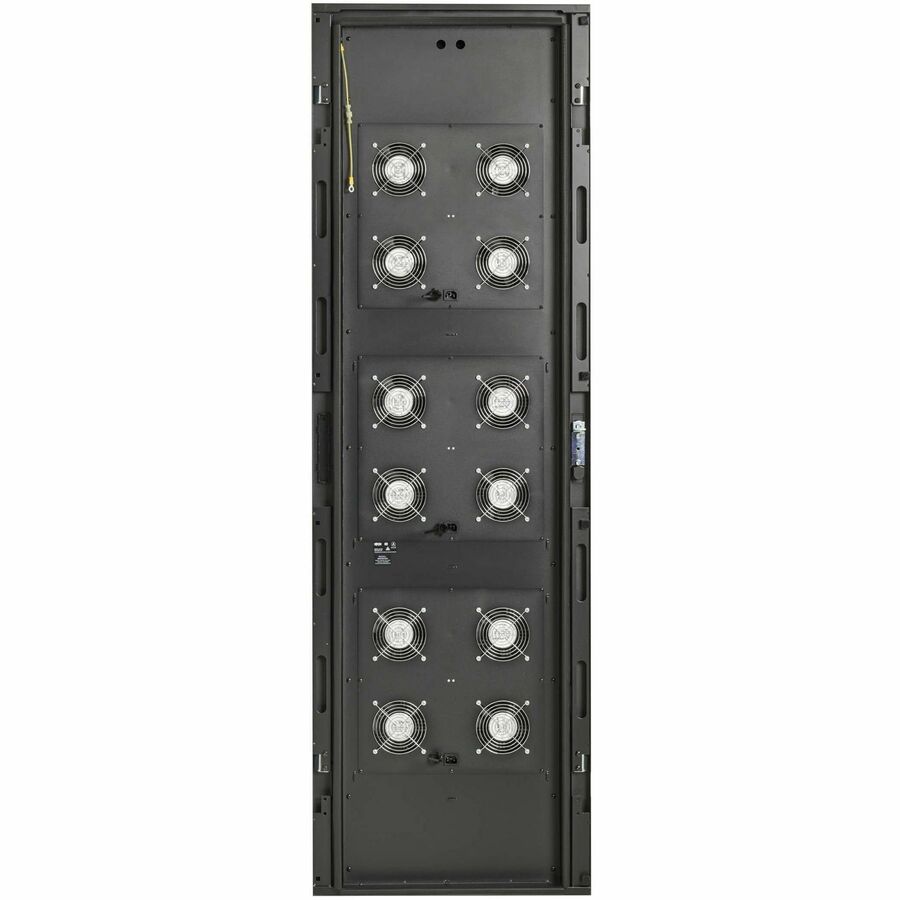

The SRFFD4224 includes three separate fan panels with four 120V fans per panel (12 fans total) that each provide a maximum airflow of 82CFM at 50Hz and 93CFM at 60Hz. It also comes with a perforated outer panel to allow air to pass through, fan guards and two pre-installed dust filters.

Plug-and-Play Construction for Easy Installation

All necessary toolless mounting hardware is included. The SRFFD4224 is made from heavy-duty cold rolled steel with a black finish. The six-foot power cords with NEMA 5-15P plugs connect to any compatible wall outlet, PDU or UPS system.

• 50 Hz
• 60 Hz

coldrolled steel with a black finish

(hwd / in.) 75.280 x 23.540 x 6.220

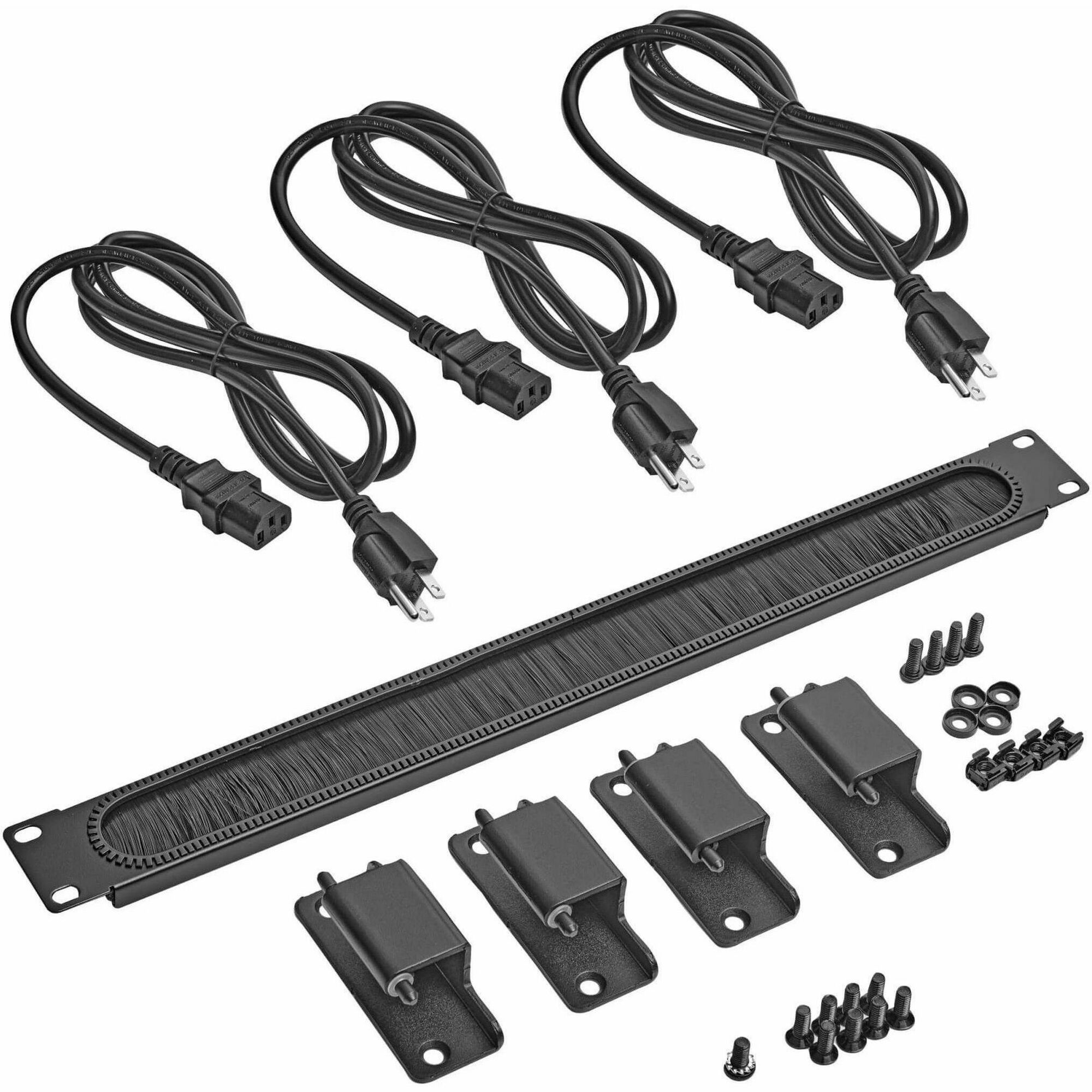

• SmartRack Rack Door

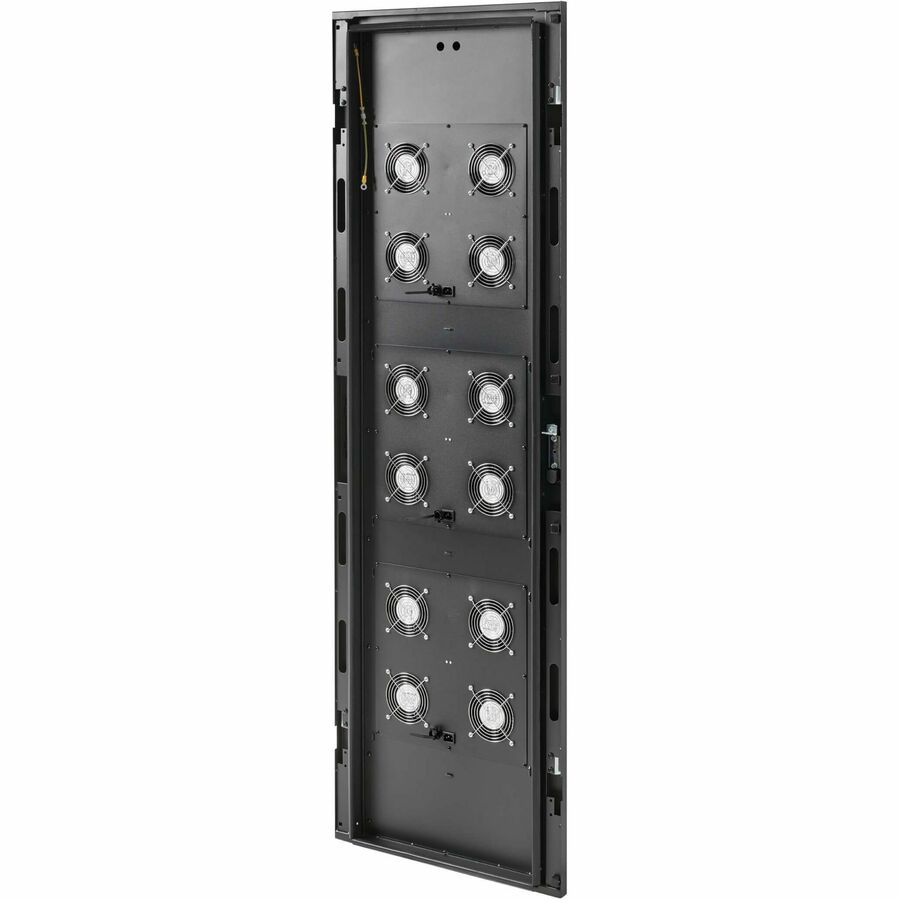

• 3 x Fan Panels with 4 Fans Per Panel

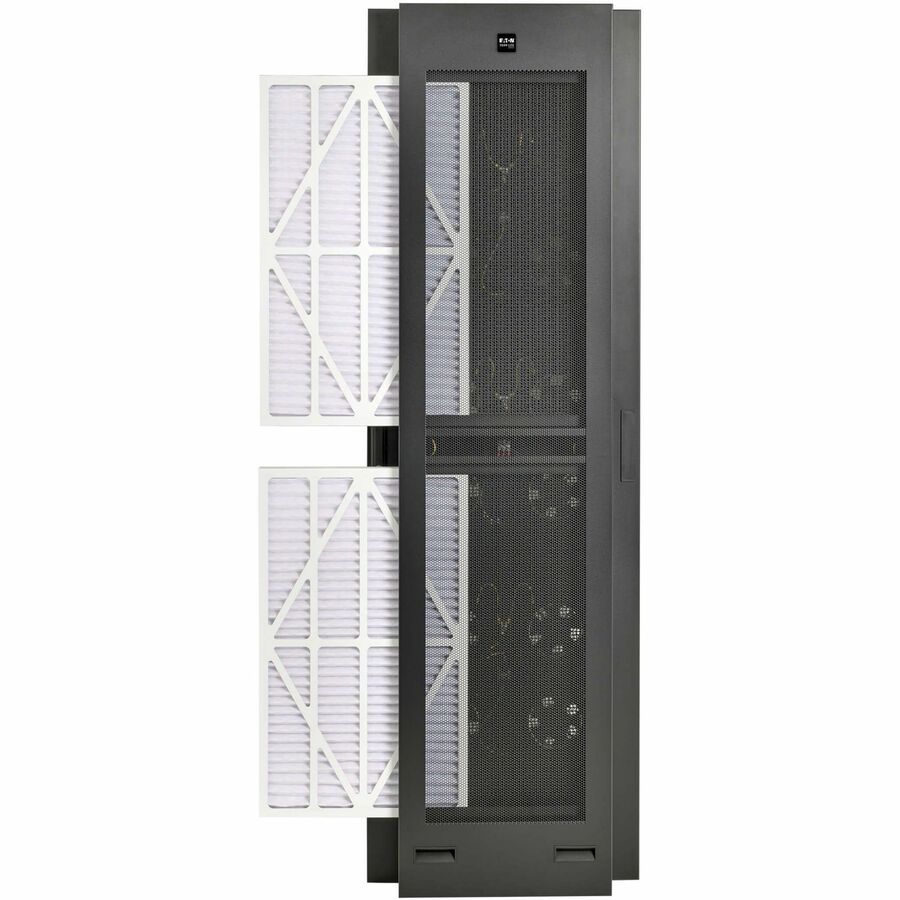

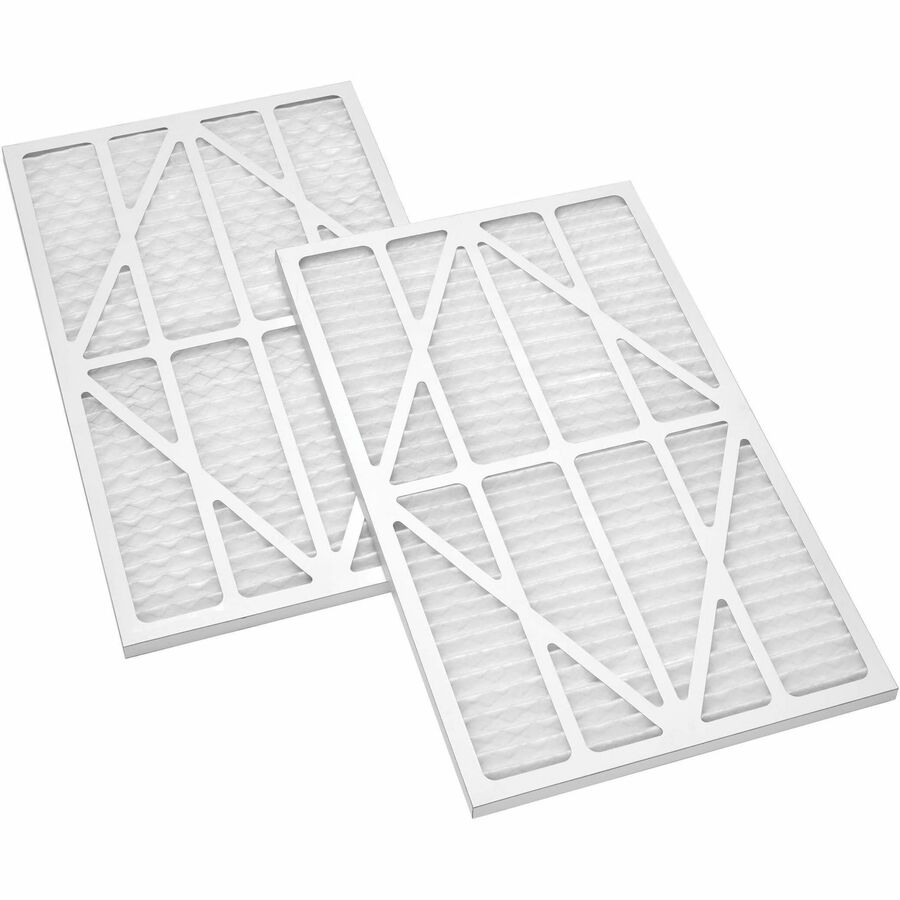

• 2 x Air filters, 18 x 30 x 1 in.

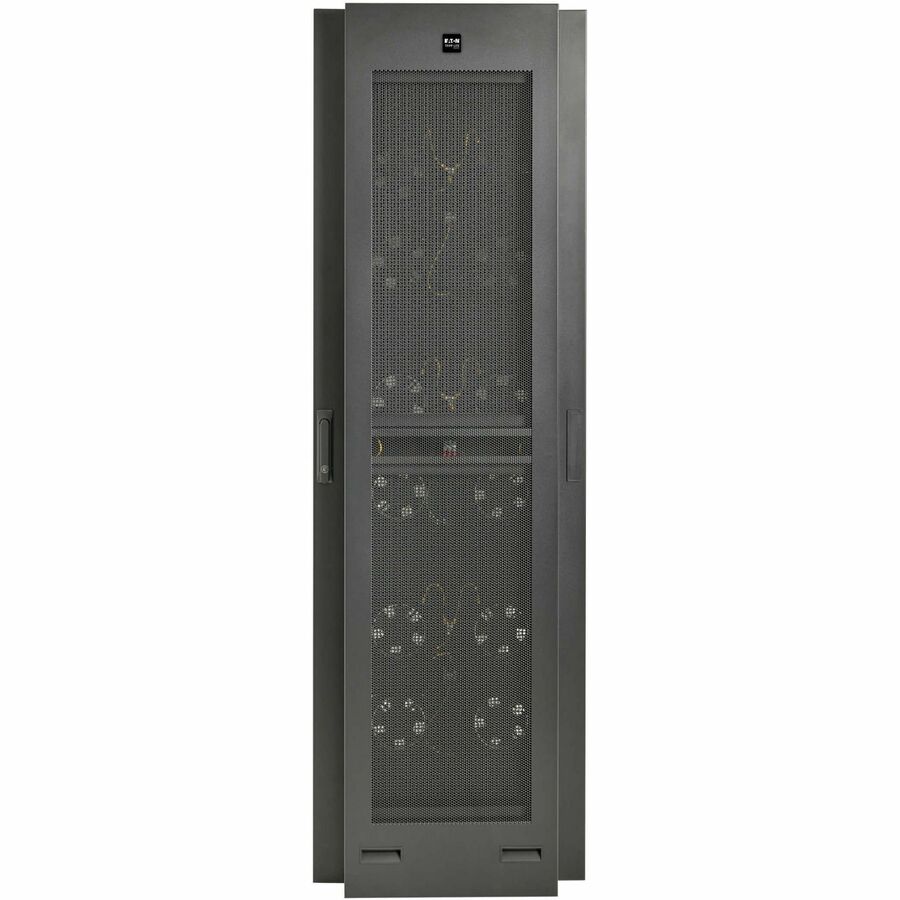

• Perforated Outer Panel
• Fan Guards
• C13 to NEMA 5-15P Power Cord, 6 ft. (1.8 m)
• SR1UBRUSH
• Mounting Hardware
• Owner's Manual
