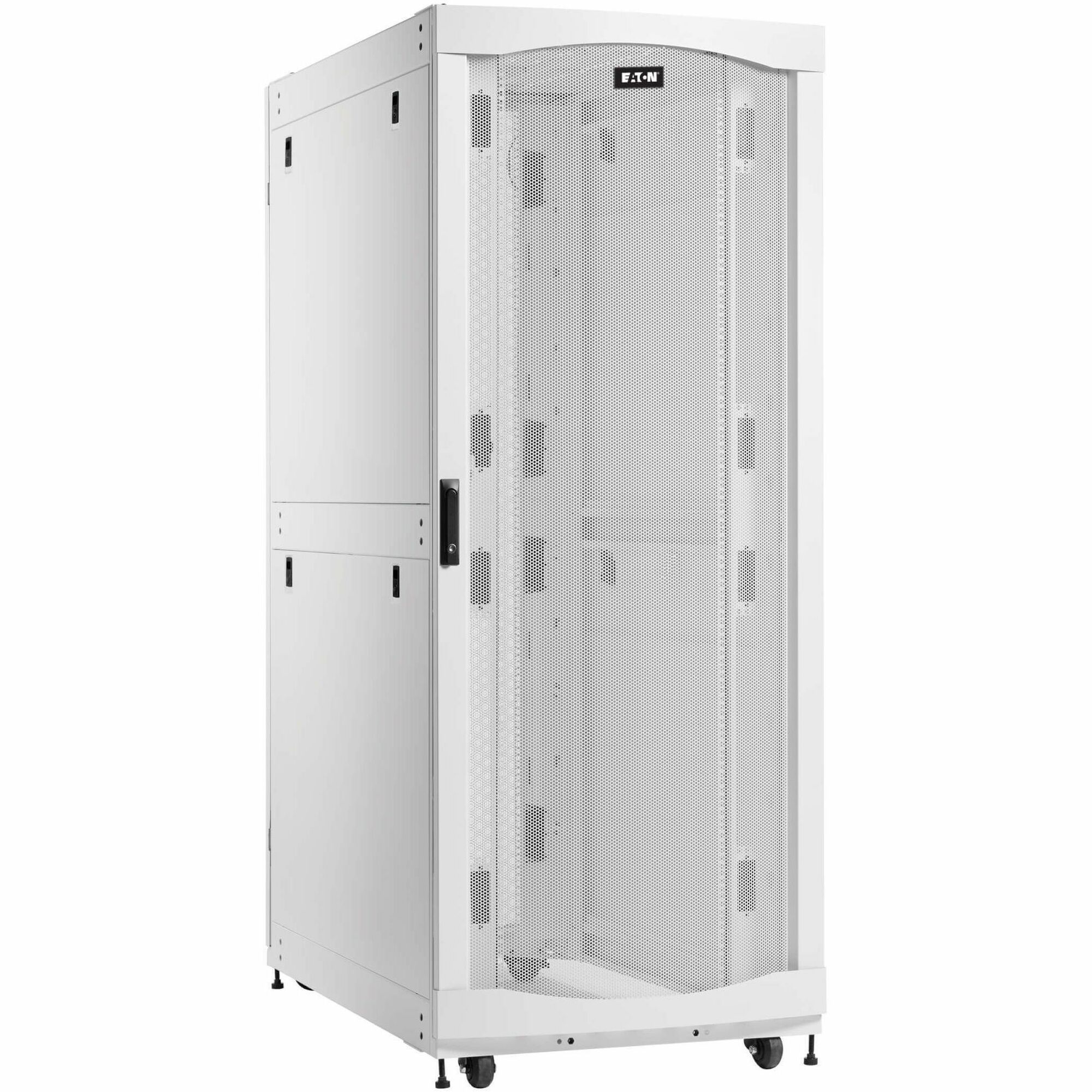

42U DEEP EXTRA-WIDE RACK WHITE HEAVY-DUTY RACK FOR AI SERVERS

Heavy-Duty 42U Rack Cabinet Accommodates Heavy Network Equipment

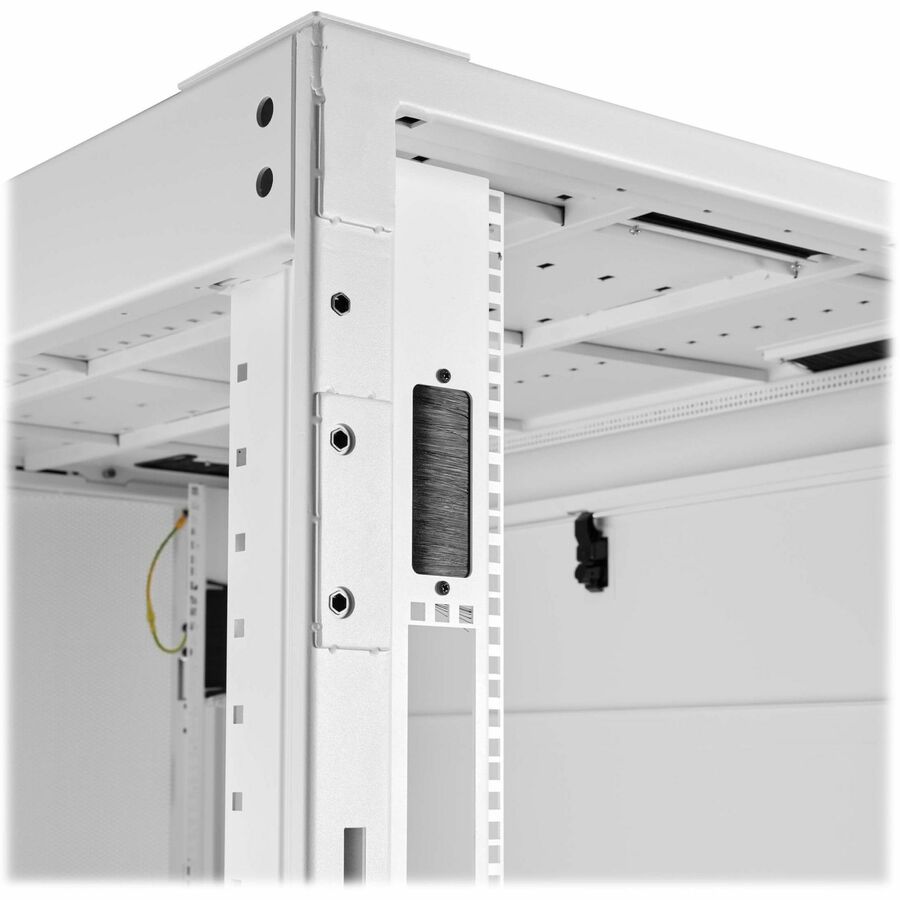

This SmartRack® 42U rack enclosure is constructed from heavy-duty steel 2.5 millimeters thick with reinforced structural elements, including extra welds and gussets for greater strength, extra connection points, and upgraded casters and levelers to support more weight. This cabinet has a maximum stationary load capacity of 5000 pounds (2268 kilograms) and a maximum rolling load capacity of 3500 pounds (1588 kilograms).

Keeps Servers and Other Equipment Secure

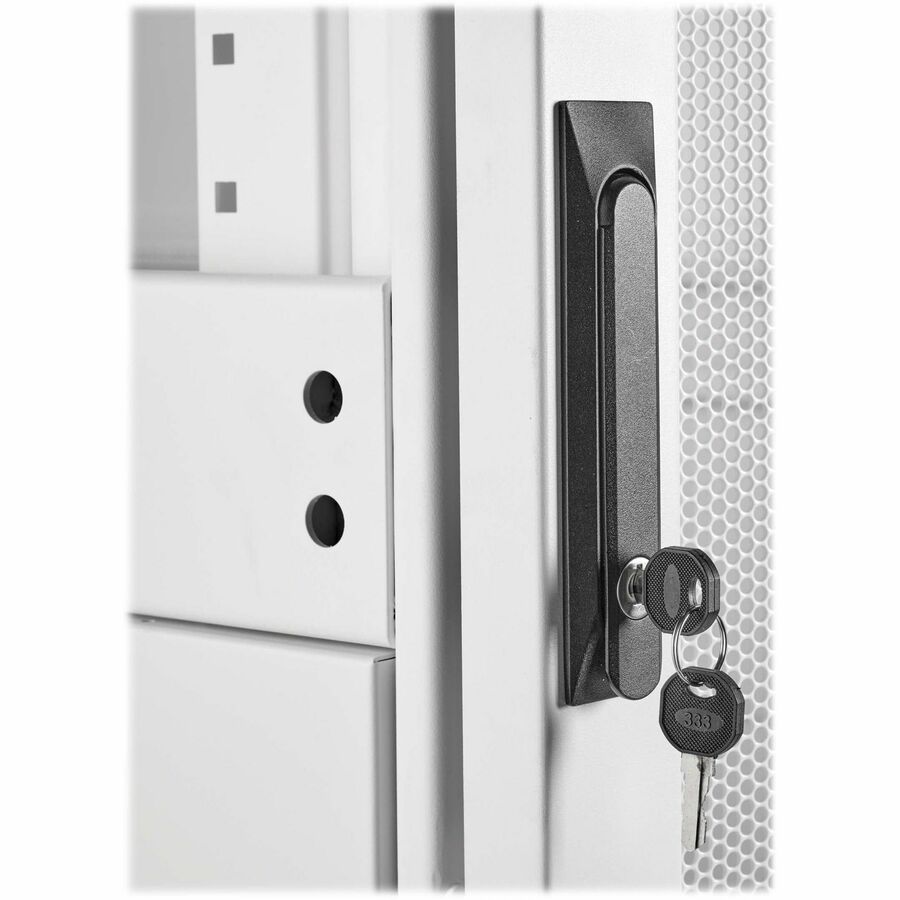

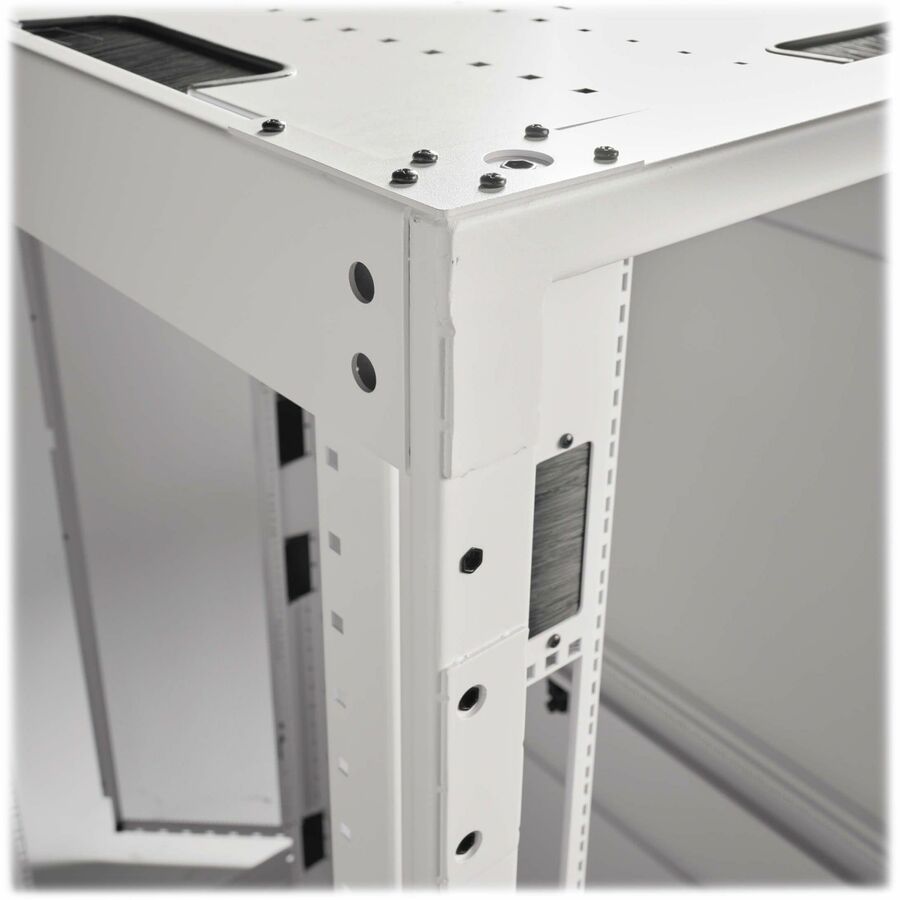

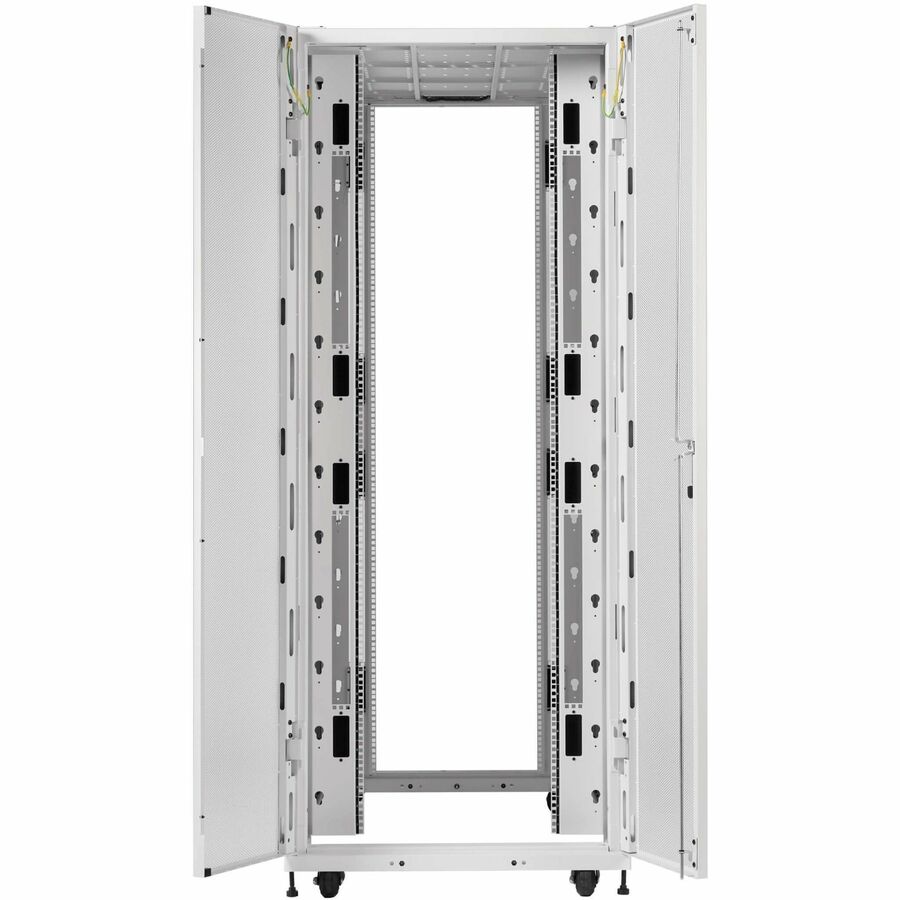

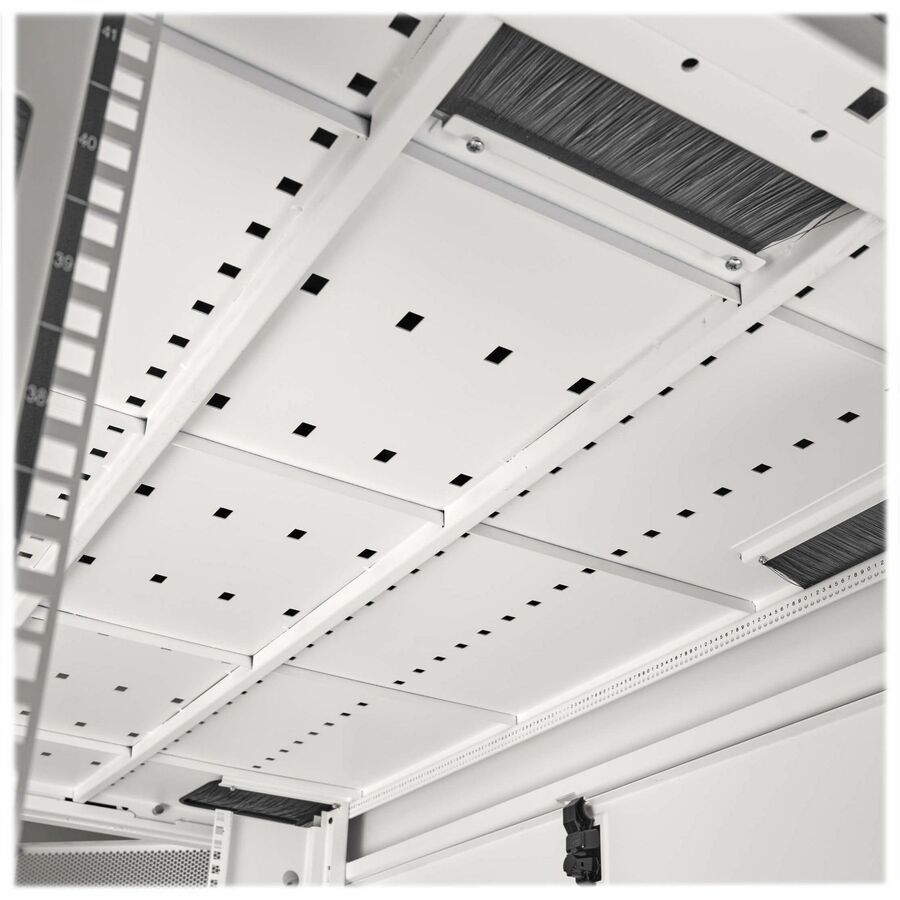

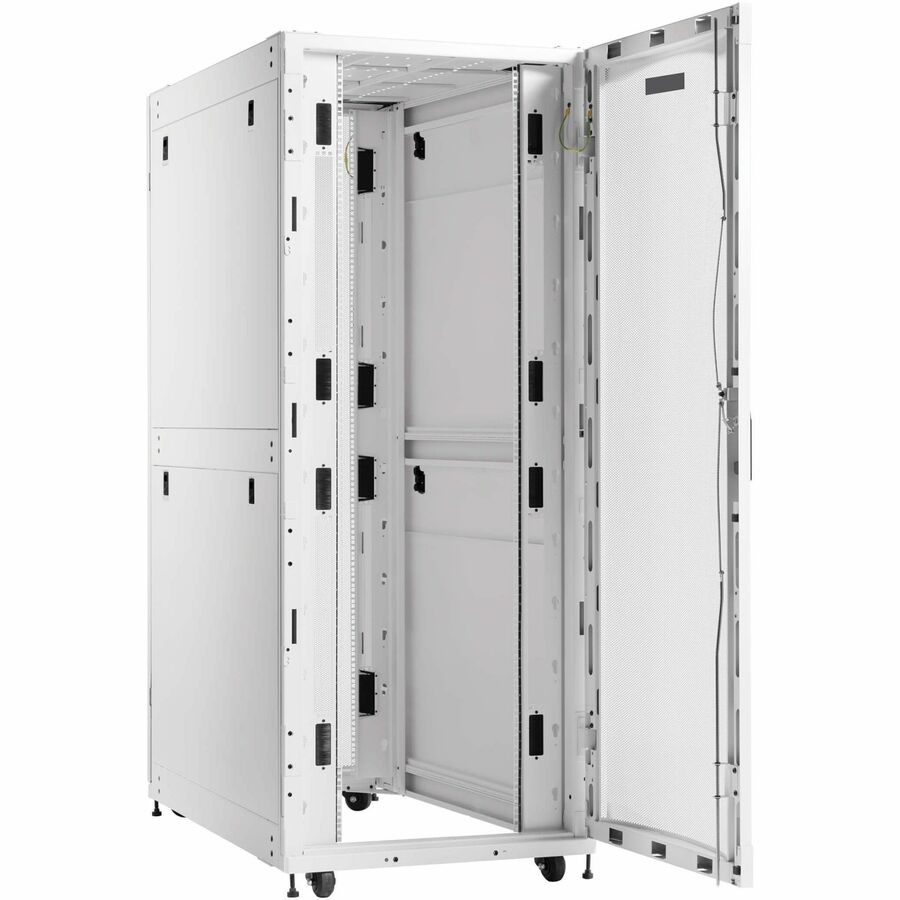

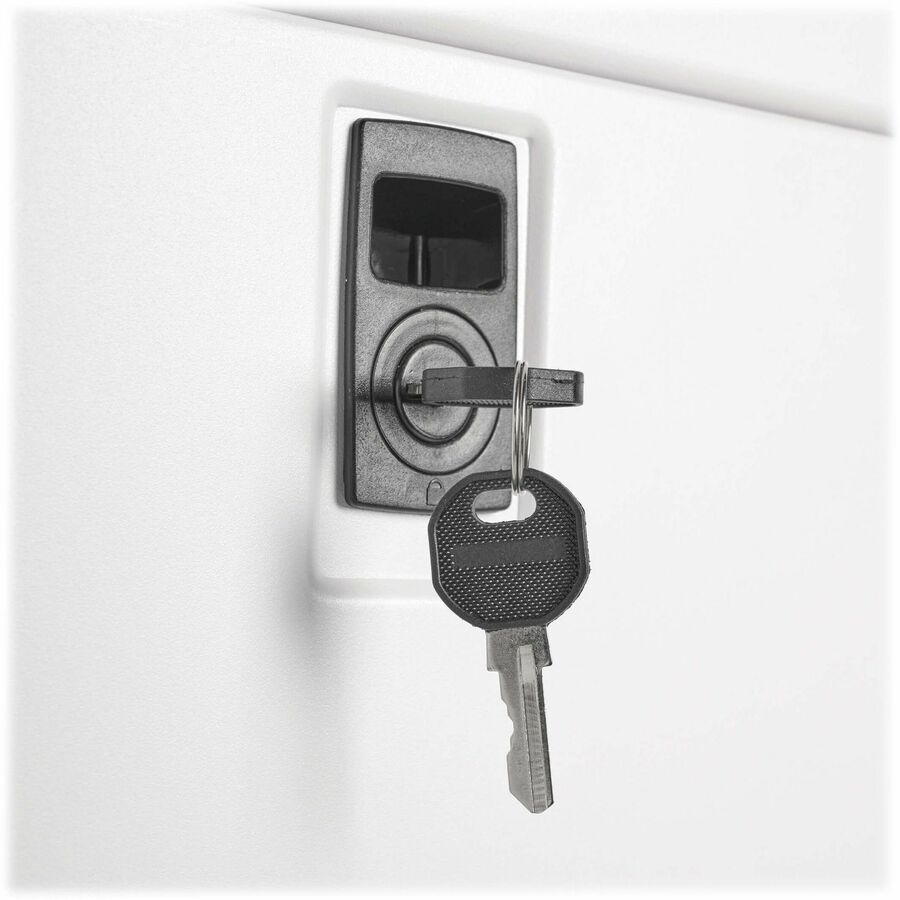

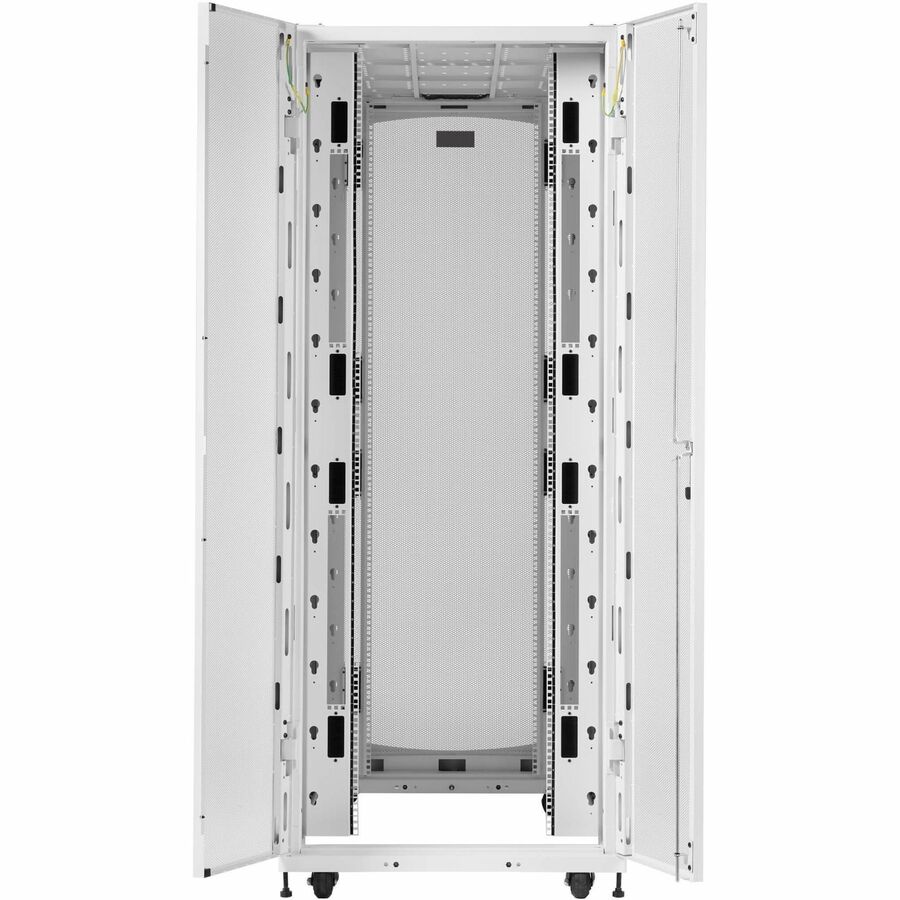

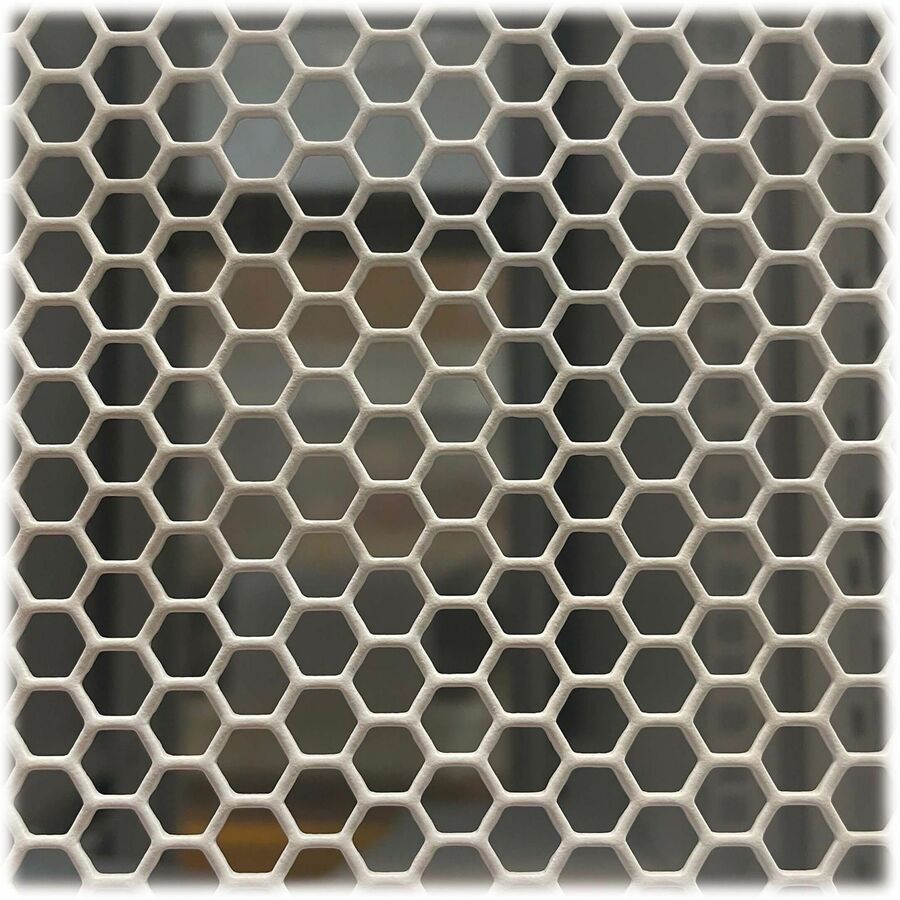

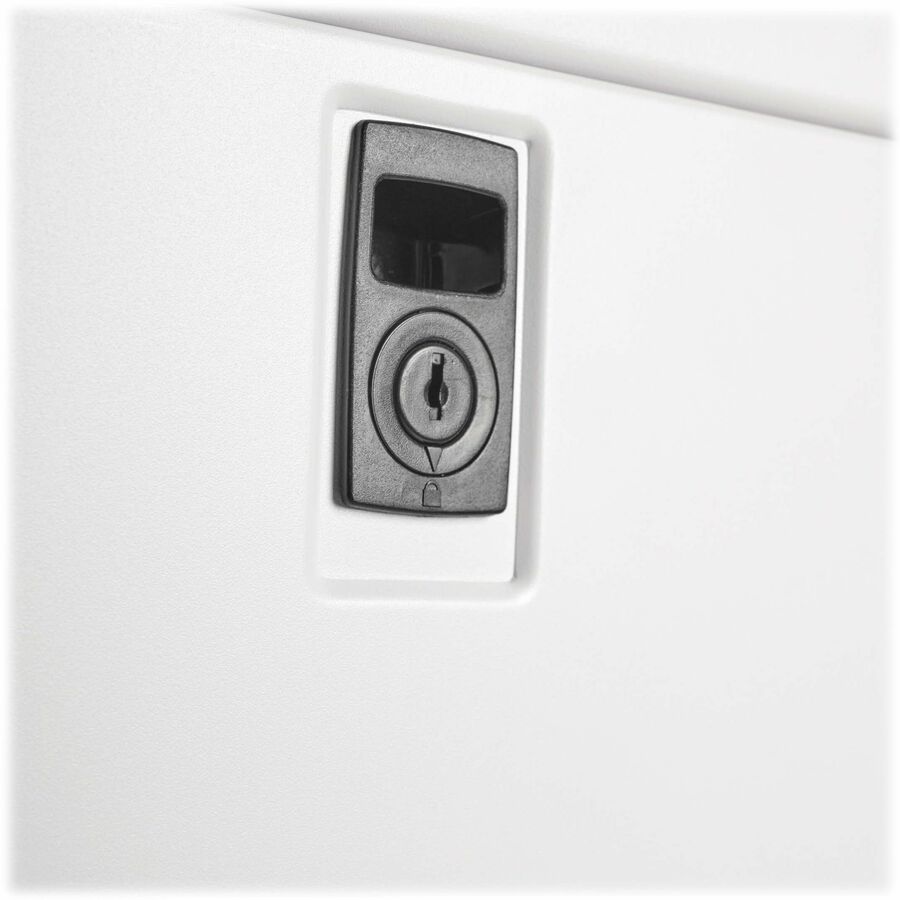

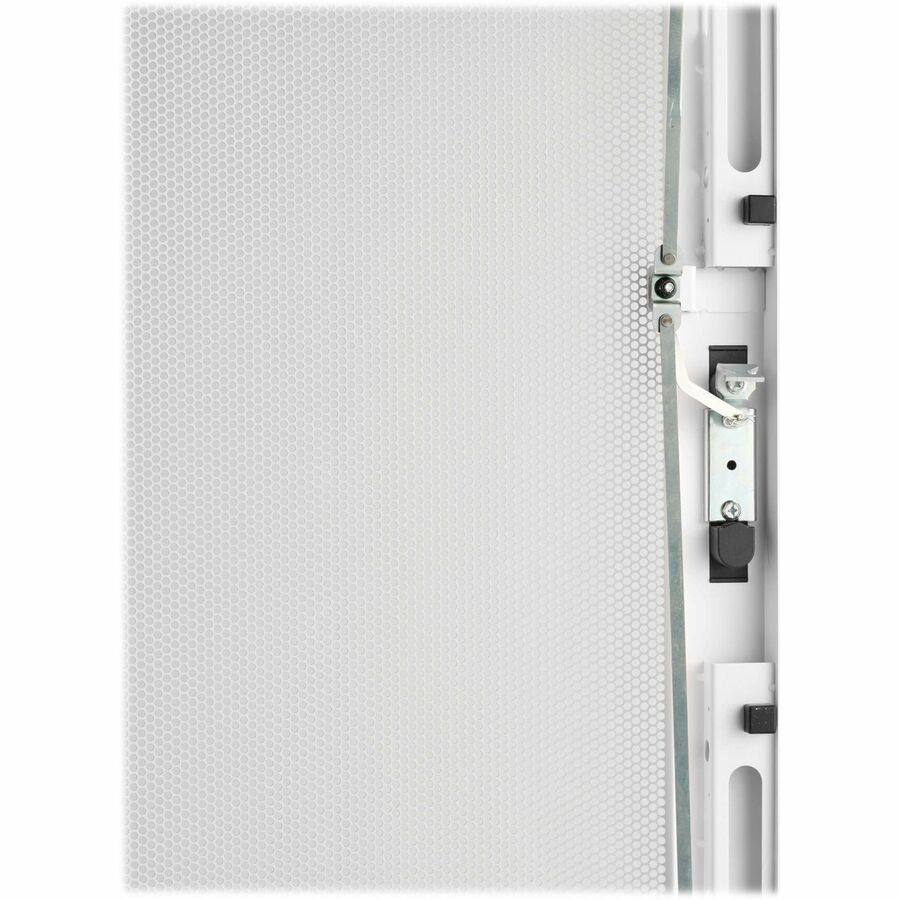

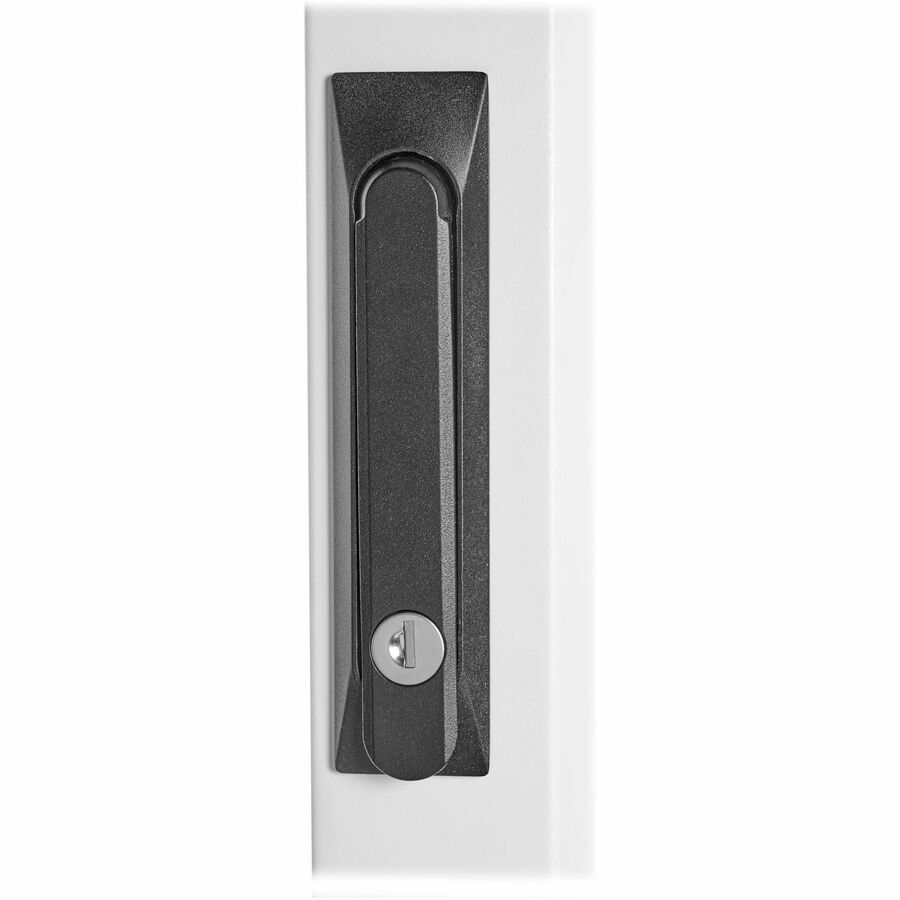

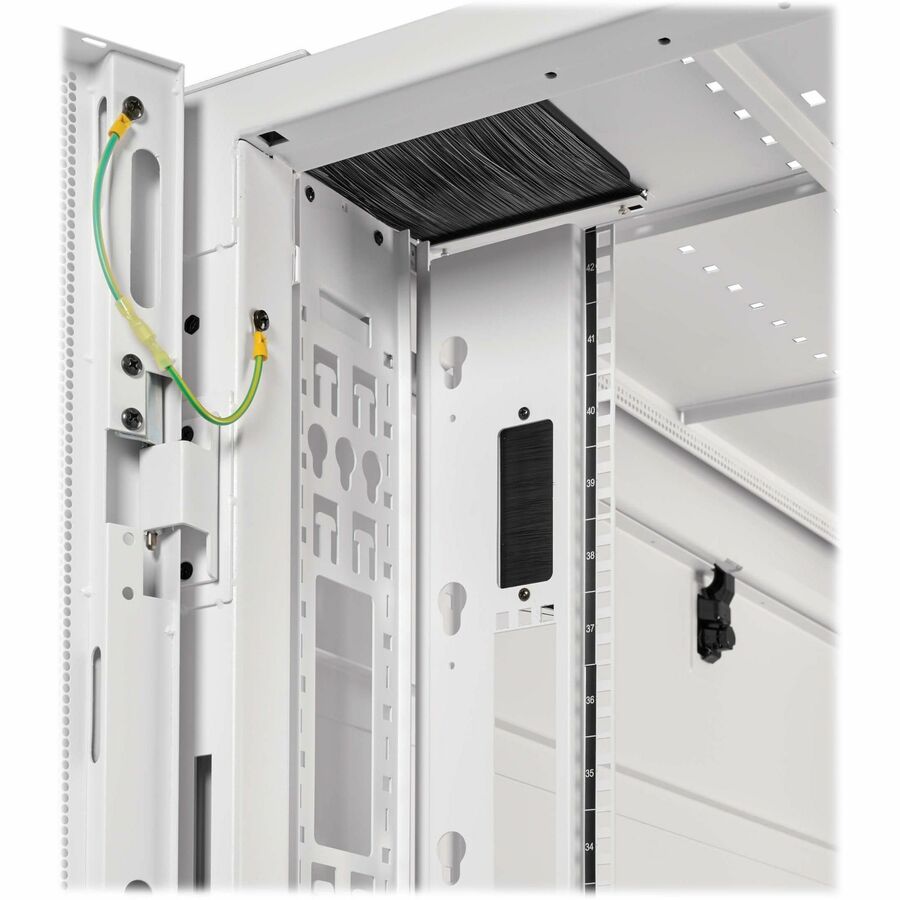

The reversible front door, split rear doors and removable side panels lock securely with the included keys to help prevent damage, tampering or theft. The doors and side panels are designed for quick release, making it simple to access connected equipment and cabling with little effort. The removable roof panel has strategically placed pass-throughs to accommodate cables from vertical 0U PDUs and other equipment. The perforated front and split rear doors allow generous airflow from front to rear to help keep your equipment cool and functioning at its peak.

White Server Rack Improves Visibility for Easier Maintenance

The SRH423246W features a white powder-coated finish both inside and outside. This white rack makes it easier to see the equipment mounted inside high-density installations. Improved visibility of ports and cables allows easier, faster installation and maintenance and helps reduce accidental disconnections.

Easy Enclosure and Equipment Installation

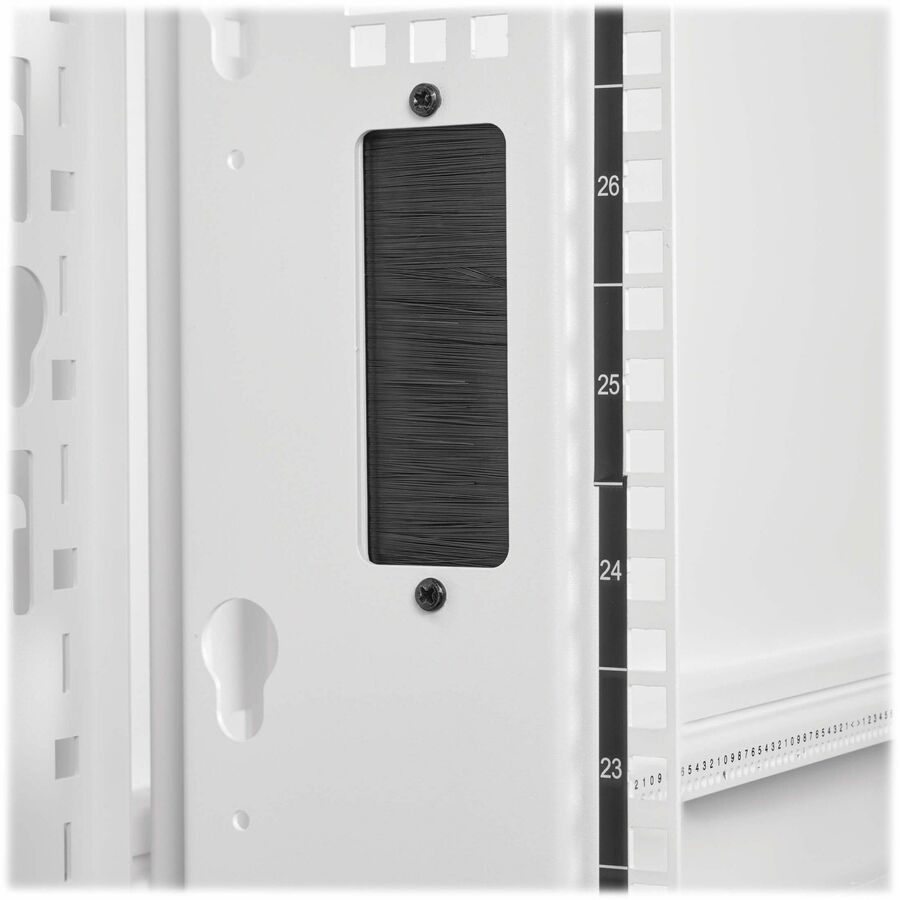

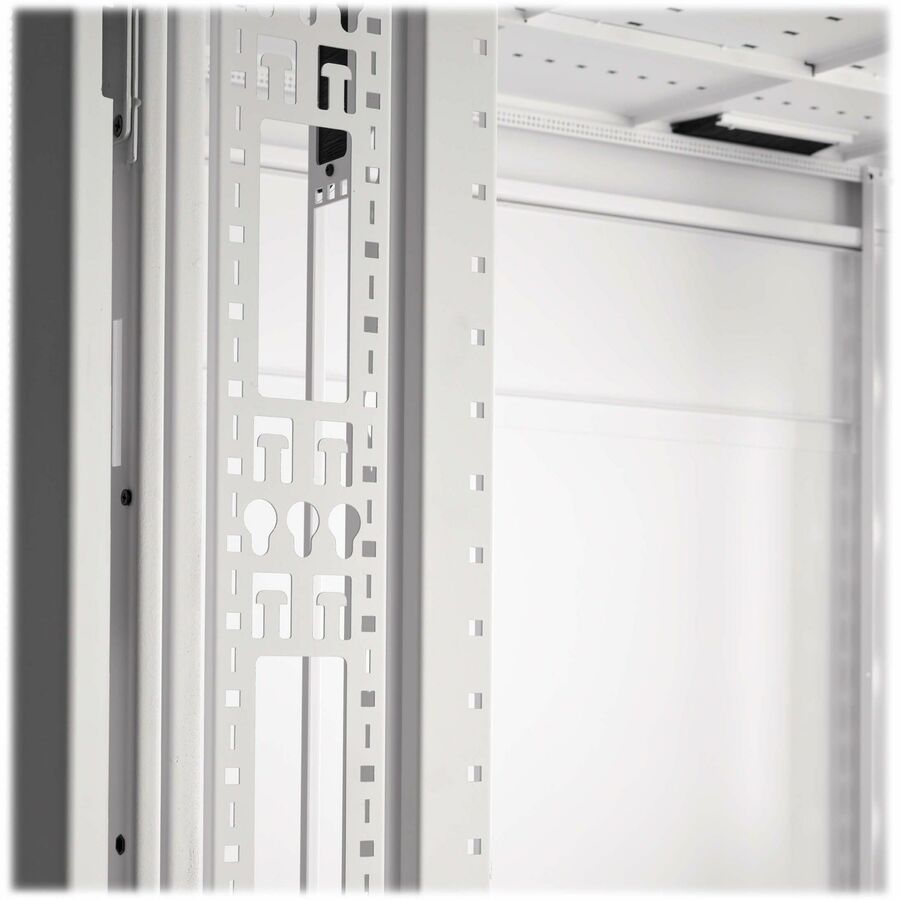

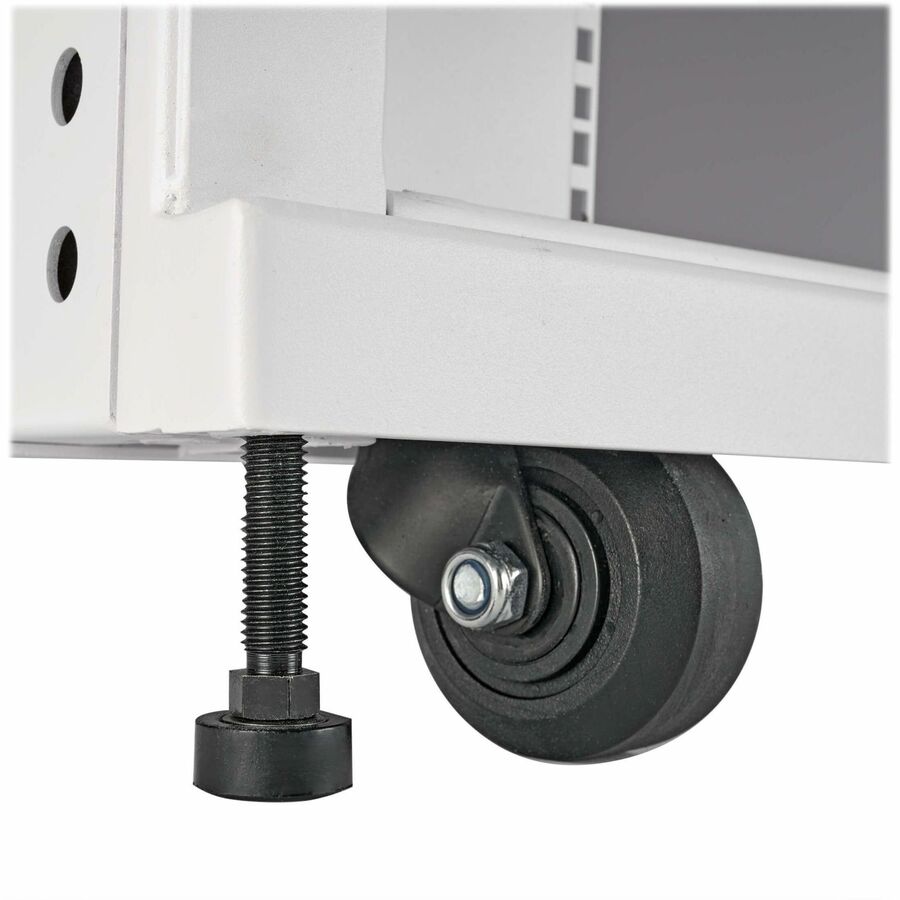

This 42U server rack comes fully assembled for quick deployment with pre-installed casters that let you maneuver it over a level surface, where it can be stabilized by adjusting the levelers. Toolless 0U mounting rails allow quick installation of compatible PDUs and vertical cable managers. Built-in baying brackets allow the combination of two or more rack cabinets in a row.

Extra Depth and Width Offer More Installation Options

The SRH423246W is deeper than a standard rack's 42 inches and wider than the usual 600 millimeters. At 46 inches (1168 millimeters) deep, this rack can accommodate larger, heavier servers and other equipment of equivalent mass. The rack's 800-millimeter (31.5-inch) width provides side channels for mounting accessories, more room for routing cables and increased airflow to help keep equipment cool.

Meets Payment Card Industry Standards

The SRH423246W provides physical equipment and media security needed for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or send credit card information.

• Server
• IT Equipment
• PDU
• Patch Panel

• Heavy Duty
• Powder Coated
• Casters
• Reversible Front Door
• Rear Door
• Removable Side Panel
• Damage Resistant
• Tamper Resistant
• Anti-theft
• Quick Release Side Panel
• Perforated Door
• Leveling System
• Cable Management
• Lockable
• Adjustable Depth

• SmartRack SRH423246W Rack Cabinet
• 4x Side panels
• 8x Side panel locks
• 2x Keys
• 60x Phillips-head mounting screws (M6 x 5/8 in.)
• 60x Nylon cup washers
• 60x Cage nuts
• Owner's manual
