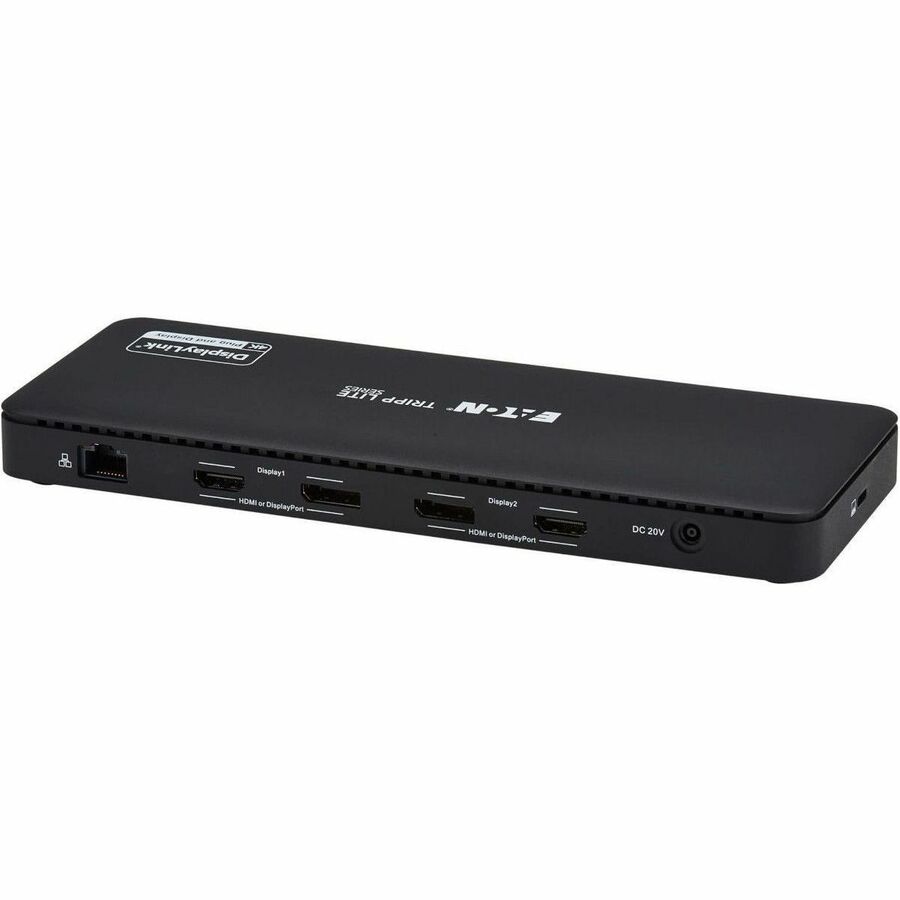

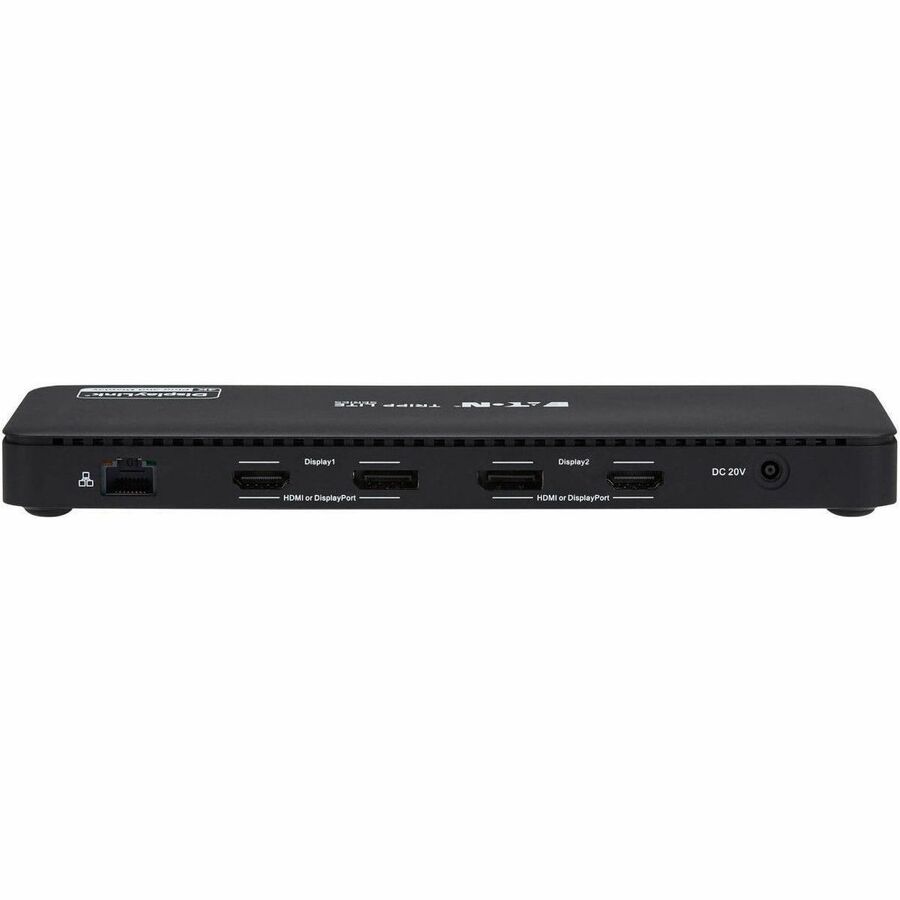

USB-C UNIV DOCK DUAL DISPLAY 4K HDMI DP GBE 100W PD CHARGING

Name: USB-C UNIV DOCK DUAL DISPLAY 4K HDMI DP GBE 100W PD CHARGING
Brand: EATON
SKU: UJ2177
Price: 254.35 USD
Availability: InStock

EATON

PCN#

UJ2177

MFG#

U442-DOCK24DL2A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$254.35

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

for Notebook, Computer, Headphone, Monitor, HDTV, Printer, Smartphone, Projector, Desktop PC, Workstation, Hard Drive, ...
Charging Capability
USB Type C
2 Displays Supported
4K @ 60Hz, HD, Full HD, 2K @ 60Hz
3840 x 2160, 1280 x 720, 1920 x 1080, 2048 x 1080
7 x USB Ports
5 x USB Type
A Ports
USB Type
A
2 x USB Type
C Ports
USB Type
C
1 x RJ
45 Ports
Network (RJ
45)
HDMI
DisplayPort
Black
Wired
2.5 Gigabit Ethernet
100W

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 3 lbs.

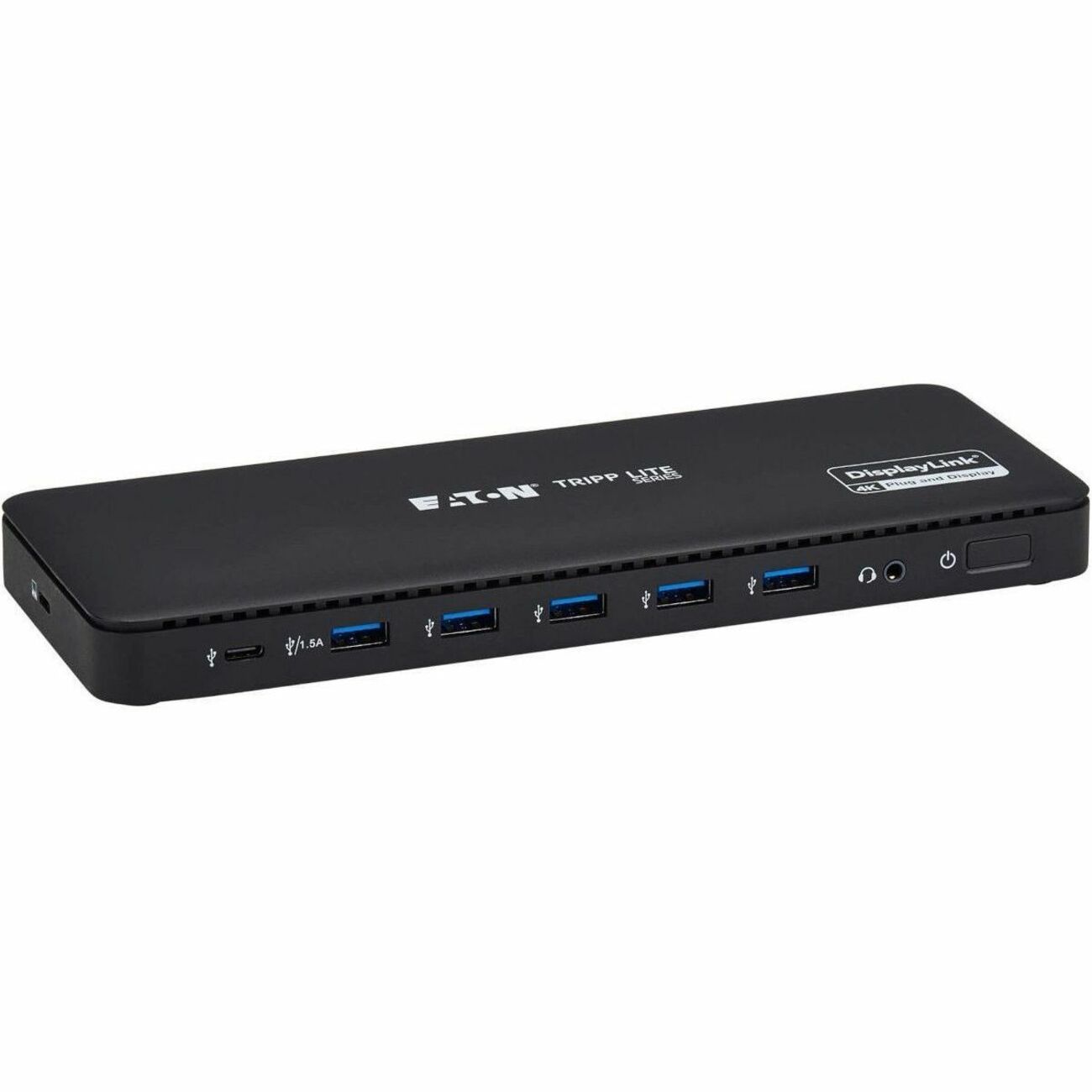

Eaton Tripp Lite Series USB-C Universal Dock, Dual Display - 4K HDMI and DisplayPort, USB 3.2 Gen 1 Hub, GbE, 100W PD Charging

Overview

Tech Specs

Specifications

Manufacturer	Eaton Corporation
Manufacturer Part Number	U442-DOCK24DL2A
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Line	Universal
Product Model	U442-DOCK24DL2A
Product Name	Universal U442-DOCK24DL2A Docking Station

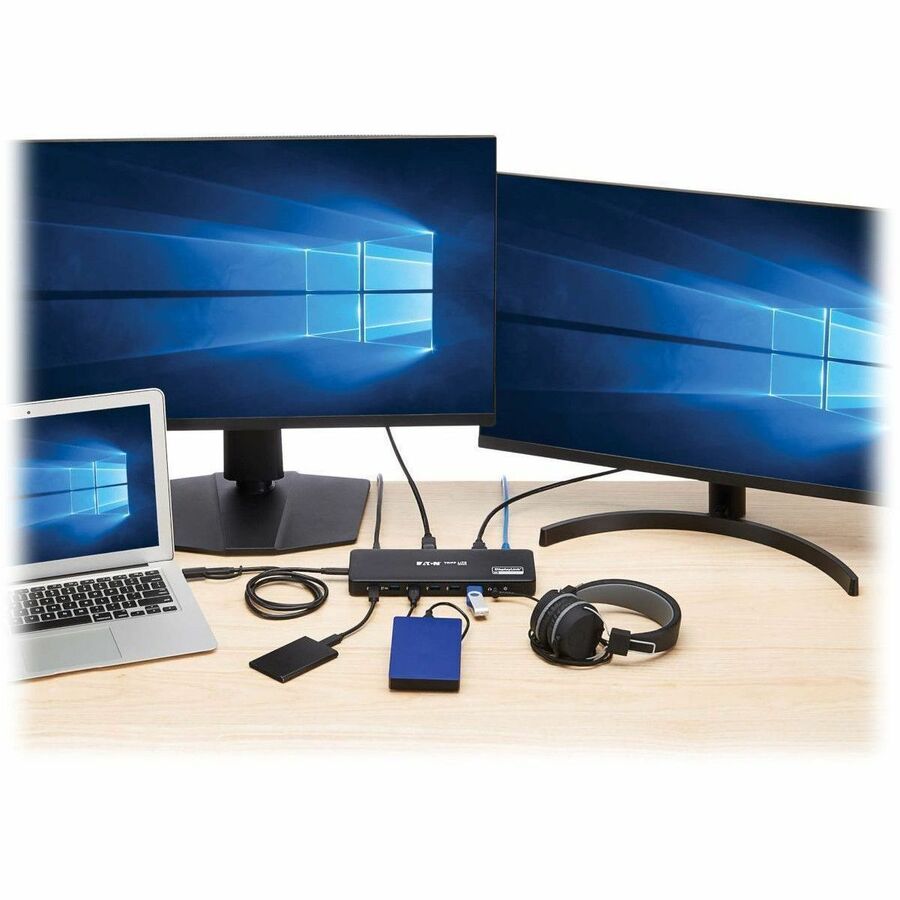

Marketing Information	Features \| USB-C Docking Station Turns Your Laptop into a Multiport Workstation This professional workspace dock dramatically expands the potential of your MacBook or Windows laptop by adding 12 ports to its USB-C or Thunderbolt 3 port. Not only does the U442-DOCK24DL2A allow you to transmit 4K video to two displays at the same time, but you can also add USB peripherals, connect to a Gigabit Ethernet network, charge your laptop and more. Transmits 4K Video and Digital Audio to 2 Displays Simultaneously Two HDMI and two DisplayPort (DP) outputs individually support 4K video resolutions up to 3840 x 2160 at 60 Hz with High Dynamic Range (HDR), 36-bit Deep Color and 4:4:4 chroma subsampling. You can connect two HDMI monitors, two DP monitors or one HDMI and one DP monitor at the same time and transmit 4K @ 60 Hz video to both. This allows you to display the image from the host computer (including M1/M2/M3 MacBooks) on two monitors, extend your host desktop across two monitors with different windows open on each, or combine the desktop and two monitors into one large display as a video wall. USB Hub Ports Connect Keyboards, External Storage and Other Peripherals One USB-C and five USB-A hub ports accept USB peripherals, including keyboards/mice, hard drives and flash drives, and printers. All six ports support fast USB 3.2 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. One port also supports 1.5A charging for charging mobile phones or tablets. PD Charging Port Charges Host Device via AC Wall Charger The USB-C Power Delivery (PD) port supports power output up to 100W, which is more than sufficient for charging and powering the connected source device, such as a MacBook Pro, Windows laptop or Chromebook. Just connect the device's wall charger to both the USB-C PD port and an AC outlet. Accesses a Wired Gigabit Ethernet Network The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers. Connects Speakers, Microphone and Other Audio Equipment The 3.5 mm mini stereo jack is convenient for connecting speakers, headphones or a microphone to your workstation. You can listen to music or record the latest episode of your podcast. Anti-Theft Lock Protects the USB-C Docking Station When You Aren't Around Connect a user-supplied computer/laptop security cable lock (not included) to this port to protect the dock against theft.
Product Type	Docking Station

Technical Information

Connectivity Technology	Wired
Charging Capability	Yes
Device Supported	Notebook Computer Headphone Monitor HDTV Printer Smartphone Projector Desktop PC Workstation Hard Drive Mouse Flash Drive Tablet Speaker Microphone
Cable Length	3.94 ft

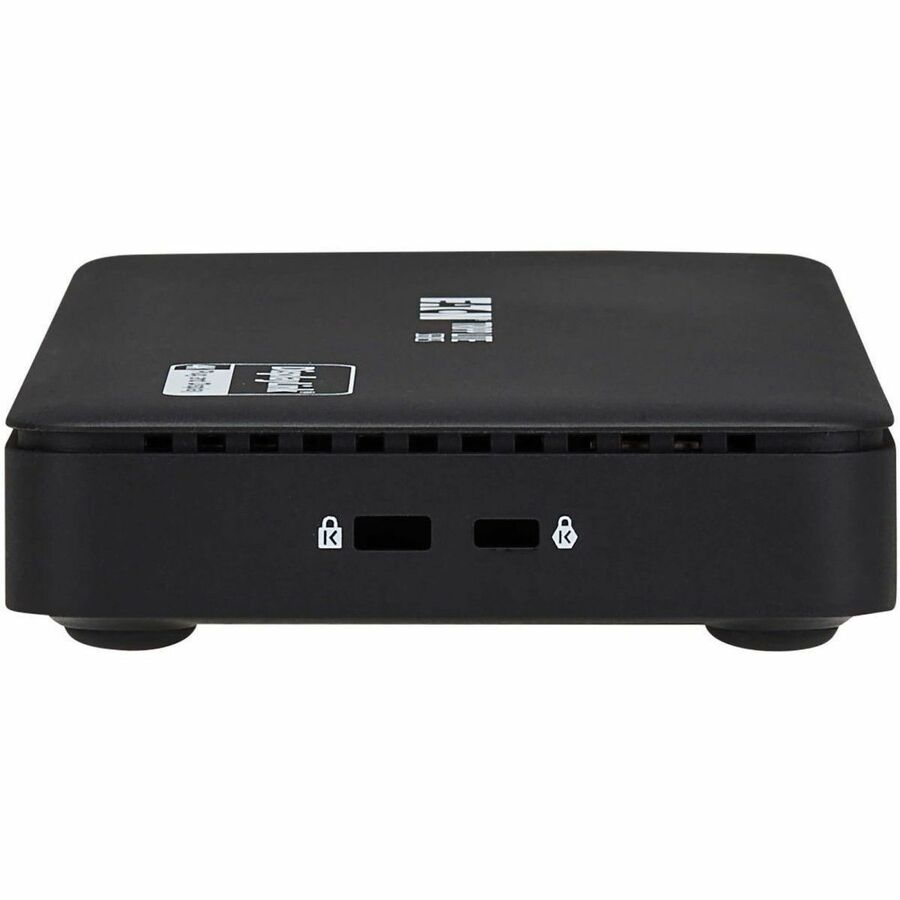

Features	Power Delivery Pass-through LED Power Indicator Security Lock
Number of Displays Supported	2
Screen Mode Supported	4K @ 60Hz HD Full HD 2K @ 60Hz
Supported Resolutions	3840 x 2160 1280 x 720 1920 x 1080 2048 x 1080
Maximum Data Transfer Rate	6 GB/s

Network & Communication

Ethernet Technology

2.5 Gigabit Ethernet

Interfaces/Ports

Host Interface	USB Type C
Total Number of USB Ports	7
USB Type-A	Yes
Number of USB 3.2 Gen 1 Type-A Ports	5
Number of USB Type-A Ports	5
USB Type-C	Yes
USB Type-C Detail	1 x USB-C - USB 3.2 Gen 1 (5 Gbps), 1 x USB-C: 100W (20V 5A) Power Delivery (PD 2.0)
Number of USB Type-C Ports	2
Network (RJ-45)	Yes
Number of RJ-45 Ports	1
DisplayPort	Yes
DisplayPort Version	1.4
Number of DisplayPort Outputs	2
Headphone/Microphone Combo Port	Yes
HDMI	Yes
Number of HDMI Outputs	2
USB Power Delivery	100W

Software

Operating System Supported

Windows
macOS
ChromeOS
Android
Ubuntu

Power Description

Input Voltage Detail	120 V AC 230 V AC
Power Source Type	Power Adapter

Physical Characteristics

Color Family	Black
Product Color	Black
Height	0.87"
Width	8.86"
Depth	3.35"
Weight (Approximate)	12.80 oz

Miscellaneous

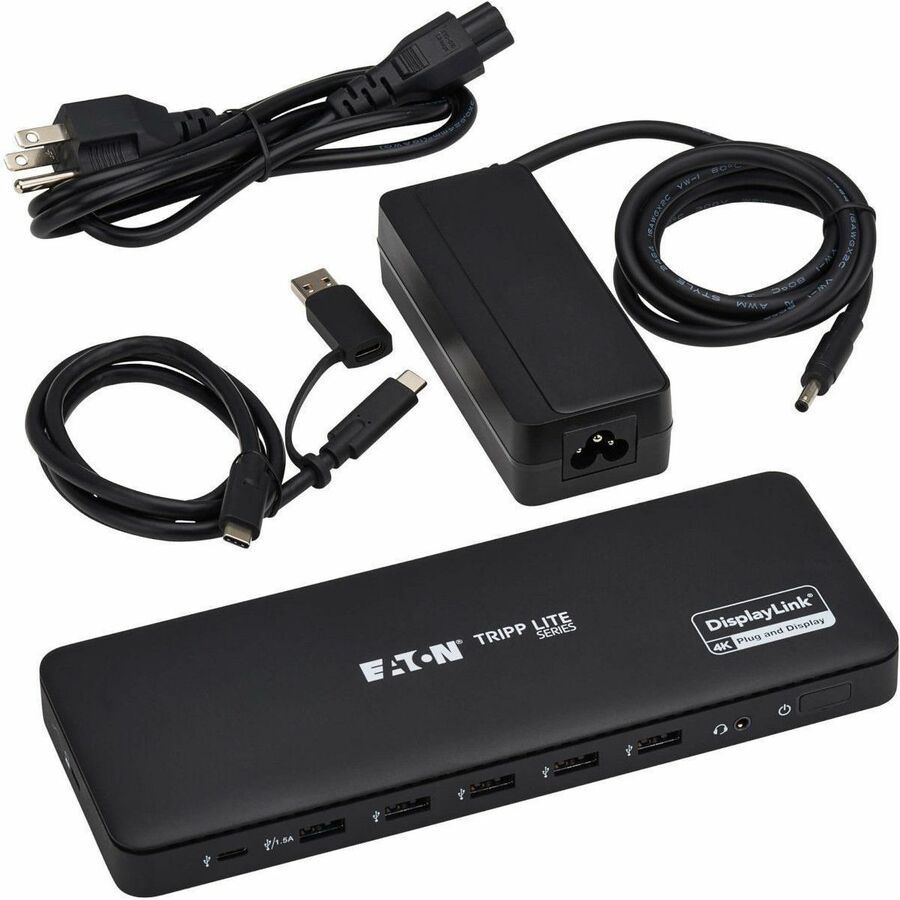

Package Contents	Universal U442-DOCK24DL2A Docking Station USB-C Host Cable (M/M), 4 ft. (1.2 m) External Power Supply (Input: 100-240V, 50/60 Hz, 2.5A; Output: 21V 7.1A) with 4 ft. (1.2 m) Cord and NEMA 5-15P Plug Installation Instructions
Compatibility	Apple M1/M2/M3 MacBooks Apple MacBook Pro Chromebook
Brand Compatibility	Apple
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	Vietnam

Warranty

Limited Warranty

1 Year
