USB-C DOCKING STATION ROG ALLY 4K60HZ HDMI USB GBE 100W CHARGING

Name: USB-C DOCKING STATION ROG ALLY 4K60HZ HDMI USB GBE 100W CHARGING
Brand: EATON
SKU: SR0110
Price: 46.34 USD
Availability: InStock

EATON

PCN#

SR0110

MFG#

U442-DOCKSD-1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$46.34

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $14.99

1-Year $10.99

Estimated Shipment:

Product Highlights:

for Monitor, HDTV, Video Game System, Keyboard, Mouse, Hard Drive, Desktop PC, Flash Drive, Gaming Console
Charging Capability
USB Type C
1 Displays Supported
4K @ 60Hz, 4K
3840 x 2160
4 x USB Ports
2 x USB Type
A Ports
USB Type
A
2 x USB Type
C Ports
USB Type
C
Network (RJ
45)
1 x HDMI Ports
HDMI
Black
Wired
Gigabit Ethernet
100W

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

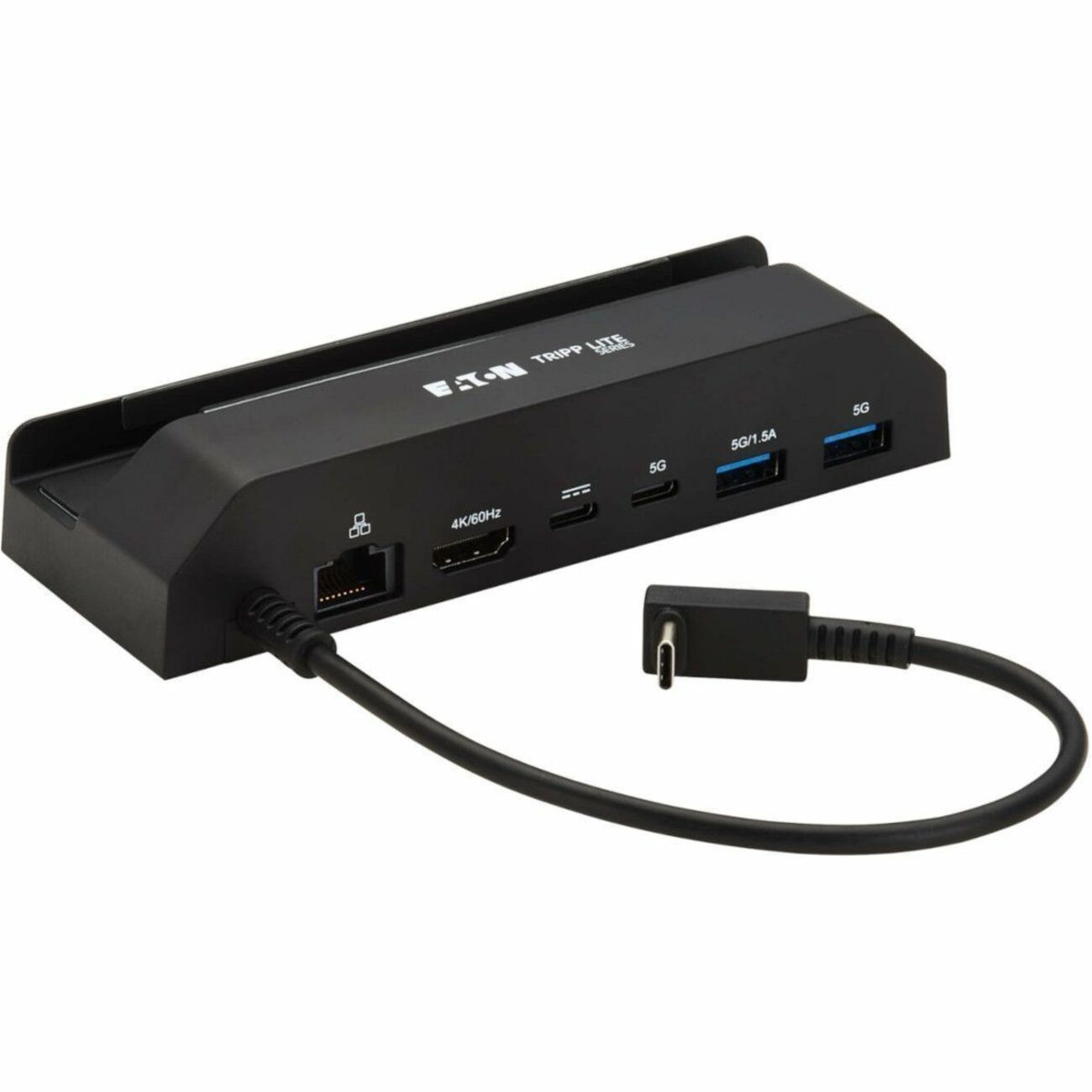

Eaton Tripp Lite Series USB-C Docking Station for Steam Deck and ROG Ally - 4K 60 Hz HDMI, USB Hub, Gigabit Ethernet, 100W PD Charging

Overview

Tech Specs

Specifications

Manufacturer	Eaton Corporation
Manufacturer Part Number	U442-DOCKSD-1
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite series
Product Model	U442-DOCKSD-1
Product Name	U442-DOCKSD-1 Docking Station

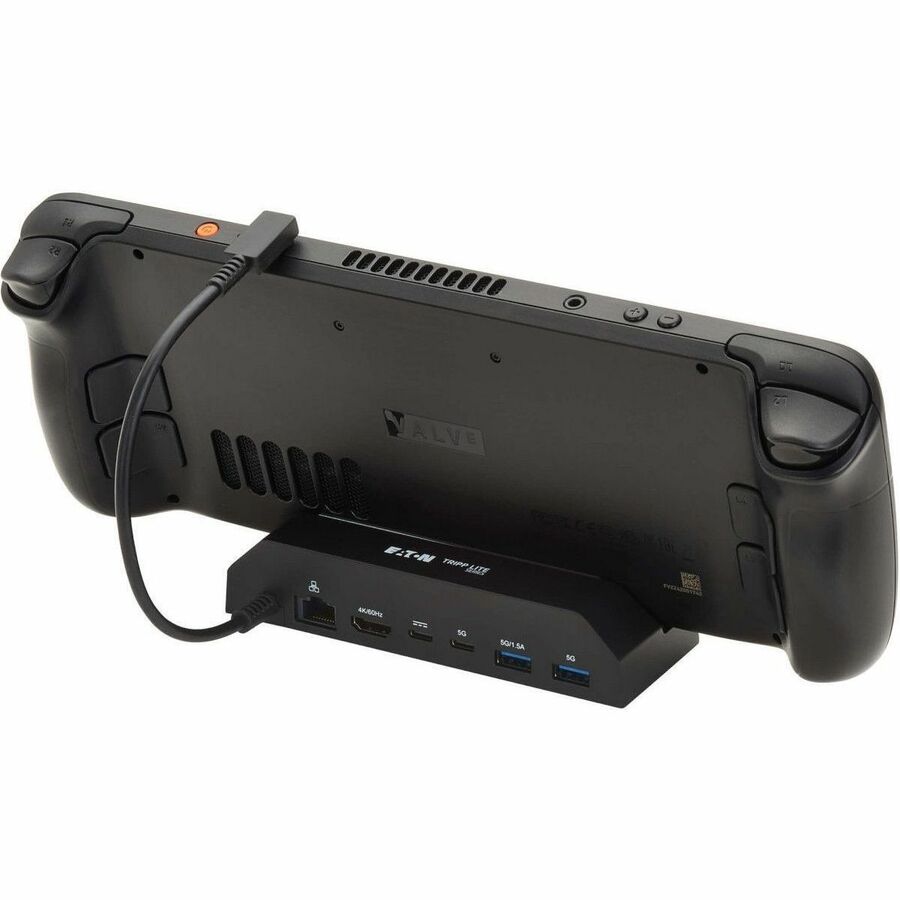

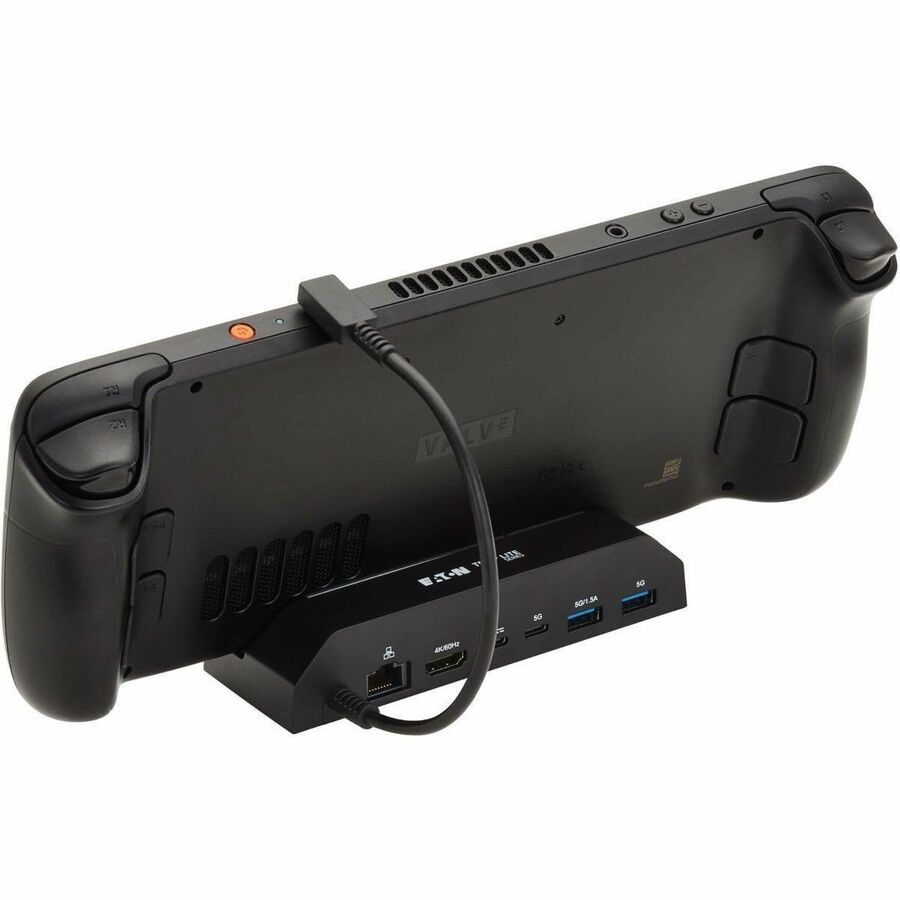

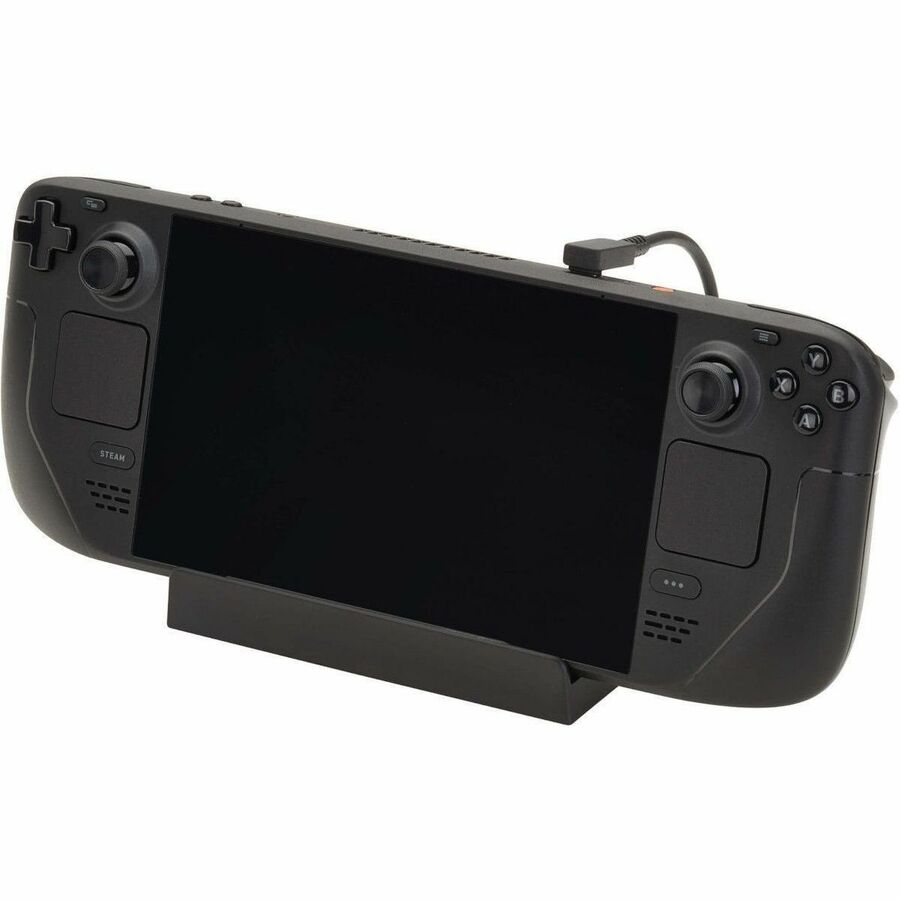

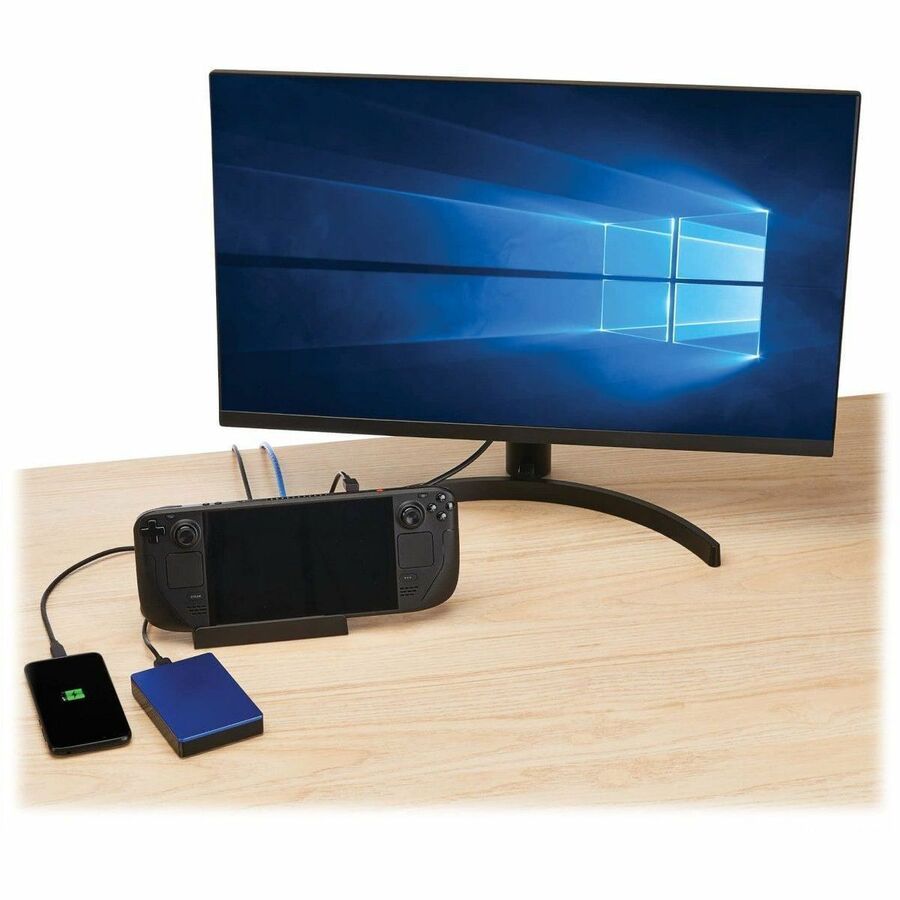

Marketing Information	Features \| USB-C Docking Station Turns Your Handheld Gaming Console into a Desktop Gaming PC This USB-C dock with PD charging expands the potential of your Steam Deck or ASUS ROG Ally. Just insert your game console into the docking station's cradle, and connect the dock's built-in USB-C cable to your handheld's USB-C port. You can now experience handheld gaming on a large 4K screen, connect a keyboard and mouse, transfer data to external storage, join a wired Gigabit Ethernet network and charge your gaming console to maximum power. Transmits 4K Video with HDR and 4:4:4 Color The HDMI port supports Ultra HD 4K resolutions up to 3840 x 2160 at 60 Hz with 36-bit Deep Color for gameplay on a large monitor. The U442-DOCKSD-1 supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. This dock also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming. PD Charging Port Supports up to 100W for Rapid Syncing and Charging The Power Delivery port provides power output up to 20V 5A (100W), which is sufficient for fast-charging your Steam Deck or ROG Ally when not in use. Connect a user-provided USB-C charging cable (sold separately) between the USB-C PD charging port and a compatible USB-C PD charger. USB Ports Connect Keyboards, Thumb Drives and Other Peripherals One USB-C and one USB-A hub port accept USB peripherals, such as external storage drives, mice and keyboards. They support USB 3.2 Gen 1 data transfer rates up to 5 Gbps (10 times faster than USB 2.0) and are backward compatible with USB 2.0 and USB 1.1 devices. Accesses a Wired Gigabit Ethernet Network The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast lag-free gaming. Ready to Use Right Out of the Package The plug-and-play USB-C dock is specifically designed for use with the Smart Deck or ROG Ally. It requires no extra software to be downloaded and installed.
Product Type	Docking Station

Technical Information

Connectivity Technology	Wired
Charging Capability	Yes
Device Supported	Monitor HDTV Video Game System Keyboard Mouse Hard Drive Desktop PC Flash Drive Gaming Console
Cable Length	6.69"
Features	Power Delivery Pass-through Plug & Play
Number of Displays Supported	1
Screen Mode Supported	4K @ 60Hz 4K
Supported Resolutions	3840 x 2160
Maximum Data Transfer Rate	640 MB/s

Network & Communication

Ethernet Technology

Gigabit Ethernet

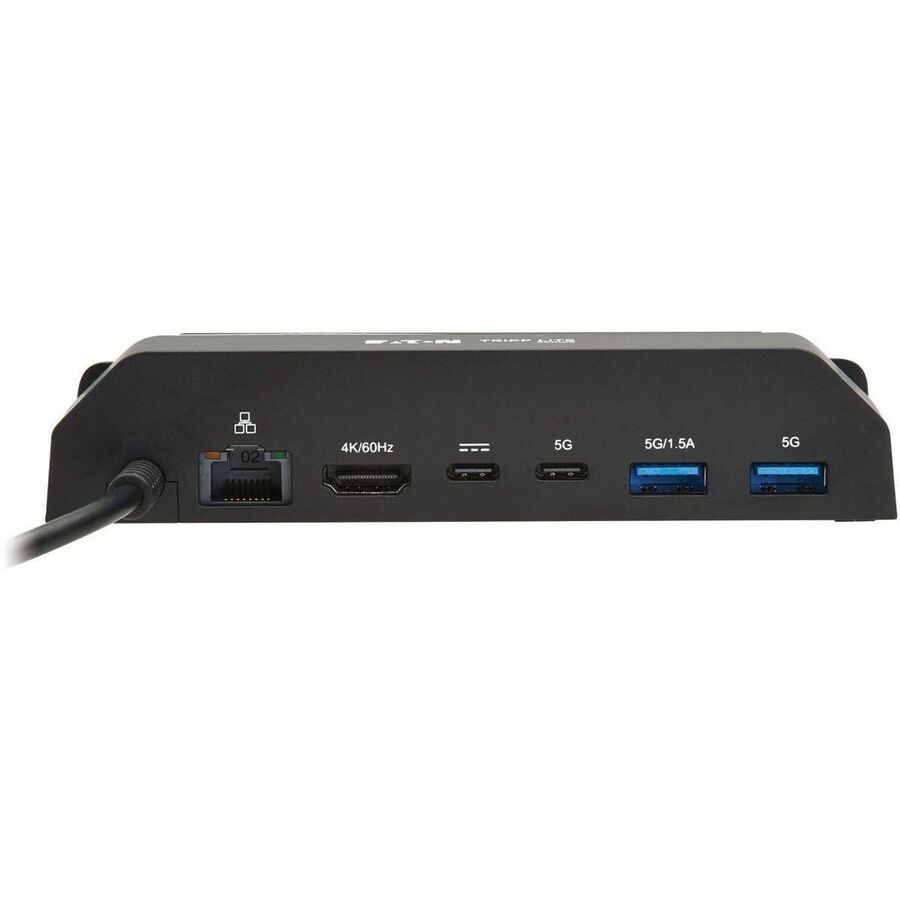

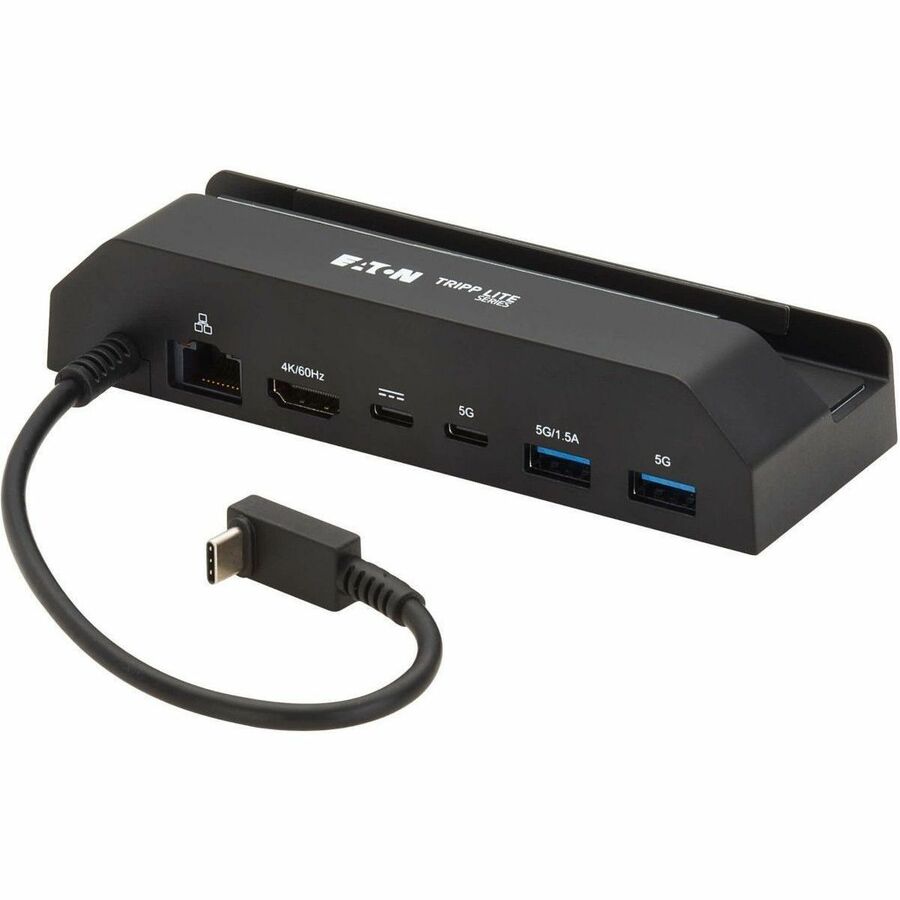

Interfaces/Ports

Host Interface	USB Type C
Total Number of USB Ports	4
USB Type-A	Yes
Number of USB 3.2 Gen 1 Type-A Ports	2
Number of USB Type-A Ports	2
USB Type-C	Yes
USB Type-C Detail	1 x USB-C: 0.9A, 1 x USB-C: 100W (20V 5A) Power Delivery
Number of USB Type-C Ports	2
Network (RJ-45)	Yes
HDMI	Yes
Number of HDMI Ports	1
USB Power Delivery	100W

Power Description

Power Source Type

Power Supply

Physical Characteristics

Color Family	Black
Product Color	Black
Height	1.16"
Width	5.59"
Depth	2.01"
Weight (Approximate)	4.64 oz

Miscellaneous

Package Contents	U442-DOCKSD-1 Docking Station Installation Instructions
Brand Compatibility	Asus
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

3 Year
