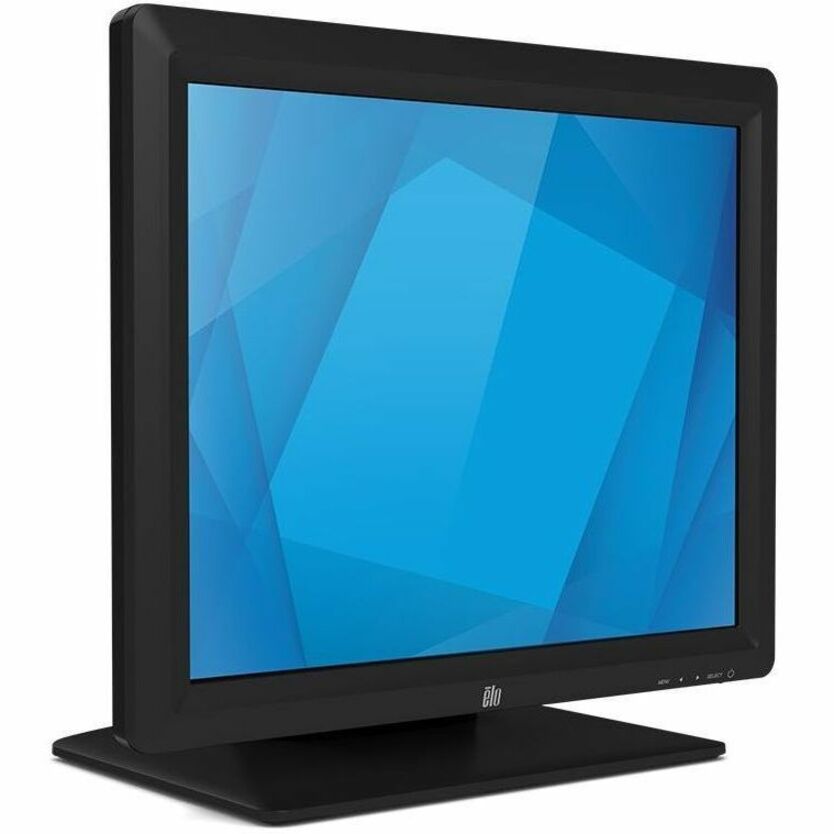

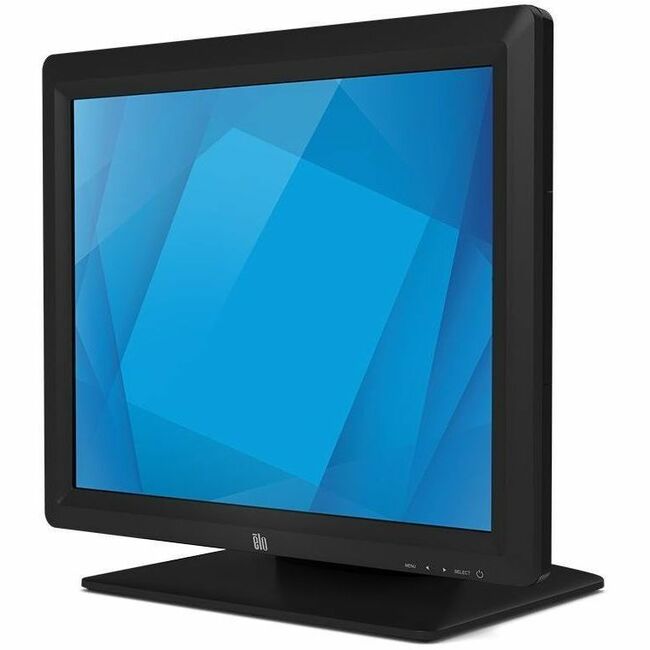

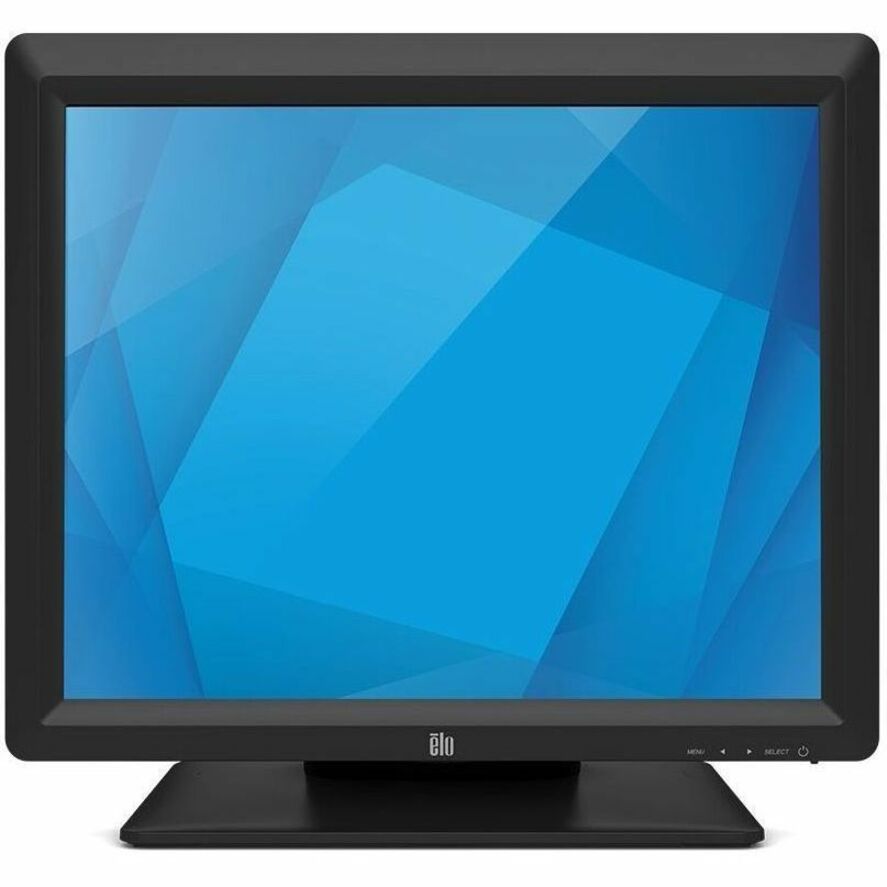

1517L 15IN LCD PCAP 10TOUCH USB RS232 CONTROLLER AG VGA BLK

The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

Integrated touch. | MSR ready.

The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

Flexible mounting.

The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touch monitor ensure table-top security.

Other features.

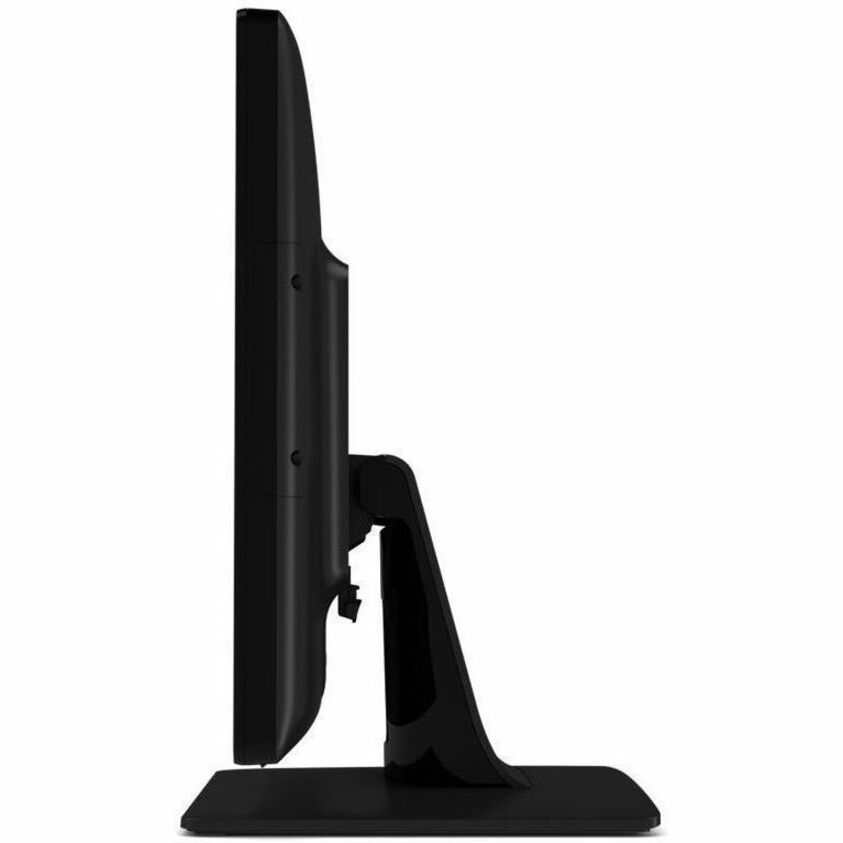

• Sleek and thin design with built-for-touch reliability
• Flexible and space-saving
• 60% Energy savings using LED technology
• Sealed touchscreen against dirt, dust and liquids

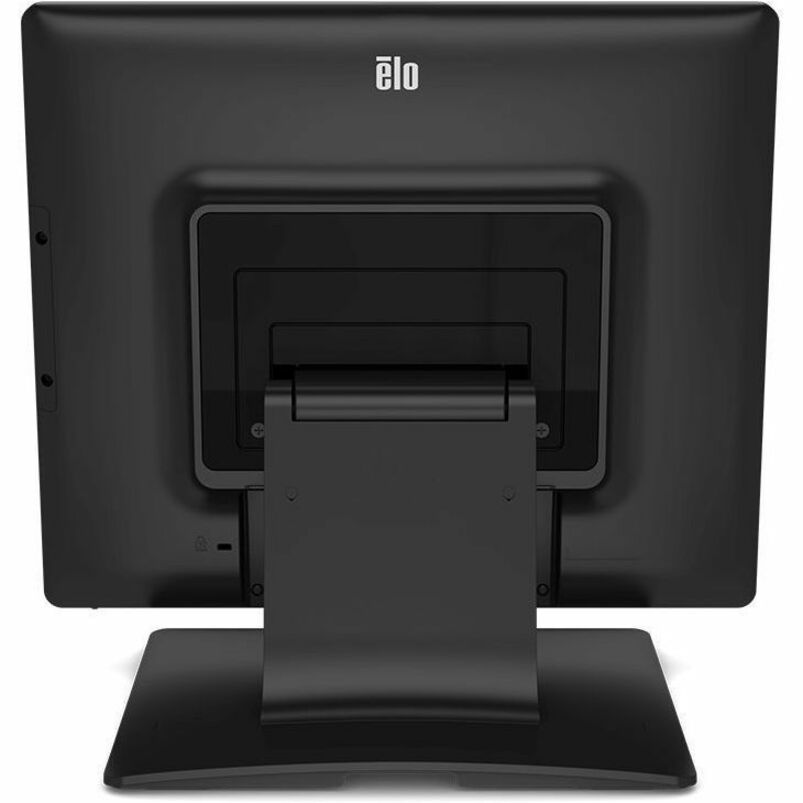

• Removable base and mounting options including VESA, wall and pole-mounting
• USB and RS232 serial connections
• Typical power consumption: 12W, internal and external power options
• Three-year standard warranty

• Wall Mountable
• Pole Mount
• Desk Mountable

• On-screen Display (OSD)
• Color Temperature Selection
• Energy Saving Mode

• 50 Hz
• 60 Hz

• 1517L 15" Touchscreen Monitor
• Quick Install Guide
• VGA Cable (DB-15 Male to DB-15 Male)
• Touch USB Cable (USB Type A Plug to USB Type B Plug)
• Power Cable IEC 60320-C5 to NA/EU Plug
• Stand Base Assembly
• Filler Plate
• HDMI Cable

• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

• Commercial
• Point of Sale (POS)
