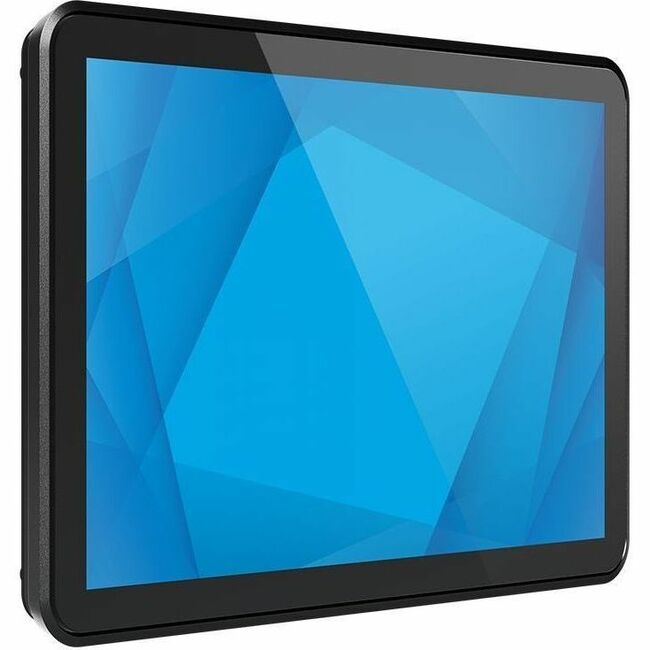

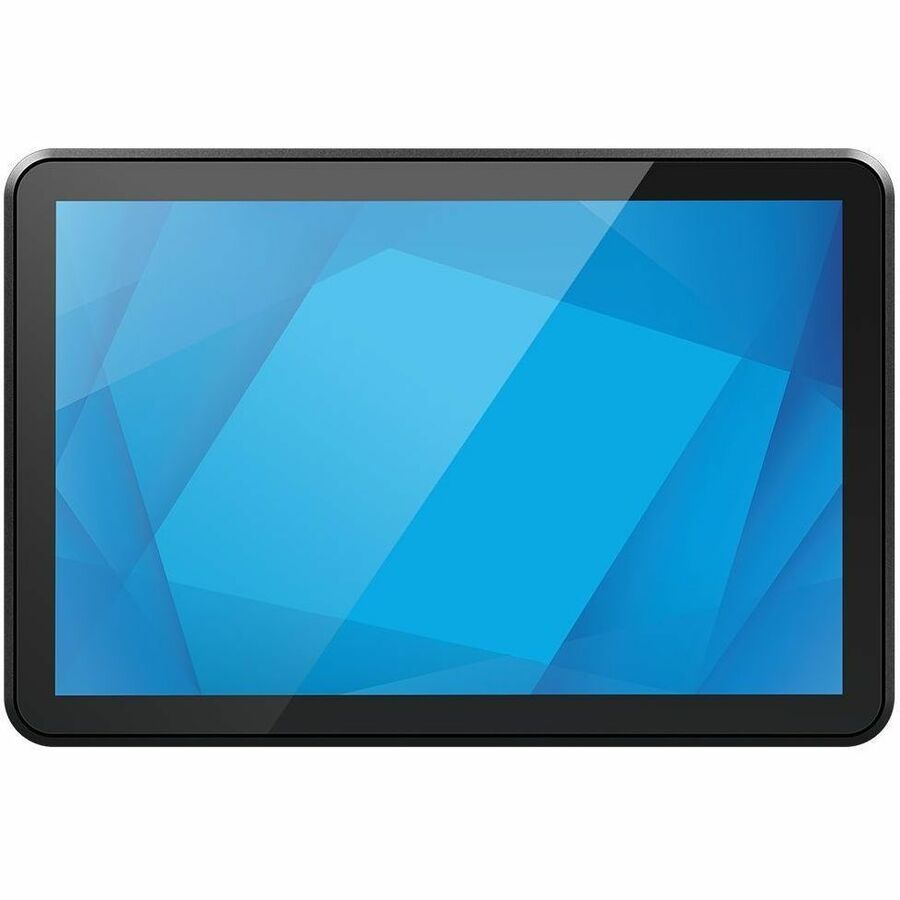

ELO 1064L 10.1-INCH HD OPTICALLY BONDED LCD (LED BACKLIGHT

Name: ELO 1064L 10.1-INCH HD OPTICALLY BONDED LCD (LED BACKLIGHT
Brand: ELO
SKU: 010H38
Price: 458.11 USD
Availability: InStock

ELO

PCN#

010H38

MFG#

E971060

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$458.11

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

10.1" Viewable
TouchPro Projected Capacitive
10 Point(s) Multi
touch Screen
1280 x 800
WXGA
Thin Film Transistor (TFT)
16.7 Million Colors
450 Nit
LED Backlight
HDMI
USB
DisplayPort
USB Type
C
Black

Product Condition: New and Factory Fresh

Shipping Weight: 6 lbs.

Elo 1064L 10" Class Open-frame LED Touchscreen Monitor - 16:10 - 29 ms

Overview

Tech Specs

Specifications

Manufacturer	Elo Touch Solutions, Inc
Manufacturer Part Number	E971060
Manufacturer Website Address	http://www.elotouch.com
Brand Name	Elo
Product Model	1064L
Product Name	1064L Open-frame LED Touchscreen Monitor
Marketing Information	1064L 10-inchIndustrial-Grade Open Frame Touch Display Elo's 1064L 10-inch HD open-frame delivers a brilliant, industrial-grade touchscreen monitor designed for easy integration into enclosures. With sleek, narrow borders and a modern form factor, the 1064L is well-suited for industrial controls, HMI, warehouse automation, gaming and more. Brilliant, optically-bonded TouchPro® PCAP display. The 10-inch 1064L optically-bonded display offers an enhanced, 10-touch tablet-like experience with the durability, touch performance and premium optics required for industrial and commercial applications. Navigate the OSD directly on the touchscreen. We have made it easier to manage your On-Screen Display (OSD) controls - Now you can use the touchscreen or the controls you are used to on the rear side of the monitor. Touch thru glass enabled with PCAP. For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo's TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk. Designed for easy integration. Elo's 10-inch touchscreen monitor can be mounted in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design. Whether viewing up close or from a distance, our optically bonded display offers what you need while maintaining optimal clarity for the viewing experience. Computing power that scales with a single cable. With the Elo Backpack you get a powerful, commercial-grade Android compute engine that can easily connect to the display with a single USB-C. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo's commercial Android platform across sizes and form factors has never been easier.
Product Type	Open-frame LED Touchscreen Monitor

Technical Information

Screen Size Class	10"
Viewable Screen Size	10.1"
Screen Mode	WXGA
Panel Technology	Thin Film Transistor (TFT)
Response Time	29 ms
Aspect Ratio	16:10
Horizontal Viewing Angle	178°
Vertical Viewing Angle	178°

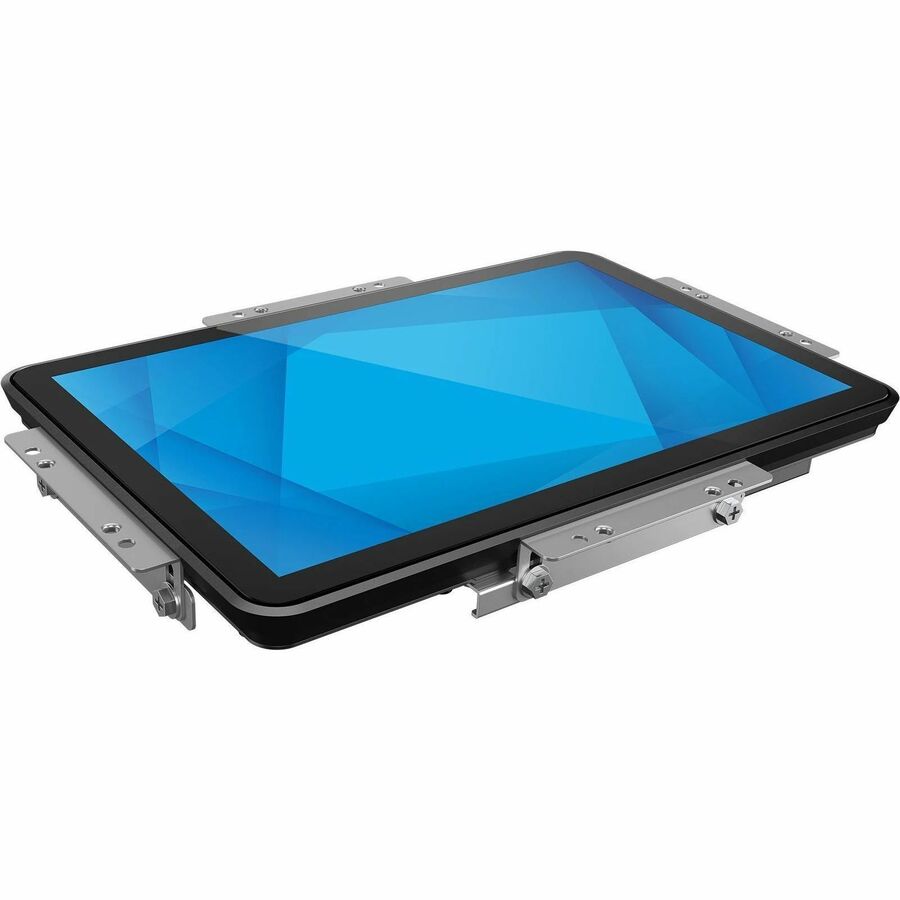

Mount Type	Flush Mount Bracket-mountable
Backlight Technology	LED
Features	On-screen Display (OSD) Low Blue Light Landscape/Portrait Viewable
Vertical Frequency	50 Hz to 75 Hz
Operation Hours	24 Hours/7 Days
Ingress Protection (IP) Rating	IPX1
Impact Protection (IK) Rating	IK08
Active Display Area (H x V)	8.50" x 5.30"

Video

Maximum Resolution	1280 x 800
Color Supported	16.7 Million Colors
Native Contrast Ratio	800:1
Brightness	450 Nit
Maximum Refresh Rate	60 Hz
Brightness (Peak)	500 Nit

Touchscreen Information

Touchscreen Type	TouchPro Projected Capacitive
Multi-touch Screen	Yes
Number of Simultaneous Touchpoints	10

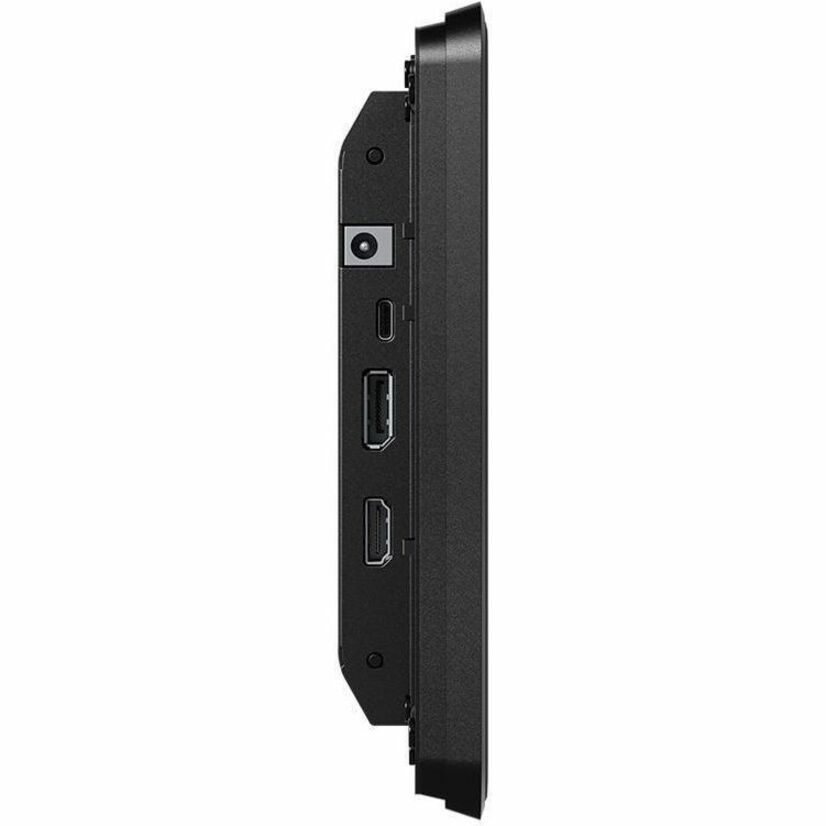

Interfaces/Ports

HDMI	Yes
USB	Yes
DisplayPort	Yes

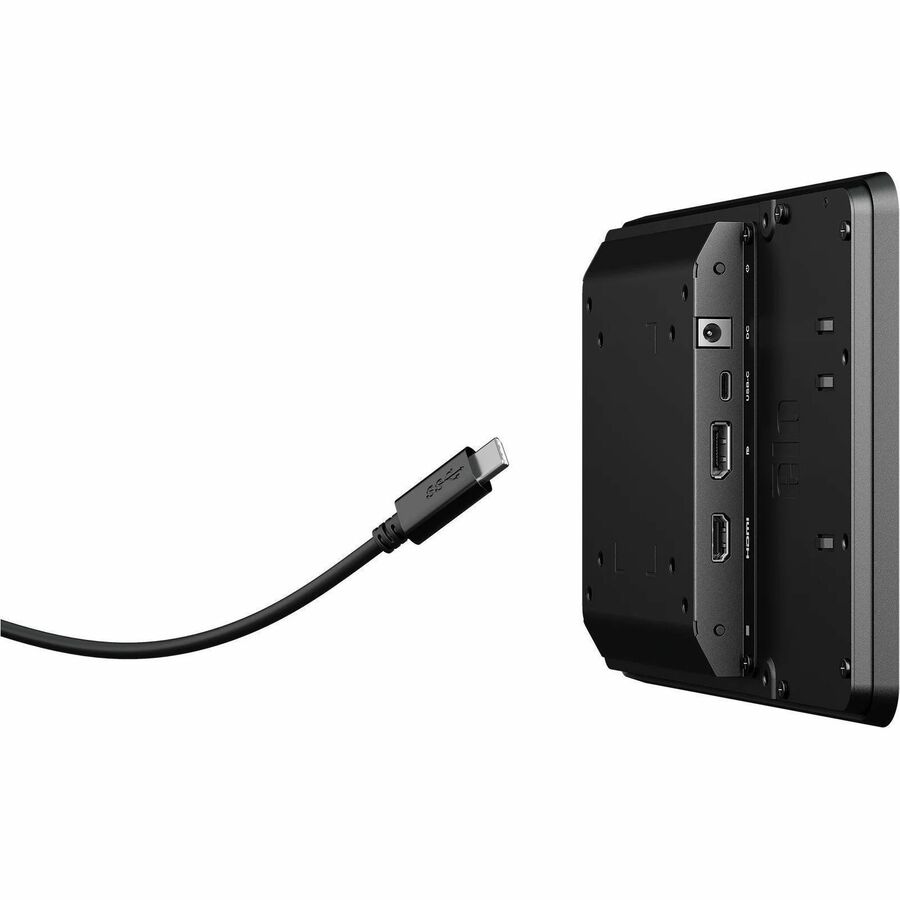

USB Type-C	Yes

Environmental Conditions

Operating Temperature Range	32°F (0°C) to 104°F (40°C)
Operating Humidity Range	20% to 80% (Non-condensing)

Physical Characteristics

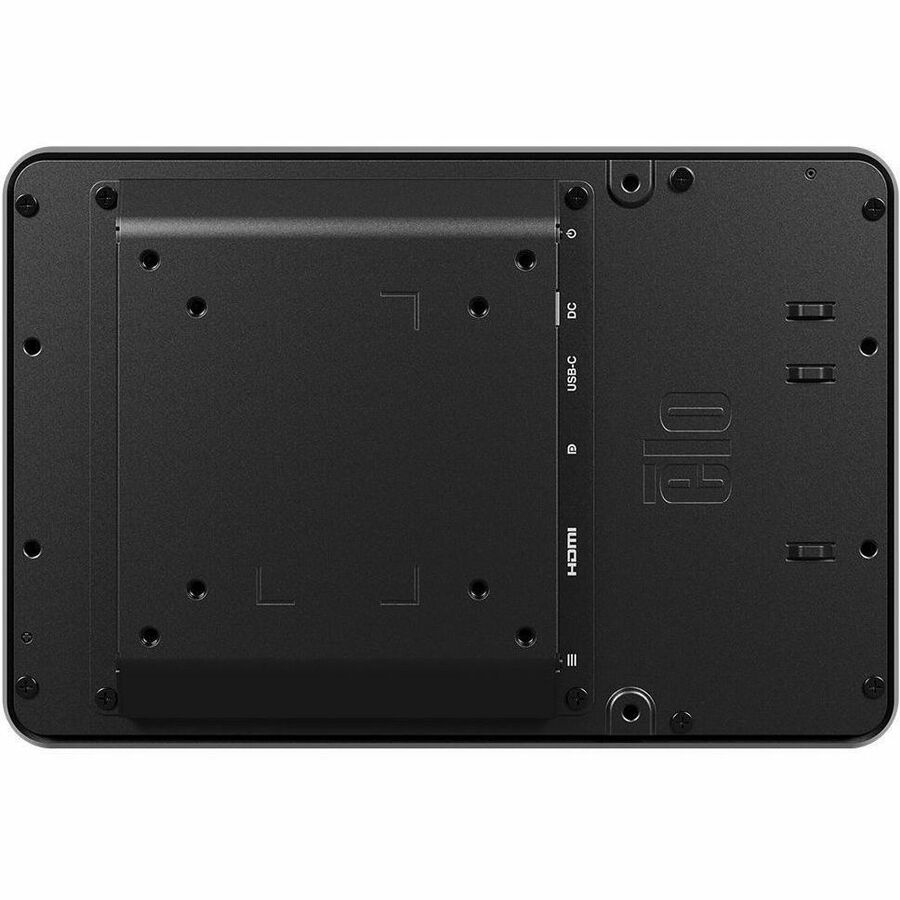

VESA Mount Compatible	Yes
VESA Mount Standard	75 x 75 100 x 100
Color Family	Black
Product Color	Black
Height	6.3"
Width	9.5"
Depth	1.3"
Weight (Approximate)	2.75 lb

Miscellaneous

Energy Star	Yes
Application/Usage	Industrial Commercial
