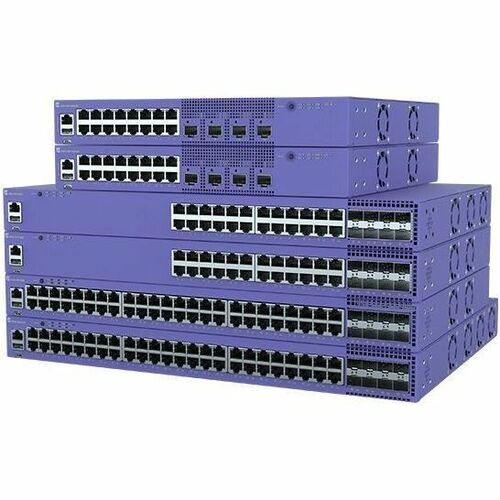

EXTREMESWITCHING 5320 16X10/100/1000BASET FDX/HDX POE+ 4X10G UNPOPULATED SFP+ MA

Cloud-Based Network ManagementThe 5320 can be managed by ExtremeCloud IQ and ExtremeCloud IQ Site Engine for centralized switch management, giving you a consolidated view of users, devices, and applications across wired and wireless networks for efficient inventory and network topology management. ExtremeCloud IQ enables zero touch provisioning, allowing you to quickly bring new 5320 switches online as well as select the OS persona.Alternatively, 5320 on-box management can be done manually via a webbased GUI or generic command-line interface (CLI). Ethernet Fabric ServicesThe 5320 supports a variety of Ethernet Fabric services, including Extreme's Fabric Connect when running Fabric Engine and Extreme's IP Fabric when running Switch Engine. It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 Fabric services.Extreme's Fabric Connect and IP Fabric enable the creation of virtualized networks that automate network operations, simplify network provisioning, and enhance security, all while reducing the strain on network and IT personnel. Universal Hardware PlatformThe 5320 comes with a dual-persona capability, allowing you to choose your OS. Either the Switch Engine (EXOS) or Fabric Engine (VOSS) OS can be selected at switch start-up or changed at a later stage. When selected, the switch assumes the features and capabilities of that OS.5320 OS selection can also be automated with ExtremeCloud IQ so that the desired OS can be automatically loaded at switch start-up, facilitating remote OS enablement. Power Over Ethernet (PoE)All 5320 models support 30W PoE that conforms with IEEE 802.3at. This enables the 5320 to address the needs of powered edge devices, while eliminating the need for additional electrical cabling and circuits. In addition, 5320 PoE models support perpetual and fast PoE for even more efficient and reliable powered edge device operation. Audio Video BridgingThe 5320 Series supports IEEE 802.1 Audio Video Bridging (AVB) when running Switch Engine OS. This allows 5320 models to deliver reliable, real-time audio/ video transmission over Ethernet, meeting the quality of service required for today's high-definition, time-sensitive multimedia streams. Extended Temperature OperationThe 5320 Series offers 24- and 48-port switch models that support extended temperature operation of 0°C to 60°C. The 48-port switch model provides a combination of Fiber and Copper ports enabling flexible deployment use cases. Both switch models include 4x10G SFP+ for uplinks and/or stacking. The extended temperature switch models come with one fixed power supply and support an optional external Redundant Power Supply (RPS) as well.Product TypeEthernet SwitchTechnical InformationFeatures

• Kensington Lock Slot (K-slot)
• Zero-Touch Provisioning (ZTP)

Interfaces/PortsTotal Number of Network Ports16Uplink PortYesModularYesStack PortYesNetwork (RJ-45)YesPort/Expansion Slot Details

• 16 x Gigabit Ethernet PoE
• 4 x 10 Gigabit Ethernet Expansion Slot

Media & PerformanceMedia Type Supported

• Twisted Pair
• Optical Fiber

Ethernet Technology

• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology

• 10/100/1000Base-T
• 10GBase-X

I/O ExpansionsTotal Number of Expansion Slots4Expansion Slot TypeSFP+Number of SFP+ Slots4Network & CommunicationLayer Supported3Networking Standards

• IEEE 802.3
• IEEE 802.3ab
• IEEE 802.3ae
• IEEE 802.3az
• IEEE 802.3at

Management & ProtocolsManageableYesPower DescriptionPoE (RJ-45) PortYesPoE Budget185 WPower Source

• Power Supply
• AC

Number of Power Supplies Installed1Power Consumption246 WPhysical CharacteristicsForm FactorRack-mountableHeight1.7"Width12.2"Depth11.8"Weight (Approximate)6.61 lbMiscellaneousPackage Contents

• 5320 16-port 30W PoE Switch w/DC Power
• 1 x Internal Fixed AC PSU
• Fixed Fan Module
• 2-post Rack-mount Kit

Application/Usage

• Network
• Enterprise
• Hospitality Suite
• Retail
• Classroom

Certifications & Standards

• UL 60950-1
• UL/CuL 62368-1 Listed
• CSA 22.2 No. 60950-1 2nd edition 2014 (Canada)
• Complies with FCC 21CFR 1040.10 (U.S. Laser Safety)
• CDRH Letter of Approval (US FDA Approval)
• EN 60950-1 2nd Edition
• EN 62368-1
• EN 60825-1 Class 1 (Lasers Safety)
• 2014/35/EU Low Voltage Directive
• CB Report and Certificate per IEC 60950-1
• CB Report and Certificate IEC 62368-1
• AS/NZS 60950-1 (Australia/New Zealand)
• FCC CFR 47 Part 15 Class A (USA)
• ICES-003 Class A (Canada)
• EN 55032 Class A
• EN 55024
• EN 61000-3-2,2014 (Harmonics)
• EN 61000-3-3 2013 (Flicker)
• EN 300 386 (EMC Telecommunications)
• 2014/30/EU EMC Directive
• CISPR 32, Class A (International Emissions)
• AS/NZS CISPR32
• CISPR 24 Class A (International Immunity)
• IEC 61000-4-2/EN 61000-4-2 Electrostatic Discharge, 8kV Contact, 15 kV Air,Criteria B
• IEC 61000-4-3/EN 61000-4-3 Radiated Immunity 10V/m, Criteria A
• IEC 61000-4-4/EN 61000-4-4 Transient Burst, 2 kV, Criteria B
• IEC 61000-4-5/EN 61000-4-5 Surge, 2 kV L-L, 2 kV L-G, Level 3, Criteria B
• IEC 61000-4-6 Conducted Immunity, 0.15-80 MHz, 10V/rms, 80%AM (1kHz),Criteria A
• IEC/EN 61000-4-11 Power Dips and Interruptions, >30%, 25 periods, Criteria C

TAA CompliantYesEnvironmental Compliance

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)
• China Restriction of Hazardous Substances (China RoHS)
• Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

WarrantyLimited WarrantyLifetime
