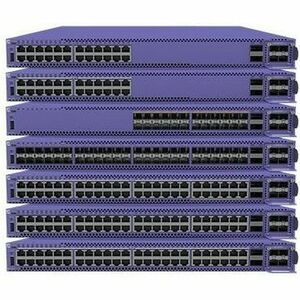

5520 24 1GB/10GB SFP+ PORTS, 2 STACKING/QSFP28 PORTS, 1 UNPOPULATED VIM SLOT, 2

Universal Hardware PlatformThe 5520 Series as a universal hardware platform comes with a dual-persona capability allowing user choice of the switch operating system (OS). Either the ExtremeXOS or VSP Operating System (VOSS) persona can be enabled on 5520 hardware models. The desired persona can be selected at start-up or changed at a later stage. Once selected, the 5520 assumes the features/capabilities of the selected OS.The 5520 persona activation can be done manually at bootup, including via the system CLI. Or, it can be automated by pre-provisioning the 5520 persona in ExtremeCloud IQ. When first booted, the 5520 automatically connects to ExtremeCloud IQ to find its persona. The pre-provisioned OS persona is then remotely enabled on the 5520 system- eliminating the need for manual selection. Ethernet Fabric ServicesThe 5520 supports a variety of Ethernet Fabric services, including Extreme's Fabric Connect when running VOSS and Extreme's IP Fabric when running ExtremeXOS. It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 fabric services. Extreme's Fabric Connect and IP Fabric on the 5520 enable the creation of virtualized networks that automate network operations, simplify network provisioning and enhance security, all while reducing the strain on network and IT personnel. Extended Edge SwitchingThe 5520 models support Extended Edge Switching, an innovative solution that simplifies the deployment and operation of edge switches. As the controlling bridge of an Extended Edge Switching solution, the 5520, when running EXOS, can be combined with Extreme's V300 and V400 Series access devices to create a single logical switch architecture. The result is a simplified operational model that reduces costs.Product TypeEthernet SwitchInterfaces/PortsUplink PortYesModularYesStack PortYesPort/Expansion Slot Details

• 24 x 10 Gigabit Ethernet Expansion Slot
• 2 x Stacking/QSFP28 Ports
• 1 x VIM Slot

Media & PerformanceMedia Type SupportedOptical FiberEthernet Technology

• 10 Gigabit Ethernet
• Gigabit Ethernet

Network Technology

• 10GBase-X
• 10/100/1000Base-T

I/O ExpansionsTotal Number of Expansion Slots27Expansion Slot Type

• SFP+
• Versatile Interface Module (VIM)
• QSFP28

Number of SFP+ Slots24Network & CommunicationLayer Supported3Networking Standards

• IEEE 802.3bt
• IEEE 802.3ab
• IEEE 802.3bz
• IEEE 802.3ae
• IEEE 802.3aq
• IEEE 802.3by
• IEEE 802.3ba
• IEEE 802.3bm
• IEEE 802.3az

Management & ProtocolsManageableYesPower DescriptionInput Voltage

• 120 V AC
• 230 V AC

Frequency

• 50 Hz
• 60 Hz

Power Source

• Power Supply
• AC

Redundant Power Supply SupportedYesPower Consumption171 WPhysical CharacteristicsForm FactorRack-mountableHeight1.7"Width17.4"Depth17.4"Weight (Approximate)13.80 lbMiscellaneousPackage Contents

• 5520 24-port SFP+ Switch
• 2 x Fan Modules

Application/Usage

• Business
• Enterprise
• Network
• Camera System
• Camera
• POS System

TAA CompliantYesEnvironmental Compliance

• China Restriction of Hazardous Substances (China RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Taiwan Restriction of Hazardous Substances (Taiwan RoHS)

WarrantyLimited WarrantyLifetime
