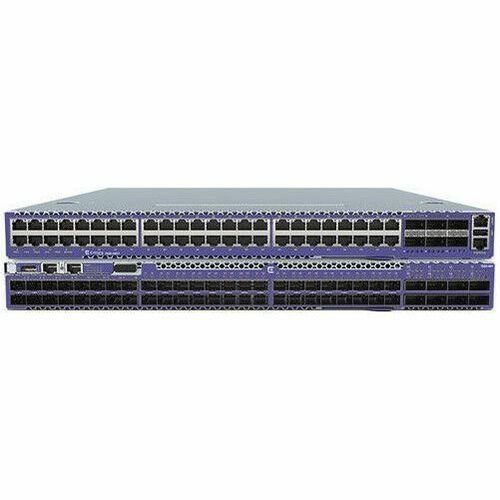

EXTREME 7520-48YE SWITCH WITH TWO EMPTY POWER SUPPLY SLOTS, SIX EMPTY FAN SLOTS;

Universal Aggregation/Core Switch Platform

The Extreme 7520 are purpose-built 48-port 10Gb and 48-port 25Gb switches designed for high-performance aggregation and core applications. As a universal hardware platform, the 7520 provides end-to-end secure network segmentation, in addition to advanced policy capabilities, with a user-selectable choice of Extreme's flagship switch operating systems. This makes the 7520 a uniquely flexible platform that can be deployed in a variety of aggregation and core environments.

The Extreme 7520 network hardware platform enables organizations to design networks that accommodate a variety of applications and east-west traffic patterns. With its high-density scale-out architecture, leading power efficiency, and airflow options, the 7520 platform delivers a cost-effective solution that optimizes power, cooling, and equipment room space, wherever your network operating center might be.

Three models of the 7520 are available.

7520-48XT-6C

• 48 x 1Gb/10Gb 10GBaseT copper ports (no MACsec)
• 6 x 40Gb/100Gb QSFP28 fiber ports (no MACsec)

7520-48Y-8C

• 48 x 1Gb/10Gb/25Gb SFP28 fiber ports (no MACsec)
• 8 x 40Gb/100Gb QSFP28 fiber ports (no MACsec)

7520-48YE-8CE

• 48 x 10/25Gb SFP28 fiber ports with MACsec support
• 8 x 100Gb QSFP28 fiber ports with MACsec support |

Universal Hardware Platform

The 7520 Series comes with a dual-persona capability allowing user choice of the switch operating system (OS). Either the Switch Engine (EXOS) or Fabric Engine (VOSS) persona can be enabled on 7520 hardware models. The desired persona can be selected at start-up or changed at a later stage. Once selected, the 7520 assumes the features/capabilities of the selected OS.

7520 persona activation can be done manually at boot-up, including via the system CLI. Or, it can be automated by pre-provisioning the 7520 persona in ExtremeCloud IQ. When first booted, the 7520 automatically connects to ExtremeCloud IQ to find its persona. The pre-provisioned OS persona is then remotely enabled on the 7520 system eliminating the need for manual selection.

Ethernet Fabric Services

The 7520 supports a variety of Ethernet Fabric services, including Extreme's Fabric Connect when running Fabric Engine (VOSS) and Extreme's IP Fabric when running Switch Engine (EXOS). It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 fabric services. Extreme's Fabric Connect and IP Fabric on the 7520 enable the creation of virtualized networks that automate network operations, simplify network provisioning, and enhance security, all while reducing the strain on network and IT personnel.

High-Performance Stacking

Two of the 7520's QSFP28 uplink ports can be used for high-speed 400Gb stacking when running Switch Engine (EXOS). Up to eight systems can be stacked using qualified direct attach cables and/or optical transceivers. (Note: Stacking is not supported on the 7520-48YE -8CE model or when running Fabric Engine (VOSS)).

• 48 x 10/25 Gigabit Ethernet SFP28 Expansion Slot
• 8 x 40/100 Gigabit Ethernet QSFP28 Expansion Slot
• 1 x RJ-45 Serial Console Port
• 1 x 10/100/1000BASE-T Out-of-Band Management Port

• 10 Gigabit Ethernet
• 25 Gigabit Ethernet
• 40 Gigabit Ethernet
• 100 Gigabit Ethernet

• 10GBase-X
• 25GBase-X
• 40GBase-X
• 100GBase-X

• SFP28
• QSFP28

• IEEE 802.3
• IEEE 802.3ab
• IEEE 802.3ae
• IEEE 802.3by
• IEEE 802.3ba
• IEEE 802.3bm

• 120 V AC
• 230 V AC

• 50 Hz
• 60 Hz

• Power Supply
• AC

• Network
• Security
