EXTREME 7720-32C SWITCH WITH TWO EMPTY POWER SUPPLY SLOTS, SIX EMPTY FAN SLOTS;

Name: EXTREME 7720-32C SWITCH WITH TWO EMPTY POWER SUPPLY SLOTS, SIX EMPTY FAN SLOTS;
Brand: EXTREME NETWORK INC
SKU: 6254BL
Price: 25129.23 USD
Availability: InStock

EXTREME NETWORK INC

PCN#

6254BL

MFG#

7720-32C

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$25,129.23

Extended & Accidental Damage Protection Plans Available Details

2-Year $2,564.99

3-Year $3,456.99

Free Shipping

Estimated Shipment:

Product Highlights:

Manageable
40 Gigabit Ethernet, 100 Gigabit Ethernet
40GBase
X, 100GBase
X
3 Layer Supported
Optical Fiber
Purple
1U
Rack
mountable
Lifetime Limited Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 30 lbs.

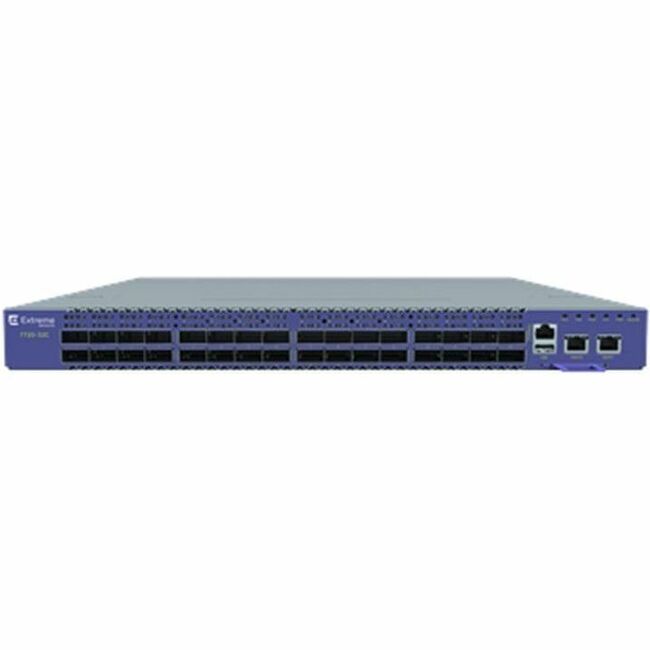

Extreme Networks 7720-32C Ethernet Switch

Overview

Tech Specs

Universal Hardware Platform The 7720 Series comes with a dual-persona capability allowing user choice of the switch operating system (OS). Either the Switch Engine (EXOS) or Fabric Engine (VOSS) persona can be enabled on 7720 hardware models. The desired persona can be selected at start-up or changed at a later stage. Once selected, the 7720 assumes the features/capabilities of the selected OS.7720 persona activation can be done manually at boot-up, including via the system CLI. Or, it can be automated by pre-provisioning the 7720 persona in ExtremeCloud IQ. When first booted, the 7720 automatically connects to ExtremeCloud IQ to find its persona. The pre-provisioned OS persona is then remotely enabled on the 7720 system - eliminating the need for manual selection. Ethernet Fabric Services The 7720 supports a variety of Ethernet Fabric services, including Extreme's Fabric Connect when running Fabric Engine (VOSS) and Extreme's IP Fabric when running Switch Engine (EXOS). It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 fabric services. Extreme's Fabric Connect and IP Fabric on the 7720 enable the creation of virtualized networks that automate network operations, simplify network provisioning, and enhance security, all while reducing the strain on network and IT personnel. High-Performance StackingTwo of the 7720's QSFP28 uplink ports can be used for high-speed 400Gb stacking when running Switch Engine (EXOS). Up to eight systems can be stacked using qualified direct attach cables and/or optical transceivers. (Note
Stacking is not supported on the 7520-48YE -8CE model or when running Fabric Engine (VOSS)). Management The 7720 can be managed by ExtremeCloud IQ and ExtremeCloud IQ-Site Engine for comprehensive unified management with a consolidated view of users, devices and applications across wired and wireless networks.Zero-touch provisioning from ExtremeCloud IQ lets one quickly bring new 7720 switches online as well as enable the selection of the operating system (OS) persona. Alternatively, 7720 on-box management can be done manually via a web-based GUI or generic CLI.Product TypeEthernet SwitchTechnical InformationFeaturesZero-Touch Provisioning (ZTP)Interfaces/PortsUplink PortYesStack PortYesPort/Expansion Slot Details

32 x 40/100 Gigabit Ethernet QSFP28 Expsion Slot
1 x RJ-45 Serial Console Port
2 x 10/100/1000BASE-T out-of-band Management Port

Media & PerformanceMedia Type SupportedOptical FiberEthernet Technology

40 Gigabit Ethernet
100 Gigabit Ethernet

Network Technology

40GBase-X
100GBase-X

Maximum Data Transfer Rate12.50 GB/sI/O ExpansionsTotal Number of Expansion Slots32Expansion Slot Type

QSFP+
QSFP28

Network & CommunicationLayer Supported3Networking Standards

IEEE 802.3
IEEE 802.3ab
IEEE 802.3ae
IEEE 802.3by
IEEE 802.3ba
IEEE 802.3bm

Management & ProtocolsManageableYesPower DescriptionInput Voltage

120 V AC
230 V AC

Frequency

50 Hz
60 Hz

Power Source

Power Supply
AC/DC

Number of Power Supplies Supported2Physical CharacteristicsColor FamilyPurpleProduct ColorPurpleCompatible Rack Unit1UForm FactorRack-mountableHeight1.7"Width17.3"Depth22.4"Weight (Approximate)16.31 lbMiscellaneousPackage Contents

7720-32C Ethernet Switch
1 x 4-Post Rack Mount Kit

Application/Usage

Network
Security

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
China Restriction of Hazardous Substances (China RoHS)
Taiwan Restriction of Hazardous Substances (Taiwan RoHS)

WarrantyLimited WarrantyLifetime
