DSX2-8000OIVERSIV DATA CENTER FIBER COPPER TROUBLESHOOTING KIT

The DSX CableAnalyzer Series copper cable certifiers enables testing and certification of twisted pair cabling for up to 40 Gigabit Ethernet deployments and will handle any cabling system whether it is a Cat 5e, 6, 6A, 8 or Class FA and I/II. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The faster that process goes, the more profitable you'll be. Unfortunately, there are a lot of things that slow the process down - setting up the tester incorrectly, testing to the wrong limits, waiting for skilled technicians to analyze and troubleshoot failures, misinterpretation of results, and producing test reports that customers cannot understand.

As part of the Versiv cabling certification product family, the DSX CableAnalyzer Series copper cable certifiers provides accurate, error-free certification. In the installation business there are multiple teams, varying media types and multiple testing requirements. The difference between being profitable or not is just a few percentage points. The DSX certifies copper cabling, complies with all standards including Level VI/2G accuracy, making jobs easier to manage, and getting to system acceptance faster. It's not just for the expert technicians and Project Managers. Individuals of various skill levels can improve the set-up, operation, test reporting, and simultaneously manage diverse projects.

• OTDR Testing
• Fiber Optic Cable Testing
• Wiremap
• Propagation Delay
• Delay Skew
• Loopback Testing
• Resistance Tester
• Insertion Loss Measurement
• Crossed Pair Testing

• Optical Fiber
• Twisted Pair

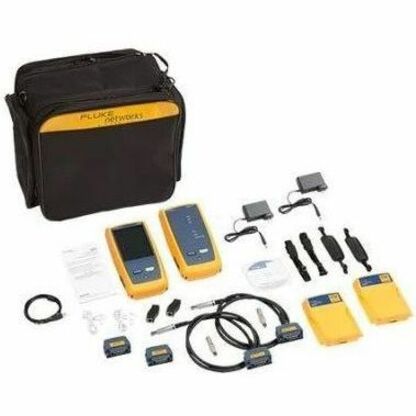

• Versiv Mainframe & Remote
• 2 x DSX-8000 CableAnalyzer Modules
• Set of Cat 8/Class I Permanent Link Adapters
• Set of Cat 8/Class I Channel Adapters
• 2 x Headsets
• 2 x HandStrap
• 2 x Shoulder Straps
• Carry Case
• USB Interface Cable
• 2 x AC Chargers
• 2 x Universal Couplers
• 2 x AxTalk Terminators
• OptiFiber Pro Quad OTDR Module
• 3 x SC/LC Multimode Launch Cables-50 µm
• 3 x SC/LC Single-mode Launch Cable-9 µm
• 2 x OTDR Source Port Interchangeable LC Adapters
• SC/SC Simplex Adaptor
• LC/LC Simplex Adaptor
• 2 x Launch Fiber Hanging Straps and Magnets
• FI-3000 FiberInspector™ Ultra Camera
• Tip Set (12/24 UPC, 12/24 APC and Keyless APC 12/24, 16/32)
• Single Fiber Adapter for FI-1000 tips
• FC/SC Bulkhead Tip
• 2.5mm Universal Tip
• 1.25mm Universal tip
• LC Bulkhead Tip
• AC Charger
• Holster
• QuickClean Cleaners for QC-MPO-12/24, 1.25 and 2.25 Ferrule Connectors / Ports
• FiberLert Live Fiber Detector (850-1625 nm)
• Integrated Wi-Fi
• Hard-side transit case
• Statement of Calibration
• Getting Started Guide

• Optical Fiber
• Network
• Data Center

• Category 3, 4, 5, 5e, 6, 6A, 8 per ANSI/TIA-568.2-D
• Class C and D, E, E_A, F, F_Aand I/II certification per ISO/IEC
• EN 61326-1
• CSA 22.2 No. 61010
• IEC 61010-1 3rd Edition
