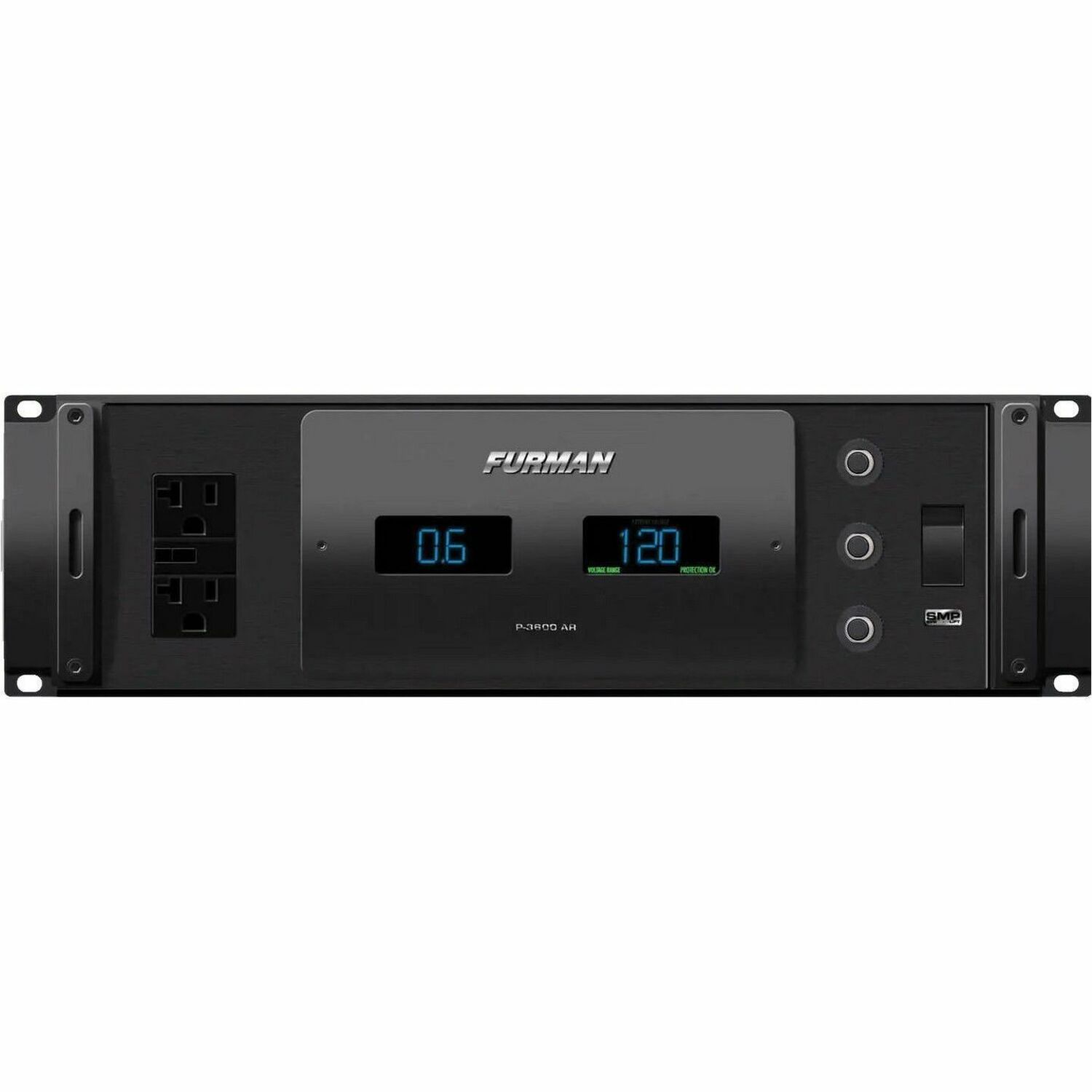

P-3600 AR G

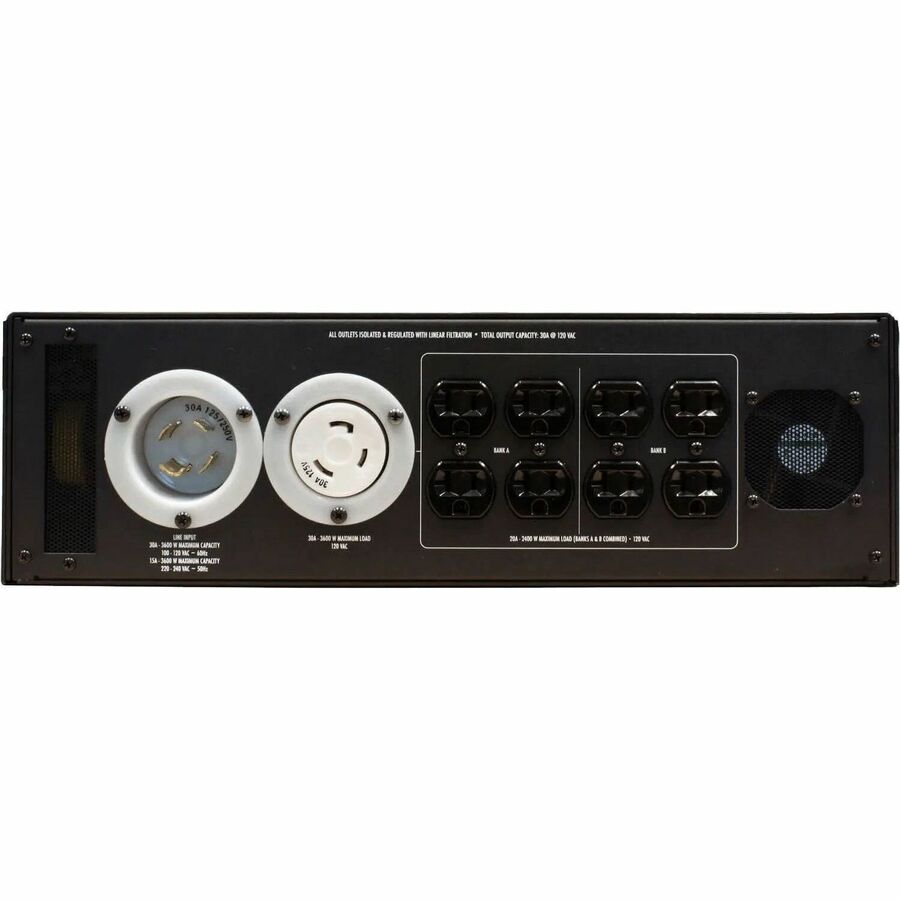

Noise FiltrationLiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity Voltage ProtectionAdvanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions Global True RMS Voltage RegulationDelivers a stable 120 volts of AC power (from any voltage source between 88V-134V and 170V-265V) to protect equipment from problems Large LED VoltmeterLarge LED voltmeter displays incoming line voltage Large LED AmmeterLarge LED ammeter displays output current draw 30 Amp Rating30 Amp rating featuring a high inrush magnetic circuit breaker for added protection 11 Total Outlets11 total outlets (nine rear panel outlets and two front panel convenience outlet) Diagnostic LightsLED status indicators warn you when voltage is outside of nominal range or when protection has been compromisedProduct TypeLine ConditionerTechnical InformationProtection Type

• Surge
• Over Voltage
• Over Current
• Shut Down
• Overload

Power DescriptionInput Voltage

• 120 V AC
• 230 V AC

Input Voltage Range

• 208 V AC - 240 V AC
• 100 V AC - 127 V AC

Maximum Line Current30 AMinimum Frequency50 HzMaximum Frequency60 HzPhysical CharacteristicsRack Height3UMount TypeRack-mountableHeight5.3"Width19"Depth14.3"Weight (Approximate)98 lbMiscellaneousPackage Contents

• 30A Global Voltage Regulator / Power Conditioner (P-3600 AR G)
• Twistlock Cable-mount Connector
• Rack Ears

Certifications & StandardscTUVusWarrantyLimited Warranty5 Year
