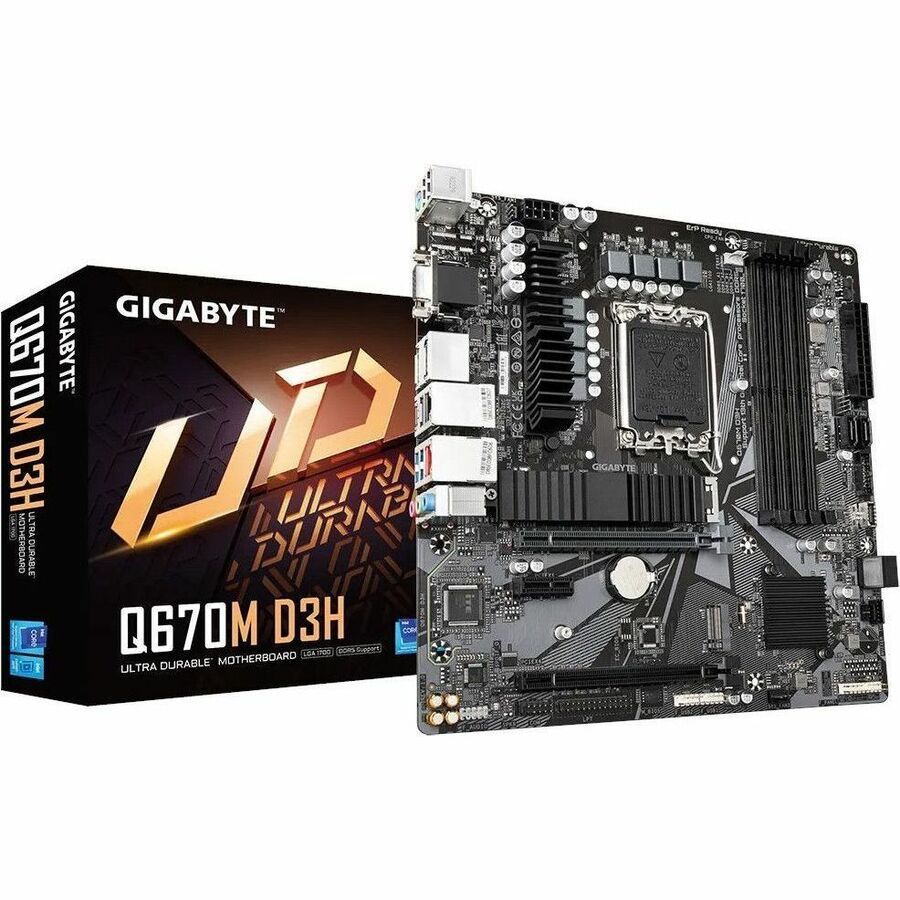

GIGABYTE Q670M D3H INTEL LGA 1700

6+1+1 Phases Hybrid Power Design

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

• 6+1+1 Phases Low RDS(on) MOSFETs
• Solid capacitors to improve transient response and minimize oscillation
• 8-pin Solid Pin CPU Power Connector

PCIe 4.0 Design

GIGABYTE Q670 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

2 PCIe 4.0 x4 M.2 Slots

Dual PCIe 4.0 x4 M.2 Connectors with Thermal Guard

Hybrid Cores Optimization

With new Intel Hybrid technology, GIGABYTE exclusively creates two new " CPU Upgrade " in BIOS profiles to meet different users' scenarios by adjusting P-Core and E-Core activation and voltage policy.

GAMING

• Deactivate all E-Core
• Zero compromise on gaming performance
• Up to 20% lower CPU package power
• Up to 5°C lower CPU temperature

MAX PERFORMANCE

• Activate all P-Core and E-Core
• Maximize full multi-cores performance

XMP 5600+

Support for DDR5 XMP Up to 5600MHz and Beyond

AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5600MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

Unlock DDR5 Voltage | DDR4

DDR4 voltage is managed by MB with wide range

Native DDR5

Secure Mode

MB provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.

GIGABYTE Exclusive DDR5 Circuit Design | Programmable Mode

GIGABYTE's exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and control Native DDR5 voltage with wide range.

• GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
• Transforms Native DDR5 memory module to Overclocked DDR5 memory
• Increases DDR5 memory overclocking performance and capability
• Supports all PMIC vendors for maximum compatibility

M.2 Thermal Guard

GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Thermal Throttling As Temperature Rises

• 14th Gen
• 13th Gen
• 12th Gen

• Core
• Pentium Gold
• Celeron

• DIMM
• UDIMM

• 5600 MHz
• 5400 MHz
• 5200 MHz
• 4800 MHz
• 4000 MHz

• 0
• 1
• 5
• 10

• PCI Express 3.0
• PCI Express 4.0
