TAA COMPLIANT, COMPACT CORNER MOUNT CAMERA, 5MP @ 30FPS, TRIPLE CODEC, WDR 120DB

Name: TAA COMPLIANT, COMPACT CORNER MOUNT CAMERA, 5MP @ 30FPS, TRIPLE CODEC, WDR 120DB
Brand: HANWHA VISION
SKU: 6164BM
Price: 627.39 USD
Availability: InStock

HANWHA VISION

PCN#

6164BM

MFG#

TNV-8011C/KEX

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$627.39

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

H.265, H.264, MJPEG, H.265M, H.265H, H.264M, H.264H, H.265B, H.264B
2592 x 1944
2.30 mm Fixed Lens
30 fps
CMOS
Fast Ethernet
USB
IK10
IP66, IP6K9K
Vandal Resistant

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 3 lbs.

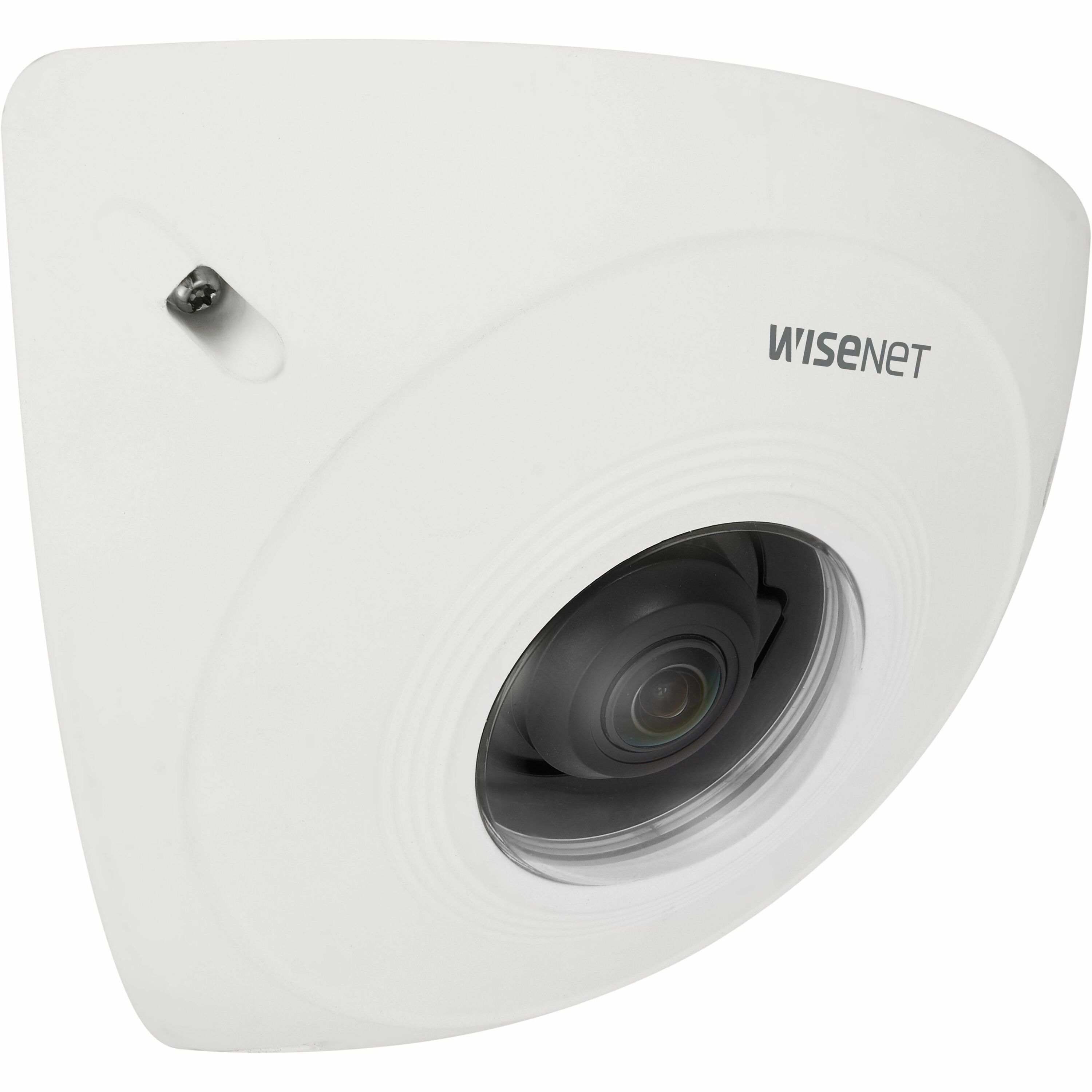

Wisenet TNV-8011C 5 Megapixel Network Camera - Color - White - TAA Compliant

Overview

Tech Specs

Specifications

Manufacturer	Hanwha Group
Manufacturer Part Number	TNV-8011C/KEX
Manufacturer Website Address	http://www.hanwha.com
Brand Name	Wisenet
Product Series	T
Product Model	TNV-8011C
Product Name	5MP Vandal Corner Camera
Product Type	Network Camera

Technical Information

HD Recording

Yes

Display & Graphics

Image Sensor Type	CMOS
Image Sensor Size	1/2.8"
Color Supported	Color
Field of View	H: 131° / V: 93.4° / D: 174°
Effective Camera Resolution	5 Megapixel

Video

Video Formats	H.265 H.264 MJPEG H.265M H.265H H.264M H.264H H.265B H.264B
Maximum Video Resolution	2592 x 1944
Maximum Frame Rate	30 fps
Analog Video Signal Format	CVBS

Lens

Lens Type	Fixed
Maximum Focal Length	2.30 mm
Lens Included	Yes
Maximum Aperture	f/2.3

Exposure

Shortest Shutter Speed	1/12000 Second
Longest Shutter Speed	2 Second

Network & Communication

Connectivity Technology	Wired
Ethernet Technology	Fast Ethernet
Protocols	IPv4 IPv6 TCP/IP UDP/IP RTP/UDP RTP/TCP RTCP RTSP NTP HTTP HTTPS SSL/TLS DHCP FTP SMTP ICMP IGMP SNMPv1/v2c/v3 (MIB2) ARP DNS DDNS QoS UPnP Bonjour LLDP SRTP
Remote Management	Yes

Storage

Storage Type

Memory Card

Interfaces/Ports

USB	Yes
Network (RJ-45)	Yes

Power Description

Power Source Type

PoE

Physical Characteristics

Durability	Vandal Resistant
Color Family	White
Product Color	White
Height	6.5"
Width	6.7"
Depth	3.1"
Weight (Approximate)	1.83 lb

Environmental Conditions

Minimum Operating Temperature	14°F (-10°C)
Maximum Operating Temperature	131°F (55°C)
Maximum Operating Humidity	90%

Miscellaneous

Features	Wide Dynamic Range Day/Night Back Light Compensation (BLC) Digital Noise Reduction Digital Image Stabilization Motion Detection Privacy Masking Gain Control White Balance Audio Detection Defog
Impact Protection Rating	IK10
Ingress Protection Rating	IP66 IP6K9K
Country of Origin	Korea
TAA Compliant	Yes

Warranty

Limited Warranty

3 Year
