TAA COMPLIANT, POWERED BY WN7, X-PLUS SE

Name: TAA COMPLIANT, POWERED BY WN7, X-PLUS SE
Brand: HANWHA VISION
SKU: 6170BM
Price: 1010.8 USD
Availability: InStock

HANWHA VISION

PCN#

6170BM

MFG#

XND-6083RV/KEX

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,010.80

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

164.04 ft Infrared Night Vision
H.265, H.264, MJPEG, H.265M, H.264H, H.265H, H.264M
1920 x 1080
2.80 mm
12 mm Varifocal Lens
4.3x Optical
120 fps
CMOS
Gigabit Ethernet
USB
Conduit Mount, Gang Box Mount
IK10
IP52
Vandal Resistant

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 6 lbs.

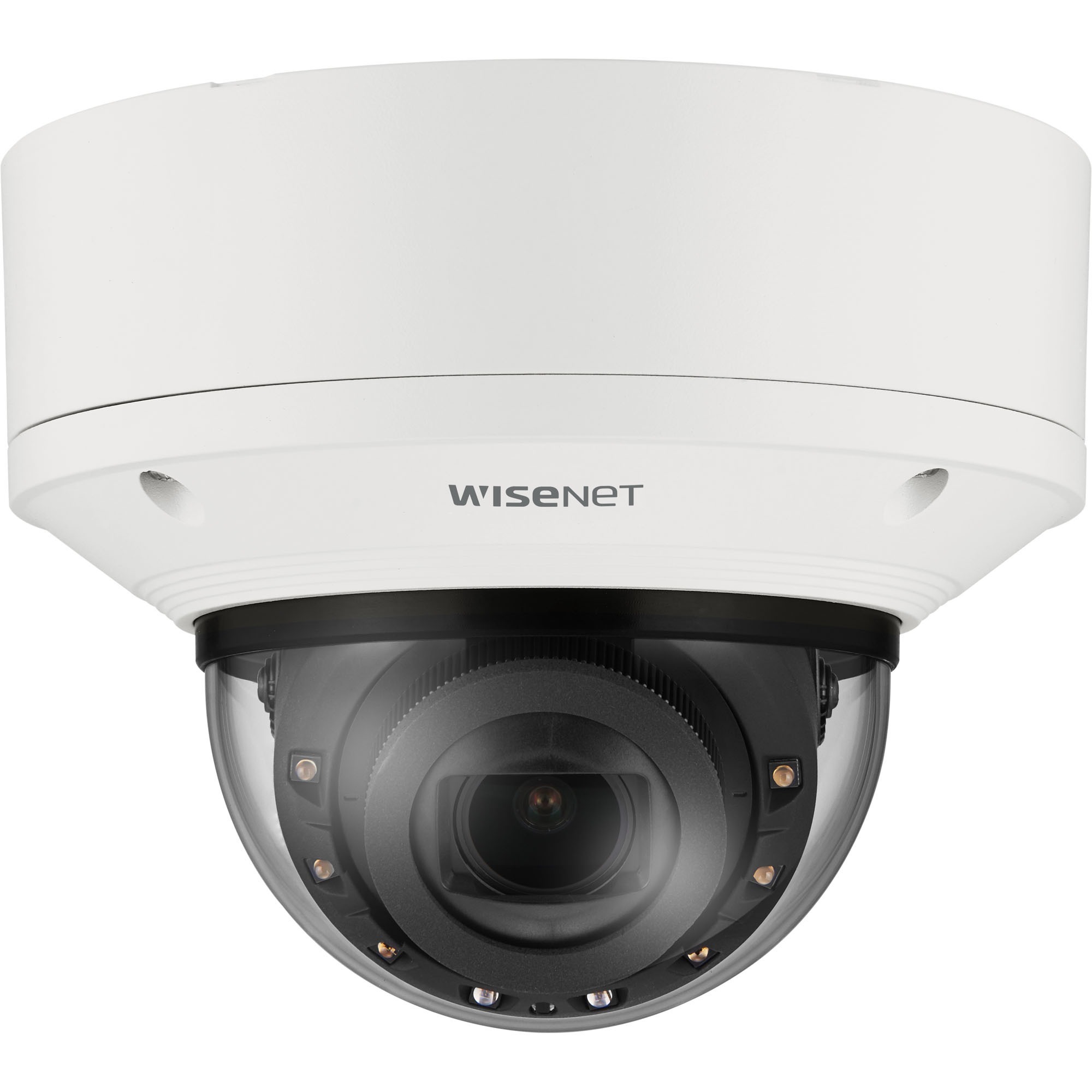

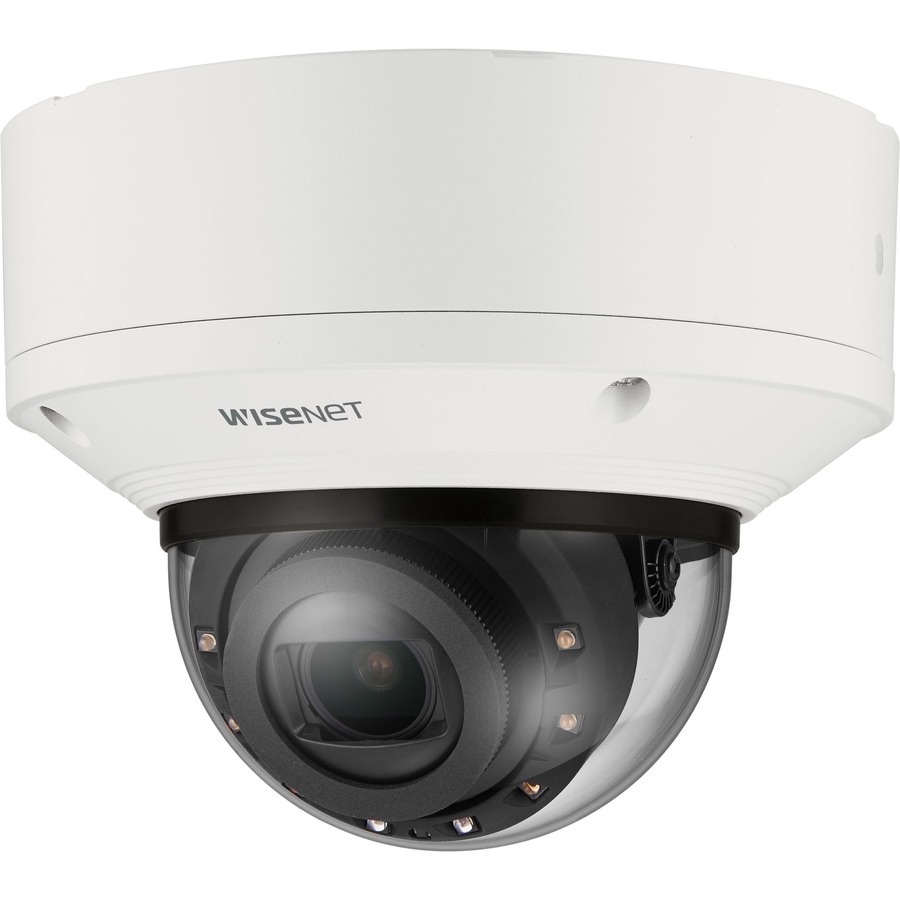

Hanwha Techwin XND-6083RV 2 Megapixel Indoor Full HD Network Camera - Color - Dome - White - TAA Compliant

Overview

Tech Specs

Specifications

Manufacturer	Hanwha Group
Manufacturer Part Number	XND-6083RV/KEX
Manufacturer Website Address	http://www.hanwha.com
Brand Name	Hanwha Techwin
Product Series	X
Product Model	XND-6083RV
Product Name	2MP IR Indoor Vandal Dome AI Camera
Product Type	Network Camera

Technical Information

Recording Formats	Full HD
HD Recording	Yes
Night Vision	Yes
Night Vision Distance	164.04 ft
Night Vision Type	Infrared

Display & Graphics

Image Sensor Type	CMOS
Image Sensor Size	1/2.8"
Color Supported	Color
Field of View	H : 119.5°(Wide) ~ 27.9°(Tele) V : 62.8°(Wide) ~ 15.7°(Tele) D : 142.1°(Wide) ~ 32.0°(Tele)
Effective Camera Resolution	2 Megapixel

Video

Video Formats	H.265 H.264 MJPEG H.265M H.264H H.265H H.264M
Maximum Video Resolution	1920 x 1080
Maximum Frame Rate	120 fps
Analog Video Signal Format	CVBS

Lens

Lens Type	Varifocal
Minimum Focal Length	2.80 mm
Maximum Focal Length	12 mm
Lens Included	Yes
Minimum Aperture	f/3.6
Maximum Aperture	f/1.4
Optical Zoom	4.3x

Exposure

Shortest Shutter Speed	1/12000 Second
Longest Shutter Speed	2 Second

Network & Communication

Connectivity Technology	Wired
Ethernet Technology	Gigabit Ethernet
Protocols	IPv4 IPv6 TCP/IP UDP/IP RTP/UDP RTP/TCP RTCP RTSP NTP HTTP HTTPS SSL/TLS DHCP FTP SMTP ICMP IGMP SNMPv1/v2c/v3 (MIB2) ARP DNS DDNS QoS UPnP Bonjour LLDP SRTP
Remote Management	Yes

Storage

Storage Type

Memory Card

Interfaces/Ports

USB	Yes
Network (RJ-45)	Yes

Power Description

Input Voltage	12 V DC
Power Source Type	DC PoE+

Physical Characteristics

Mount Type	Conduit Mount Gang Box Mount
Form Factor	Dome
Durability	Vandal Resistant
Color Family	White
Product Color	White
Diameter	6.3"
Weight (Approximate)	3.53 lb

Environmental Conditions

Minimum Operating Temperature	-13°F (-25°C)
Maximum Operating Temperature	122°F (50°C)
Maximum Operating Humidity	95%

Miscellaneous

Features	Day/Night Wide Dynamic Range Face Detection Vehicle Detection Motion Detection Tamper Detection Fog Reduction Shock Detection Highlight Compensation (HLC) Back Light Compensation (BLC) Digital Noise Reduction Defog Privacy Masking
Indoor/Outdoor	Indoor
Impact Protection Rating	IK10
Ingress Protection Rating	IP52
Country of Origin	Korea
TAA Compliant	Yes

Warranty

Limited Warranty

3 Year
