2-WAY FULL RANGE LOUDSPEAKER 15 HIGH POWER 15 2-WAY FULL-RANGE

Name: 2-WAY FULL RANGE LOUDSPEAKER 15 HIGH POWER 15 2-WAY FULL-RANGE
Brand: HARMAN PRO
SKU: S15808
Price: 3935 USD
Availability: InStock

HARMAN PRO

PCN#

S15808

MFG#

AM7215/66

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$3,935.00

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

2400 W (PMPO)
15"
1.50"
40 Hz to 18 kHz
8 Ohm

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 67 lbs.

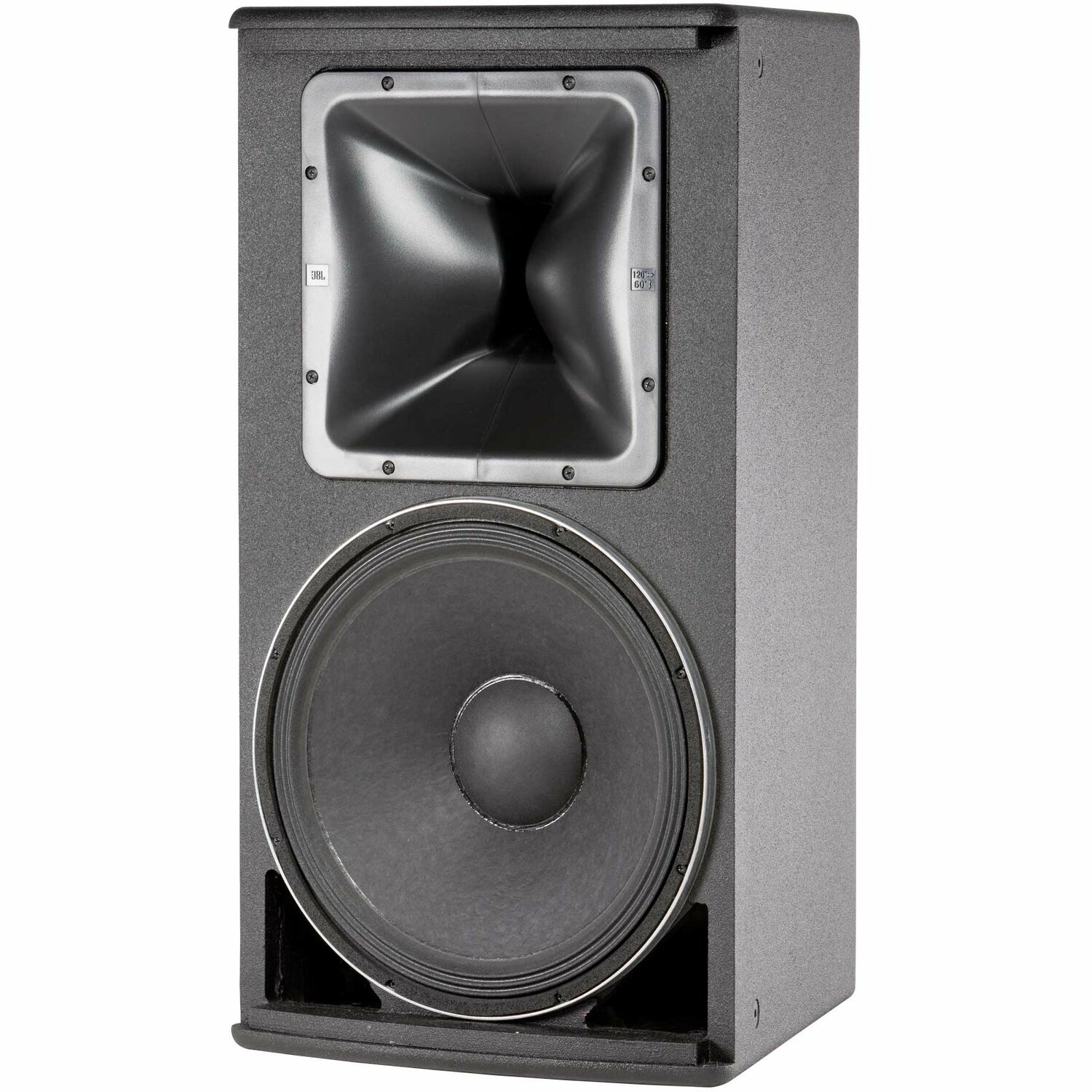

JBL Professional AM7215/66 2-way Speaker - 600 W RMS - Black

Overview

Tech Specs

Specifications

Manufacturer	Harman International Industries, Inc
Manufacturer Part Number	AM7215/66
Manufacturer Website Address	http://www.harman.com
Brand Name	JBL Professional
Product Model	AM7215/66
Product Name	AM7215/66 High Power 2-Way Loudspeaker with 1 x 15" LF & Rotatable Horn
Marketing Information	The AM7215/66 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 60° x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
Product Type	Speaker

Technical Information

Crossover Type	2-way
RMS Output Power	600 W
PMPO Output Power	2400 W
Woofer Driver Size	15"
Tweeter Driver Size	1.50"
Minimum Frequency Response	40 Hz
Maximum Frequency Response	18 kHz
Impedance	8 Ohm
Maximum Crossover Frequency	1.40 kHz
Sound Pressure Level	134 dB
Sensitivity	96 dB

Physical Characteristics

Product Color	Black
Product Material	Birch Plywood Perforated-steel
Height	30.8"
Width	16.5"
Depth	19.80"
Weight (Approximate)	59.97 lb

Miscellaneous

Certifications & Standards

Mil-Std 810
IP-x3 Per IEC529

Warranty

Limited Warranty

5 Year
