METREAU KEYPAD MODULE FOR HYDRA THE HPX-U400-R-MET-6NE METREAU 6-B

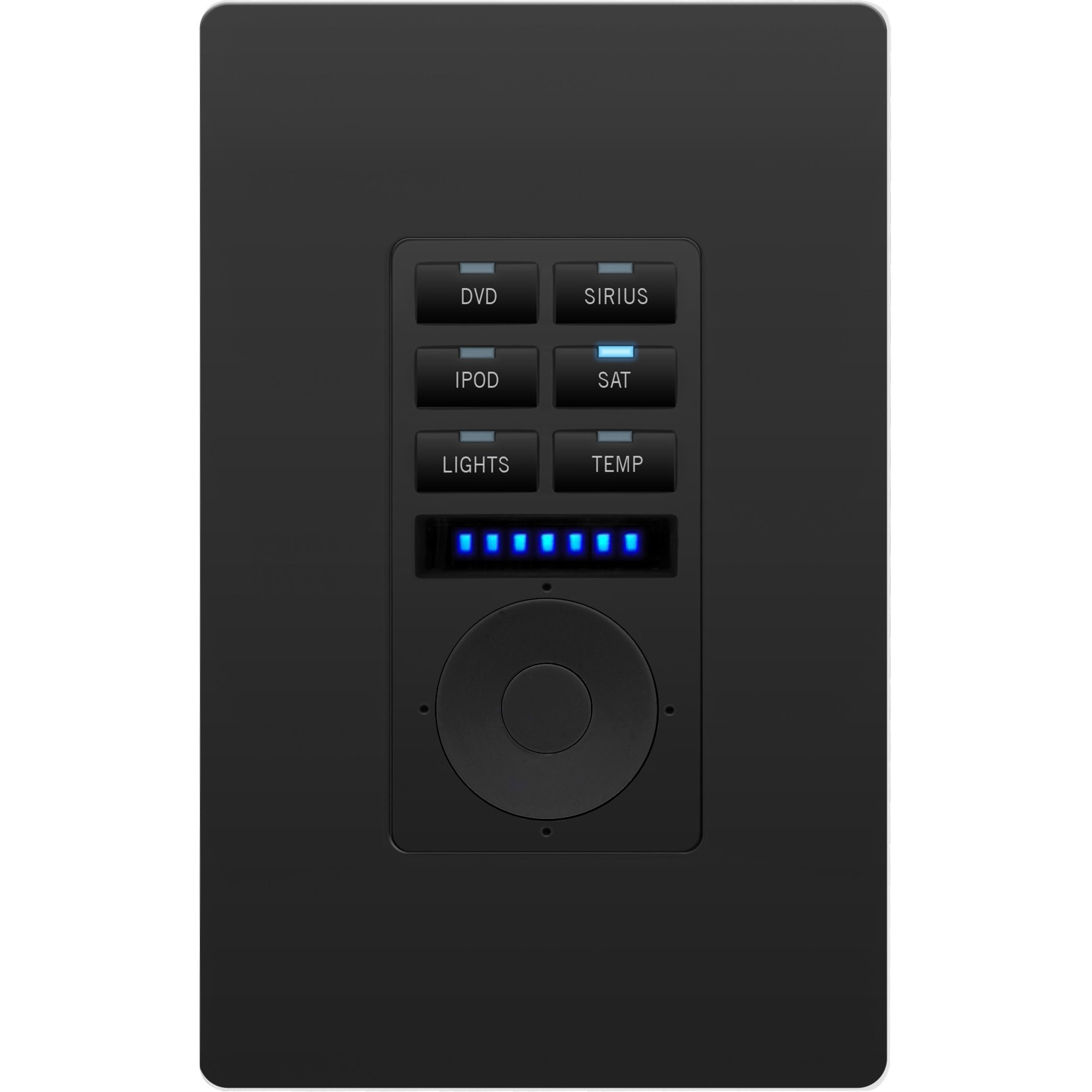

The HPX-U400-R-MET-6NE module is a Metreau 6-Button Ethernet Keypad in a ramped carrier that allows it to be installed into the HydraPort^® chassis at an angle to improve usability.

Common Applications

Ideal for boardrooms, conference rooms, meeting rooms or auditoriums where equipment is permanently installed in the room and users must connect to that equipment from a conference table or lectern.

POWER

• PoE: PoE (Power over Ethernet), 802.3af, class 0
• Power Connector: (1) RJ-45 Ethernet Connector, 10/100

POWER SUPPLY

• External, Required: POE injector or switch, conforming to the 802.3af standard including AMX's PS-POE-AF-TC (FG423-83), not included

ETHERNET

• Ethernet Connection: (1) RJ-45 Ethernet Connector, 10/100

ENVIRONMENTAL

• Temperature (Operating): 32° to 104° F (0° to 40° C)
• Humidity (Relative): 5% to 85%, non-condensing
• Note: Intended for indoor use only

FRONT PANEL COMPONENTS

• Pushbuttons available in a variety of field replaceable pre-printed buttons
• Blue LEDs indicate activity
• Navigation wheel
• Light-level feedback
• Sensor, 38 kHz only; supports standard AMX IR

REAR PANEL COMPONENTS

• (1) RJ-45 Ethernet Connector, 10/100
• (2) 8-pin, 0.100" (2.54 mm) IDC-type male header
