4.5 IN STANDARD MICRO CEILING S CONTROL 414C/T MICRO (PACK OF 2)

by
HARMAN PRO
PCN#
770K88
MFG#
JBL-C414MC/T-U
$217.50
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 90 W (PMPO)
  • 4.06" Paper Woofer, Polypropylene Cone Woofer
  • 0.51" Aluminum Tweeter, Polyetherimide (PEI) Tweeter

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 19 lbs.
JBL Professional Standard Coverage 414C/T Micro 2-way Ceiling Mountable, In-ceiling Speaker - 22.50 W RMS
Tech Specs
Specifications

Manufacturer

Harman International Industries, Inc

Manufacturer Part Number

JBL-C414MC/T-U

Manufacturer Website Address

http://www.harman.com

Brand Name

JBL Professional

Product Line

Standard Coverage

Product Model

414C/T Micro

Product Name

Standard Coverage 414C/T Micro Speaker

Marketing Information

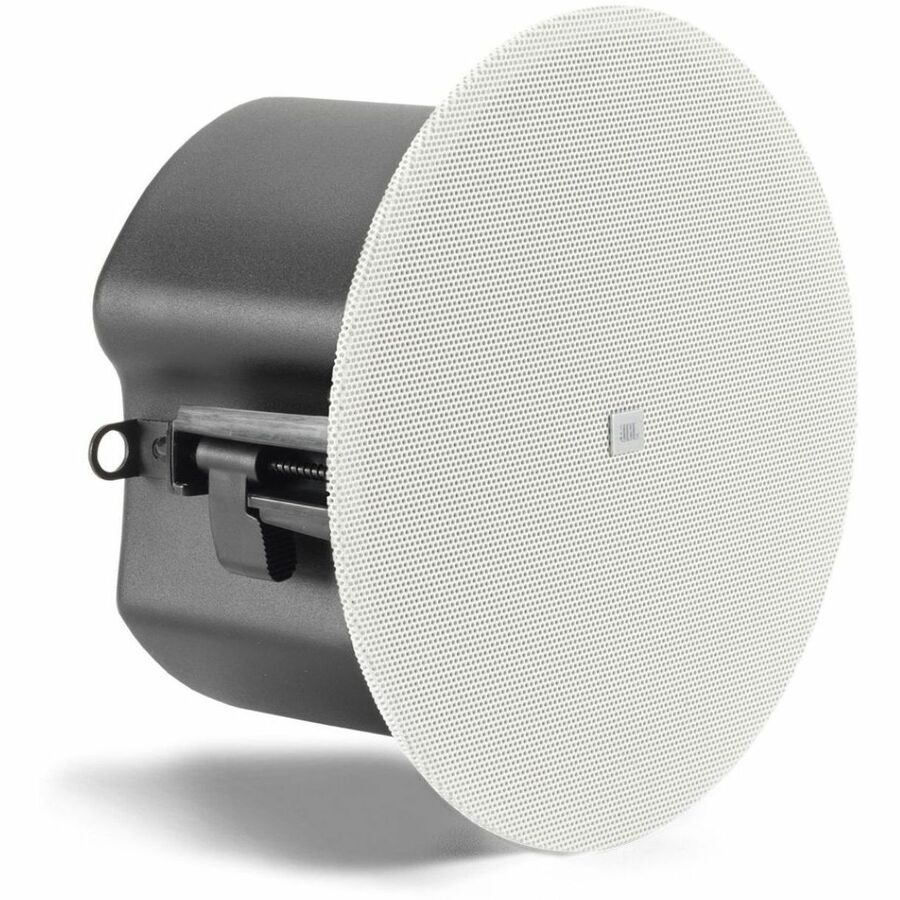

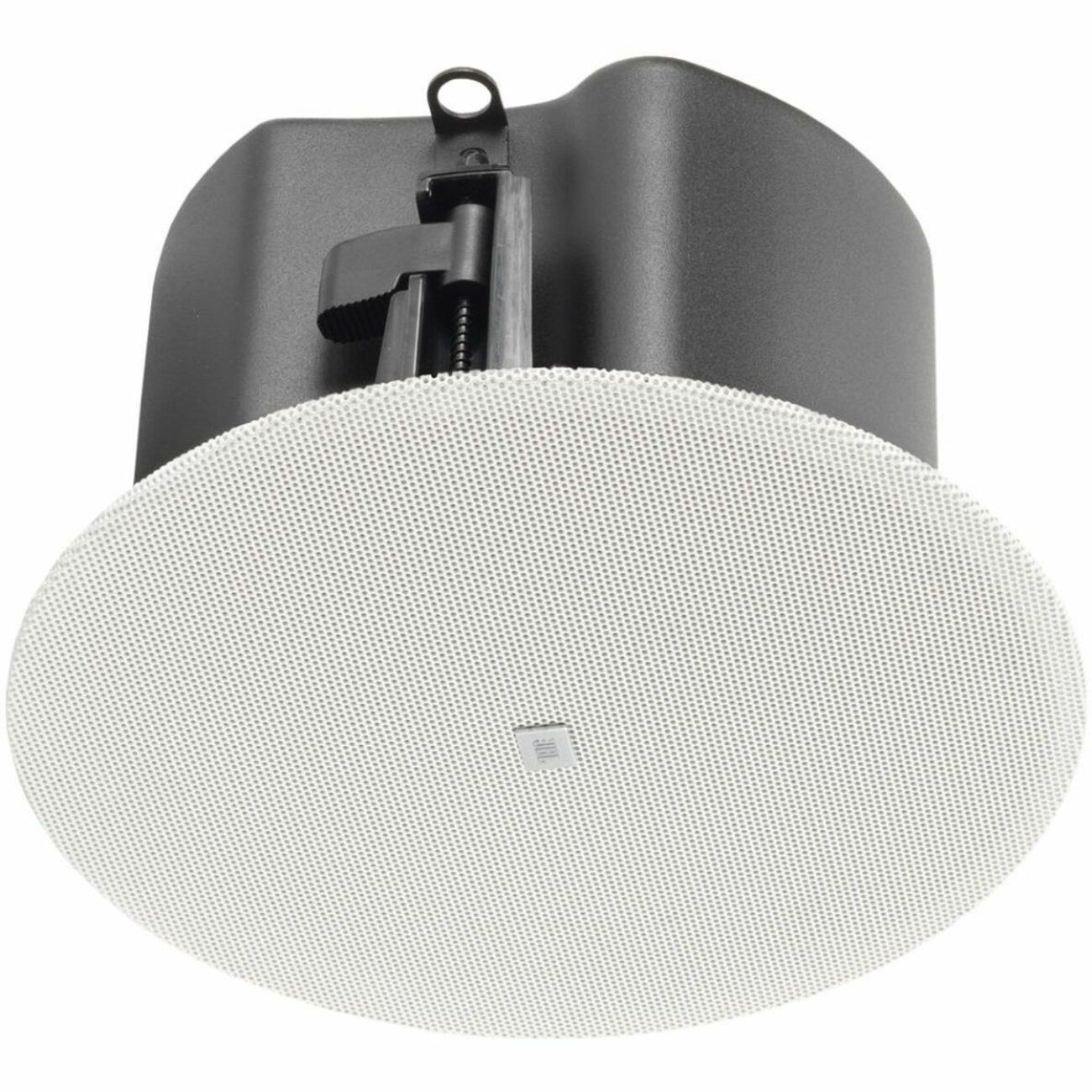

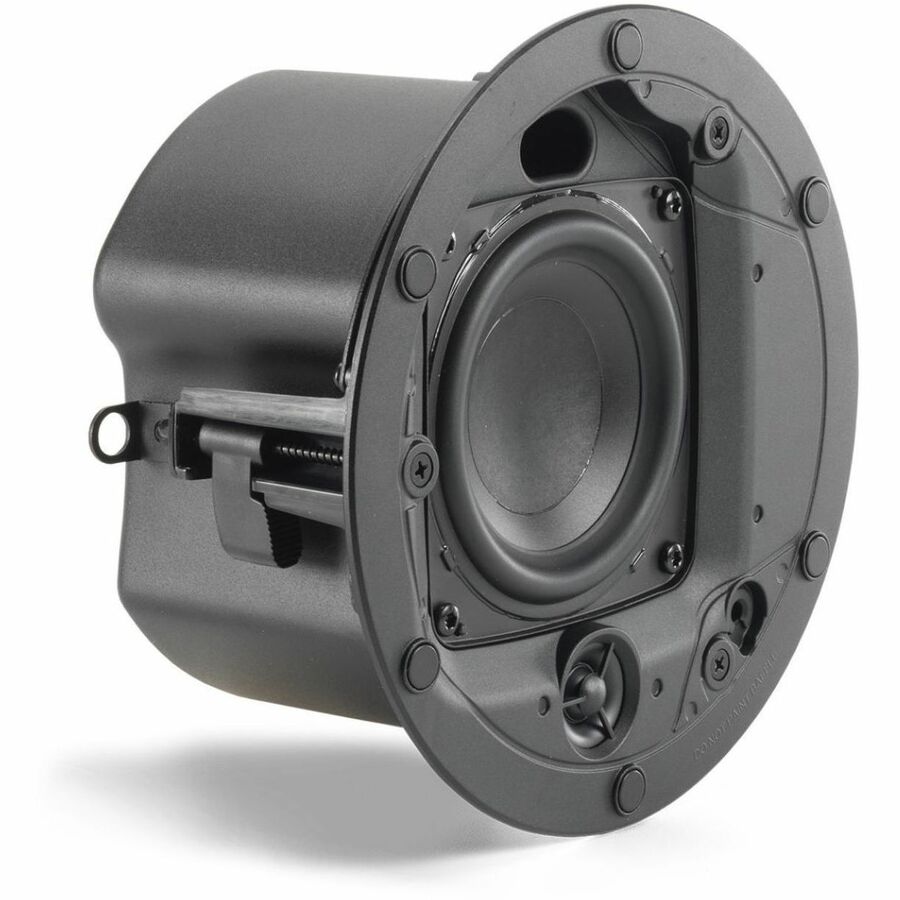

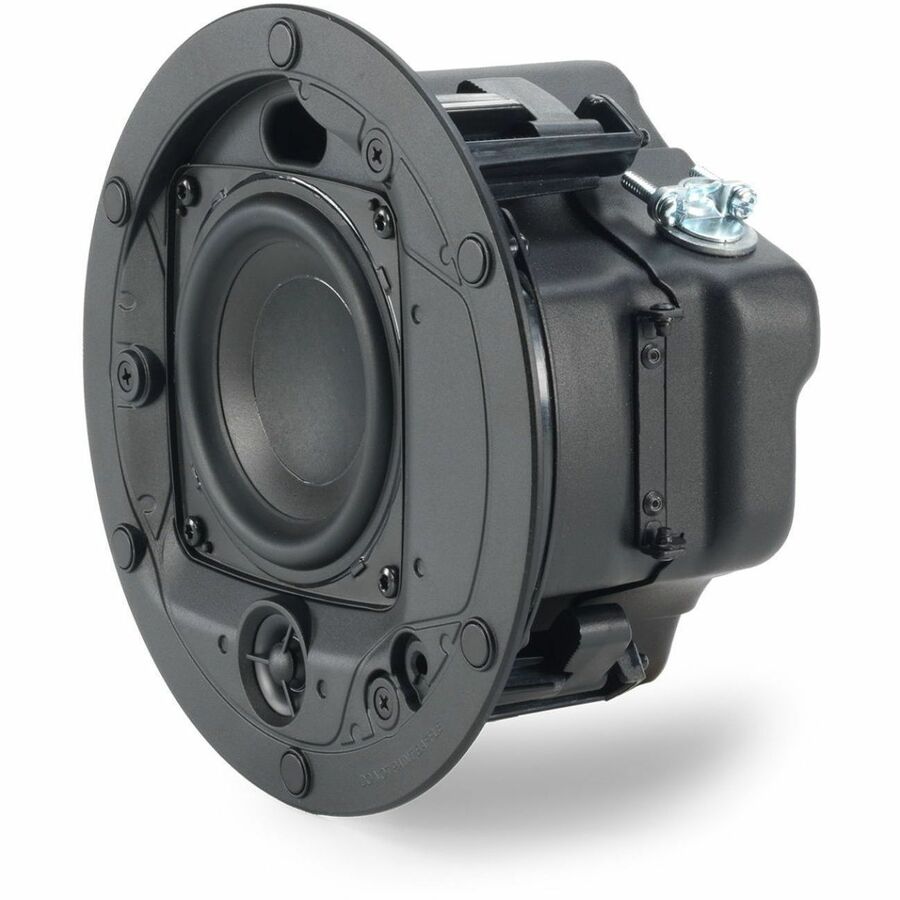

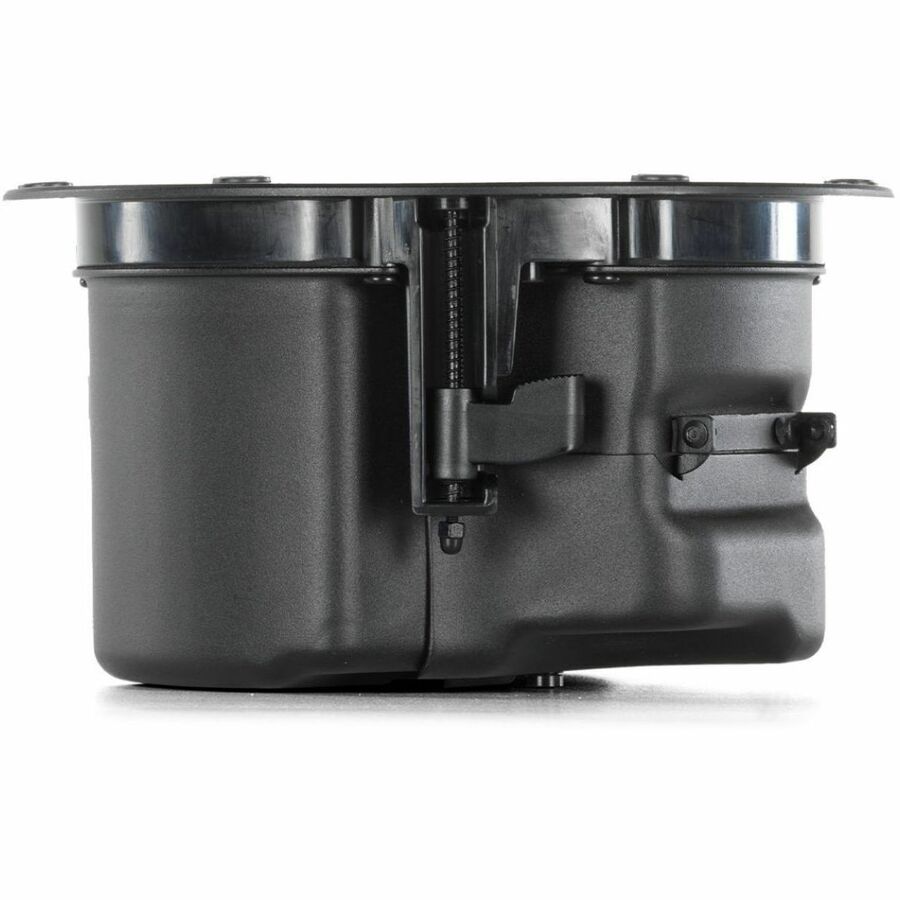

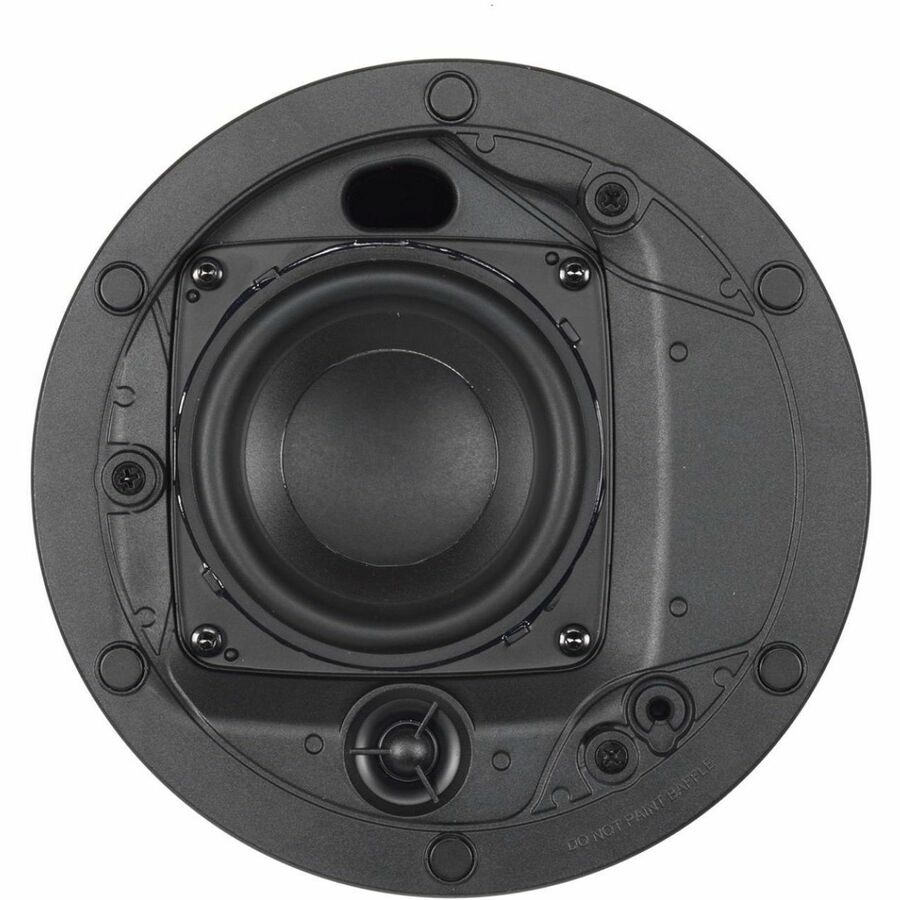

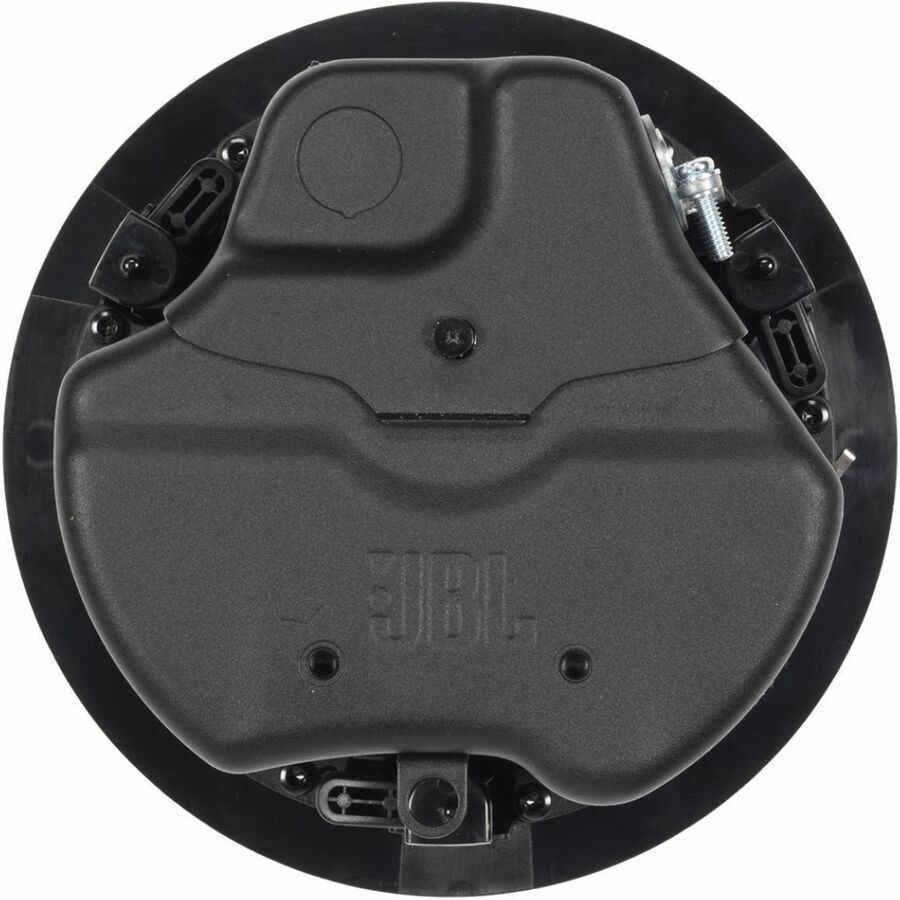

Part of the Control 400 collection's Standard Coverage Series, the Control 414C/T Micro is a two-way ceiling speaker with a 103 mm (4 inch) woofer and 13 mm (0.5 inch) PEI dome tweeter. The drivers are mounted in a ported baffle, with a pre-attached backcan for quick and easy installation. The Control 414C/T Micro is designed to provide exceptional sound quality for background music and music-plus-paging systems. These speakers are ideally suited for a wide range of low to medium volume applications such as music café's, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more.

The 160° coverage is especially wide, delivering consistent sound quality for listeners located both off and on axis.

Wide frequency response and low distortion make the Control 414C/T Micro ideal for sound systems requiring a higher fidelity sound. For applications where more bass is desired, the Control 414C/T Micro is tuned to pair well with the Enhanced Coverage Series Control 419CS/T subwoofer.

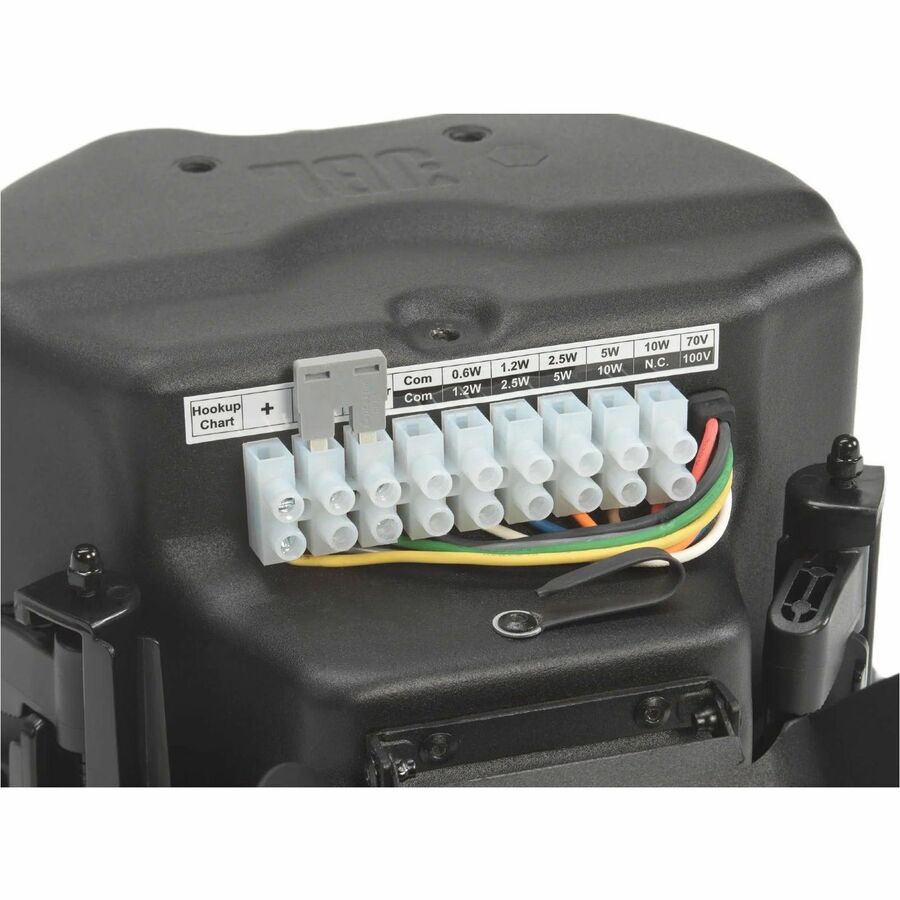

The direct input's 8-ohm impedance allows paralleling of up to 2 speakers on a 4-ohm rated amplifier channel. For distributed systems, the UL-registered transformer is designed for exceptionally low-saturation, even at high drive levels, providing top quality, low distortion distributed sound character.

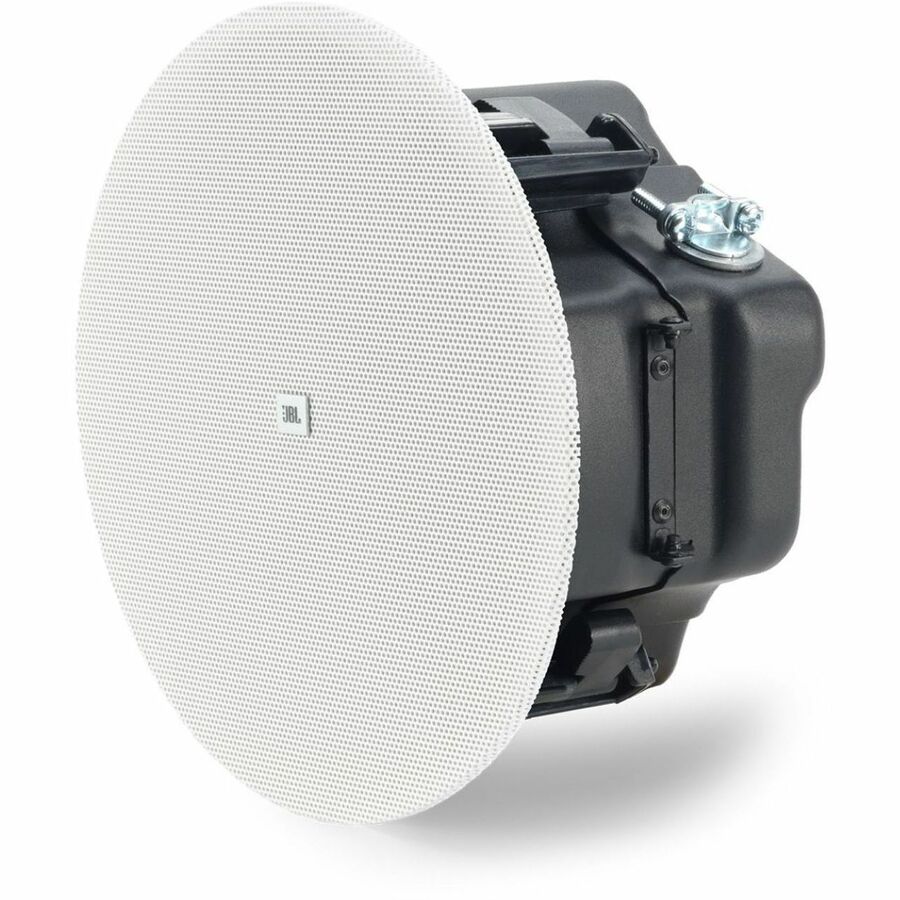

The full-face bezel-less grille blends beautifully into room décor, and the magnetic attachment of the grille is supplemented with an easy-to-apply safety tether. The speaker is packaged with grille, integral backcan, C-ring, and tile rails for fast installation. The included white grille is paintable (grille backing is removeable and re-applicable for painting), and optional accessory grilles are available in black (JBL-MTC-414BG) and in square (JBL-MTC-414SG, white only).

The Control 414C/T Micro is UL 1480A and UL 2043 listed.

Packaged Quantity

2 Pack

Product Type

Speaker
Technical Information

Crossover Type

2-way

RMS Output Power

22.50 W

PMPO Output Power

90 W

Woofer Driver Size

4.06"

Woofer Driver Material

  • Paper
  • Polypropylene Cone

Tweeter Driver Size

0.51"

Tweeter Driver Material

  • Aluminum
  • Polyetherimide (PEI)

Minimum Frequency Response

93 Hz

Maximum Frequency Response

21 kHz

Impedance

8 Ohm

Sensitivity

86 dB

Features

Overload Protection

Ingress Protection (IP) Rating

IP32
Physical Characteristics

Box Material

  • Polycarbonate/Acrylonitrile Butadiene Styrene (PC/ABS)
  • Steel
  • Aluminum

Form Factor

  • Ceiling Mountable
  • In-ceiling

Height

4.5"

Diameter

8"

Cutout Diameter

6.61"

Weight (Approximate)

4.63 lb
Miscellaneous

Package Contents

  • Standard Coverage 414C/T Micro Speaker
  • 1 x Jumper
  • 1 x Cable Strain Relief
  • White Round Bezel-Less Grille
  • Cutout Template
  • C-Ring
  • 2 x Tile Rails
  • C-Ring/Tile-Rail Screws
  • 1 x Seal Cover

Application/Usage

  • Commercial
  • Professional
  • Music
  • Cafe
  • Business
  • Retail
  • Music/Paging System
  • Airport
  • Reception
  • Waiting Room
  • Courtroom
  • Lounge
  • Convention Center
  • Hotel
  • Educational Facility

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
