6 INSTANDARD CEILING SPK CONTROL 416C/T (PACK OF 2)

by
HARMAN PRO
PCN#
770K84
MFG#
JBL-C416C/T-U
$322.21
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 300 W (PMPO)
  • 6.50" Paper Cone Woofer
  • 0.79" Soft Dome Tweeter, Polyamide Tweeter

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 28 lbs.

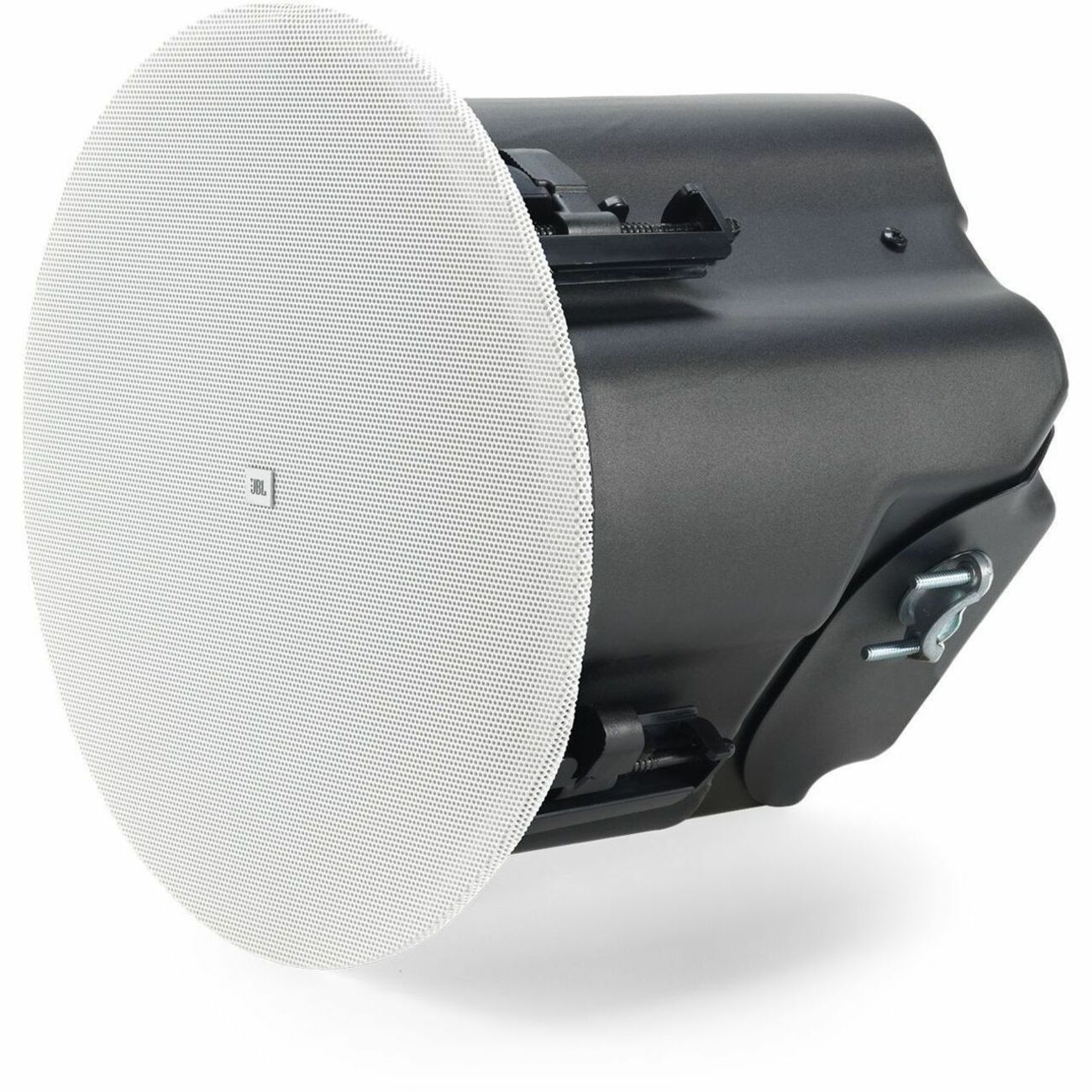

JBL Professional Standard Coverage 416C/T 2-way Ceiling Mountable, In-ceiling Speaker - 75 W RMS
Tech Specs
Specifications

Manufacturer

Harman International Industries, Inc

Manufacturer Part Number

JBL-C416C/T-U

Manufacturer Website Address

http://www.harman.com

Brand Name

JBL Professional

Product Line

Standard Coverage

Product Model

416C/T

Product Name

Standard Coverage 416C/T Speaker

Marketing Information

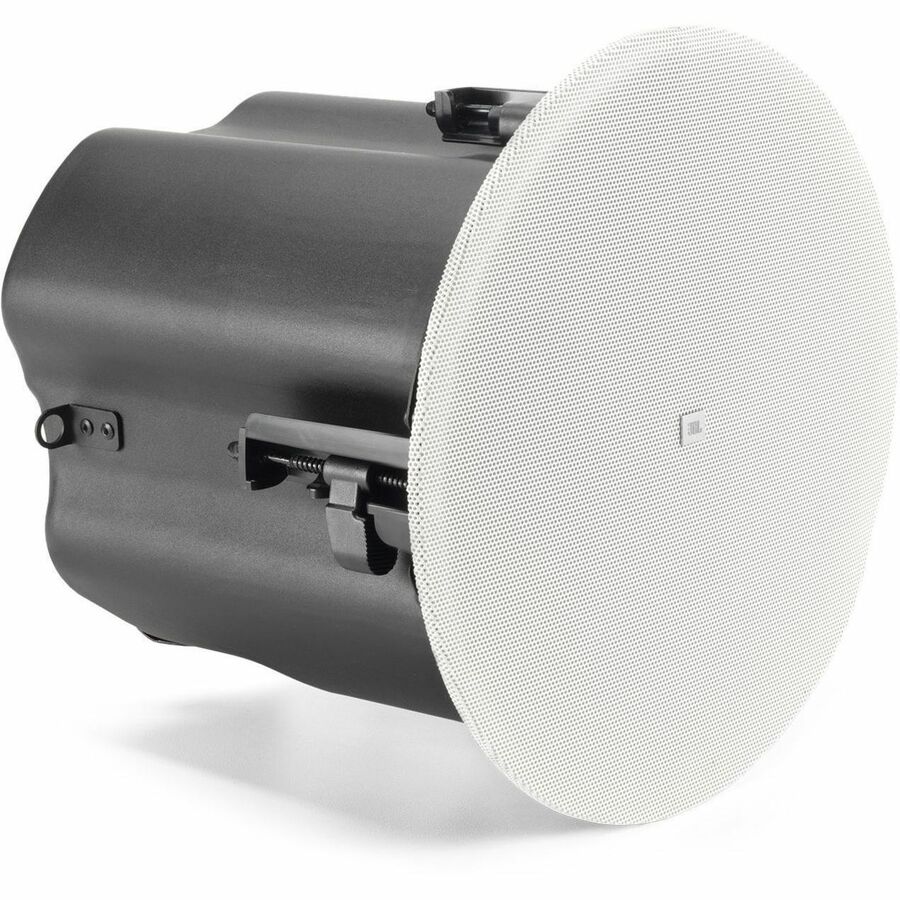

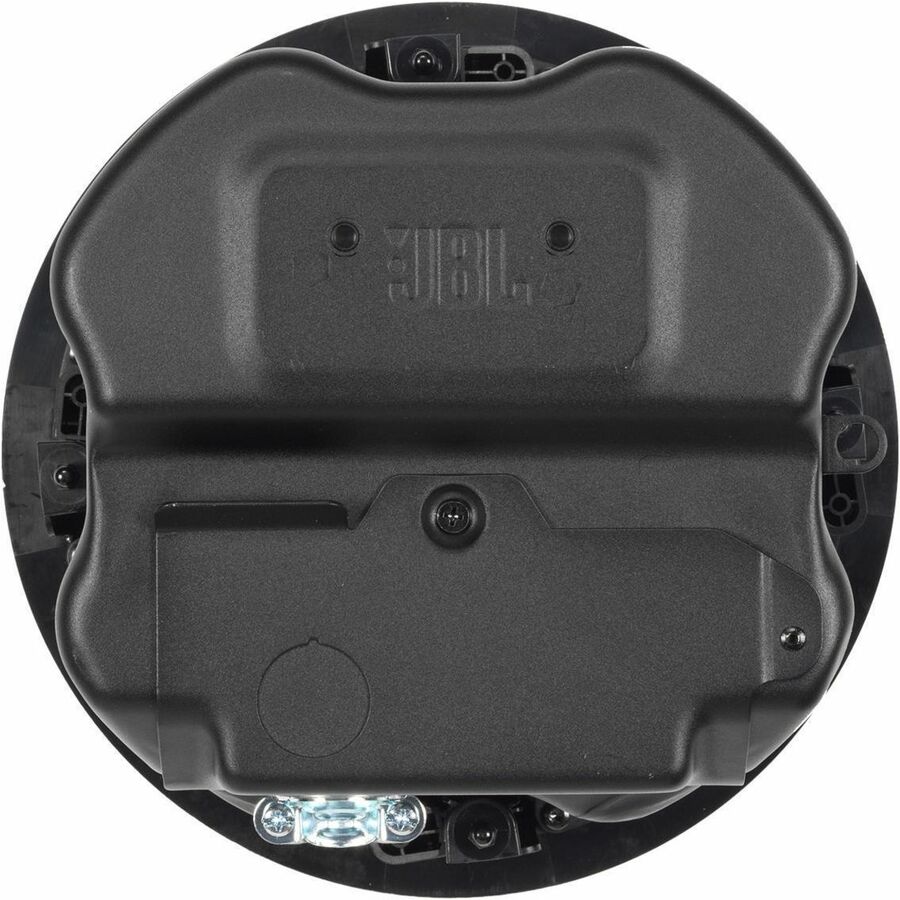

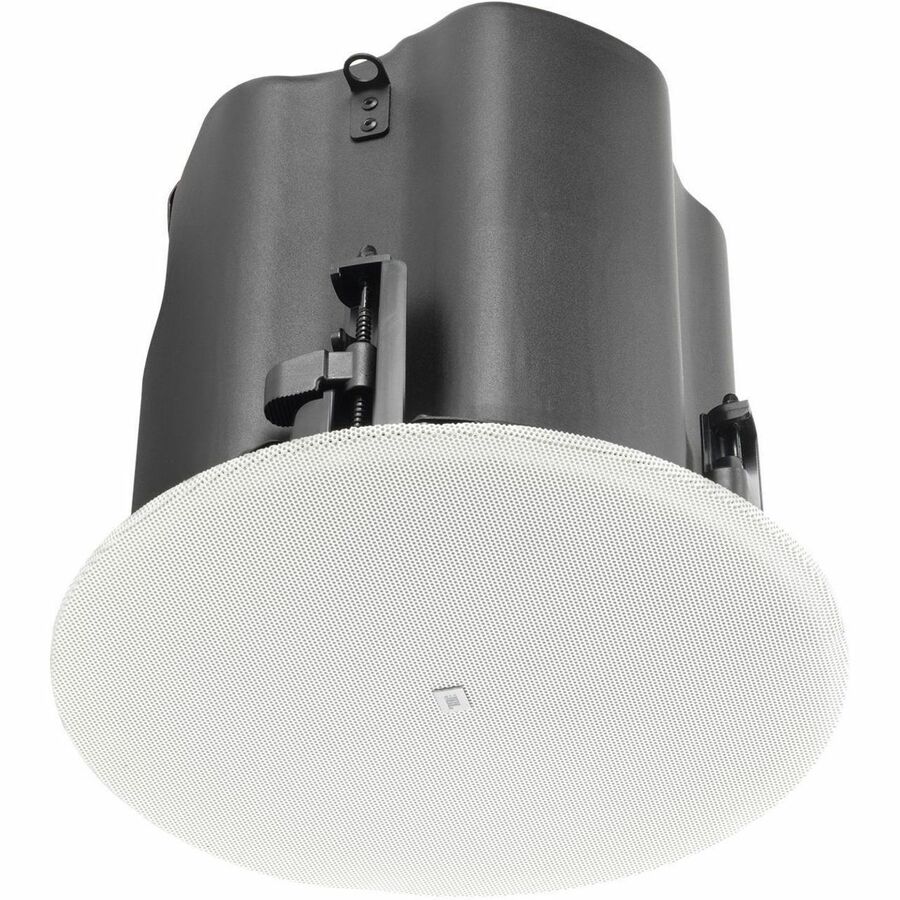

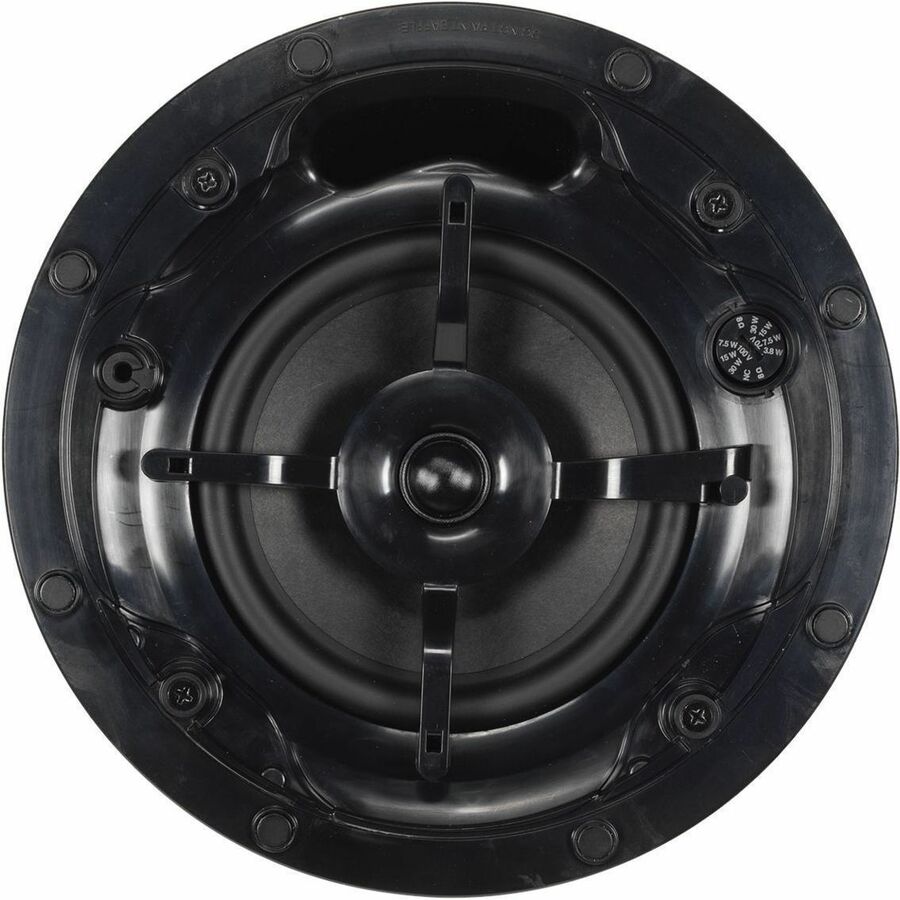

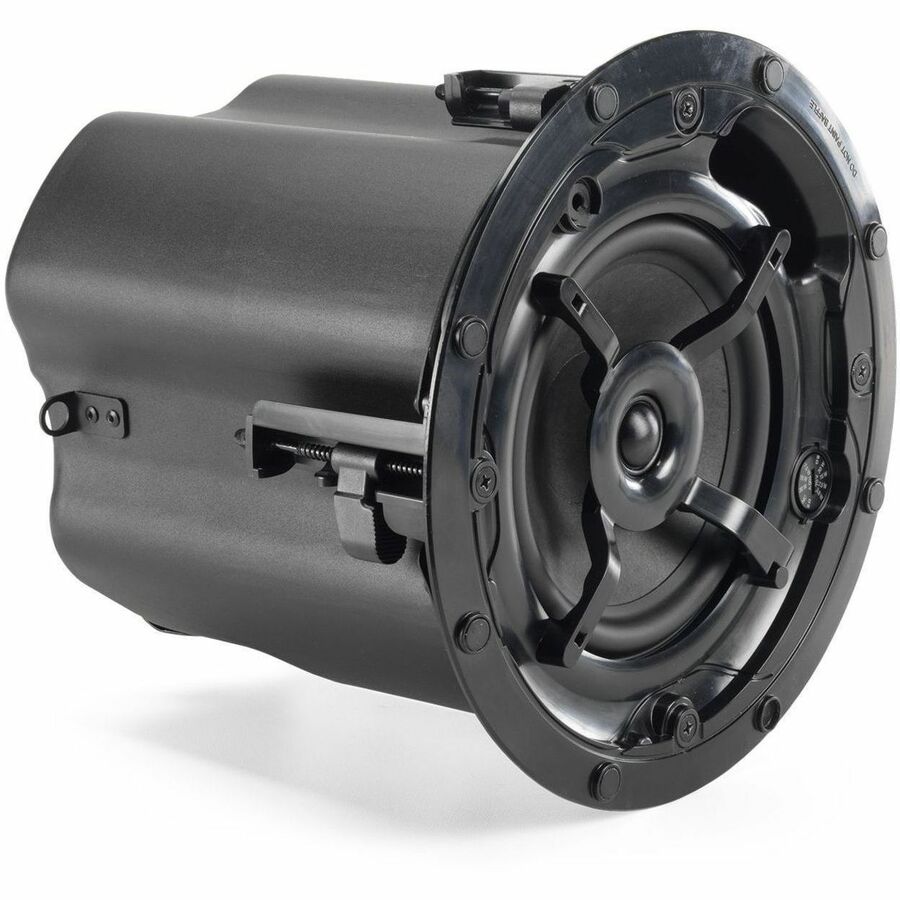

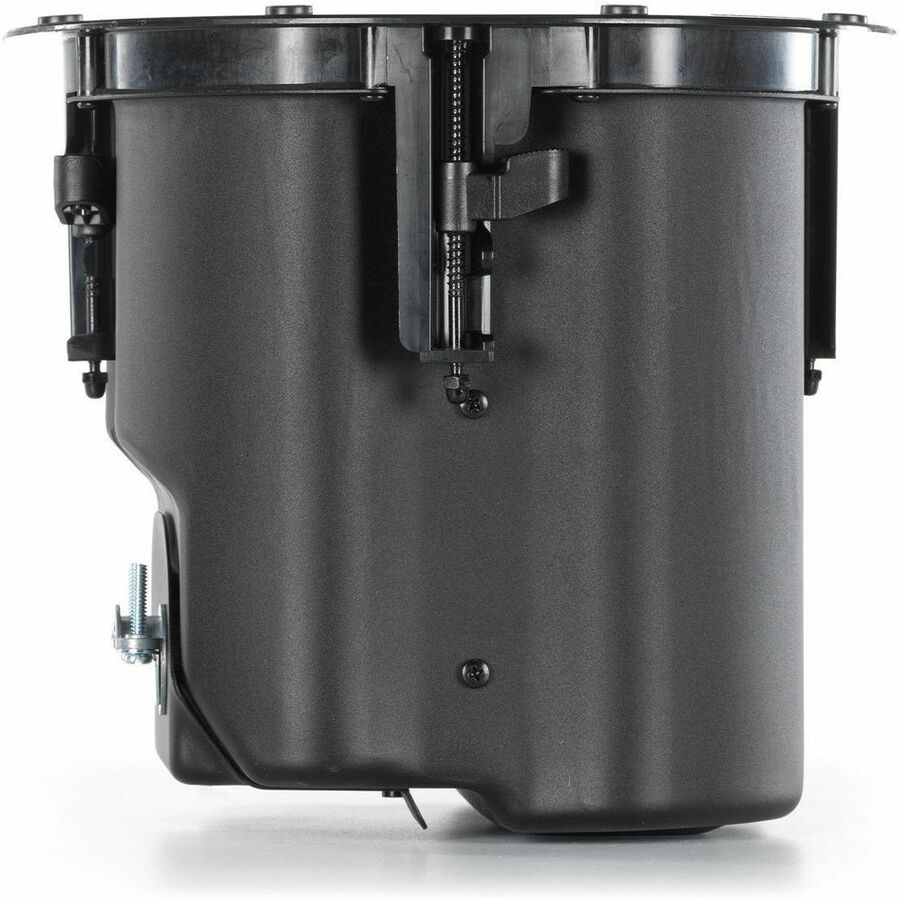

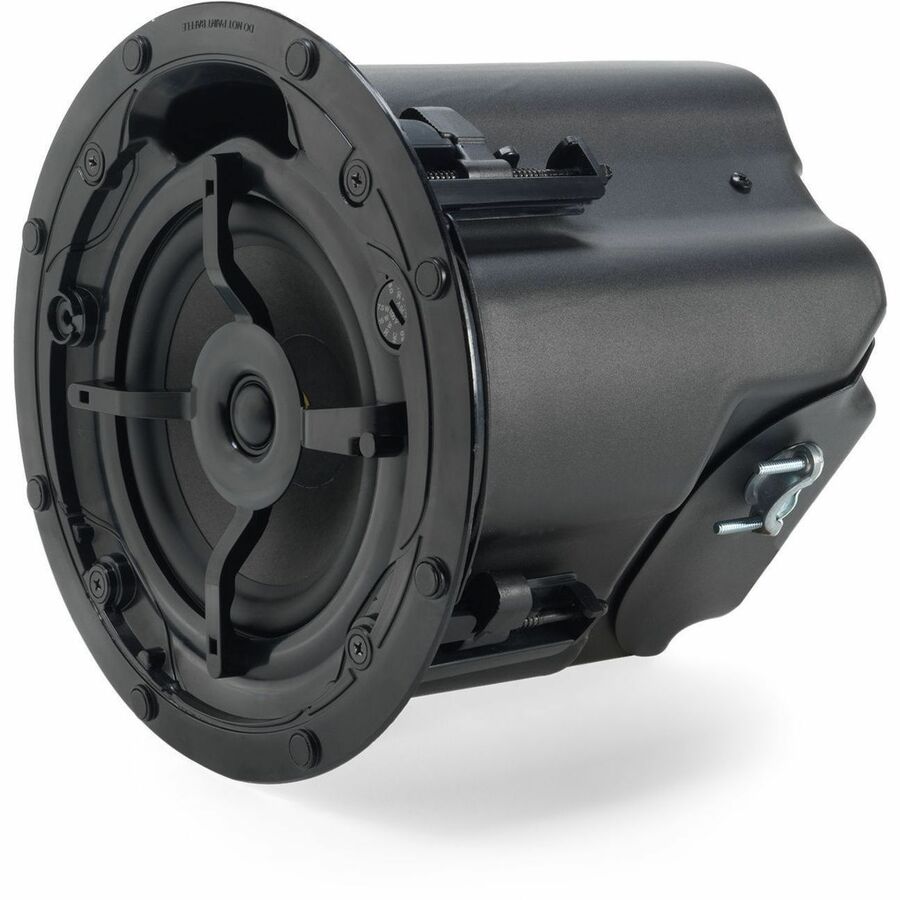

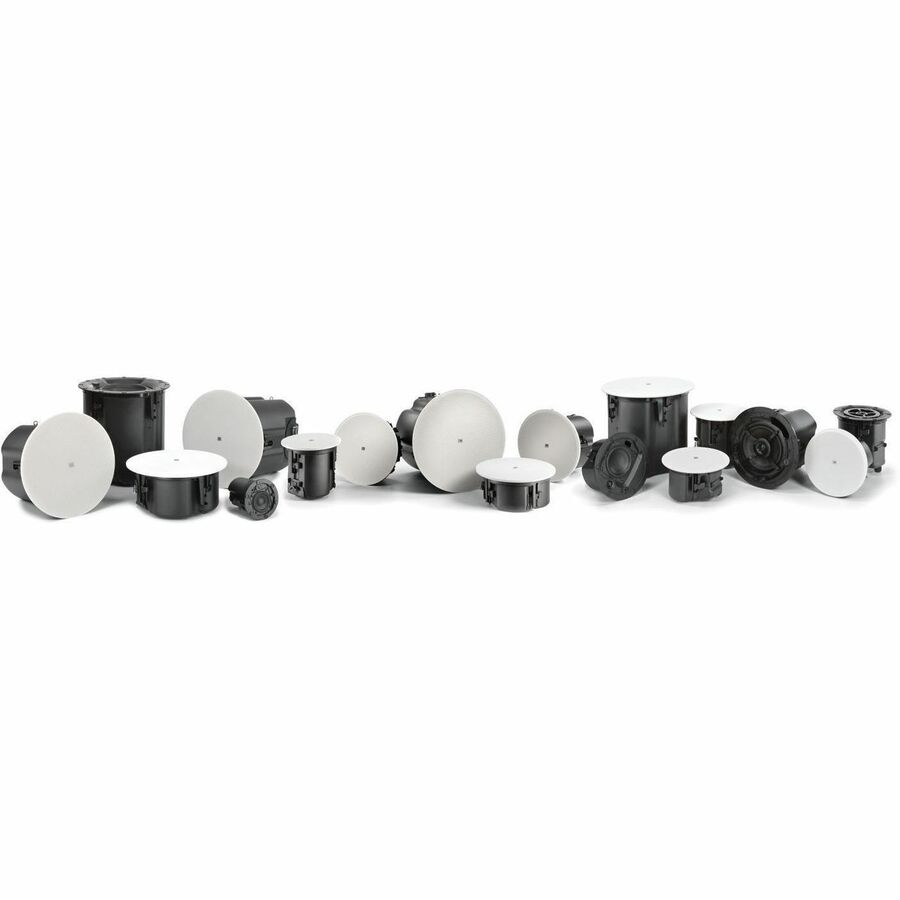

Part of the Control 400 collection's Standard Coverage Series, the Control 416C/T is a two-way ceiling speaker with a 165 mm (6.5 inch) woofer and 20 mm (0.75 inch) softdome tweeter mounted coaxially. The drivers are mounted in a ported baffle, with a pre-attached backcan for quick and easy installation. The Control 416C/T is designed to provide exceptional sound quality for a wide range of low to medium volume applications such as music café's, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more.

The 120° coverage delivers consistent sound quality for listeners located both off and on axis.

High power handling, wide frequency response and low distortion make the Control 416C/T ideal for sound systems requiring a higher fidelity sound. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening space. For applications where more bass is desired, the Control 416C/T is tuned to pair well with the Enhanced Coverage Series Control 419CS/T subwoofer.

The direct input's high 8Ω impedance allows paralleling of up to 2 speakers on a 4Ω rated amplifier channel. For distributed systems, the UL-registered transformer is designed for exceptionally low-saturation, even at high drive levels, providing top quality, low distortion distributed sound character.

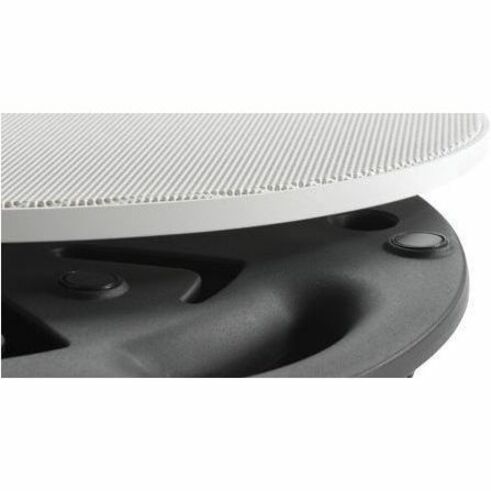

The full-face bezel-less grille blends beautifully into room décor, and the magnetic attachment of the grille is supplemented with an easy-to-apply safety tether. The speaker is packaged with grille, integral backcan, C-ring, and tile rails for fast installation. The included white grille is paintable (grille backing is removeable and re-applicable for painting), and optional accessory grilles are available in black (JBL-MTC-416BG) and in square (JBL-MTC-416SG, white only).

The Control 416C/T is UL 1480A and UL 2043 listed.

Packaged Quantity

2 / Pack

Product Type

Speaker
Technical Information

Crossover Type

2-way

RMS Output Power

75 W

PMPO Output Power

300 W

Woofer Driver Size

6.50"

Woofer Driver Material

Paper Cone

Tweeter Driver Size

0.79"

Tweeter Driver Material

  • Soft Dome
  • Polyamide

Minimum Frequency Response

84 Hz

Maximum Frequency Response

19 kHz

Impedance

8 Ohm

Sensitivity

89 dB

Features

Overload Protection

Ingress Protection (IP) Rating

IP33
Physical Characteristics

Box Material

  • Polycarbonate/Acrylonitrile Butadiene Styrene (PC/ABS)
  • Steel
  • Aluminum

Form Factor

  • Ceiling Mountable
  • In-ceiling

Height

5.6"

Diameter

8"

Cutout Diameter

8.78"

Weight (Approximate)

8.27 lb
Miscellaneous

Package Contents

  • Standard Coverage 416C/T Speaker
  • 2 x 2-Pin Removable Locking Euro-Block Connectors
  • 1 x Cable Strain relief
  • White Round Bezel-Less Grille
  • Cutout Template
  • C-Ring
  • 2 x Tile Rails
  • C-Ring/Tile-Rail Screws
  • 1 x Seal Cover
  • 2 x Rubber Boots

Application/Usage

  • Commercial
  • Professional
  • Cafe
  • Music
  • Retail Store
  • Music/Paging System
  • Airport
  • Reception
  • Waiting Room
  • Lounge
  • Courtroom
  • Convention Center
  • Hotel
  • Educational Facility
  • Room

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
