6 IN STANDARD EN54 CEILING SPK CONTROL 416C/T-VA (PACK OF 2)

by
HARMAN PRO
PCN#
770K74
MFG#
JBL-C416C/T-VA-U
$426.37
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 300 W (PMPO)
  • 6.50" Paper Cone Woofer
  • 0.79" Soft Dome Tweeter, Neodymium Tweeter, Polyamide Tweeter

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 28 lbs.

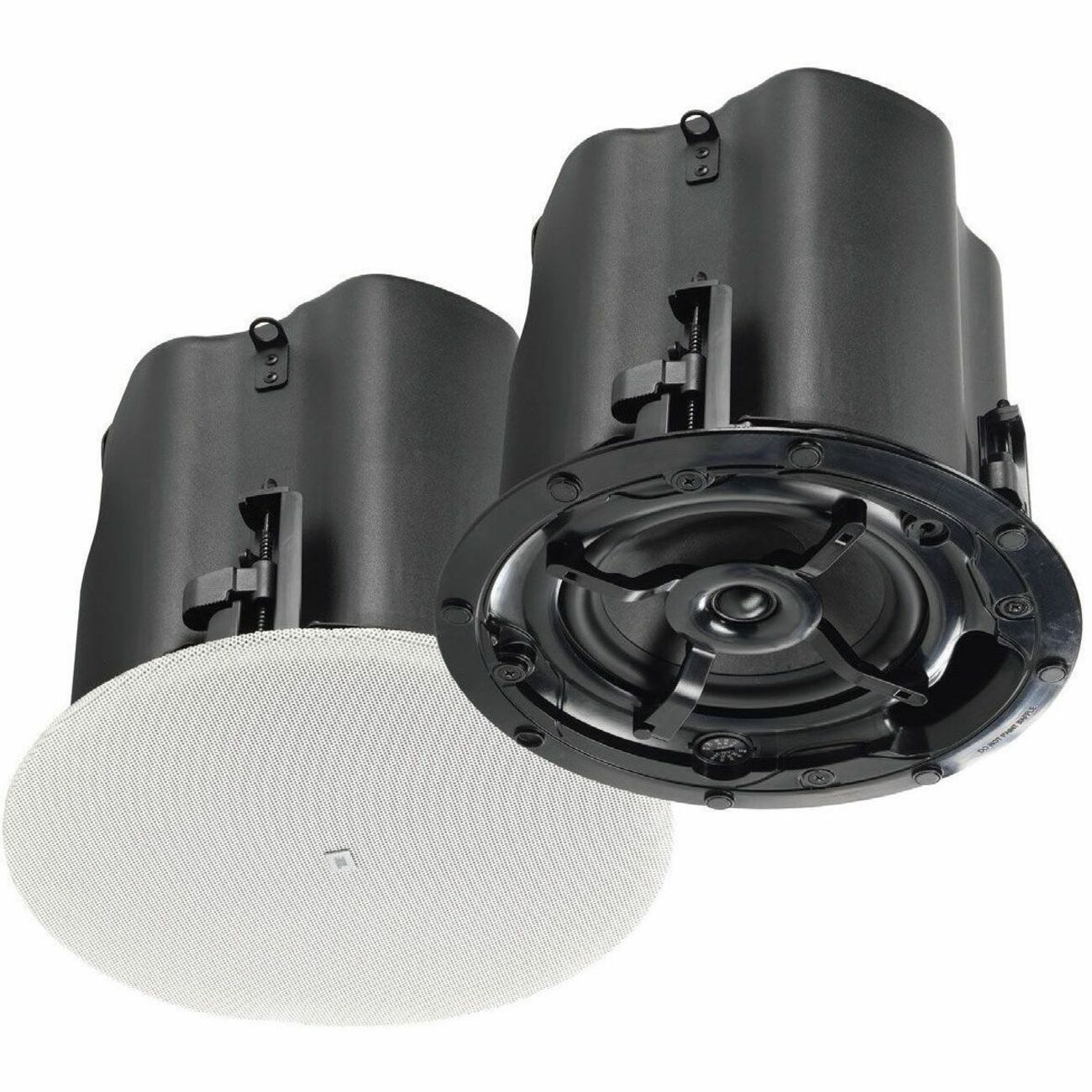

JBL Professional Standard Coverage 416C/T-VA 2-way Ceiling Mountable, In-ceiling Speaker - 75 W RMS
Tech Specs
Specifications

Manufacturer

Harman International Industries, Inc

Manufacturer Part Number

JBL-C416C/T-VA-U

Manufacturer Website Address

http://www.harman.com

Brand Name

JBL Professional

Product Line

Standard Coverage

Product Model

416C/T-VA

Product Name

Standard Coverage 416C/T-VA Speaker

Marketing Information

Part of the Control 400 collection's Standard Coverage Series, The Control 416C/T-VA is a full-range, EN 54-24 certified ceiling speaker with a 165mm (6.5 inch) woofer and 20mm (0.75 inch) soft-dome tweeter. The drivers are mounted in a ported baffle made of UV resistant UL 94 5VB material, with a pre-attached blind-mount backcan for quick and easy installation. The Control 416C/T-VA is designed to provide exceptional sound quality for a wide range of low to medium volume applications such as music café's, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more.

The 120° coverage delivers consistent sound quality for listeners located both off and on axis.

High power handling, wide frequency response and low distortion make the Control 416C/T-VA ideal for sound systems requiring a higher fidelity sound. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening space. For applications where more bass is desired, the Control 416C/T-VA is tuned to pair well with the Enhanced Coverage Series Control 419CS/T subwoofer.

The direct input's high 8-ohm impedance allows paralleling of up to 2 speakers on a 4-ohm rated amplifier channel. For distributed systems, the UL-registered transformer is designed for exceptionally low-saturation, even at high drive levels, providing top quality, low distortion distributed sound character.

The full-face bezel-less grille blends beautifully into room décor, and the magnetic attachment of the grille is supplemented with an easy-to-apply safety tether. The speaker is packaged with grille, integral backcan, C-ring, and tile rails for fast installation. The included white grille is paintable (grille backing is removeable and re-applicable for painting), and optional accessory grilles are available in black (JBL-MTC-416BG) and in square (JBL-MTC-416SG, white only).

The Control 416C/T-VA is EN 54-24, UL 1480A and UL 2043 listed.

Packaged Quantity

2 Pack

Product Type

Speaker
Technical Information

Crossover Type

2-way

RMS Output Power

75 W

PMPO Output Power

300 W

Woofer Driver Size

6.50"

Woofer Driver Material

Paper Cone

Tweeter Driver Size

0.79"

Tweeter Driver Material

  • Soft Dome
  • Neodymium
  • Polyamide

Minimum Frequency Response

84 Hz

Maximum Frequency Response

19 kHz

Impedance

8 Ohm

Sensitivity

89 dB

Features

Overload Protection

Ingress Protection (IP) Rating

IP33
Physical Characteristics

Box Material

  • Polycarbonate/Acrylonitrile Butadiene Styrene (PC/ABS)
  • Steel
  • Aluminum

Form Factor

  • Ceiling Mountable
  • In-ceiling

Height

9.8"

Diameter

10.3"

Cutout Diameter

8.78"

Weight (Approximate)

8.29 lb
Miscellaneous

Package Contents

  • Standard Coverage 416C/T-VA Speaker
  • 1 x Gland Nut Accommodates Round Jacketed Cables
  • White Round Bezel-Less Grille
  • Cutout Template
  • C-Ring
  • 2 x Tile Rails
  • C-Ring/Tile-Rail Screws
  • 1 x Seal Cover

Application/Usage

  • Commercial
  • Professional
  • Cafe
  • Music
  • Business
  • Music/Paging System
  • Retail Store
  • Waiting Room
  • Courtroom
  • Lounge
  • Educational Facility
  • Hotel
  • Convention Center
  • Reception

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
