2.5 IN PREMIUM CEILING SPKR CONTROL 442C/T (PACK OF 2)

by
HARMAN PRO
PCN#
770K73
MFG#
JBL-C442C/T-U
$224.79
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 90 W (PMPO) Woofer Tweeter Midrange
  • 178 Hz to 20 kHz
  • 16 Ohm
Product Condition: New and Factory Fresh
Shipping Weight: 8 lbs.

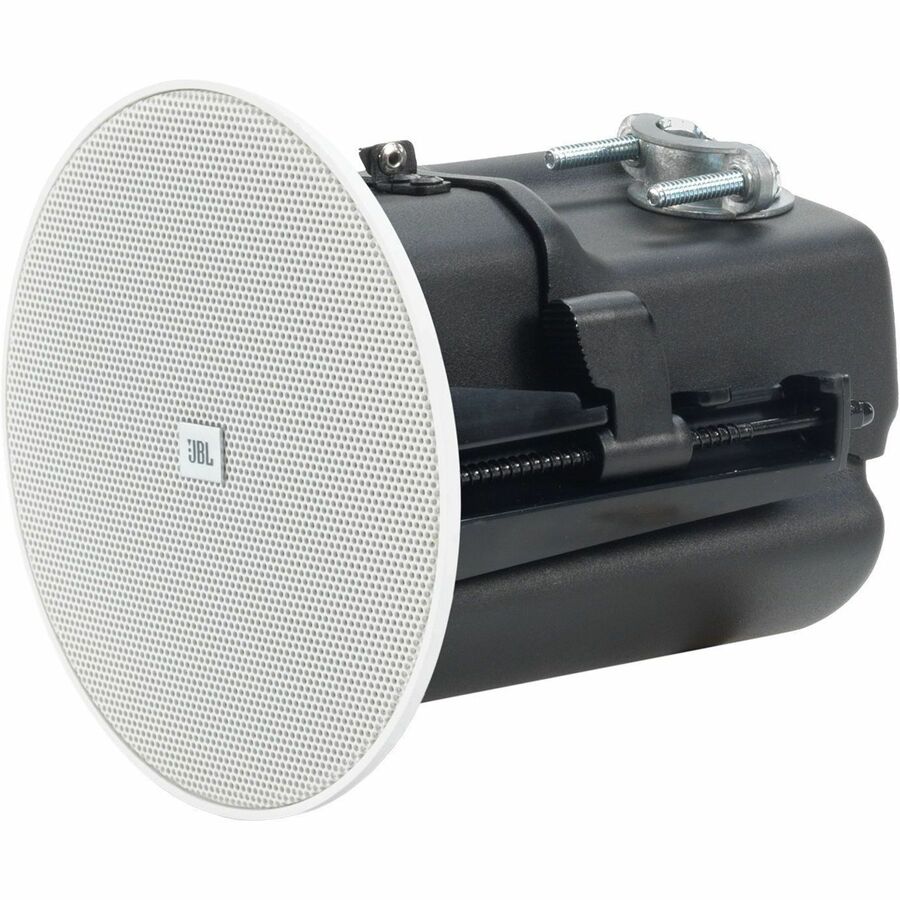

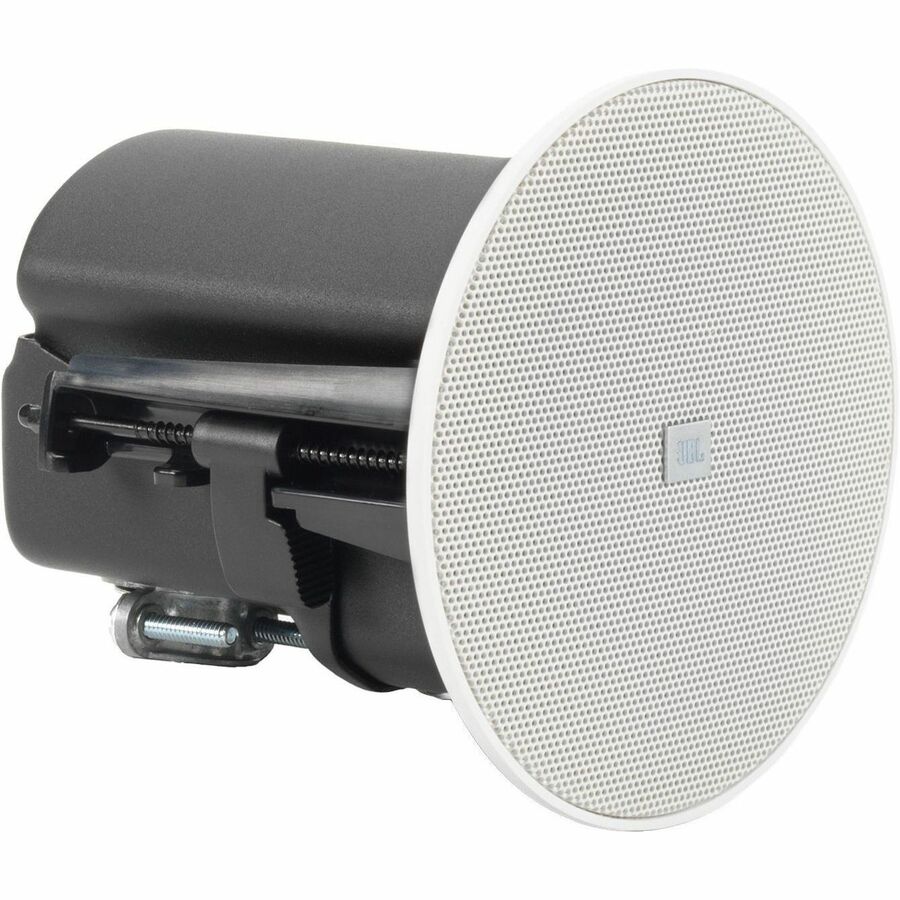

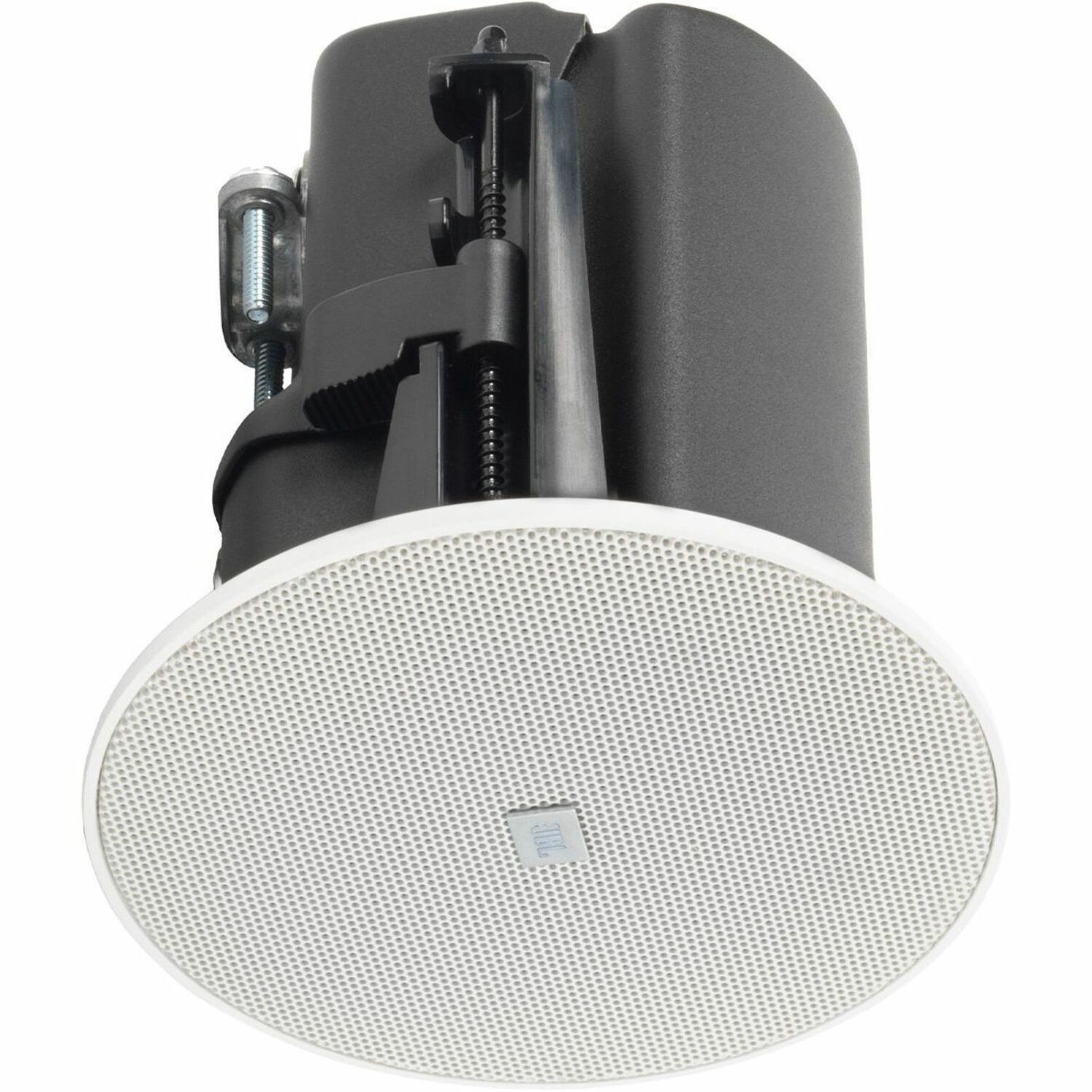

JBL Professional Control 442C/T Ceiling Mountable Speaker - 22.50 W RMS - White
Tech Specs
Specifications

Manufacturer

Harman International Industries, Inc

Manufacturer Part Number

JBL-C442C/T-U

Manufacturer Website Address

http://www.harman.com

Brand Name

JBL Professional

Product Line

Control

Product Model

442C/T

Product Name

Control 442C/T Speaker

Marketing Information

Part of the Control 400 collection's Premium Coverage Series, the JBL Control 442C/T is an ultra-compact in-ceiling professional satellite loudspeaker designed for use with the Control 440CS/T in-ceiling subwoofer. When combined with the Control 440CS/T, the Control 442C/T offers an extremely refined, natural, and powerful sounding subwoofer-satellite system that is ideal for applications requiring wide bandwidth, superior sonic performance, and minimal visual impact.

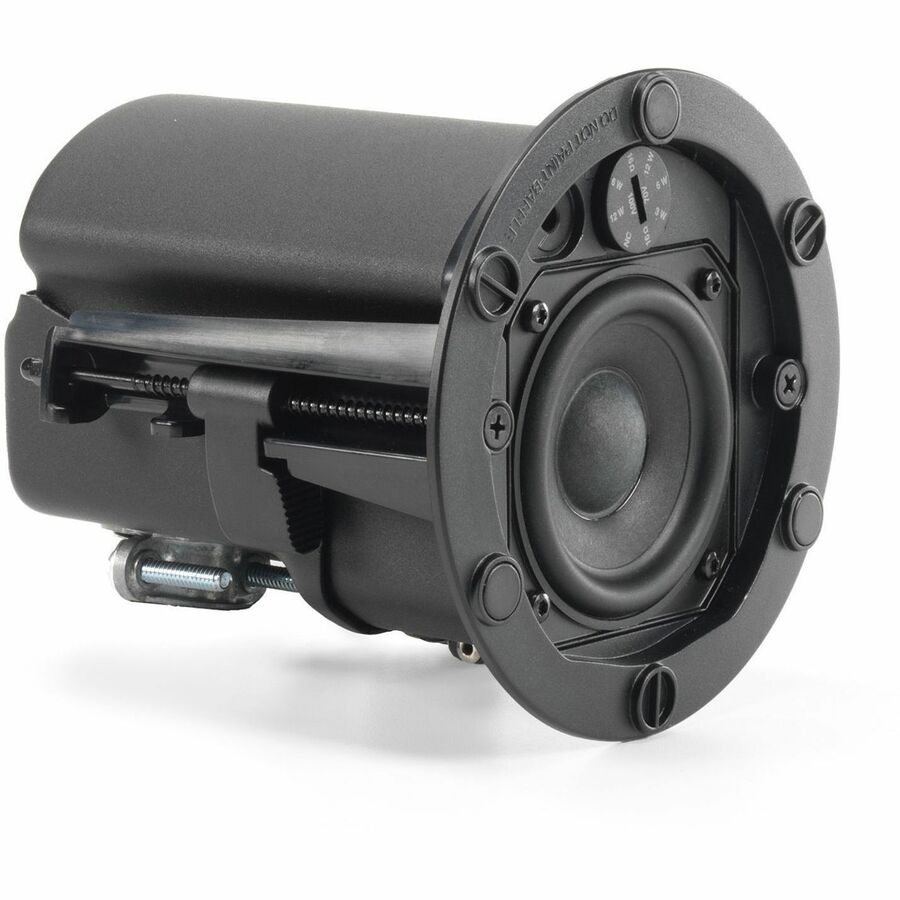

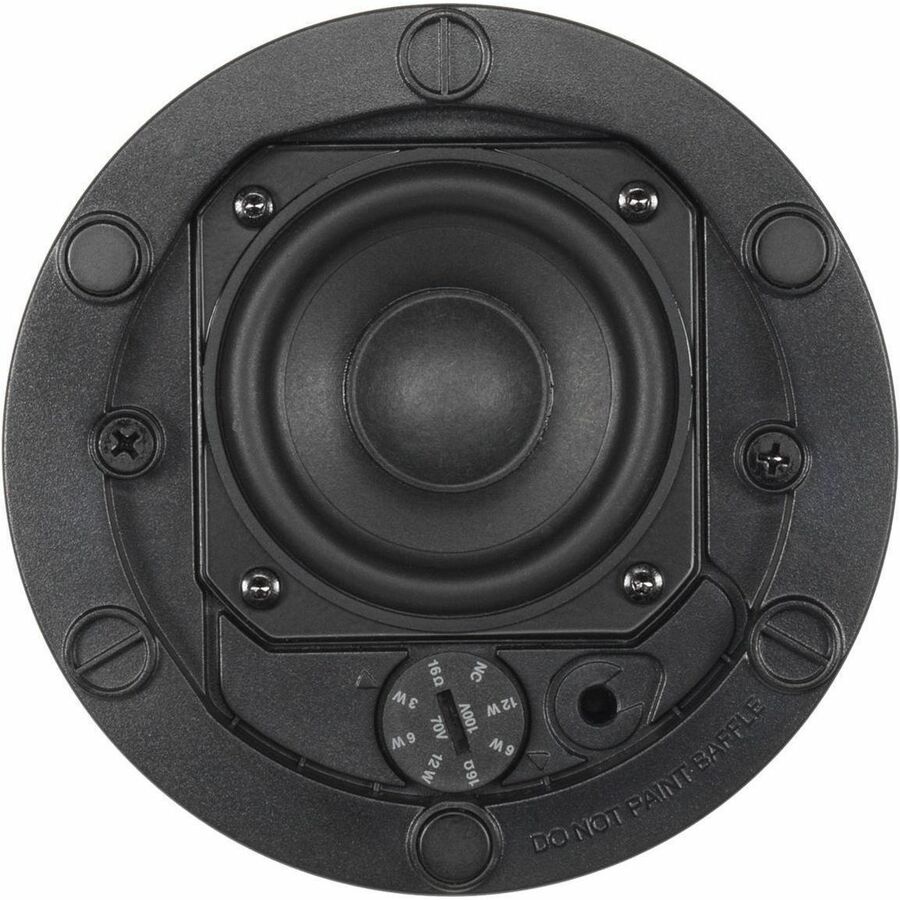

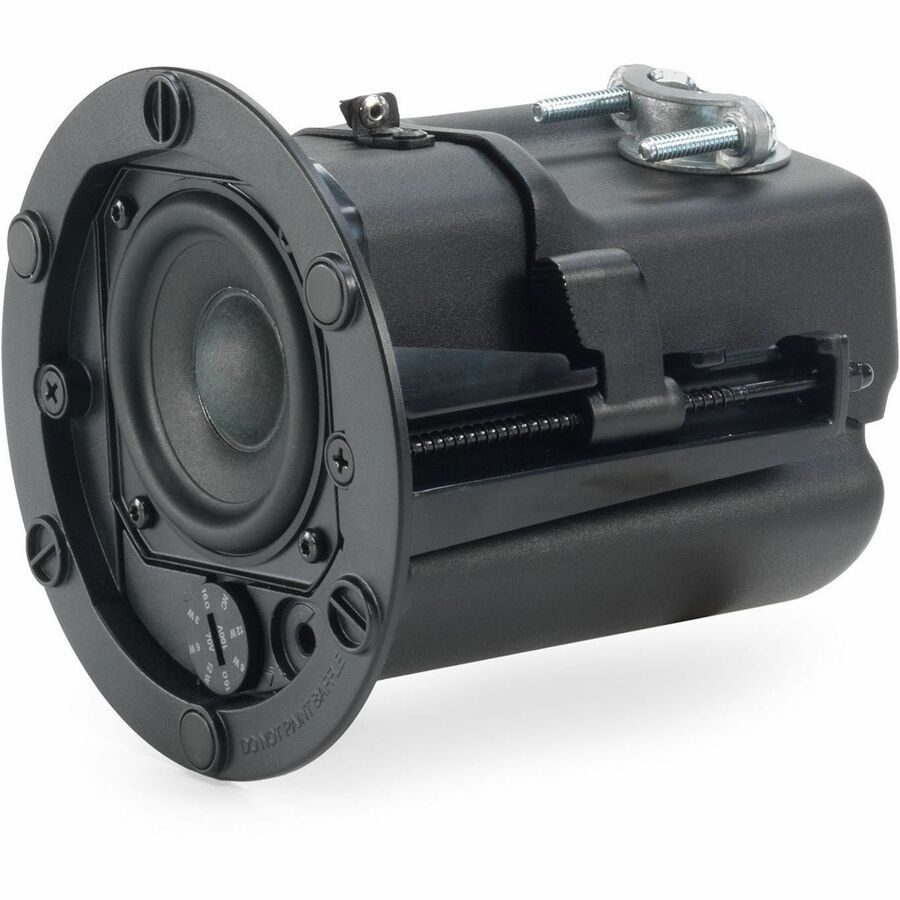

The stylish bezel-less grille fits seamlessly into a variety of architectural aesthetics. The integrated backcan on the Control 442C/T combined with the C-ring support backing plate allows for quick and easy installation of the unit. The system's 60 mm (2.5 in) mid/high driver features a polypropylene cone and pure butyl rubber surround for long life. The copper-clad aluminum voice coil wound on a vented aluminum former offers low distortion.

The 16Ω impedance allows paralleling up to 4 speakers on a 4Ω capable amplifier. For distributed systems, the ULregistered transformer is designed for exceptionally lowsaturation, even at high drive levels, providing top quality, low distortion distributed sound character.

The Control 442C/T must be operated with either an active high-pass filter or a passive crossover, such as the one built into the Control 440CS/T subwoofer, to protect it against damage from low frequencies. Because of the very light weight of Control 442C/T, tile rails may not be required for many in-ceiling applications. They are not packaged with this model, however MTC-RAIL tile rail sets are available separately. Housed in a compact package, the lightweight Control 442C/T features an elegant, unobtrusive design and is ideal for both small and large projects alike.

The speaker is packaged with grille, integral backcan, and c-ring for fast installation. The included white grille is paintable (grille backing is removeable and re-applicable for painting), and optional accessory grilles are available in black (JBL-MTC-442BG) and in square (JBL-MTC-442SG, white only).

The Control 442C/T is UL 1480A and UL 2043 listed.

Packaged Quantity

2

Product Type

Speaker
Technical Information

RMS Output Power

22.50 W

PMPO Output Power

90 W

Full Range Driver Size

2.36"

Full Range Driver Material

  • Paper Cone
  • Polyimide

Minimum Frequency Response

178 Hz

Maximum Frequency Response

20 kHz

Impedance

16 Ohm

Sensitivity

86 dB

Ingress Protection (IP) Rating

IP33
Power Description

Input Voltage

34 V
Physical Characteristics

Color Family

White

Product Color

White

Box Material

  • Steel
  • Polycarbonate/Acrylonitrile Butadiene Styrene (PC/ABS)

Form Factor

Ceiling Mountable

Height

5.4"

Diameter

5.2"

Cutout Diameter

4.09"

Weight (Approximate)

2.43 lb
Miscellaneous

Package Contents

  • Control 442C/T Speaker
  • 2 x 2-pin Removable Locking Euro-block Connectors
  • 1 x Cable Strain Relief
  • White Round Bezel-less Grille (with preattached safety tether and tether clip)
  • Cutout Template (labeled part of the packaging)
  • C-ring
  • C-ring/tile-rail Screws
  • 1 x Seal Cover
  • 2 x Rubber Boots

Application/Usage

  • Room
  • Commercial
  • Hospitality

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
