DUAL BAY 10G USB 3.2 TO SATA DRIVE DOCK

Dual-Bay 10Gb/s USB 3.2 to SATA Drive Dock

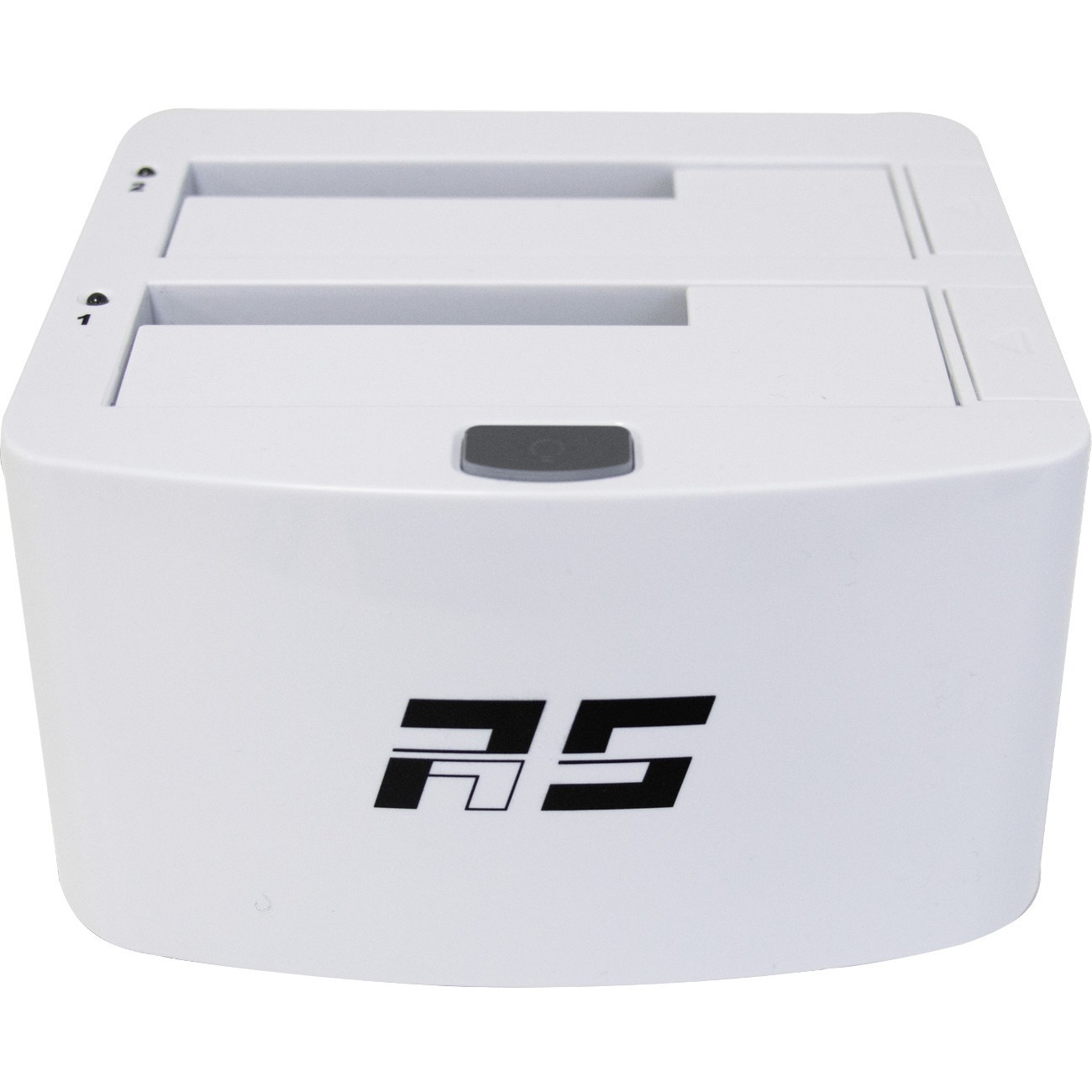

The RocketStor 3112D is a USB 3.2 10Gb/s drive dock with dual dedicated SATA drive bays, and a single USB Type-C host connector.

The two independent drive bays provide dedicated bandwidth and resources for each hosted SATA SSD or hard disk.

Key Features

• Universal 10Gb/s USB 3.2 Type-C port works with any USB 3.x or Thunderbolt Type-C host connection
• Dedicated SATA Channels enable simultaneous access to both drive bays
• Supports 2x 3.5"/2.5" SATA HDD or SSD
• Plug & Play Installation
• UASP Enabled
• Windows, macOS & Linux compatible

Indepedent Bandwidth & Dedicated Resources for Each SATA Device

Unlike most drive docks in today's marketplace, each of the RocketStor 3112D's drive bays operate independently; hosted SATA devices can be accessed either concurrently or separately as the need arises, without fear of performance loss or a drop in response time, even under heavy I/O.

Universal Type-C Connectivity

The single, 10Gb/s USB Type-C port was designed for use with HighPoint's USB-C31-1MC 1 meter USB-C to USB-C cable.

This combination enables the drive dock to be used with any industry standard USB 3.x or Thunderbolt Type-C port.

User Friendly Plug and Play Installation

Setting up the RocketStor 3112D could not be easier. No Driver or Software is required; just plug in and power on! Each drive bay is Hot-Swap ready - your system will automatically recognize any disk you insert.

Compact and Easy to Use

A single RocketStor Storage Dock requires a minimal amount of physical workspace, yet is capable of supporting the fastest 6Gb/s SSD's and ultra-high capacity hard drives, simultaneously. The open-topped, vertical device bays allow you to use any generation of 2.5" and 3.5" SATA SSD & hard drive, of any capacity and performance level.

True USB Hot-Plug capability allows you to add or remove any disk on the fly, at any time, risk free.

UASP Enabled: Maximizing the Performance Capability of USB Devices

UAS (USB Attached SCSI) is a computer protocol that is used to transfer data to and from USB storage devices. UAS offers maximized bandwidth utilization, and can handle multiple data transfer requests simultaneously, unlike the slower queue system of BOT (Bulk Only Transport), which only provides single-task commands - each task must complete before the next begins.

USB connections working in UASP mode result in higher transfer speeds and lower CPU utilization. UASP mode results in higher transfer speeds and lower CPU utilization.

• Mac OS X 10.12.6 Sierra
• Windows 11
• Windows 10
• Windows 8.1
• Windows Server 2022 x64
• Windows Server 2016 (64-bit)
• Windows Server 2012 (64-bit)
• Windows Server 2008 x64
• Linux 3.10.0

• RocketStor 3112D Storage Dock
• 1 x 60W External Power Adapter
• 1 x 1M USB-C 20Gb/s Cable
• 1 x Power Cord
• 1 x Quick Installation Guide

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
