HP Z4 G5R W32425 128GB/2TB PC

by
HP INC
PCN#
NJ8854
MFG#
AV5N7UA#ABA
$11,765.63
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Intel W790 Chip
  • Windows 11 Pro
  • 16 GB Graphics

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 40 lbs.

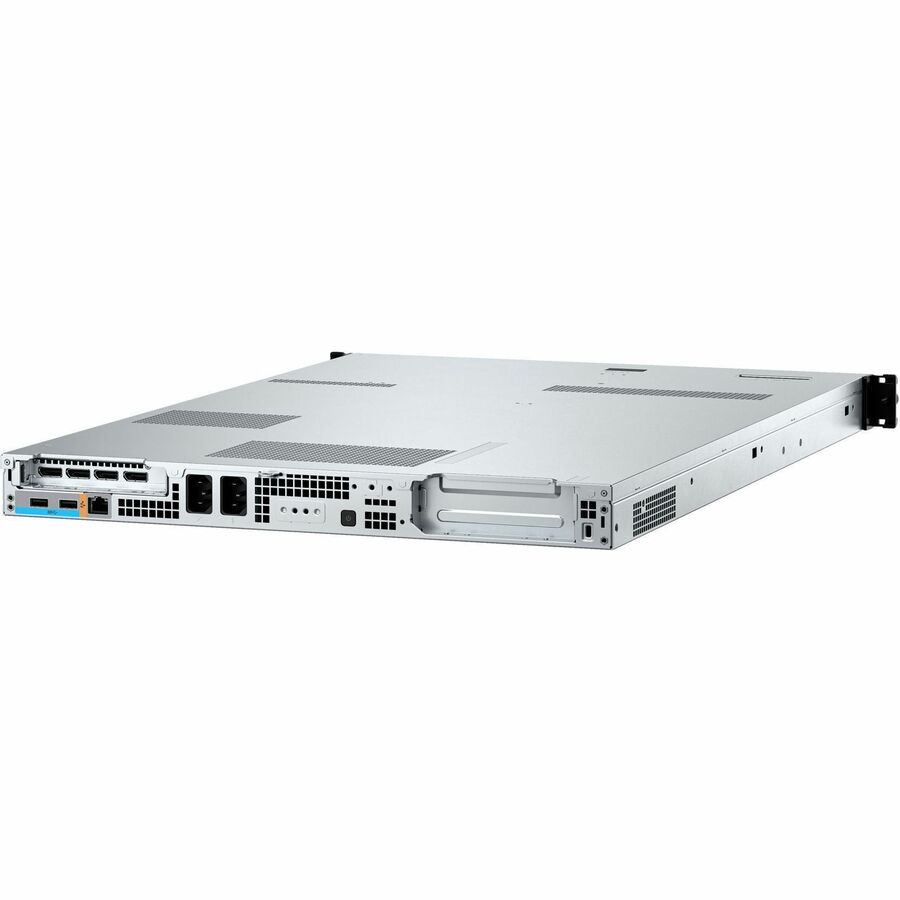

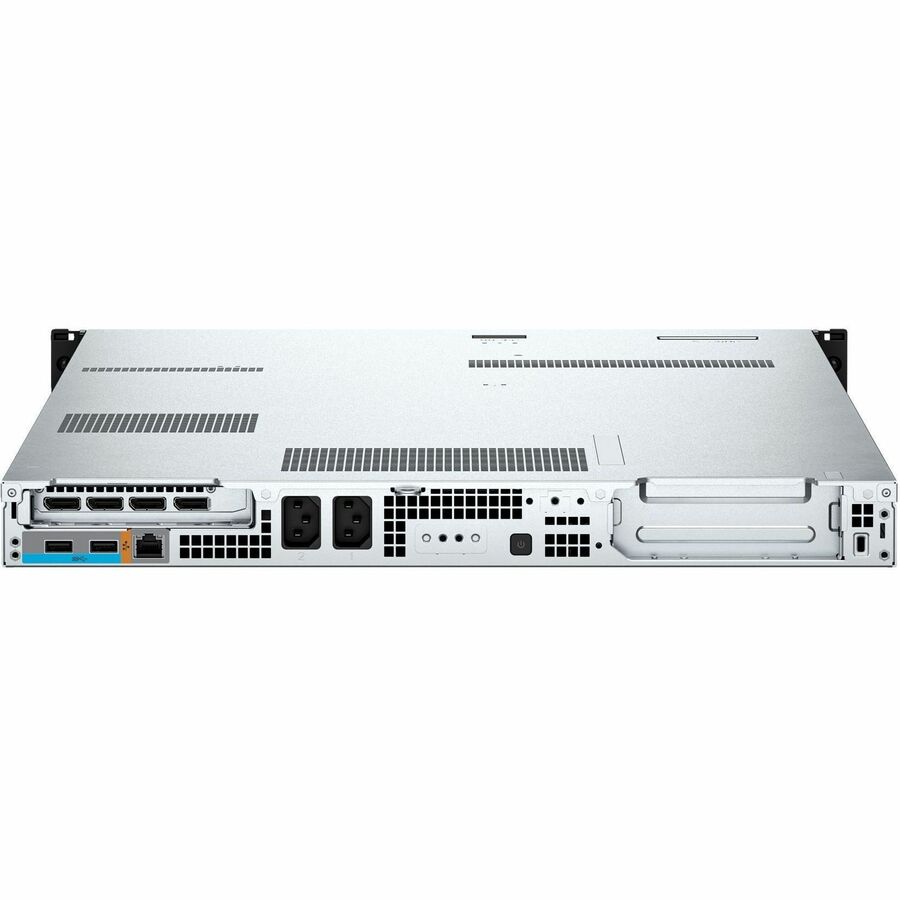

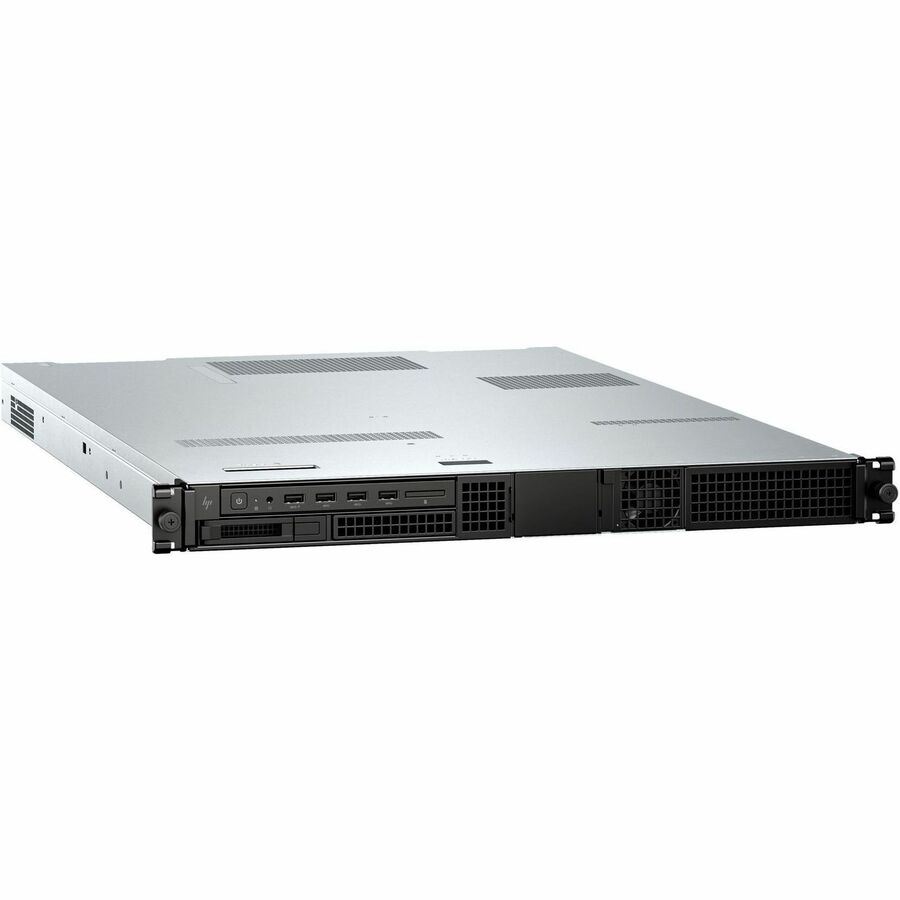

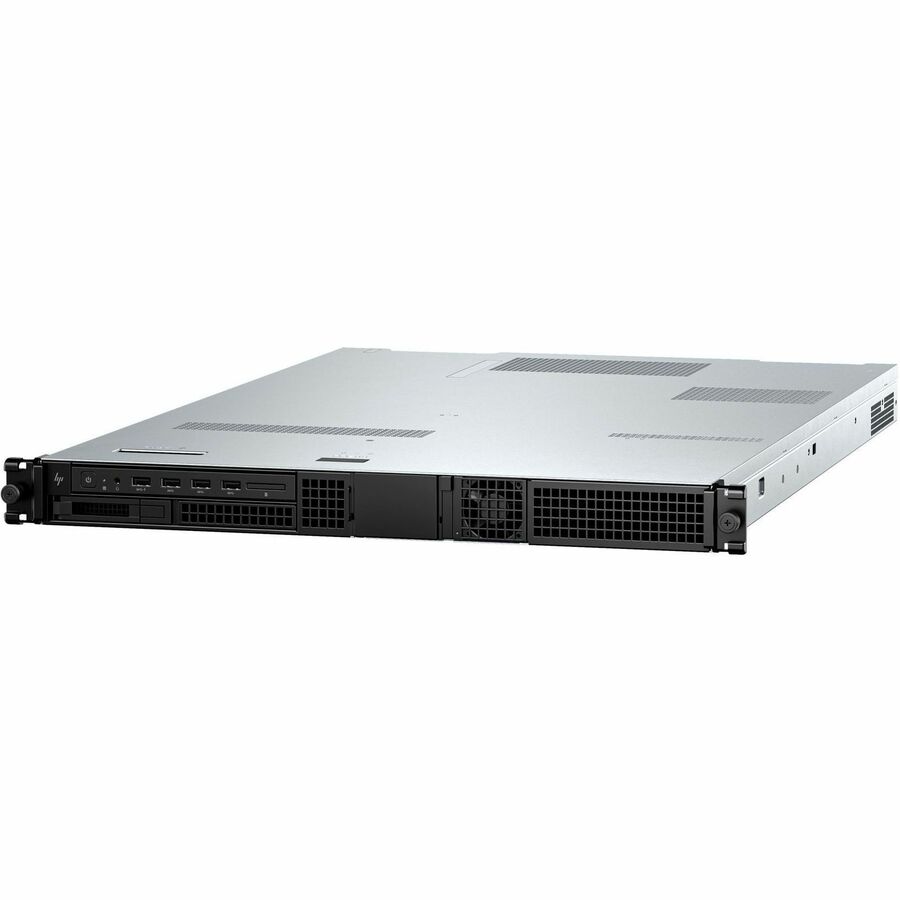

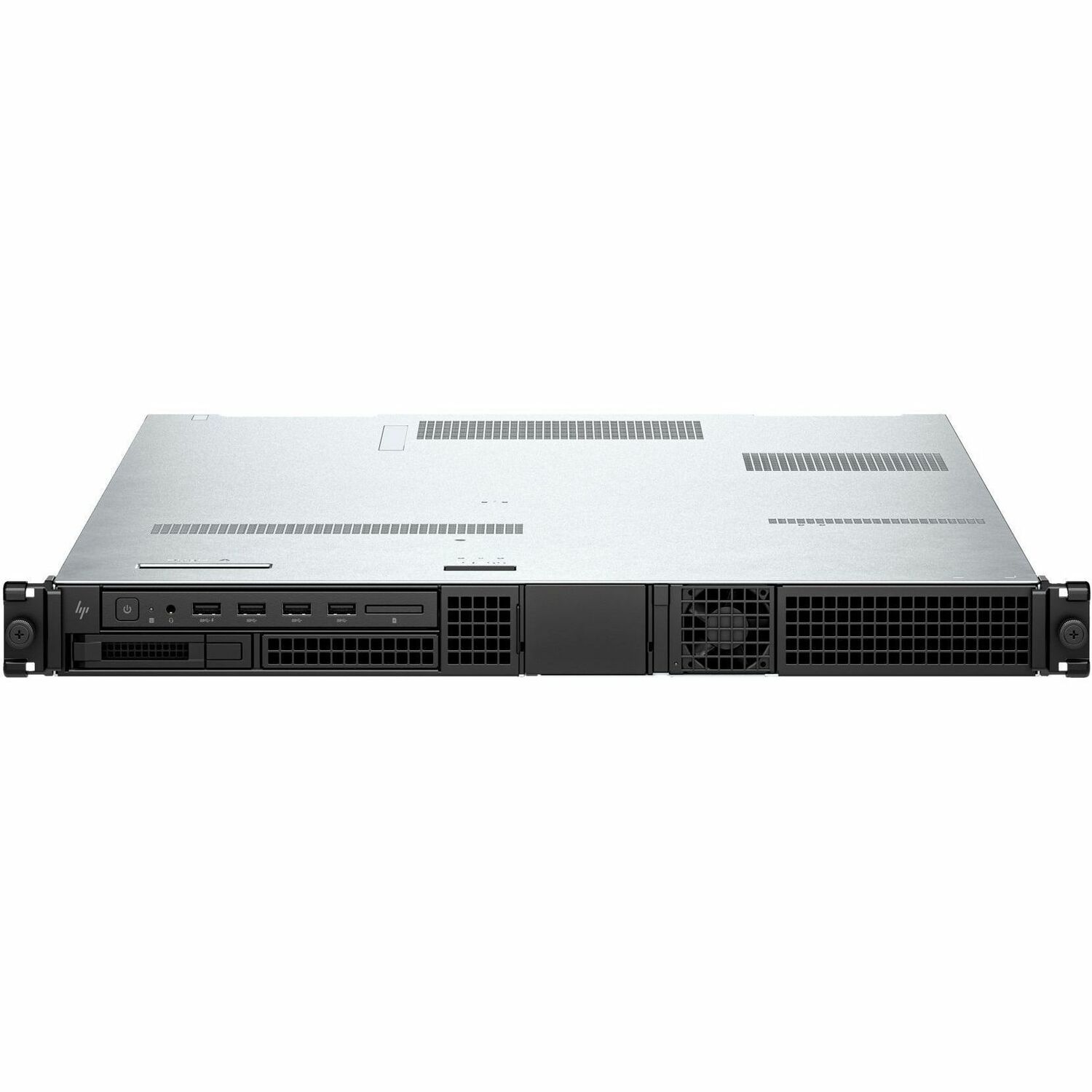

HP Z4 G5 Workstation - 1 Xeon w3-2425 - 128 GB - 2 TB SSD - Rack-mountable
Tech Specs
Specifications

Manufacturer

HP Inc.

Manufacturer Part Number

AV5N7UA#ABA

Manufacturer Website Address

http://www.hp.com

Brand Name

HP

Product Series

Z4 G5

Product Name

Z4 Rack G5 Workstation

Marketing Information

Overview | Compactly Rackable. Uniquely Powerful

Empower a Flexible workforce with Z by HP pro-level performance in a high-density 1U footprint. Specifically designed to pack more units in a single rack, this slim powerhouse delivers the performance your team needs. All with the ability to upgrade and expand as compute demands evolve.

Workhorse Power. Compact 1U size

This 1U workstation packs impressive power for advanced VFX, 3D modeling, and rendering. Get an Intel® Xeon® W-series CPU, support for entry or high-end graphics, and large memory configurations, all with room to upgrade and expand.

Comprehensive security. Reliability you can trust.

Get peace of mind with a workstation that's built to endure. The Z4 Rack undergoes 360K hours of rigorous testing and is certified for pro apps. And with HP Wolf Security for Business, it's protected below, in, and above the OS.

Upgrade and expand with ease

Invest in the technology you need now and expand as the compute demands of your workforce evolve. With an easily accessible, tool-less design, get access to add or swap components-like graphics, memory, and storage.

Part of the world's most sustainable PC portfolio

At HP, we care about the impact our products have on our people, communities, and the planet. Z products are designed with sustainability at the forefront. So, you can take pride in choosing Z, knowing that you are helping protect our shared future.

Product Type

Workstation
Processor

Number of Processors Supported

1

Number of Processors Installed

1

Processor Type

Xeon

Processor Model

w3-2425

Processor Core

Hexa-core (6 Core)

Processor Threads

12

Processor Speed

3 GHz

L3 Cache

15 MB

Processor Socket

Socket LGA-4677
Chipset

Chipset Manufacturer

Intel

Chipset Model

W790
Memory

Standard Memory

128 GB

Maximum Memory Supported

256 GB

Memory Technology

DDR5 SDRAM

Total Number of Memory Slots

4

Error Checking

ECC

Memory Clock Speed

4.80 GHz

Memory Configuration

4 x 32GB

Signal Processing

Registered
Storage

Drive Type

SSD

Total Solid State Drive Capacity

2 TB

Solid State Drive Interface

PCI Express NVMe 4.0 x4

Solid State Drive Configuration

2 x 1TB
Controllers

Controller Type

Serial ATA/600

RAID Supported

Yes

RAID Levels

0, 1, 5, 10
Display & Graphics

Graphics Memory Capacity

16 GB

Graphics Memory Accessibility

Dedicated

Maximum Memory Bandwidth

448 GB/s
Network & Communication

Ethernet Technology

Gigabit Ethernet
Interfaces/Ports

Total Number of USB Ports

10

Number of Onboard USB 2.0 Ports

3

Number of USB 3.1 Gen 1 Ports

6

DisplayPort

Yes

Number Of Ethernet Ports

1

Number of DisplayPort Outputs

4

Optional Ports

Details regarding optional ports aggregated from the information available for this product's family/series

  • Flex I/O Module (Serial Port v3, 10GbE single port, 2.5GbE LAN single port, 1 GbE Fiber LC NIC)
Operating System

Operating System Platform

Windows

Operating System

Windows 11 Pro
Power Description

Input Voltage

  • 120 V AC
  • 230 V AC

Frequency

  • 50 Hz
  • 60 Hz
Physical Characteristics

Cooler Type

Air Cooler

Form Factor

Rack-mountable

Height

25.8"

Width

1.7"

Depth

17.2"

Weight (Approximate)

20.94 lb
Miscellaneous

Package Contents

  • Z4 Rack G5 Workstation
  • Keyboard
  • Mouse

Energy Star

Yes

TCO Certified

Yes

Environmentally Friendly

Yes

Environmental Certification

China Environmental United Certification Center (CEC)

Energy Efficiency Certification

China Energy Conservation Program (CECP)

Energy Efficiency Compliance

Energy-related Products Directive (ErP)

Environmental Compliance

  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
