HP Z2 TOWER G9 UNITED STATES / CANADA ENGLISH

by
HP INC
PCN#
4284BN
MFG#
AY8S8UA#ABA
$2,738.59
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Intel W680 Chip
  • Windows 11 Pro
  • 4 GB Graphics

Show more

Product Condition: New and Factory Fresh
Limited Warranty1 Year
Shipping Weight: 40 lbs.

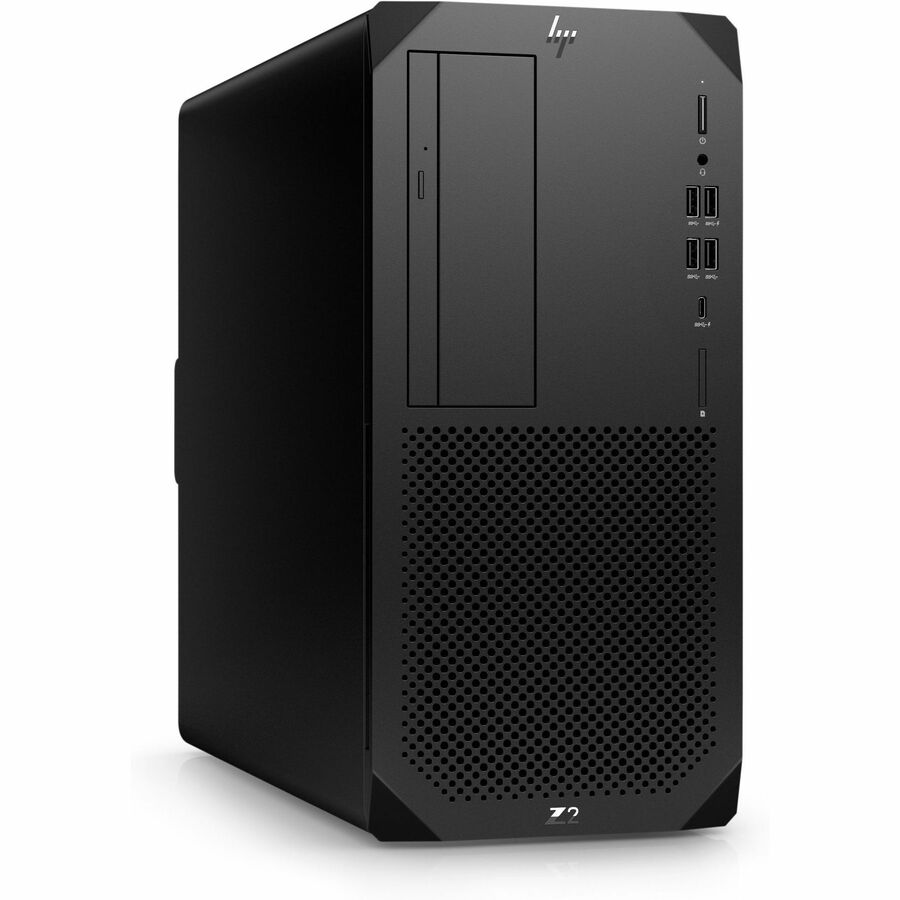

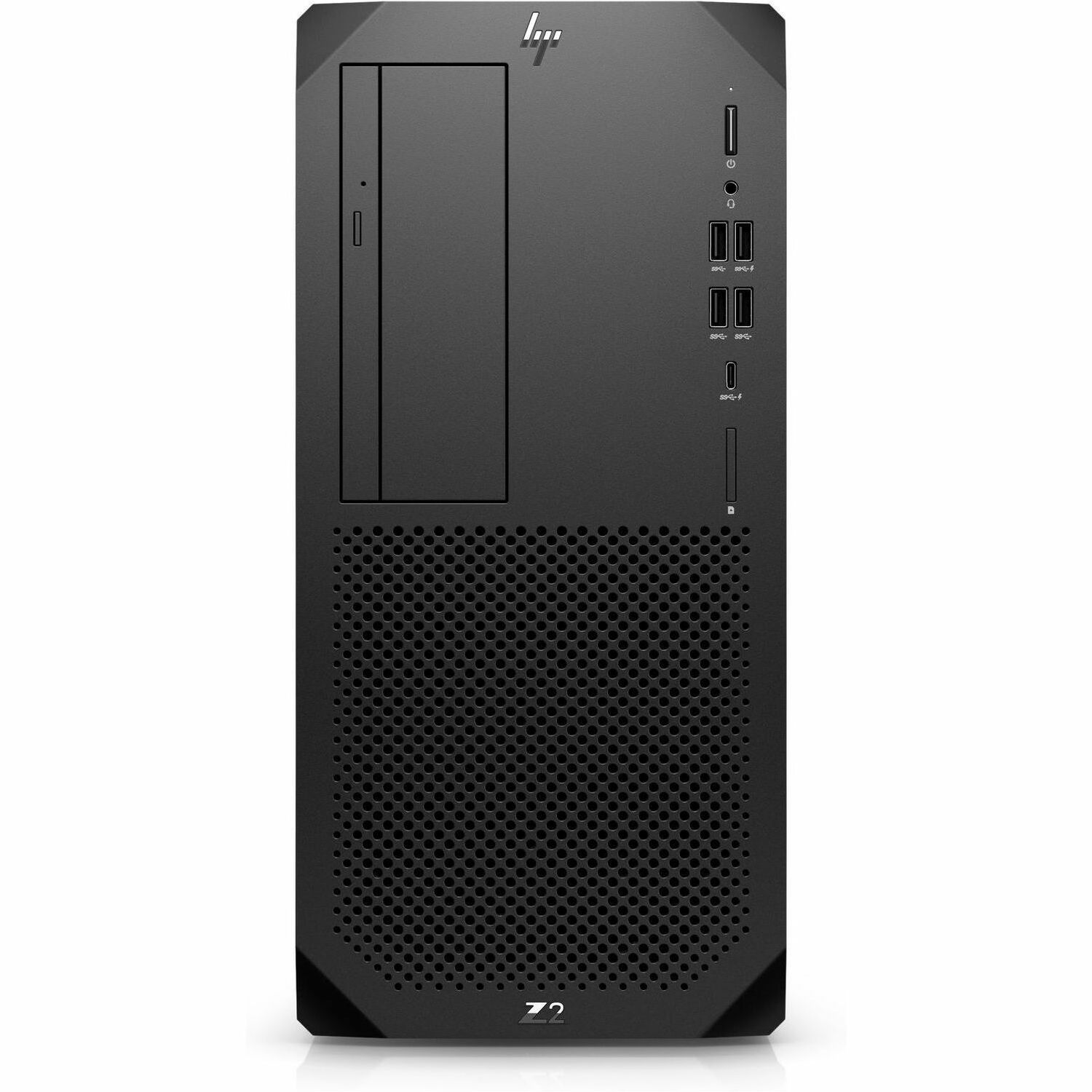

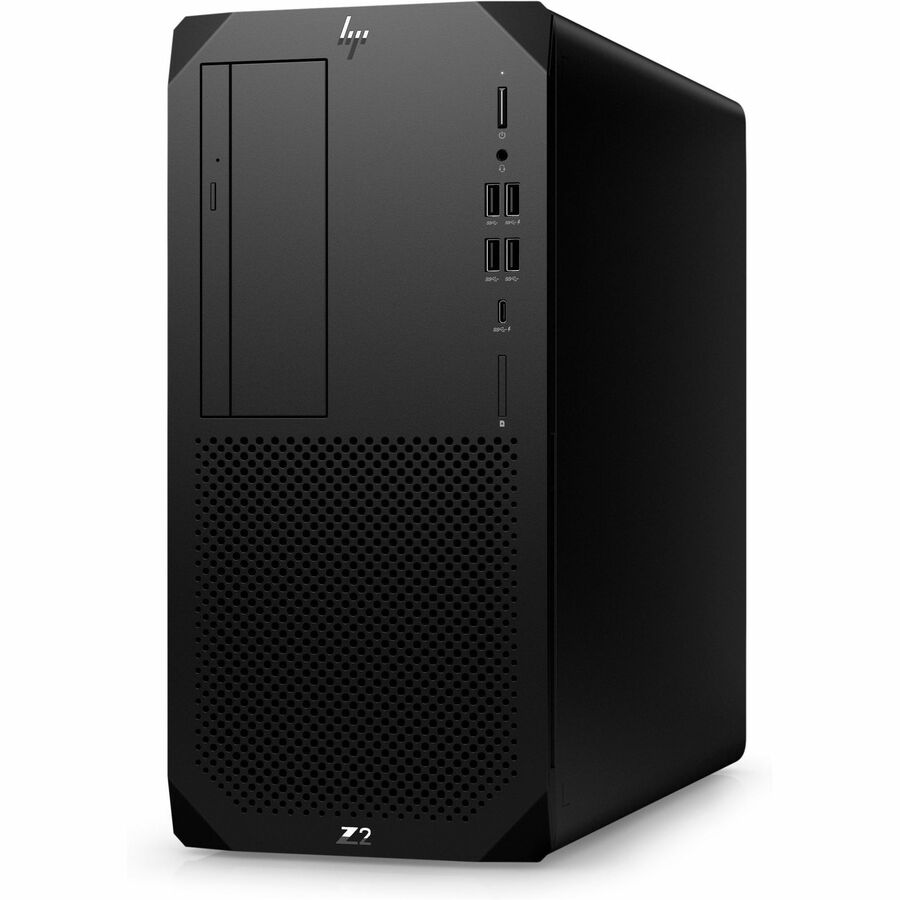

HP Z2 G9 Workstation - 1 Core i5 14th Gen i5-14500 - vPro Technology - 32 GB - 512 GB SSD - Tower - Black
Tech Specs
Specifications

Manufacturer

HP Inc.

Manufacturer Part Number

AY8S8UA#ABA

Manufacturer Website Address

http://www.hp.com

Brand Name

HP

Product Series

Z2 G9

Product Name

Z2 Tower G9 Workstation

Marketing Information

Pro-power. Today and tomorrow

Experience a whole new level of performance for your professional workflow. The Z2 Tower is engineered to seamlessly run multithreaded apps for fast rendering, simulation, and now real-time ray tracing. And when your demands change, you have impressive expandability to upgrade.

Your new benchmark for entry workstation power

Designed for zero throttling so you can render, simulate, and real-time ray trace without overheating or lags.

Built to expand. Power to grow

With room to expand and tool-less access, you can easily upgrade and add components as your needs evolve.

ISV Certified

Work with confidence knowing your PC is certified with leading software applications to ensure peak performance

Product Type

Workstation
Processor

Number of Processors Supported

1

Number of Processors Installed

1

Processor Type

Core i5

Processor Generation

14th Gen

Processor Model

i5-14500

Processor Core

Tetradeca-core (14 Core)

Processor Threads

20

Processor Speed

2.60 GHz

L3 Cache

24 MB

vPro Technology

Yes

Processor Socket

Socket LGA-1700
Chipset

Chipset Manufacturer

Intel

Chipset Model

W680
Memory

Standard Memory

32 GB

Maximum Memory Supported

128 GB

Memory Technology

DDR5 SDRAM

Total Number of Memory Slots

4

Memory Clock Speed

4.80 GHz

Memory Configuration

2 x 16GB

Signal Processing

Unbuffered
Storage

Drive Type

SSD

Total Solid State Drive Capacity

512 GB

Solid State Drive Interface

PCI Express NVMe 4.0 x4
Controllers

Controller Type

  • Serial ATA/600
  • NVMe

RAID Supported

Yes

RAID Levels

0, 1
Display & Graphics

Graphics Memory Capacity

4 GB

Graphics Memory Accessibility

Dedicated

Maximum Memory Bandwidth

80 GB/s
Network & Communication

Ethernet Technology

Gigabit Ethernet

Wireless LAN

Yes

Bluetooth

Yes
Interfaces/Ports

Total Number of USB Ports

11

DisplayPort

Yes

Mini DisplayPort

Yes

Number of Mini DisplayPort

3

Number Of Ethernet Ports

1

Number of DisplayPort Outputs

2

Optional Ports

Details regarding optional ports aggregated from the information available for this product's family/series.

  • 1 x Type-C SuperSpeed USB 20Gbps signaling rate port (optional, charge supports up to 5V/3A)
  • 2nd serial port (optional)

Flex I/O module: choose one from the following:

  • (1) DisplayPort 1.4
  • (1) HDMI 2.0b
  • (1) VGA
  • (1) Dual USBA 5Gbps port
  • (1) USB-C® 10Gbps port (Power Delivery 15W Alt Mode DisplayPort)
  • (1) 2nd 1 GbE LAN
  • (1) Thunderbolt 3 with USB-C® / USB4 40Gbps (cabled to PCIe AIC)
  • Fiber LC NIC
Operating System

Operating System Platform

Windows

Operating System

Windows 11 Pro
Power Description

Input Voltage

  • 120 V AC
  • 230 V AC

Maximum Power Supply Wattage

350 W

Frequency

  • 50 Hz
  • 60 Hz
Physical Characteristics

Color Family

Black

Product Color

Black

Form Factor

Tower

Height

15.2"

Width

14"

Depth

6.7"

Weight (Approximate)

15.87 lb
Miscellaneous

Package Contents

  • Z2 Tower G9 Workstation
  • Keyboard
  • Mouse

Energy Star

Yes

TCO Certified

Yes

Energy Efficiency Certification

China Energy Conservation Program (CECP)

Energy Efficiency Compliance

Energy-related Products Directive (ErP)

Environmental Compliance

  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

1 Year
