HP Z2 SFF G9 UNITED STATES / CANADA ENGLISH

by
HP INC
PCN#
5122BN
MFG#
B0JA4UA#ABA
$4,290.77
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Intel W680 Chip
  • Linux
  • 12 GB Graphics

Show more

Product Condition: New and Factory Fresh
Limited Warranty1 Year
Shipping Weight: 40 lbs.

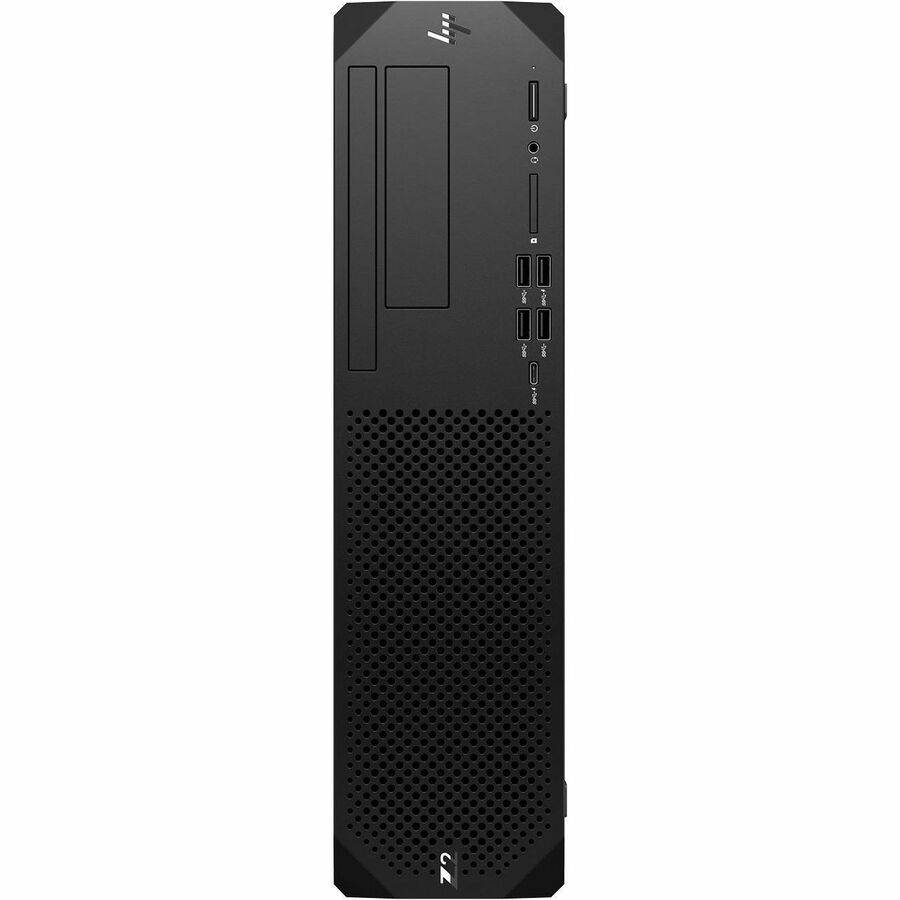

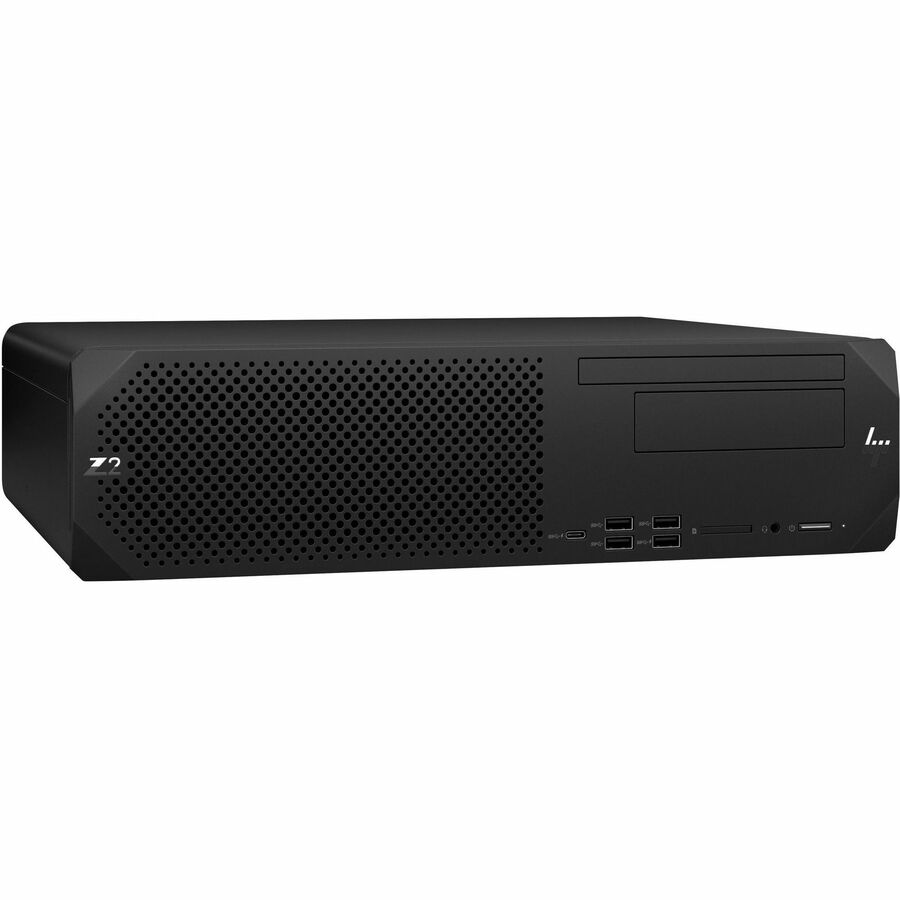

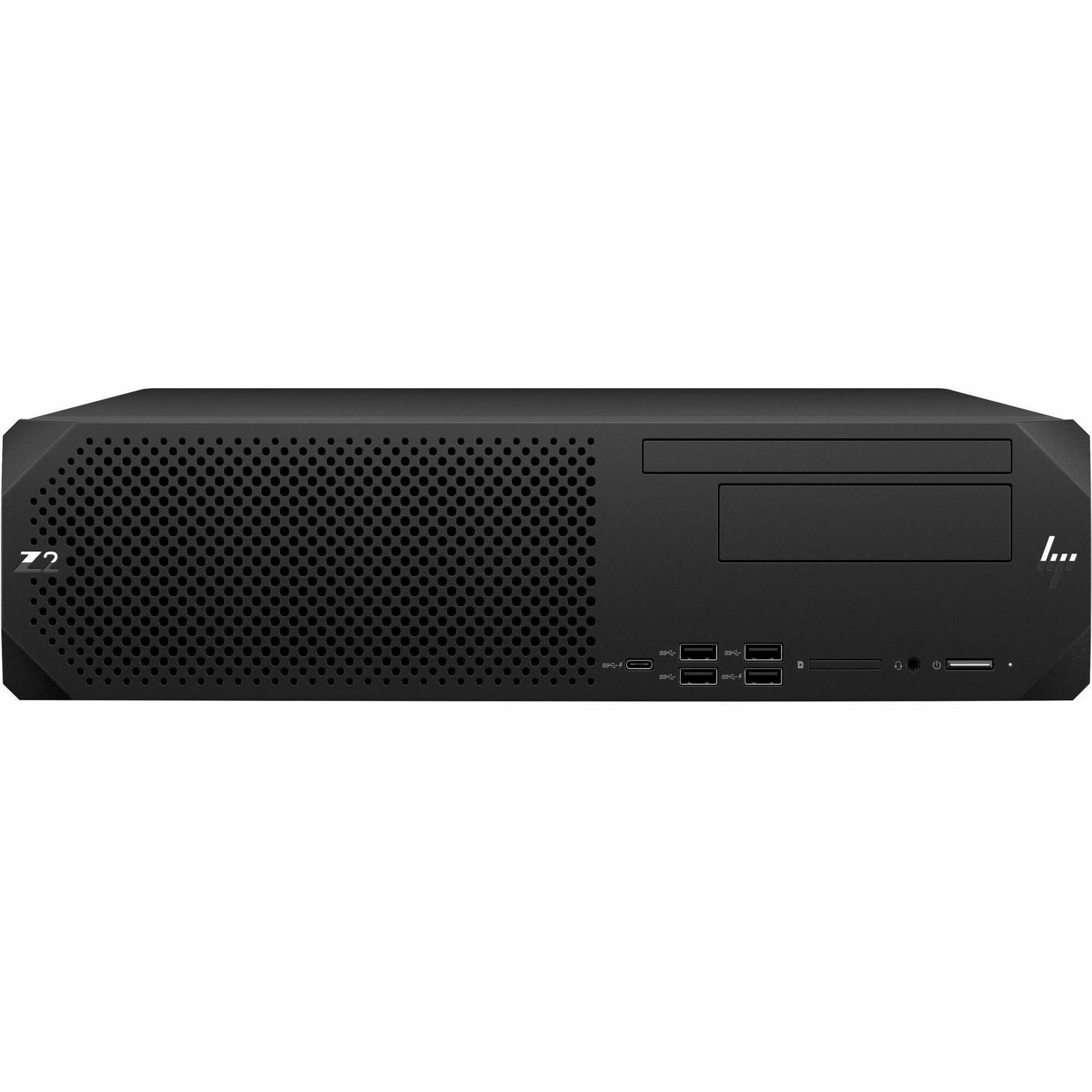

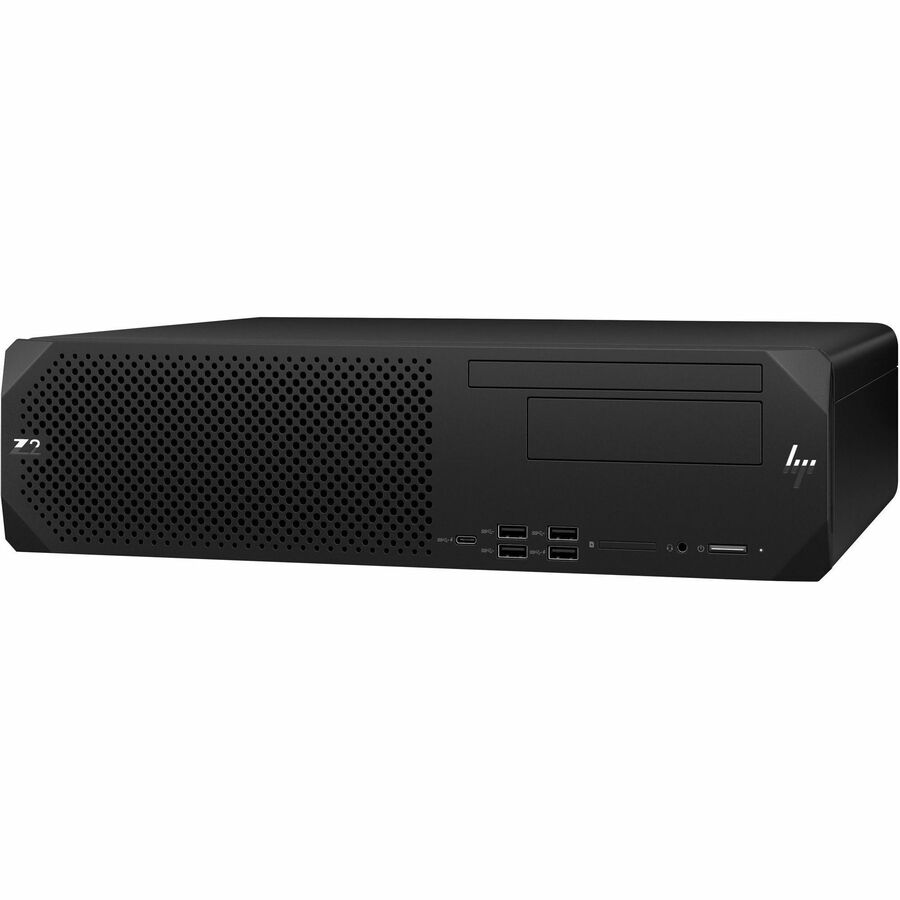

HP Z2 G9 Workstation - 1 Core i7 14th Gen i7-14700 - 32 GB - 1 TB SSD - Small Form Factor - Black
Tech Specs
Specifications

Manufacturer

HP Inc.

Manufacturer Part Number

B0JA4UA#ABA

Manufacturer Website Address

http://www.hp.com

Brand Name

HP

Product Series

Z2 G9

Product Name

Z2 Small Form Factor G9 Workstation

Marketing Information

Full size Z tower power at half the size

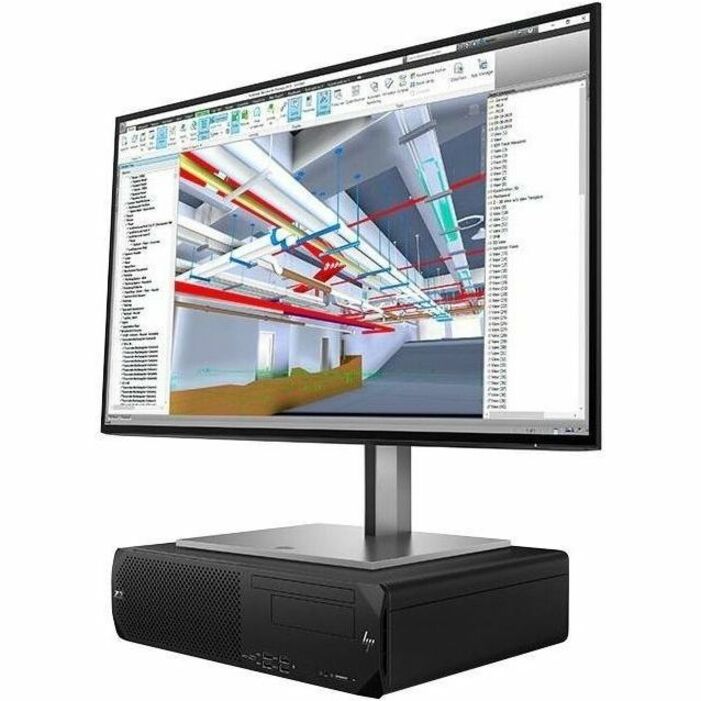

Get all the power of a full size tower at a fraction of the size. Re-engineered to fit full-height, full-length graphics while leaving room for upgrades and expansion, the Z2 SFF delivers high performance for your intensive workflow-from 3D design to real time ray tracing-now and in the future.

Full height, full length performance

Design, simulate and real time ray trace on a Z SFF -- FHFL pro graphics and Intel® Core™ processors.

Configurable for today. Expandable for tomorrow.

Accelerate your current workflow with options across processor, graphics, memory, storage, and I/O ports.

ISV Certified

Work with confidence knowing your PC is certified with leading software applications to ensure peak performance.

Product Type

Workstation
Processor

Number of Processors Supported

1

Number of Processors Installed

1

Processor Type

Core i7

Processor Generation

14th Gen

Processor Model

i7-14700

Processor Core

Icosa-core (20 Core)

Processor Threads

28

Processor Speed

2.10 GHz

L3 Cache

33 MB

Processor Socket

Socket LGA-1700
Chipset

Chipset Manufacturer

Intel

Chipset Model

W680
Memory

Standard Memory

32 GB

Maximum Memory Supported

128 GB

Memory Technology

DDR5 SDRAM

Memory Clock Speed

4.80 GHz

Memory Configuration

2 x 16 GB

Signal Processing

Unbuffered
Storage

Drive Type

SSD

Total Solid State Drive Capacity

1 TB

Solid State Drive Interface

PCI Express NVMe 4.0 x4
Controllers

Controller Type

  • Serial ATA/600
  • NVMe

RAID Supported

Yes

RAID Levels

0, 1
Display & Graphics

Graphics Memory Capacity

12 GB

Graphics Memory Accessibility

Dedicated

Maximum Memory Bandwidth

288 GB/s
Network & Communication

Ethernet Technology

Gigabit Ethernet
Interfaces/Ports

Total Number of USB Ports

12

USB Type-C

Yes

USB Type-C Detail

1 x SuperSpeed USB Type-C® 20Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4, HP Sleep and Charge)

DisplayPort

Yes

Mini DisplayPort

Yes

Number of Mini DisplayPort

4

Number Of Ethernet Ports

1

Number of DisplayPort Outputs

2

Optional Ports

Details regarding optional ports aggregated from the information available for this product's family/series.

  • Flex I/O module: choose one from the following: (1) DisplayPort 1.4, (1) HDMI 2.0b, (1) VGA, 1 Dual USB-A 5Gbps, 1 USB-C® 10Gbps (Power Delivery 15W, Alt Mode DisplayPort), (1) 2nd 1GbE LAN, (1) 1Gbps Fiber LC LAN, (1) Thunderbolt 3 with USB4 Type-C® 40Gbps port (cabled to PCIe AIC)
  • 2nd serial port.
Operating System

Operating System Platform

Linux

Operating System

Linux
Power Description

Input Voltage

  • 120 V AC
  • 230 V AC

Maximum Power Supply Wattage

450 W

Frequency

  • 50 Hz
  • 60 Hz
Physical Characteristics

Color Family

Black

Product Color

Black

Cooler Type

Fan Cooler

Form Factor

Small Form Factor

Height

3.9"

Width

15.1"

Depth

12.1"

Weight (Approximate)

11.02 lb
Miscellaneous

Energy Star

Yes

TCO Certified

Yes

Energy Efficiency Certification

China Energy Conservation Program (CECP)

Energy Efficiency Compliance

Energy-related Products Directive (ErP)

Environmental Compliance

  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty

Limited Warranty

1 Year
