CUSTOM Z2 MINI G9 I714700 32GB/512 PC

by
HP INC
PCN#
SR0753
MFG#
BV6R0UP#ABA
$3,545.38
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Intel W680 Chip
  • NVMe Controller
  • 0, 1 RAID Levels

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 40 lbs.

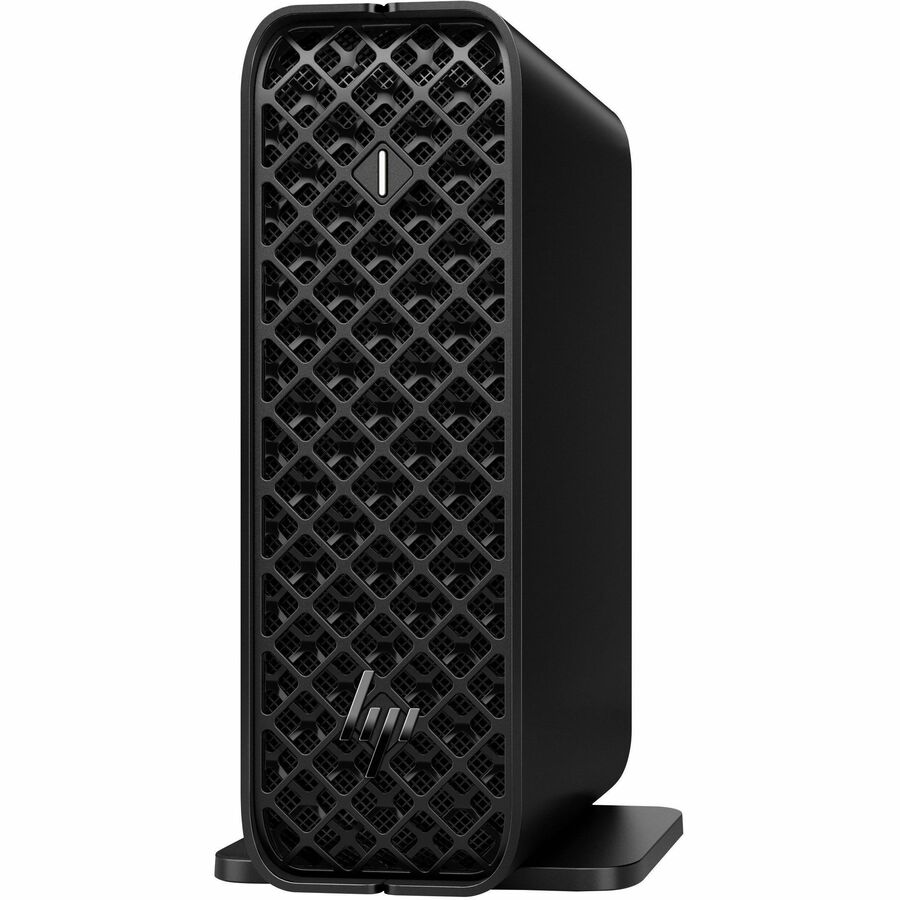

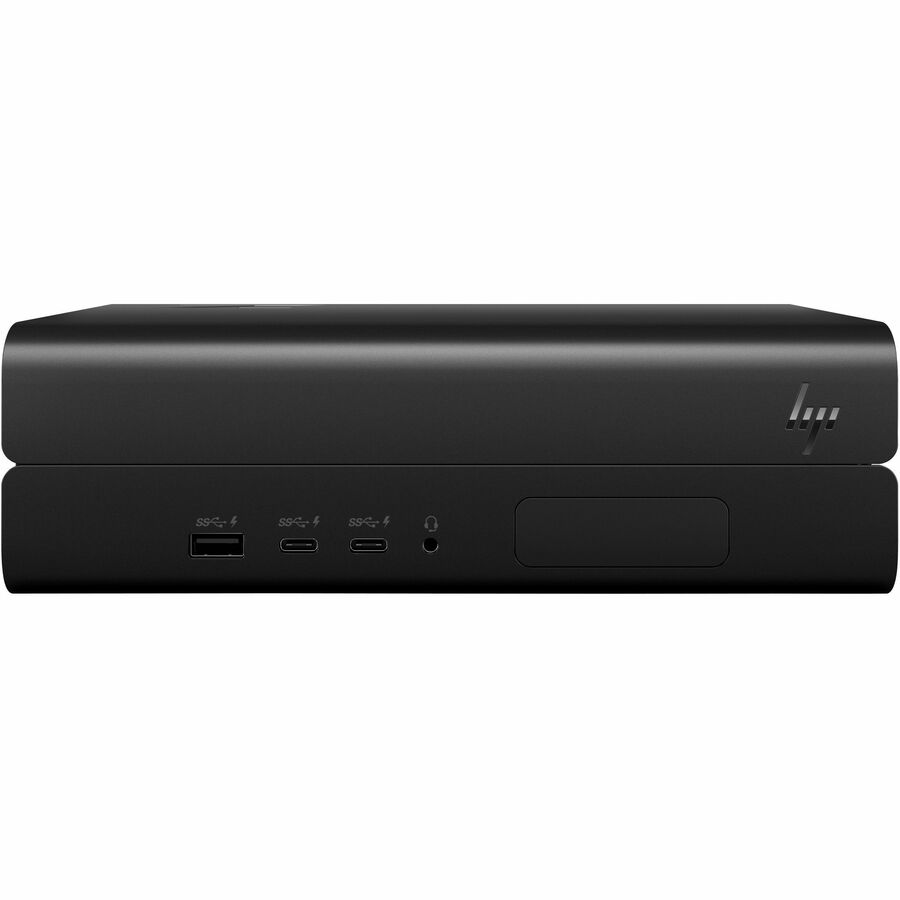

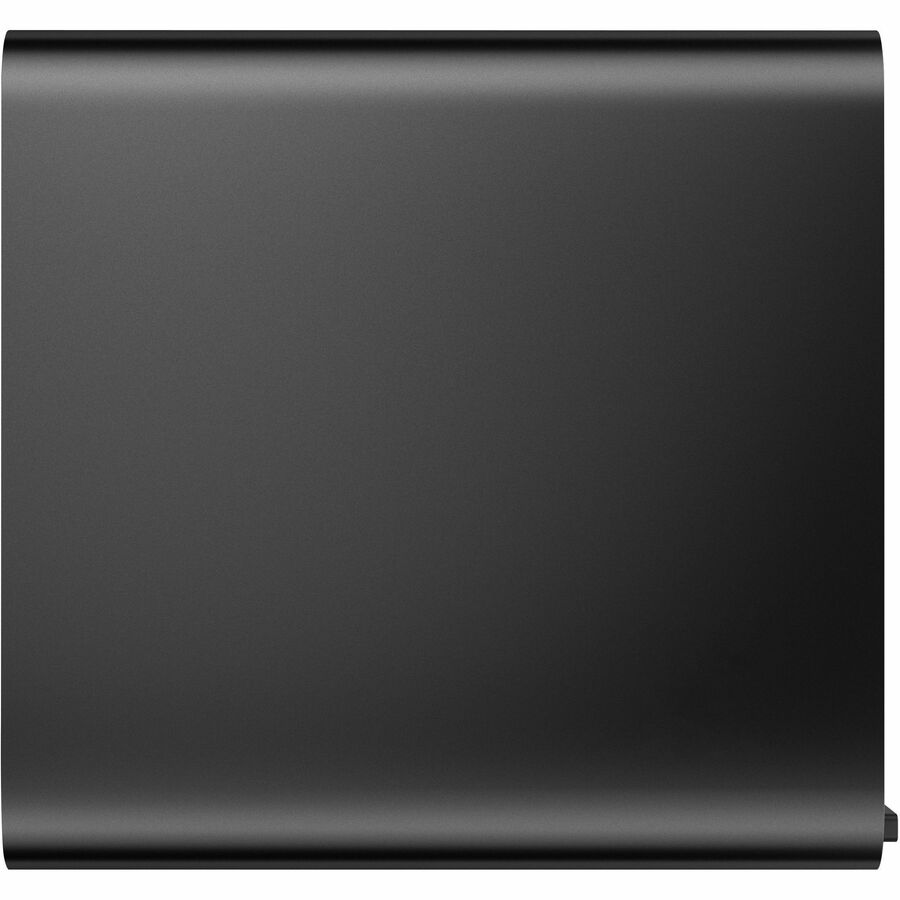

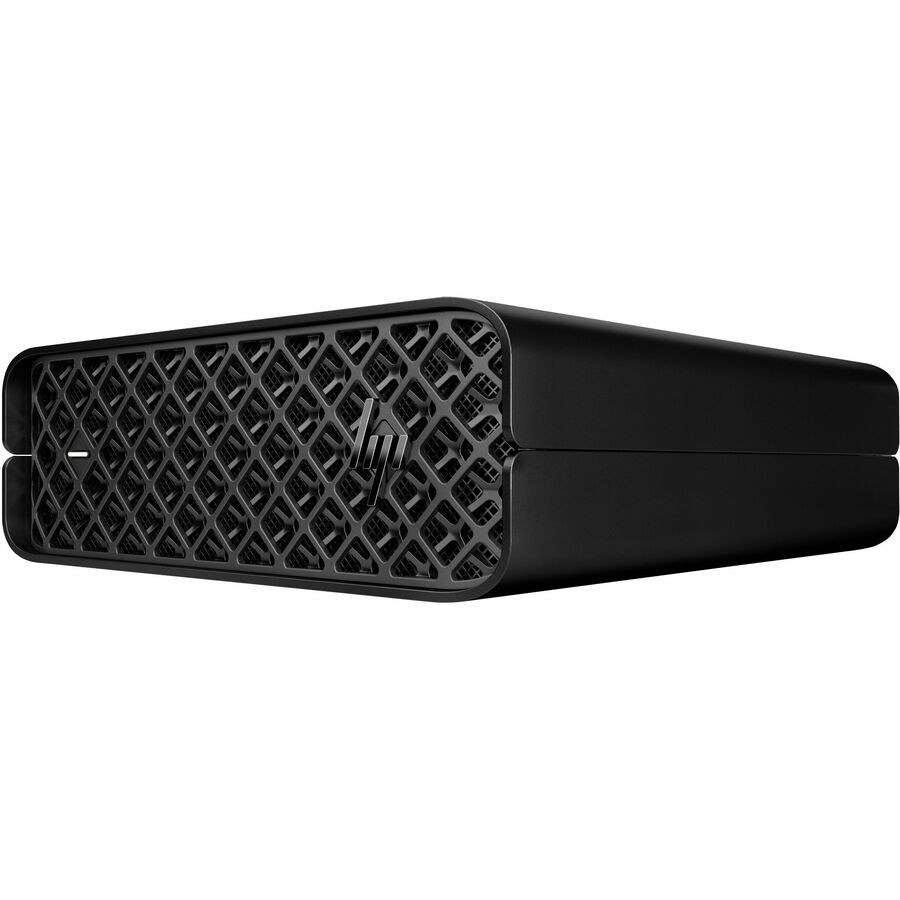

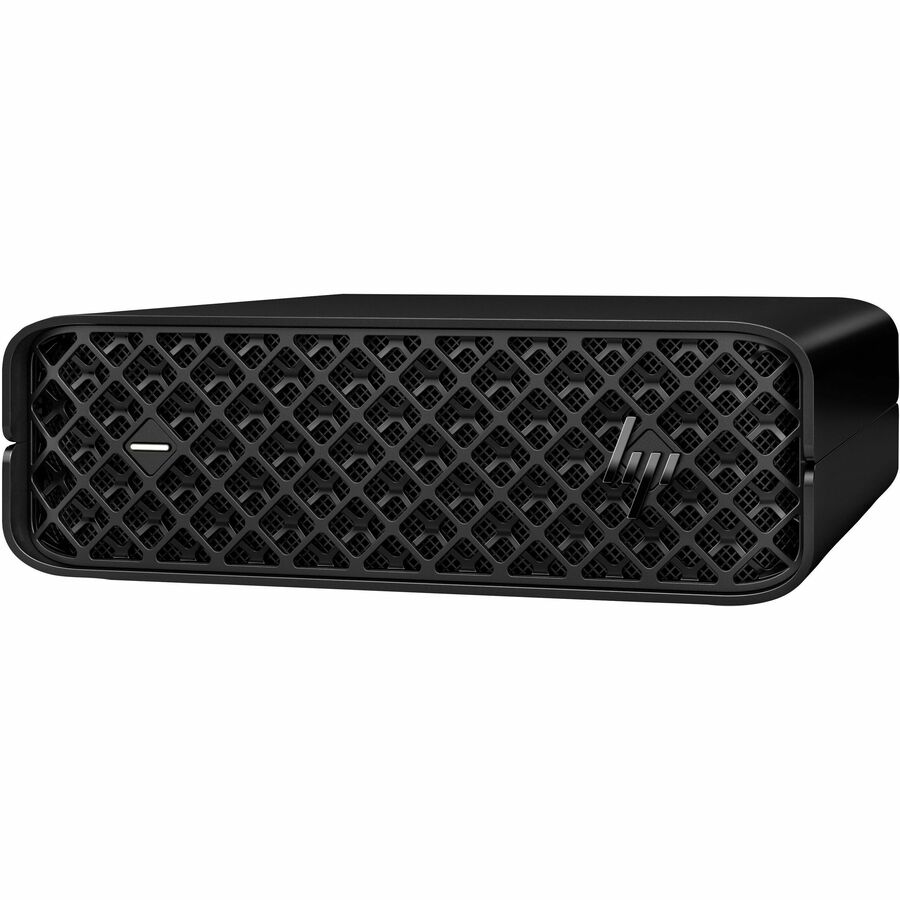

HP Z2 Mini G9 Workstation - 1 x Intel Core i7 14th Gen i7-14700 - 32 GB - 512 GB SSD - Mini PC
Tech Specs
Specifications

Manufacturer

HP Inc.

Manufacturer Part Number

BV6R0UP#ABA

Manufacturer Website Address

http://www.hp.com

Brand Name

HP

Product Series

Z2 Mini G9

Product Name

Z2 Mini G9 Workstation

Marketing Information

HP Z2 Mini G9 Workstation Desktop PC | Powers large workflows. Fits a tiny space.

Tackle workflows you never thought before possible on such a tiny PC. The HP Z2 Mini easily fits on your desk or behind your monitor so you can tackle 3D projects without losing valuable office space. All while feeling protected From the BIOS to the browser, above, in, and below the OS with HP Wolf Security Suite.

Product Type

Workstation
Processor

Number of Processors Supported

1

Number of Processors Installed

1

Processor Manufacturer

Intel

Processor Type

Core i7

Processor Generation

14th Gen

Processor Model

i7-14700

Processor Core

Icosa-core (20 Core)

Processor Threads

28

Processor Speed

2.10 GHz

L3 Cache

33 MB

Processor Socket

Socket LGA-1700
Chipset

Chipset Manufacturer

Intel

Chipset Model

W680
Memory

Standard Memory

32 GB

Maximum Memory Supported

64 GB

Memory Technology

DDR5 SDRAM

Total Number of Memory Slots

2
Storage

Drive Type

SSD

Total Solid State Drive Capacity

512 GB

Solid State Drive Interface

PCI Express NVMe 4.0 x4
Controllers

Controller Type

NVMe

RAID Supported

Yes

RAID Levels

0, 1
Network & Communication

Ethernet Technology

Gigabit Ethernet
Interfaces/Ports

Total Number of USB Ports

6

USB Type-C

Yes

USB Type-C Detail

2 Type-C® SuperSpeed USB 20Gbps port (charging supported)

DisplayPort

Yes

Number Of Ethernet Ports

1

Number of DisplayPort Outputs

2

Optional Ports

Details regarding optional ports aggregated from the information available for this product's family/series. | Flex IO left side, choice of:

  • (1) VGA
  • (1) HDMI 2.0b
  • (1) DisplayPort™ 1.4
  • (1) Dual USBA 5Gbps port
  • (1) 1GbE LAN,
  • (1) USB-C® 10Gbps port (Alt Mode)
  • (1) Thunderbolt™ 3 with USB4 40Gbps
  • (1) 1Gbps Fiber LC NIC
  • (1) 2.5GbE LAN
  • (1) USB-based Serial port
  • (1) 10GbE LAN

PCIe - choose one of the following options:

  • (1) Dual USBA 10Gbps
  • (1) Serial.
Power Description

Input Voltage

  • 120 V AC
  • 230 V AC

Frequency

  • 50 Hz
  • 60 Hz
Physical Characteristics

Cooler Type

Air Cooler

Form Factor

Mini PC

Height

2.7"

Width

8.3"

Depth

8.6"

Weight (Approximate)

6.83 lb
Miscellaneous

Package Contents

  • Z2 Mini G9 Workstation
  • Power Adapter

Energy Star

Yes

TCO Certified

Yes

Energy Efficiency Certification

China Energy Conservation Program (CECP)

Energy Efficiency Compliance

Energy-related Products Directive (ErP)

Environmental Compliance

  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
