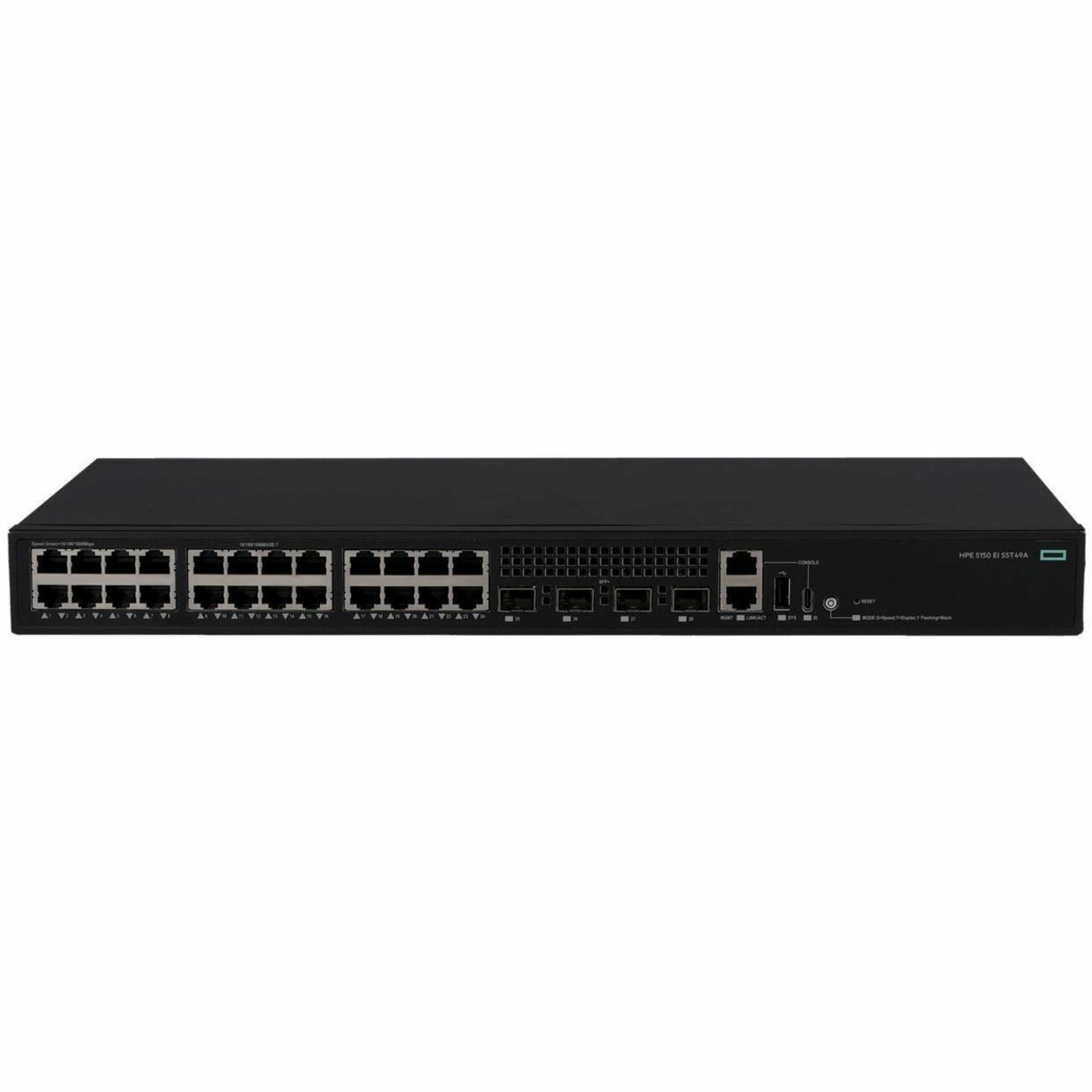

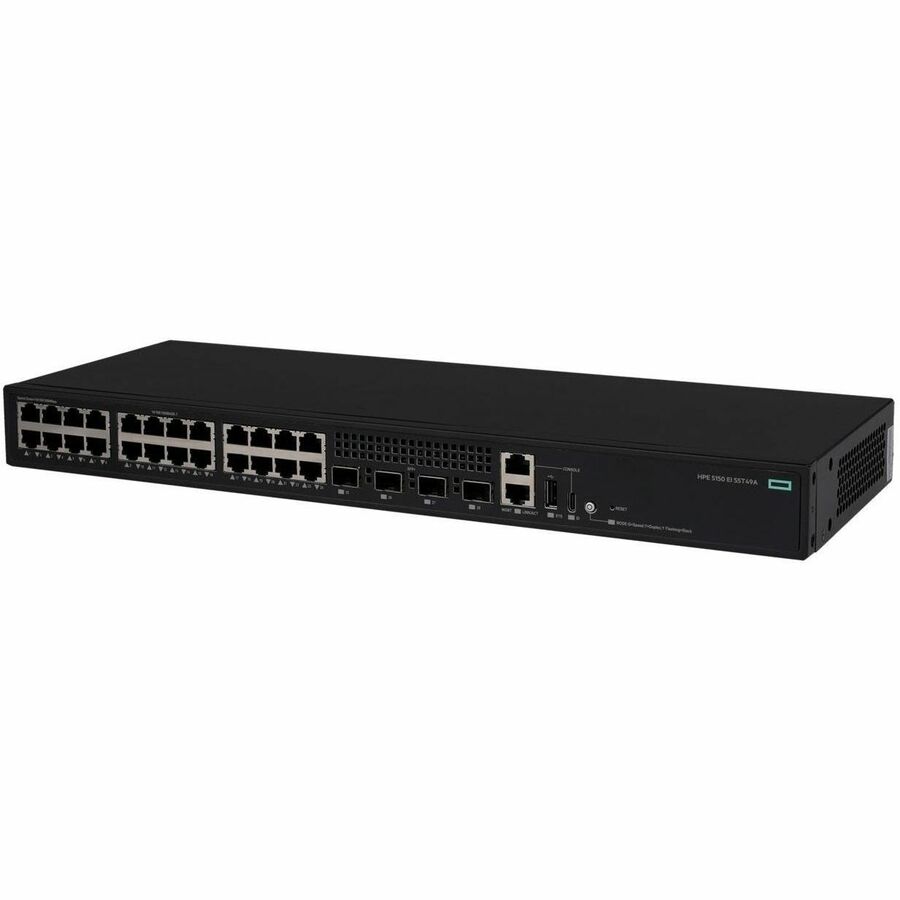

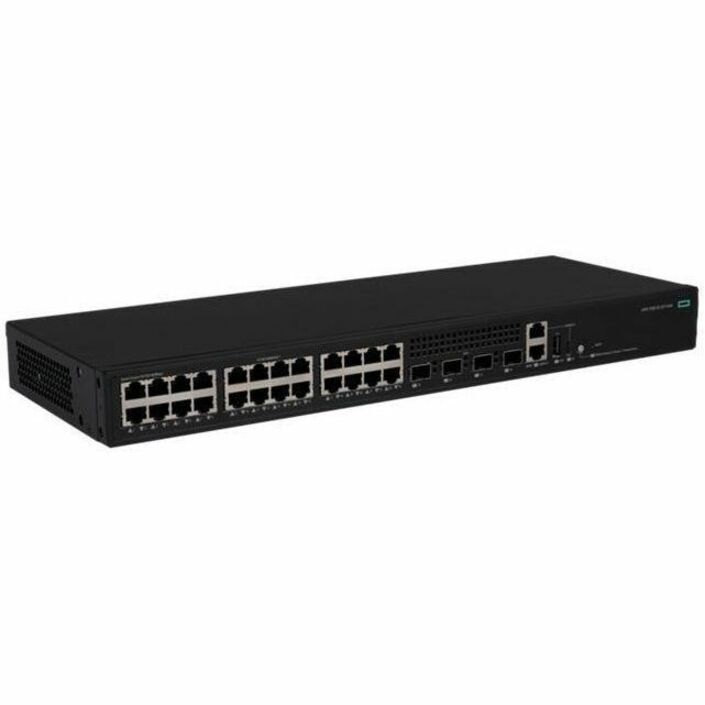

HPE NW CW SW 24G 4P 5150EI US EN PL-34

The HPE Networking Comware Switch Series 5150 EI is a family of stackable L3 access switches powered by HPE Comware OS delivering scalability and resiliency at a modest TCO for small, medium, and large enterprise campus networks.

With 8, 24, and 48 gigabit ports, options for mixed copper and fiber connectivity, and up to 30 watts of 802.3at PoE per port this flexible series is ready to connect your edge clients, servers, and IoT devices. Built- in 10 GbE uplinks and Intelligent Resilient Fabric (IRF) stacking up to 9- members adds scale, resiliency, and simplification to your access network, enabling network operators to manage the whole stack as a single logical switch.

Network visibility, management, and operation tools for this series include standard CLI and the Smart Management Center (SmartMC), embedded and ready to use at no additional cost. The series integrates with HPE Aruba Networking IMC, delivering a centralized point of control for your entire network.|

What's new

• Family of stackable L3 access switches with 1 GbE downlinks, 10 GbE uplinks, and support OSPF, EIGRP, ISIS, RIP and routed access. PoE-enabled models deliver up to 30 watts of 802.3at power per port.
• 8, 24, and 48 port configurations available, supporting up to 176 Gbps of switching capacity and 130 Mpps of forwarding throughput. 24-port fiber option with redundant, dual modular power supplies.
• Up to 432 ports of scalability with Intelligent Resilient Fabric (IRF) stacking up to 9-members for link and device aggregation across your network, enhancing redundancy and resource usage.
• Standard CLI and Smart Management Center (SmartMC) embedded and ready to use, delivering network visibility, management, and operations at no additional cost.
• Energy Efficient Ethernet and energysaving green design initiatives support your sustainability efforts by automatically reducing power to idle ports and powering down unused ports. |

Features | Scalable, Reliable L3 Access Switches

The HPE Networking Comware Switch Series 5150 EI delivers scalability and enhances reliability of the network with Intelligent Resilient Framework (IRF) technology. IRF stacking enables virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router.

IRF stacking enhances performance and reliability with uninterrupted L2 switching and L3 forwarding and reduces operational complexity with simpler, flatter, and more agile networks.

Four fixed 10 GbE uplinks (SFP, SFP+, and 10 GBASE-T) deliver performance for bandwidth intensive applications.

Link redundancy with support for Spanning Tree (MSTP, RSTP) and Smart Link protocols for highly available links.

Performance with Quality of Service (QoS)

The HPE Networking Comware Switch Series 5150 EI is engineered with non- blocking architecture for low-latency switching. It supports advanced classifier- based Quality of Service (QoS) to group traffic, set priority levels, and rate limit selected traffic on a port, VLAN, or entire switch.

• Access Control List
• Energy Efficient
• Quality of Service (QoS)
• Strict Priority Queuing (SPQ)
• Remote Monitoring (RMON)
• Virtual LAN (VLAN)

• 24 x Gigabit Ethernet Network Port
• 4 x 10 Gigabit Ethernet Expansion Slot

• Twisted Pair
• Optical Fiber

• Gigabit Ethernet
• 10 Gigabit Ethernet

• 10/100/1000Base-T
• 10GBase-X
• 1000Base-X

• 120 V AC
• 230 V AC
• 290 V AC

• AC
• Power Supply

• Network
• Enterprise
• Security
• Server
• IoT Devices
• Campus
• Traffic
• Data Center
• Router
• Business
