HPE 1950-24G-2SFP+-2XGT-POE+ SWITCH 24 PORTS MANAGED

Name: HPE 1950-24G-2SFP+-2XGT-POE+ SWITCH 24 PORTS MANAGED
Brand: HPE
SKU: S91272
Price: 3571.42 USD
Availability: InStock

HPE

PCN#

S91272

MFG#

JG962-61101

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$3,571.42

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

26 Ports
Gigabit Ethernet, 10 Gigabit Ethernet
10/100/1000Base
T, 1000Base
X, 10GBase
X, 10GBase
T
3 Layer Supported
425 W Power Consumption
370 W PoE Budget
Twisted Pair, Optical Fiber
PoE Ports
1U
Rack
mountable
Lifetime Limited Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

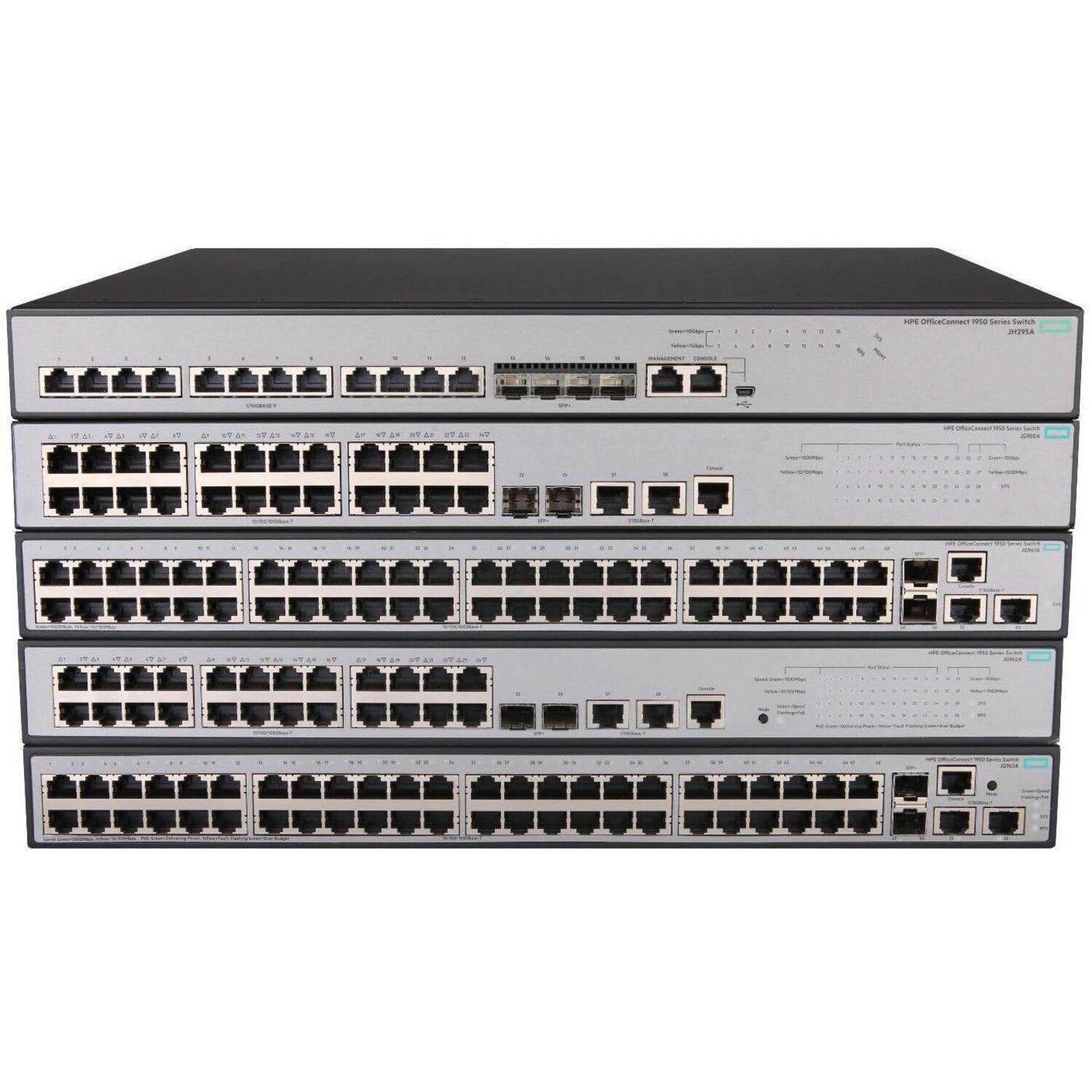

HPE Sourcing OfficeConnect 1950 Ethernet Switch

The HPE OfficeConnect 1950 Switch Series includes five switches New to the series is a 16-port 10-Gigabit aggregation switch that has 12 10G BASE-T and 4 SFP+ ports, which is ideal as the core of a high performance workgroup or small business network. Additional series models have Gigabit access ports with 10-Gigabit uplinks, including two standard and two PoE+ models in 24 and 48-port configurations. The access switches each have two 10GBASE-T ports supporting copper- based Category 6A-based cabling, and two 10G SFP+ ports for fiber connectivity. The PoE+ models both have a PoE power budget of 370 W to power up PoE/PoE+ compliant client devices. The HPE OfficeConnect 1950 Switch Series has an intuitive Web-based interface for simple customization of network operation. It supports true-stacking, the aggregation switch supporting up to two devices, while the access switches allowing up to four devices, to be logically administered as a single entity, simplifying administration while supporting greater network redundancy

Product Type

Ethernet SwitchTechnical Information

Features

Access Control ListEnergy EfficientInterfaces/Ports

Total Number of Network Ports

Uplink Port

Yes

Network (RJ-45)

Yes

Port/Expansion Slot Details

24 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port2 x 1000/10000BASE-X Gigabit Ethernet SFP+ Expansion Slot2 x 1/10BASE-T Gigabit Ethernet RJ-45 Network Port1 x RJ-45 Console PortMedia & Performance

Media Type Supported

Twisted PairOptical Fiber

Ethernet Technology

Gigabit Ethernet10 Gigabit Ethernet

Network Technology

10/100/1000Base-T1000Base-X10GBase-X10GBase-T

Maximum Data Transfer Rate

1.25 GB/sI/O Expansions

Total Number of Expansion Slots

Expansion Slot Type

SFP+

Number of SFP+ Slots

2Network & Communication

Layer Supported

Networking Standards

IEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3afIEEE 802.3atIEEE 802.1DIEEE 802.1pIEEE 802.1QIEEE 802.1sIEEE 802.1wIEEE 802.1xIEEE 802.3adIEEE 802.3iIEEE 802.3xIEEE 802.3zIEEE 802.1abIEEE 802.3azPower Description

PoE (RJ-45) Port

Yes

PoE Budget

370 W

Input Voltage

120 V AC230 V AC

Frequency

50 Hz60 Hz

Power Source

PoE+Power SupplyAC

Redundant Power Supply Supported

Yes

Power Consumption

425 WPhysical Characteristics

Compatible Rack Unit

Form Factor

Rack-mountable

Height

1.7"

Width

17.3"

Depth

14.2"

Weight (Approximate)

13.23 lbMiscellaneous

Application/Usage

Small BusinessNetworkServer

Certifications & Standards

Overview

SafetyUL 60950IEC 60950-1EN 60950-1GB 4943.1Product TypeEthernet SwitchTechnical InformationFeaturesAccess Control ListEnergy EfficientInterfaces/PortsTotal Number of Network Ports26Uplink PortYesNetwork (RJ-45)YesPort/Expansion Slot Details24 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port2 x 1000/10000BASE-X Gigabit Ethernet SFP+ Expansion Slot2 x 1/10BASE-T Gigabit Ethernet RJ-45 Network Port1 x RJ-45 Console PortMedia & PerformanceMedia Type SupportedTwisted PairOptical FiberEthernet TechnologyGigabit Ethernet10 Gigabit EthernetNetwork Technology10/100/1000Base-T1000Base-X10GBase-X10GBase-TMaximum Data Transfer Rate1.25 GB/sI/O ExpansionsTotal Number of Expansion Slots2Expansion Slot TypeSFP+Number of SFP+ Slots2Network & CommunicationLayer Supported3Networking StandardsIEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3afIEEE 802.3atIEEE 802.1DIEEE 802.1pIEEE 802.1QIEEE 802.1sIEEE 802.1wIEEE 802.1xIEEE 802.3adIEEE 802.3iIEEE 802.3xIEEE 802.3zIEEE 802.1abIEEE 802.3azPower DescriptionPoE (RJ-45) PortYesPoE Budget370 WInput Voltage120 V AC230 V ACFrequency50 Hz60 HzPower SourcePoE+Power SupplyACRedundant Power Supply SupportedYesPower Consumption425 WPhysical CharacteristicsCompatible Rack Unit1UForm FactorRack-mountableHeight1.7"Width17.3"Depth14.2"Weight (Approximate)13.23 lbMiscellaneousApplication/UsageSmall BusinessNetworkServerCertifications & Standards

Tech Specs

Emissions

FCC part 15 Class A; VCCI Class A
EN 55022 Class A
CISPR 22 Class A
EN 55024
EN 61000-3-2 2000, 61000-3-3
ICES-003 Class A

Environmental Compliance

Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)

WarrantyLimited WarrantyLifetime
