HPE 5510 24G POE+ 4SFP+ HI 1-SLOT SWITCH SWITCH 24 PORTS

Name: HPE 5510 24G POE+ 4SFP+ HI 1-SLOT SWITCH SWITCH 24 PORTS
Brand: HPE
SKU: S91281
Price: 15874.77 USD
Availability: InStock

HPE

PCN#

S91281

MFG#

JH147-61001

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$15,874.77

Extended & Accidental Damage Protection Plans Available Details

2-Year $1,449.99

3-Year $2,118.99

Free Shipping

Estimated Shipment:

Product Highlights:

24 Ports
Manageable
Gigabit Ethernet, 10 Gigabit Ethernet
10/100/1000Base
T, 10GBase
X
3 Layer Supported
Modular
650 W Power Consumption
740 W PoE Budget
Twisted Pair, Optical Fiber
PoE Ports
1U
Rack
mountable

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

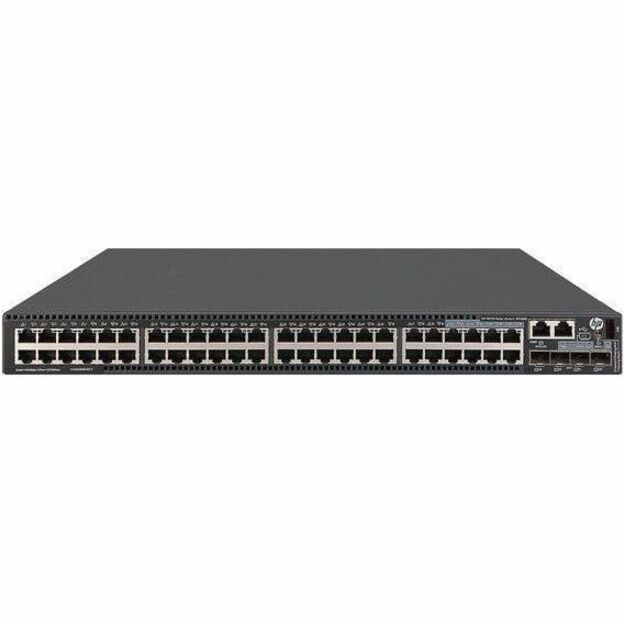

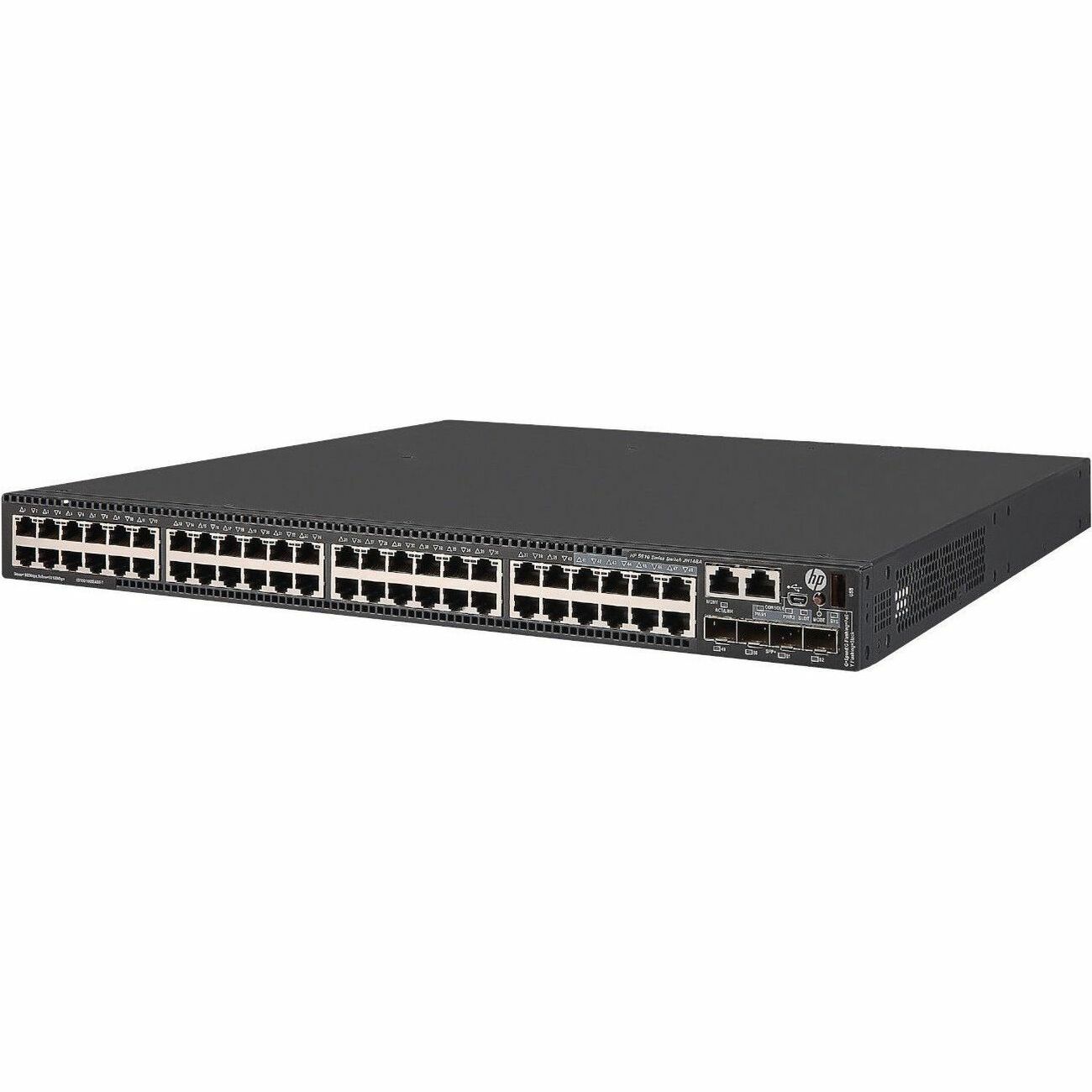

HPE Sourcing FlexNetwork 5510 HI Ethernet Switch

The HPE FlexNetwork 5510 HI Switch Series includes Gigabit Ethernet switches that deliver outstanding resiliency, security, and multiservice support capabilities at the edge layer of data center, large campus, and metro Ethernet networks. The switches can also be used in the core layer of SMB networks. With Intelligent Resilient Fabric (IRF) support and available dual power supplies, the HPE FlexNetwork 5510 HI Series Switch can deliver the highest levels of resiliency and manageability. In addition, the PoE+ models provide up to 1440 W of PoE+ power with the dual power supply configuration. Designed with four fixed 10GbE ports and supports additional modular uplinks, these switches can provide up to six 10 GbE uplink ports. With complete IPv4/IPv6, OpenFlow, and MPLS/VPLS features, the series provides investment protection with an easy transition from IPv4 to IPv6 networks.

Product Type

Ethernet SwitchTechnical Information

Features

Remote Monitoring (RMON)In-Service Software Upgrade (ISSU)Access Control ListDHCP SnoopingEnergy Efficient

High Availability Supported

YesInterfaces/Ports

Total Number of Network Ports

Uplink Port

Yes

Modular

Yes

Stack Port

Yes

Network (RJ-45)

Yes

Port/Expansion Slot Details

24 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port4 x 10 Gigabit Ethernet SFP+ Expasnsion Slot1 x Expansion Module Slot1 x USB 2.0 Port1 x RJ-45 Out-of-band Management Port1 x Dual-personality (RJ-45 or USB micro-B) Serial Console PortMedia & Performance

Media Type Supported

Twisted PairOptical Fiber

Ethernet Technology

Gigabit Ethernet10 Gigabit Ethernet

Network Technology

10/100/1000Base-T10GBase-X

Maximum Data Transfer Rate

1.25 GB/sI/O Expansions

Total Number of Expansion Slots

Expansion Slot Type

SFP+

Number of SFP+ Slots

4Network & Communication

Layer Supported

Networking Standards

IEEE 802.3atIEEE 802.1adIEEE 802.1xIEEE 802.3IEEE 802.3uIEEE 802.3abManagement & Protocols

Manageable

YesPower Description

PoE (RJ-45) Port

Yes

PoE Budget

740 W

Input Voltage

120 V AC230 V AC

Frequency

50 Hz60 Hz

Power Source

Power SupplyAC

Redundant Power Supply Supported

Yes

Power Consumption

650 WPhysical Characteristics

Compatible Rack Unit

Form Factor

Rack-mountable

Height

1.7"

Width

17.3"

Depth

18.1"

Weight (Approximate)

27.56 lbMiscellaneous

Application/Usage

SecurityData CenterCampusNetwork

Certifications & Standards

Overview

SafetyUL 60950-1EN 60825-1 Safety of Laser Products-Part 1EN 60825-2 Safety of Laser Products-Part 2IEC 60950-1EN 60950-1CAN/CSA-C22.2 No. 60950-1FDA 21 CFR Subchapter JROHS ComplianceAS/NZS 60950-1GB 4943 EAC (EurAsian Conformity Certification)Product TypeEthernet SwitchTechnical InformationFeaturesRemote Monitoring (RMON)In-Service Software Upgrade (ISSU)Access Control ListDHCP SnoopingEnergy EfficientHigh Availability SupportedYesInterfaces/PortsTotal Number of Network Ports24Uplink PortYesModularYesStack PortYesNetwork (RJ-45)YesPort/Expansion Slot Details24 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port4 x 10 Gigabit Ethernet SFP+ Expasnsion Slot1 x Expansion Module Slot1 x USB 2.0 Port1 x RJ-45 Out-of-band Management Port1 x Dual-personality (RJ-45 or USB micro-B) Serial Console PortMedia & PerformanceMedia Type SupportedTwisted PairOptical FiberEthernet TechnologyGigabit Ethernet10 Gigabit EthernetNetwork Technology10/100/1000Base-T10GBase-XMaximum Data Transfer Rate1.25 GB/sI/O ExpansionsTotal Number of Expansion Slots4Expansion Slot TypeSFP+Number of SFP+ Slots4Network & CommunicationLayer Supported3Networking StandardsIEEE 802.3atIEEE 802.1adIEEE 802.1xIEEE 802.3IEEE 802.3uIEEE 802.3abManagement & ProtocolsManageableYesPower DescriptionPoE (RJ-45) PortYesPoE Budget740 WInput Voltage120 V AC230 V ACFrequency50 Hz60 HzPower SourcePower SupplyACRedundant Power Supply SupportedYesPower Consumption650 WPhysical CharacteristicsCompatible Rack Unit1UForm FactorRack-mountableHeight1.7"Width17.3"Depth18.1"Weight (Approximate)27.56 lbMiscellaneousApplication/UsageSecurityData CenterCampusNetworkCertifications & Standards

Tech Specs

Emissions

EMC Directive 2004/108/EC
FCC (CFR 47, Part 15) Class A
EN 61000-4-11
2004
ANSI C63.4-2009
EN 61000-3-3
2008
VCCI V-3/2012.04
EN 61000-3-2
2006+A1
2009+A2
2009
EN 61000-4-3
2006
EN 61000-4-4
2012; EN 61000-4-5
2006
EN 61000-4-6
2009
CISPR 22
2008 Class A
EN 55022
2010 Class A
EN 61000-4-29
2000
CISPR 24
2010
EN 300 386 V1.6.1
VCCI V-3/2013.04 Class A

Immunity

Generic
EN 55024
ESD
EN300 386

Management

IMC - Intelligent Management Center
Command-line interface
Web browser
SNMP Manager

Environmental ComplianceRestriction of Hazardous Substances (RoHS)
