ARUBA 8360-32Y4C V2 BF 3F 2AC BDL PL-L1

by
HPE - ARUBA DCN
PCN#
02HH00
MFG#
JL701C#ABA
$29,254.93
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Manageable
  • 25 Gigabit Ethernet, 100 Gigabit Ethernet
  • 25GBase

Show more

Product Condition: New and Factory Fresh
Limited WarrantyLifetime
Shipping Weight: 1 lbs.

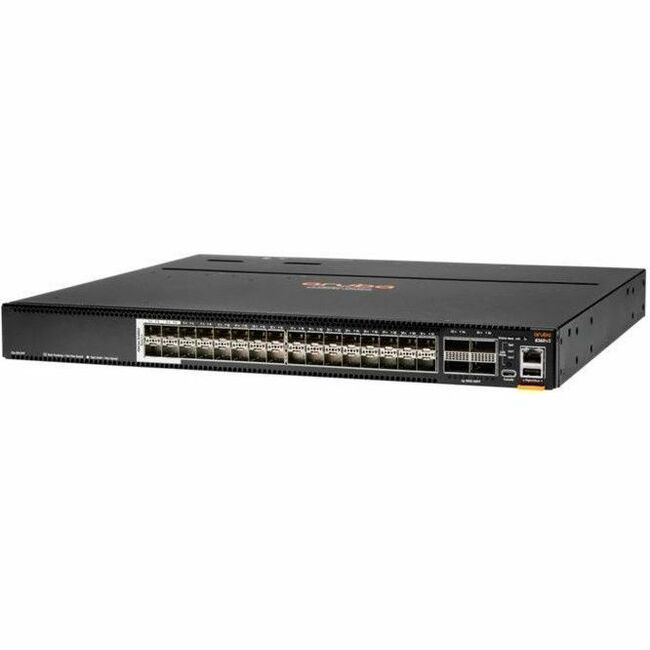

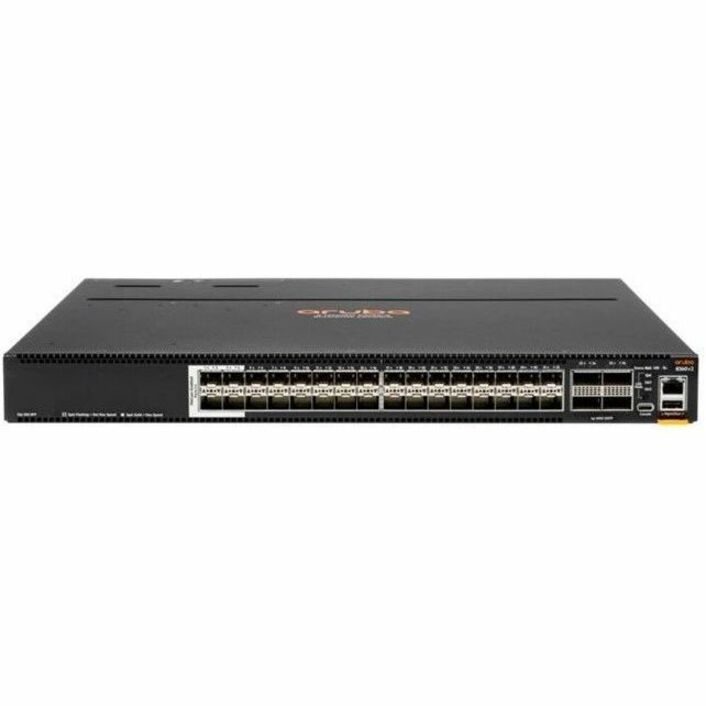

Aruba 8360v2- 32Y4C Ethernet Switch
Tech Specs
Specifications

Manufacturer

Hewlett Packard Enterprise

Manufacturer Part Number

JL701CABA

Manufacturer Website Address

http://www.hpe.com

Brand Name

Aruba

Product Series

CX 8360

Product Model

8360v2- 32Y4C

Product Name

8360v2- 32Y4C Ethernet Switch

Marketing Information

Aruba CX 8360 Switch Series

The Aruba CX 8360-48Y6C v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps.

The 8360-48Y6C v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports.

In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains.

Product Type

Ethernet Switch
Interfaces/Ports

Uplink Port

Yes

Modular

Yes

Port/Expansion Slot Details

  • 32 x 25 Gigabit Ethernet Expansion Slot
  • 4 x 100 Gigabit Ethernet Expansion Slot
Media & Performance

Media Type Supported

Optical Fiber

Ethernet Technology

  • 25 Gigabit Ethernet
  • 100 Gigabit Ethernet

Network Technology

  • 25GBase-X
  • 100GBase-X
I/O Expansions

Number of Total Expansion Slots

36

Expansion Slot Type

  • QSFP28
  • SFP28
Network & Communication

Layer Supported

3

Networking Standards

  • IEEE 802.1Qbb
  • IEEE 802.3ad
  • IEEE 802.1ab
  • IEEE 802.1Q
  • IEEE 802.1D
  • IEEE 802.1w
  • IEEE 802.1s
  • IEEE 802.1ae
  • IEEE 802.1AEbn
  • IEEE 802.1AEbw
  • IEEE 802.1ak
  • IEEE 802.1AX
  • IEEE 802.1t
  • IEEE 802.1v
  • IEEE 802.3ae
  • IEEE 802.3an
  • IEEE 802.3ba
  • IEEE 802.3by
  • IEEE 802.3cc
  • IEEE 802.3z
Management & Protocols

Manageable

Yes
Power Description

Input Voltage

  • 120 V AC
  • 230 V AC

Frequency

  • 50 Hz
  • 60 Hz

Power Source

  • Power Supply
  • AC

Redundant Power Supply Supported

Yes

Number of Power Supplies Supported

2

Number of Power Supplies Installed

2

Power Consumption

425 W
Physical Characteristics

Product Color

Black

Compatible Rack Unit

1U

Form Factor

Rack-mountable

Height

1.7"

Width

17.4"

Depth

16"

Weight (Approximate)

18.06 lb
Miscellaneous

Package Contents

  • 8360v2- 32Y4C Ethernet Switch
  • 2 x PSU
  • 3 x Fans
  • 2 x Post Rack Kit

Application/Usage

  • Data Center
  • Enterprise
  • Business
  • Industrial
  • Campus

TAA Compliant

Yes

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Warranty

Limited Warranty

Lifetime
