The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (TOR). With its cloud-native design, fully programmable operating system, and the HPE Aruba Networking CX Network Analytics Engine, the CX 6300 Series extends industry-leading monitoring and troubleshooting to the access layer. Support for HPE Aruba Networking Switch Multi-Edit Software and the CX mobile app verify that configurations are flawless and easy to deploy.

A powerful ASIC architecture delivers fast, non-blocking performance, ready for tomorrow's unpredictable demands. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high speed uplinks and supports high density IEEE 802.3bt high power PoE with HPE Smart Rate multi-gigabit Ethernet for APs and IoT devices.|

What's new

• Family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF robust security, QoS, MACsec 256, PTP, AVB and LRM
• The series includes three stackable Layer 2-only CX 6300L access switches with HPE Smart Rate Multi-Gigabit and MACsec 256 encryption.
• High performance ASIC with 880 to 1760 Gbps system switching capacity, 660 to 1310 MPPS of system throughput and up to 200 to 400 Gbps stacking bandwidth.
• Series includes options with full density HPE Smart Rate (1/2.5/5/10GbE) MultiGigabit, up to 90W PoE, and a switch bundle with power-to-port airflow for data center 1G ToR and OOBM deployments.
• Built-in high speed 10/25/40/50/100 GbE uplinks with intelligent monitoring and visibility via the Network Analytics Engine.
• Manage via single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic Segmentation enables enhanced security and simple access for users and IoT.|

Features

High Performance and Power

The HPE Aruba Networking CX 6300 Switch Series uses a fully distributed architecture with Gen7 ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wirespeed to meet the demands of bandwidth-intensive applications.

HPE Aruba Networking Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front plane stacking. Four built-in uplinks support speeds of up to 10, 25, 50, and 100 GbE for a total of 200 to 400 Gbps of stacking throughput per switch.

Deploy wireless access points and IoT devices with CX 6300 models that offer high density HPE Smart Rate Multi-Gigabit Ethernet with Class 4 (30W), Class 6 (60W), and Class 8 (90W) PoE on each port (720W, 1440W, and 2880W max PoE budget options).

CX 6300L stackable, high-performance Layer 2-only switches with static routing available for customers needing scalability, high-capacity, and cost-effective connectivity in the access layer.

The S0E91A switch model supports QSFP28 uplink speeds of 40 GbE and 100 GbE for up to 400 Gbps of stacking throughput.

• Intelligent monitoring
• Virtual Extensible LAN (VXLAN)
• Remote Monitoring (RMON)

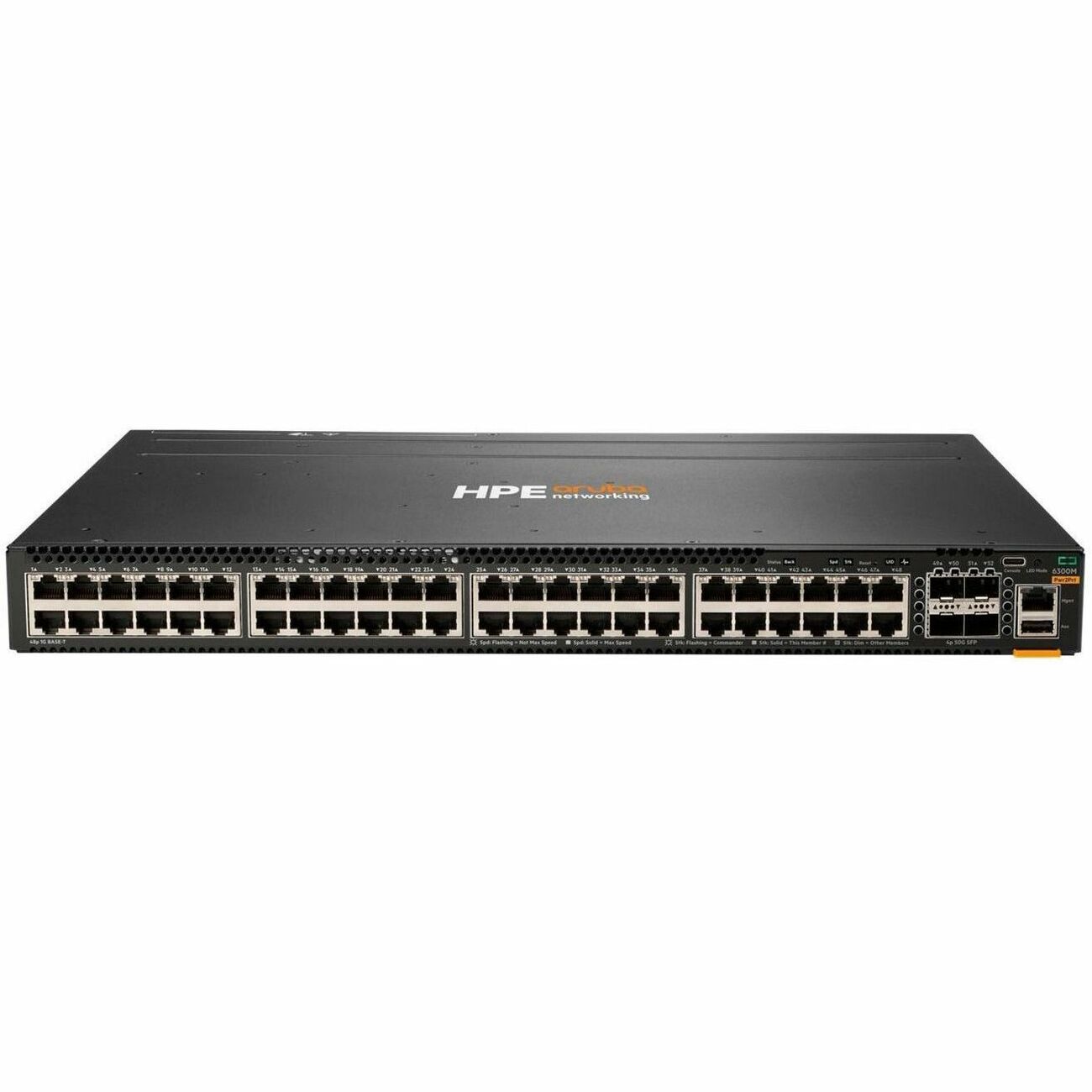

• 48 x 10/100/1000Base-T Gigabit Ethernet RJ-45 Network Port
• 4 x 1/10/25/50 Gigabit Ethernet SFP56 Expansion Slot
• 1 x USB-C Console Port
• 1 x USB Type A Host Port
• 1 x Out of Band Management Port

• Twisted Pair
• Optical Fiber

• Gigabit Ethernet
• 2.5 Gigabit Ethernet
• 5 Gigabit Ethernet
• 10 Gigabit Ethernet
• 50 Gigabit Ethernet

• 10/100/1000Base-T
• 25GBase-X
• 10GBase-X
• 1000Base-X
• 50GBase-X

• SFP
• SFP56

• 120 V
• 230 V

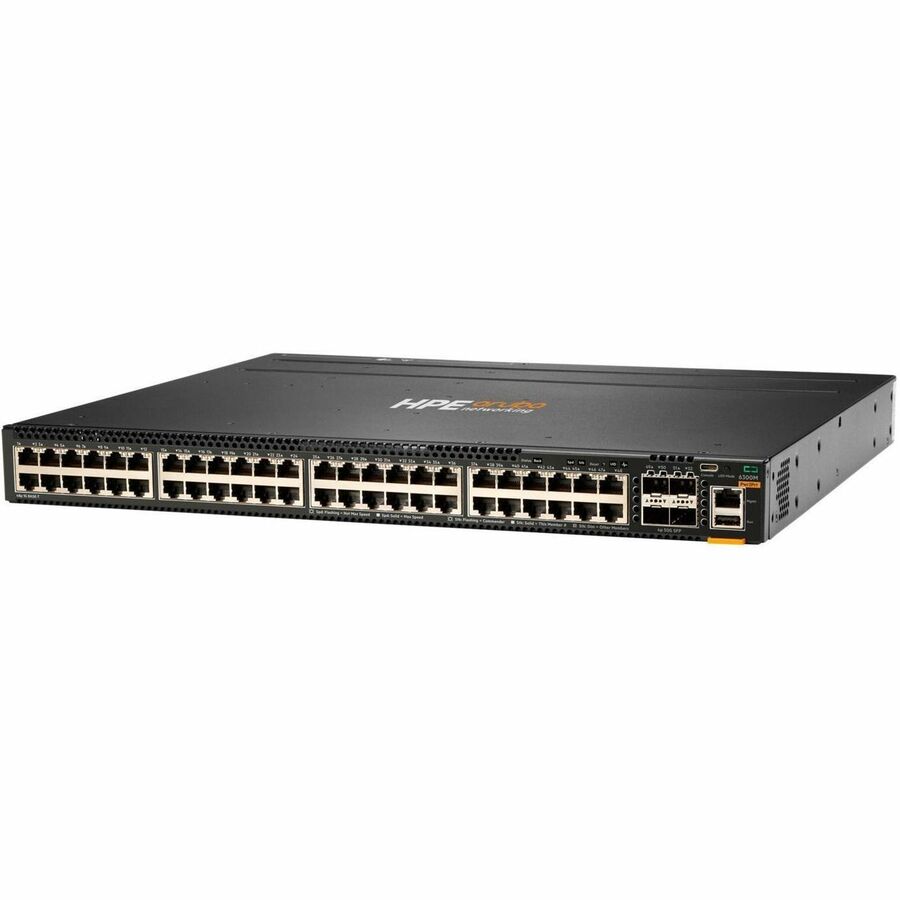

• CX 6300M 48p 1GbE 4p SFP56 Power-to-Port 2 Fan Trays 1 PSU Bundle

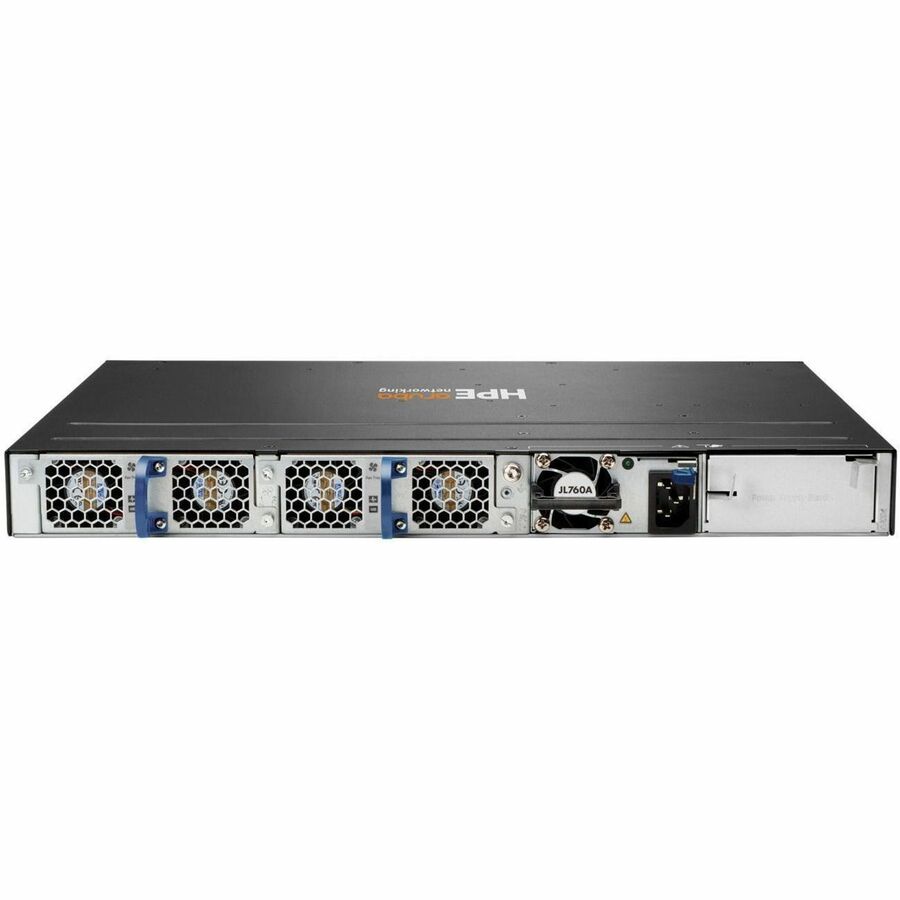

• 1 x Power Supply Unit

• Network
• Data Center
• Security
• IoT Devices
• Wireless Access Point
• Infrastructure
• Server
