HPE 5140 48G POE+ 2SFP+ 2XGT EI SW L6-20 220V-NA

Name: HPE 5140 48G POE+ 2SFP+ 2XGT EI SW L6-20 220V-NA
Brand: HPE
SKU: 9161BA
Price: 7206.42 USD
Availability: InStock

HPE

PCN#

9161BA

MFG#

JL825A#B2E

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$7,206.42

Extended & Accidental Damage Protection Plans Available Details

2-Year $418.99

3-Year $535.99

Free Shipping

Estimated Shipment:

Product Highlights:

50 Ports
Manageable
Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet
10Base
T, 100Base
TX, 1000Base
T, 2.5GBase
T, 5GBase
T, 10GBase
T, 10GBase
X
3 Layer Supported
430 W Power Consumption
370 W PoE Budget
Twisted Pair, Optical Fiber
PoE Ports
1U
Rack
mountable
Lifetime Limited Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

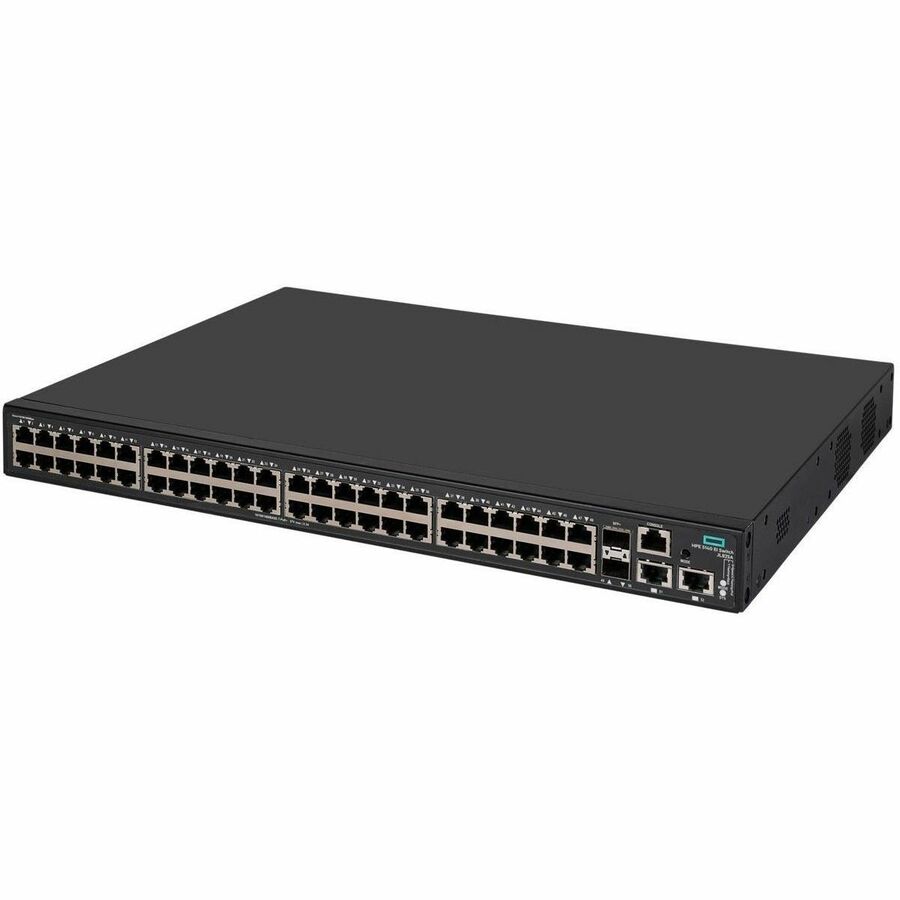

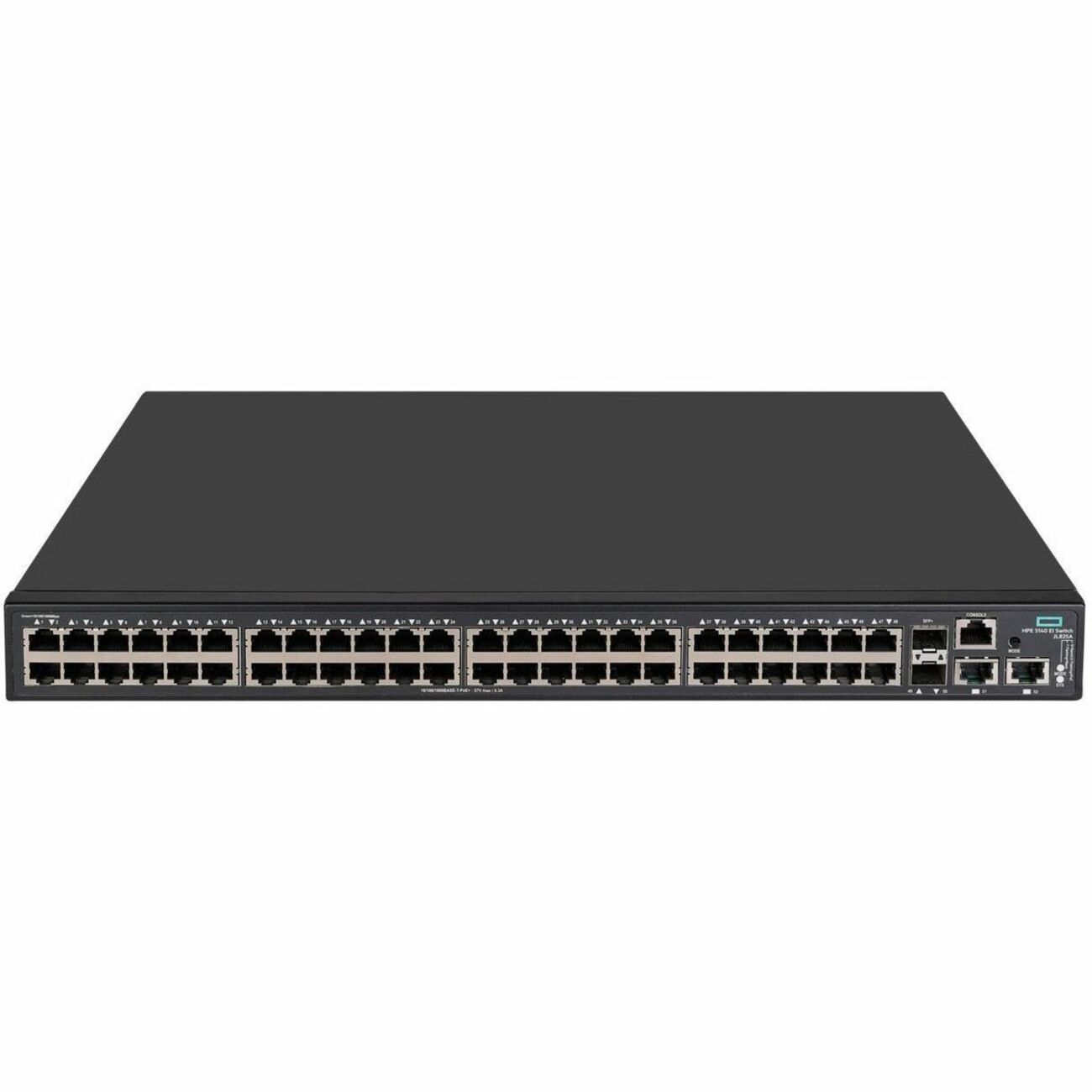

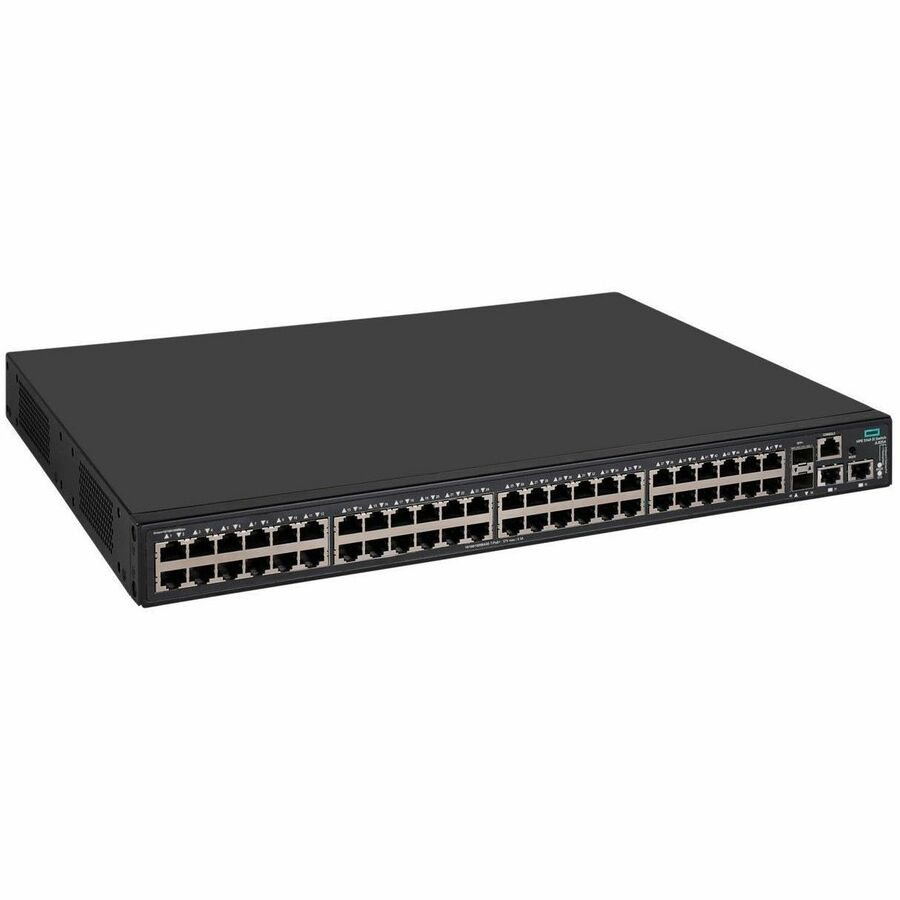

HPE Comware Switch 48G POE+ 2SFP+ 2XGT EI 5140

Overview

Tech Specs

Specifications

Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	JL825A#B2E
Manufacturer Website Address	http://www.hpe.com
Brand Name	HPE
Product Line	Comware
Product Series	5140 EI
Product Name	Comware Switch 48G POE+ 2SFP+ 2XGT EI 5140
Marketing Information	Features \| Maximize your HPE Networking Comware Switch Series 5140 EI \| What's New Gigabit Ethernet access switch with static layer 3 routing, RIP, high density 10 GbE uplinks, and POE+ models for voice, video, and wireless. It supports IRF technology that enables plug-and-play device aggregation and link aggregation across multiple devices, enhancing network redundancy and resource utilization. It includes embedded network management capabilities with Smart Management Center (SmartMC). It includes energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports.\| Scalability and High Availability The HPE Networking Comware Switch Series 5140 EI delivers scalability and enhances reliability of the network with HPE Intelligent Resilient Framework (IRF) technology. IRF stacking enables virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router. HPE IRF stacking enhances performance and reliability with uninterrupted L2 switching and L3 forwarding and reduces operational complexity with simpler, flatter, and more agile networks. Four fixed uplinks (SFP, SFP+, and 10GBASE-T) deliver performance for bandwidth intensive applications. Link redundancy with support for protocols such as Spanning Tree/MSTP, RSTP, and Smart link provides high availability. Comprehensive Security Control The HPE Networking Comware Switch Series 5140 EI supports flexible authentication methods including 802.1X and MAC Authentication for greater security and policy-driven application authentication. Per-user access control lists (ACLs) provide identity-driven security and access control. ACLs provide IP Layer 2 to Layer 4 traffic filtering while supporting global ACL, VLAN ACL, port ACL, and IPv6 ACL. Dynamic ARP protection with functions such as ARP Detection and ARP packet validation that block broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data. Centralized security policy management and network protection with HPE Aruba Networking IMC End User Admission Domination (EAD) which integrates security policies, network access control, and access right control policies to form a cooperative security system. Enhance security with encryption of access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3, and other features including DHCP protection, IP source guard, and RADIUS/HWTACAS.
Product Type	Ethernet Switch

Technical Information

Features	Plug and Play Link Aggregation Access Control List Dynamic ARP Inspection Remote Monitoring (RMON) Quality of Service (QoS) Strict Priority Queuing (SPQ) Auto Sensing Virtual LAN (VLAN)
High Availability Supported	Yes

Interfaces/Ports

Total Number of Network Ports	50
Uplink Port	Yes
Stack Port	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	48 x Gigabit Ethernet PoE+ Network Port 2 x 10 Gigabit Ethernet Expansion Slot 2 x 10 Gigabit Ethernet Network Port 1 x RJ-45 Serial Console Port

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet 2.5 Gigabit Ethernet 5 Gigabit Ethernet 10 Gigabit Ethernet
Network Technology	10Base-T 100Base-TX 1000Base-T 2.5GBase-T 5GBase-T 10GBase-T 10GBase-X
Maximum Data Transfer Rate	1.25 GB/s

I/O Expansions

Total Number of Expansion Slots	2
Expansion Slot Type	SFP+
Number of SFP+ Slots	2

Network & Communication

Layer Supported	3
Networking Standards	IEEE 802.1x

Management & Protocols

Manageable

Yes

Power Description

PoE (RJ-45) Port	Yes
PoE Budget	370 W
Input Voltage	120 V AC 230 V AC
Power Source	Power Supply AC
Power Consumption	430 W

Physical Characteristics

Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.7"
Width	17.3"
Depth	12.6"
Weight (Approximate)	13.23 lb

Miscellaneous

Package Contents	Comware Switch 48G POE+ 2SFP+ 2XGT EI 5140 Power supply
Application/Usage	Network Infrastructure Traffic Voice Video Security Router
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

Lifetime
