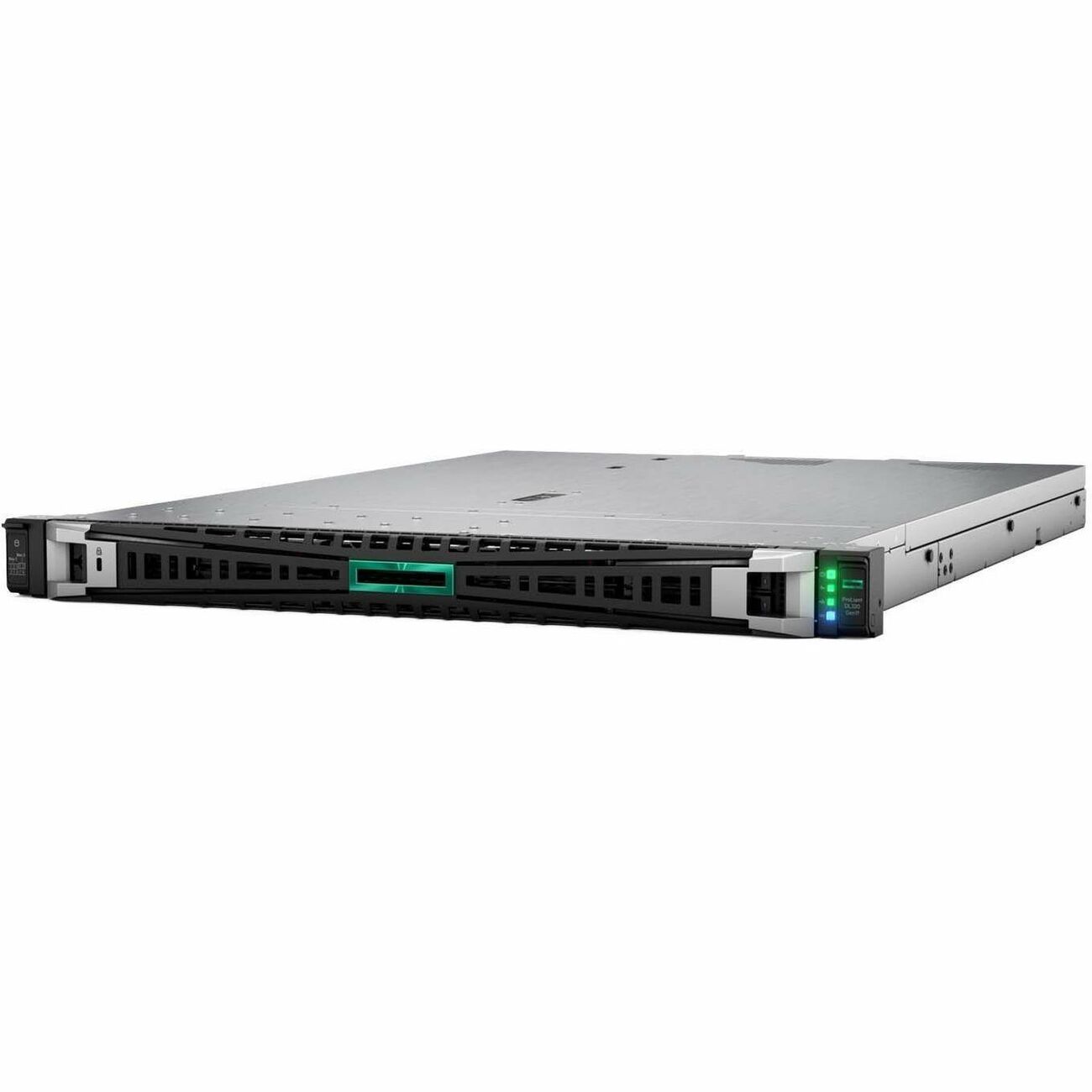

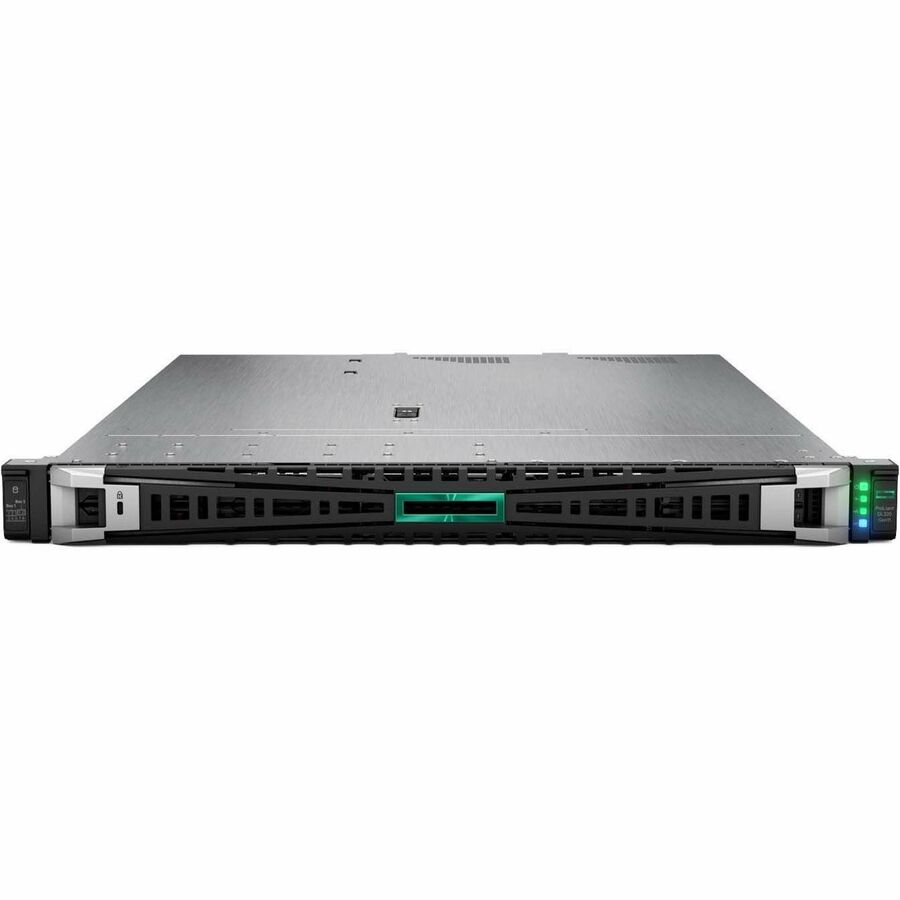

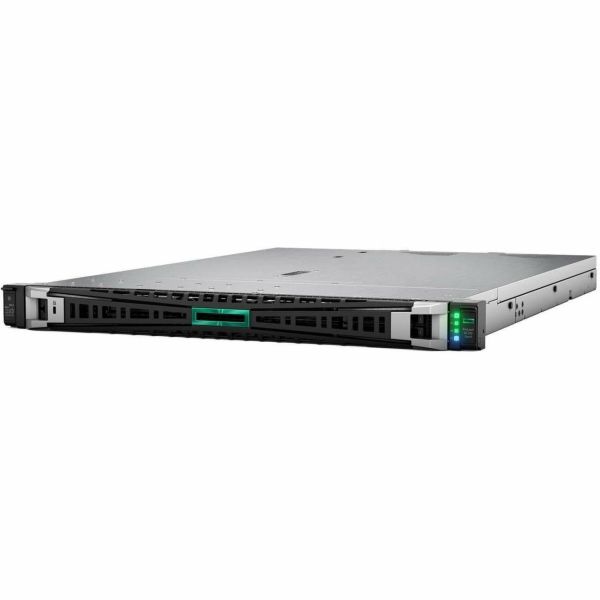

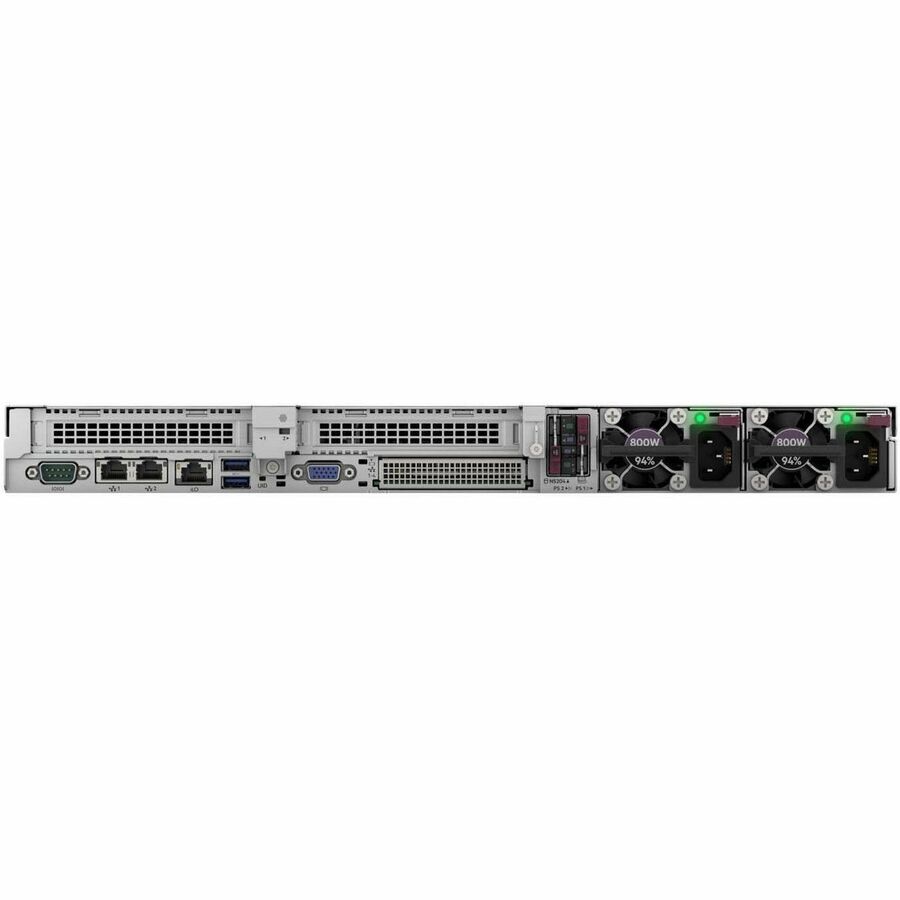

HPE ProLiant DL320 G11 1U Server - 1 x Intel Xeon Bronze 3408U 1.80 GHz - 16 GB RAM - Serial ATA Controller

Name: HPE ProLiant DL320 G11 1U Server - 1 x Intel Xeon Bronze 3408U 1.80 GHz - 16 GB RAM - Serial ATA Controller
Brand: HPE
SKU: 13CK59
Price: 4331.54 USD
Availability: InStock

HPE

PCN#

13CK59

MFG#

P57685-B21

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

Estimated Shipment:

Product Highlights:

Intel C741 Chip
1 Processor Support
2.04 TB RAM Support
Up to 16 MB Graphic Card
Gigabit Ethernet
4 x LFF Bay(s)
1 x 500 W
Redundant Power Supply

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information3-Year Parts, 3-Year Labor, 3-Year Onsite Support With Next Business Day Response

Shipping Weight: 61 lbs.

HPE ProLiant DL320 G11 1U Server - 1 x Intel Xeon Bronze 3408U 1.80 GHz - 16 GB RAM - Serial ATA Controller

Overview

Tech Specs

Specifications

Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	P57685B21
Manufacturer Website Address	http://www.hpe.com
Brand Name	HPE
Product Line	ProLiant
Product Series	DL320 G11
Product Name	HPE ProLiant DL320 Gen11 3408U 1.8GHz 8-core 1P 16GB-R 4LFF 500W PS Server HPE P
Product Type	Server

Processor

Number of Processors Supported	1
Number of Processors Installed	1
Processor Manufacturer	Intel
Processor Type	Xeon Bronze
Processor Generation	4th Gen
Processor Model	3408U
Processor Core	Octa-core (8 Core)
Processor Speed	1.80 GHz
Cache	22.50 MB

Chipset

Chipset Manufacturer	Intel
Chipset Model	C741

Memory

Standard Memory	16 GB
Maximum Memory Supported	2.04 TB
Memory Technology	DDR5 SDRAM
Memory Clock Speed	4.80 GHz
Error Checking	ECC
Number of Total Memory Slots	16
Number of Occupied Memory Slots	1
Signal Processing	Registered (Buffered)

Controllers

Controller Type	Serial ATA
RAID Supported	Yes

I/O Expansions

Number of Total Expansion Bays	4
Number of 3.5" Bays	4
Number of LFF Bays	4
Number of Total Expansion Slots	3
PCI Express Details	2 x16 FHHL PCIe Gen5; 1 OCP 3.0 Slot

Display & Graphics

Graphics Memory Capacity

16 MB

Network & Communication

Ethernet Technology

Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports	4
VGA	Yes
Number of VGA Ports	1
Remote Management	Yes
Remote Management Controller	HPE iLO6
DisplayPort	Yes
Number of DisplayPorts	1

Operating System

Operating System Supported

Windows Server
Red Hat Enterprise Linux
SuSE Linux Enterprise Server
Citrix XenServer
Oracle Linux

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Supported	2
Number of Power Supplies Installed	1
Plug/Connector Type	C14
Maximum Power Supply Wattage	500 W
Redundant Power Supply	Yes
Power Source	Power Supply

Physical Characteristics

Rack Height	1U
Height	1.7"
Width	17.1"
Depth	26.2"
Weight (Approximate)	29.10 lb

Miscellaneous

Package Contents	HPE ProLiant DL320 Gen11 3408U 1.8GHz 8-core 1P 16GB-R 4LFF 500W PS Server Jumper Cord
Security Features	UEFI Secure Boot and Secure Start support Tamper-free updates - components digitally signed and verified Immutable Silicon Root of Trust Ability to rollback firmware FIPS 140-2 validation Secure erase of NAND/User data Common Criteria certification Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Bezel Locking Kit option Support for Commercial National Security Algorithms (CNSA) Chassis Intrusion detection option Secure Recovery - recover critical firmware to a known good state on detection of compromised firmware
Energy Star	Yes
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3-Year Parts, 3-Year Labor, 3-Year Onsite Support With Next Business Day Response
