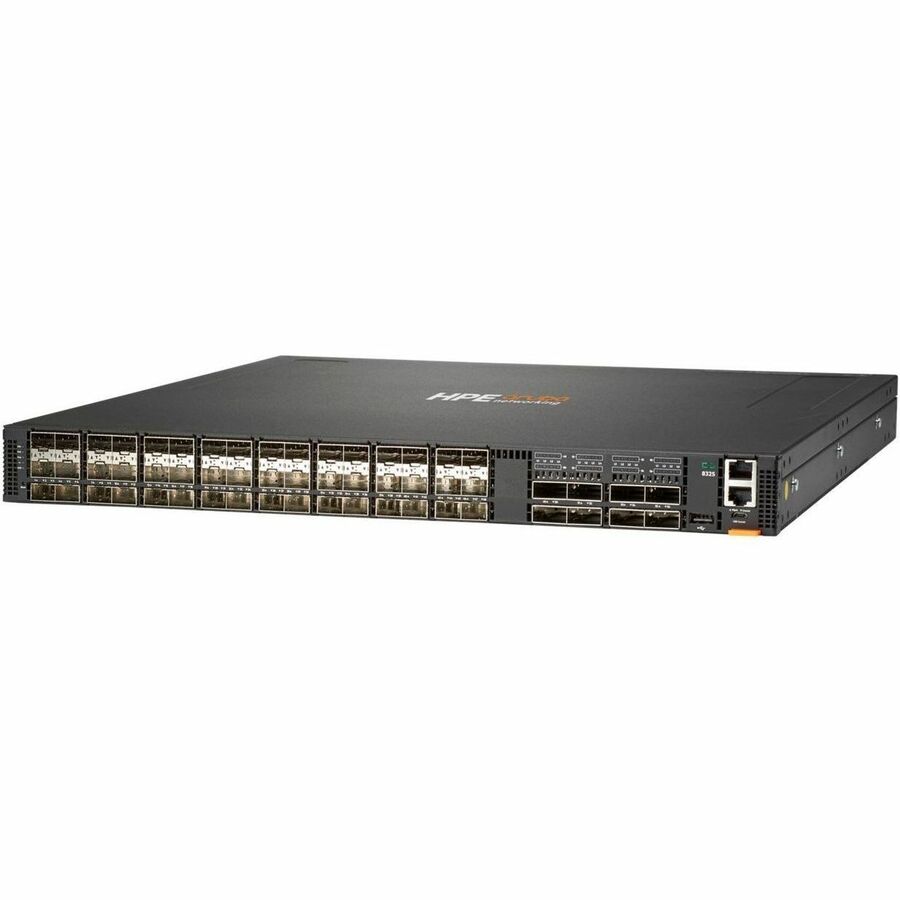

ARUBA 8325-48Y8C PRT2PWR BDL HPE EU EN

Overview

The HPE Aruba Networking CX 8325 Switch Series serves as both a campus (core and aggregation) and data center (ToR and EoR) switch. This game-changing solution offers a flexible, innovative approach to meet demands in the mobile, cloud, and IoT era. The CX 8325 series is based on AOS-CX, with its microservices style modular architecture, REST APIs, Python scripting capabilities and NAE is a modern software system that automates and simplifies critical and complex network tasks, delivers enhanced fault tolerance and facilitates zero-service disruption during planned or unplanned control-plane events. CX 8325 series provides line rate 1/10/25/40GbE in a compact 1U form factor.

The CX 8325P models, deliver key solutions for providers in their 5G (Radio access network) and edge computing deployments. CX 8325H models are high-performance 1/10/25/40/100GbE half-width switches ideal for smaller, edge or colocation data centers, and wide variety of compute and storage networking use cases.

Features | Game-changing business agility

The HPE Aruba Networking CX 8325 Switch Series is a campus core and aggregation switch and data center (ToR) solution with an innovative and powerful approach to dealing with the cross-domain demands of the mobile, cloud, and IoT era.

It is fully programmable with the HPE Aruba Networking CX Switch Operating System (AOS-CX) and, it brings automation and visibility and helps troubleshoot through simple scripting.

HPE Aruba Networking CX Network Analytics Engine provides the ability to monitor and troubleshoot the network, system, application and security-related issues easily, through simple Python agents and REST APIs

It offers high-speed fully distributed architecture with 6.4 Tbps of switching capacity. It provides robust security and QoS with advanced layer 2 and layer 3 features including support for BGP, OSPF, VRF, EVPN, VXLAN and IGMP.

• Ethernet Switch
• Rack Mount

• 120 V AC
• 230 V AC
• -36 V DC
• 72 V DC

Product Dimensions: 43.2 x 438.4 x 535.9 mm

Weight: 10.0 kg

Power consumption:Maximum: 618W depending on the model, Idle: 143W depending on the model

Heat dissipation:Maximum: 2110 BTU/hr

Ports:(48) 25G SFP28 ports and (8) 100G QSFP28 ports

Switching capacity:CX 8325 and CX 8325P models provide 6.4 Tbps switching capacity, CX 8325H models provide high-performance ASIC switching capacity of 2.16 Tbps (fullduplex) with 18 ports of 1/10/25G and 4 ports of 40/100G and ASIC switching capacity of 4 Tbps

Stacking capabilities:These switches serve the needs of the next-generation core and aggregation layer, as well as emerging data center requirements at the Top of Rack (ToR) and End of Row (EoR).

Throughput:

• Maximum depending on model:
• For CX 8325 and CX 8325P and CX 8325H-16C models: 2000 Mpps
• For CX 8325H-18Y4C models: 1000 Mpp

Memory and processor:

For CX 8325 models:

• CPU: 2.2 GHz
• Memory: Drive and Flash 16 GB RAM, 64 GB SSD, 8 GB Flash
• Packet Buffer: 32 MB

For CX 8325P models:

• CPU: 2.2 GHz
• Memory, Drive and Flash: 32 GB RAM, 128 GB SSD, 4 GB Flash
• Packet Buffer: 32 MB

For CX 8325H models:

• CPU: AMD® x86 8-core processor
• Memory: 32 GB, 120 GB SSD
• Packet Buffer: 32 MB

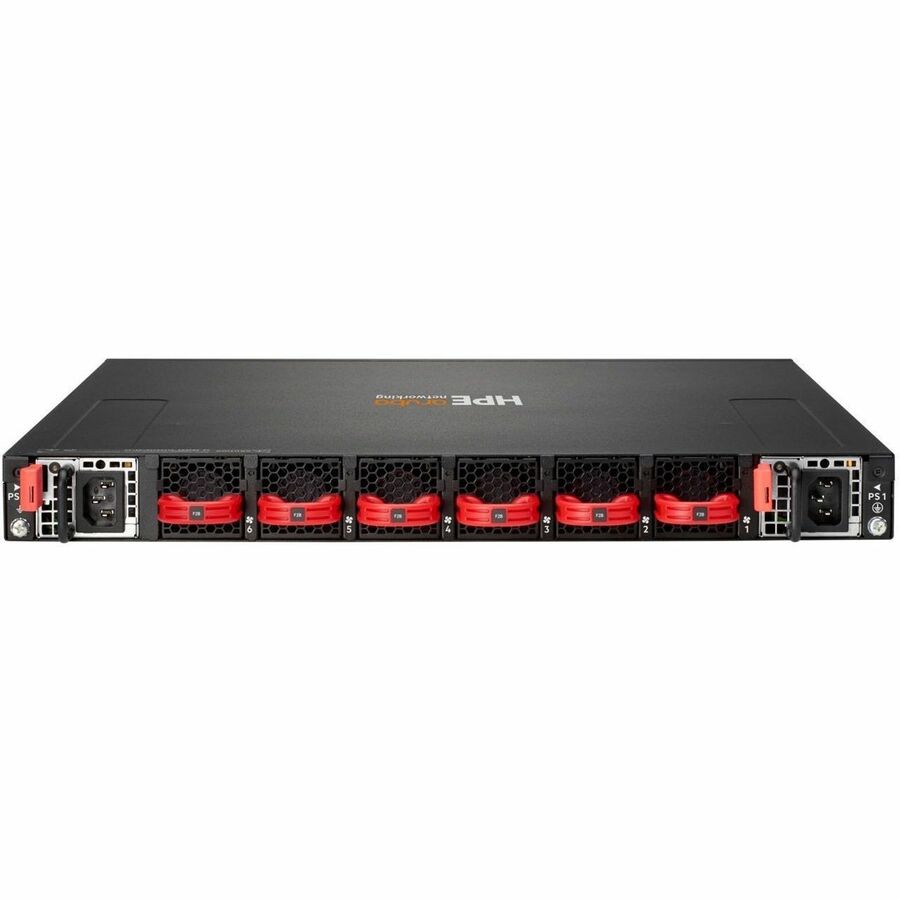

Power supply:Field-replaceable, hot-swappable, and up to 2 power supplies or 2 fixed power supplies (1+1) in CX 8325H models

Management features:

Industry-standard CLI with hierarchical structure

• SNMP v2c and v3
• sFlow (RFC 3176)
• Remote monitoring (RMON)
• Precision Time Protocol (PTP) Class C (G.8275.1 and G.8275.2)
• REST APIs
• RJ-45 serial console
• RJ-45 Ethernet port
• Micro-USB console

HPE Aruba Networking CX 8325 Switch Series

Limited lifetime warranty
