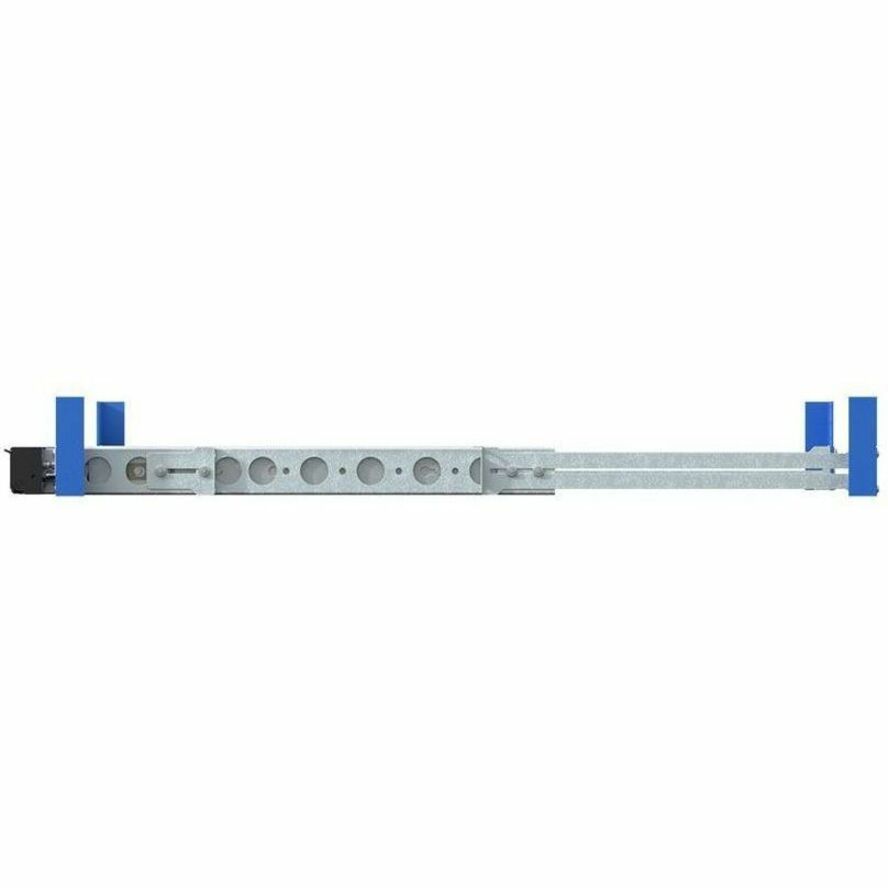

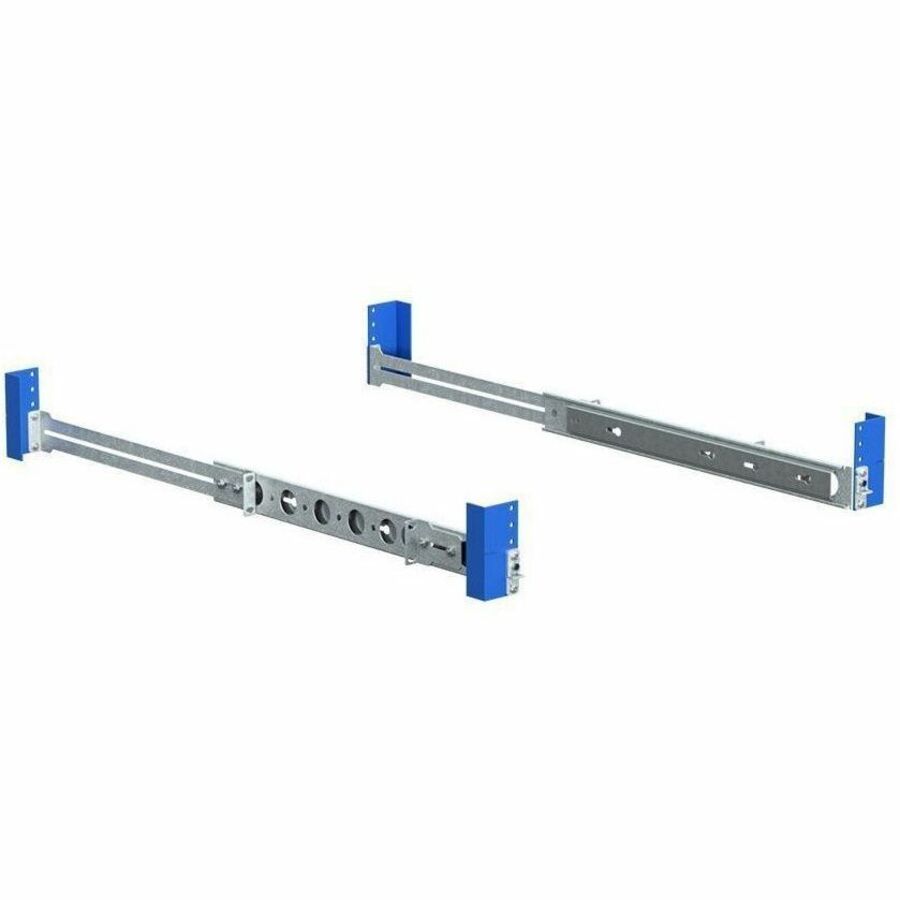

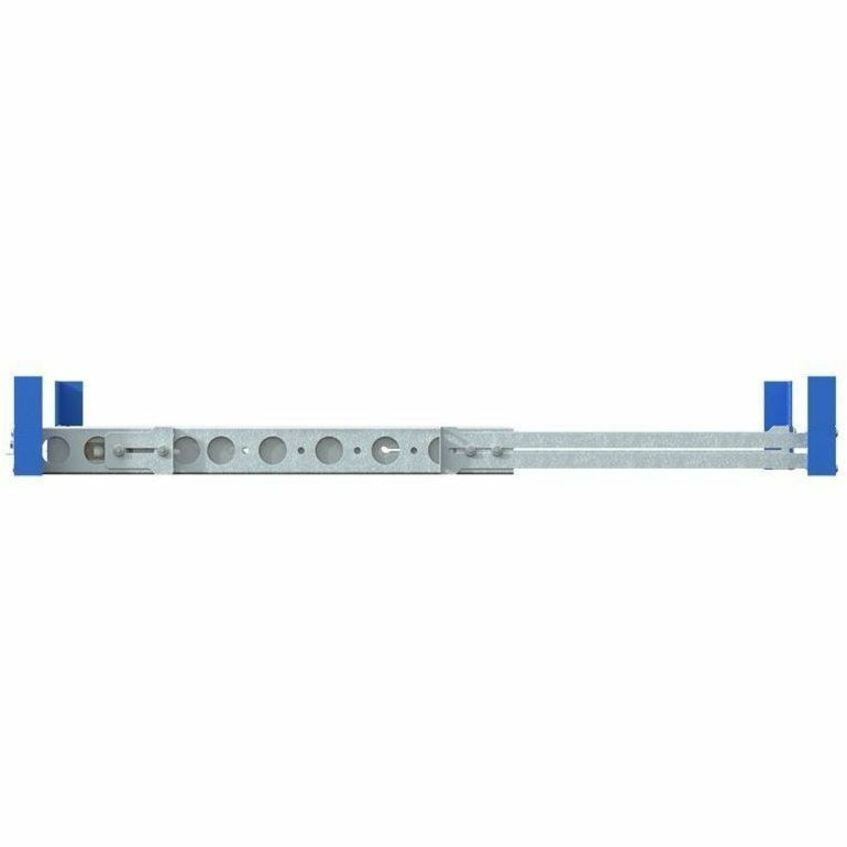

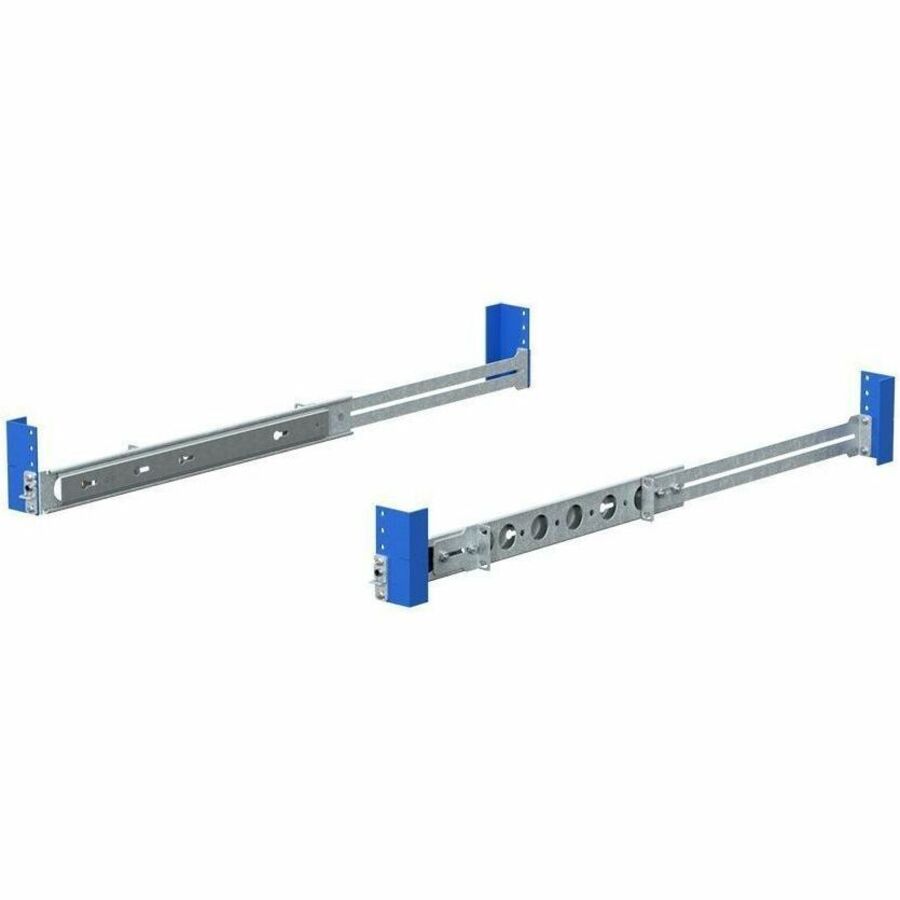

1U RAVEN 190-A RAIL FOR HPE

RackSolutions 1U Raven 190-A Rail for HPE Proliant servers is an alternative to HPE OEM rail kits. The sliding rack kit is compatible with select 1U HPE Proliant rack servers from the 11th generation. Our sliding rack rails are compatible with HPE ProLiant DL20 Gen11 (SFF) and DL20 Gen11 (LFF) servers.

HPE Slam Latch Retaining Plate

The 1U retaining plate allows the HPE Proliant server to be secured in place when using our server rail. The retaining plate provides full securement at the front of the chassis, ensuring the server maintains a fixed position when completely installed.

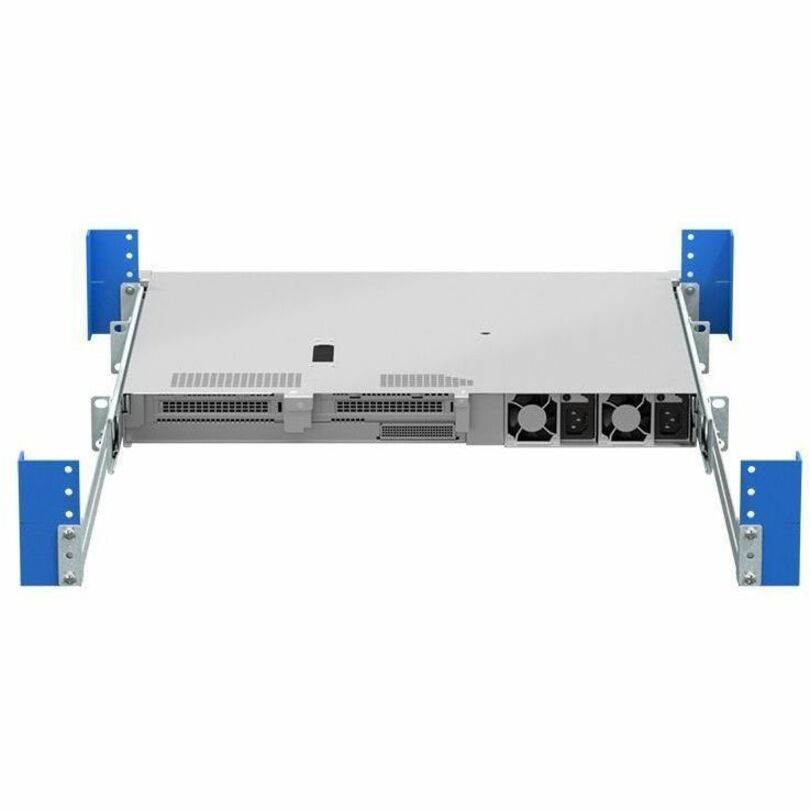

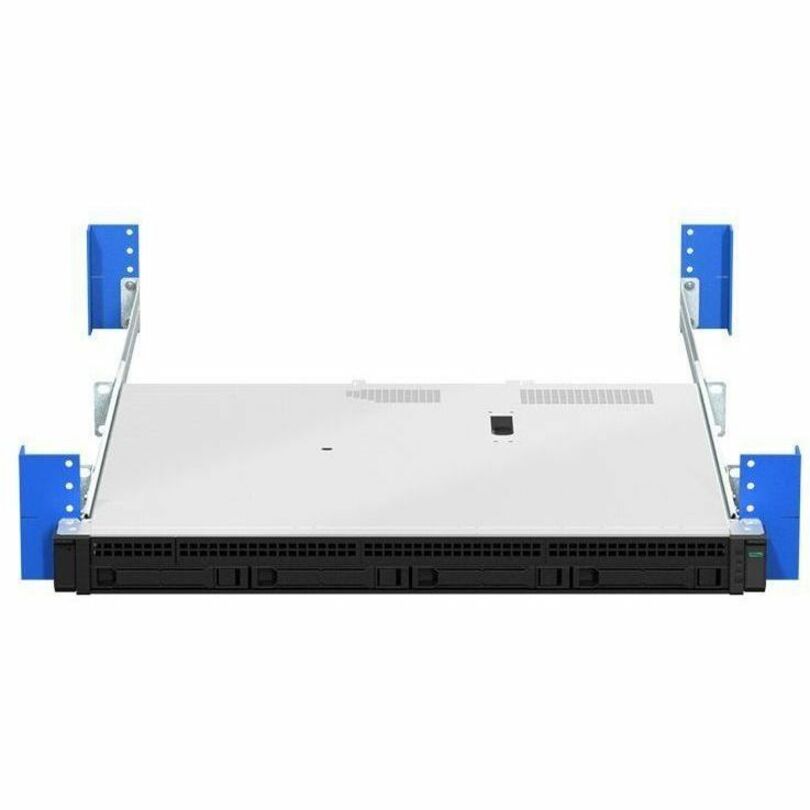

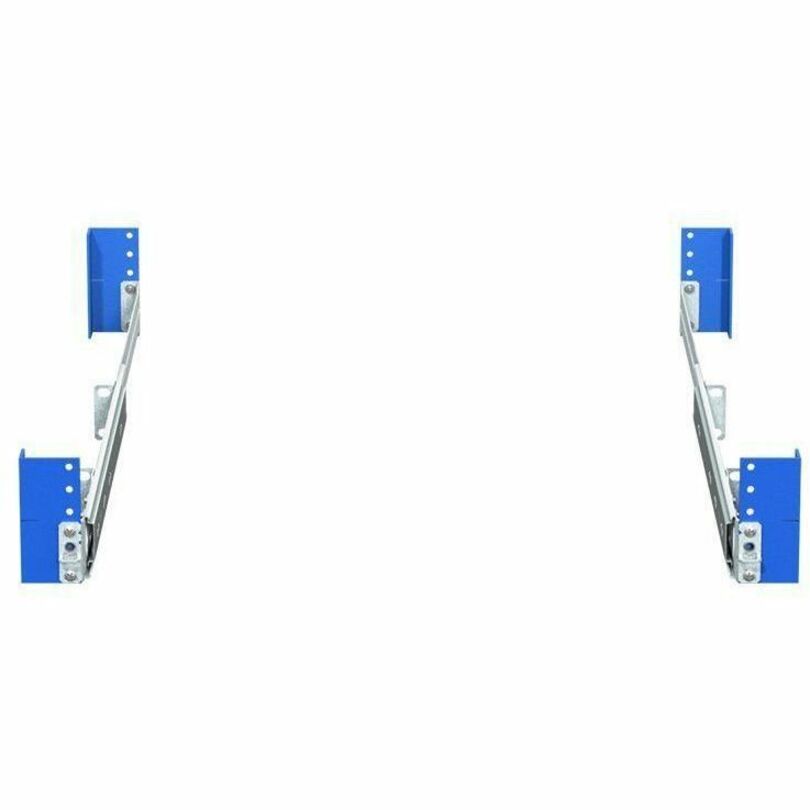

Mounts in 2-Post and 4-Post Racks

Unlike the HPE OEM Rail Kit, our sliding rack rail kit mounts in 2-Post and 4-Post racks that meet 19" EIA-310 standards. Designed to last longer than ball-bearing rail kits, the dry slides allow you to easily extend equipment in and out of your server rack. For 4-Post Racks, the rack rails feature an adjustable mounting depth between 14.50" - 29.50" (368.3 - 749.3 mm).

Rack Hole Type

The sliding rack rails occupy 1U of rack space and are compatible with threaded, round, and universal square holes.

• Cold Rolled Steel
• Galvanized Steel
• Zinc Plated

Mounting Hardware:

8x 8-32 x .500 Pan Head Screw

2x Retainer Plate (Left & Right)

2x Latch Plate (Left & Right)

2x Mounting Plate

Kit Contents:

2x Outer Rail (Left & Right)

2x Inner Rail (Left & Right)

2x Rear Bracket

Rear Bracket Hardware:

4x 8-32 x .312 Flat Head Screw

4x 8-32 Keps Nut

Rear Mount 8x:

8x 10-32 x .500 Pan Head Screw

8x 12-24 x .500 Pan Head Screw

8x 12-24 x Square Nut

8x 12-24 x Cage Nut

HPE Proliant Server

• DL20 Gen11 (SFF and LFF Drive Configurations)

BABA Compliant
