1U RAVEN 195-A RAIL FOR HPE

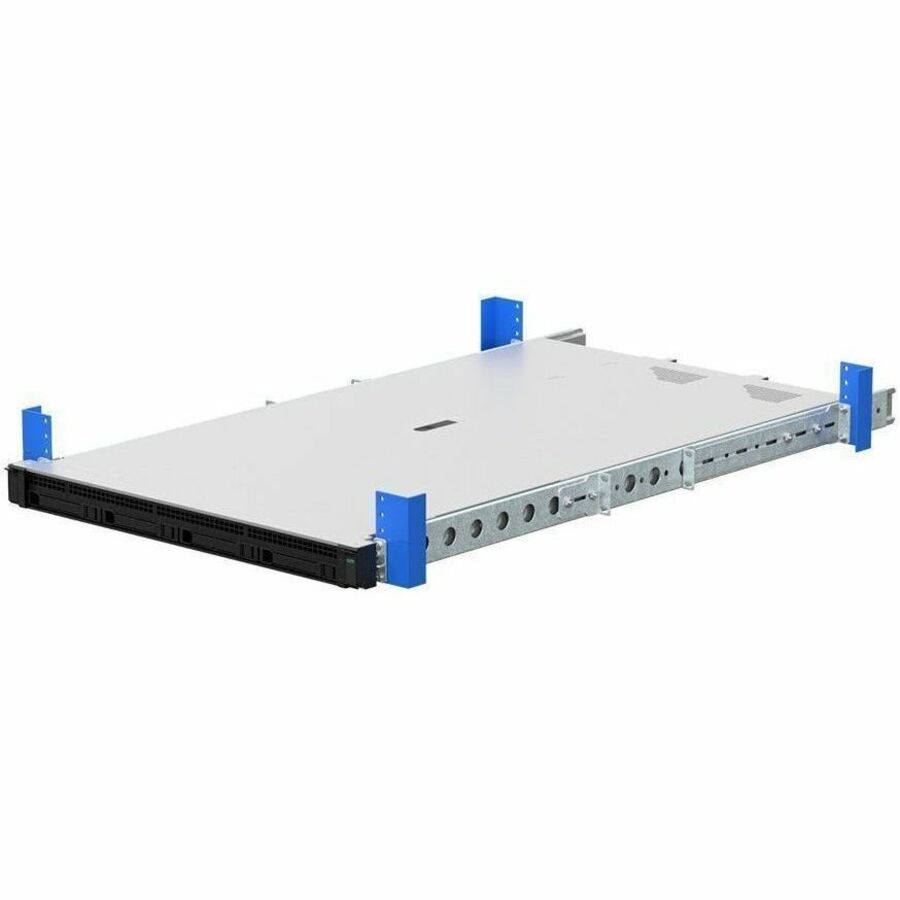

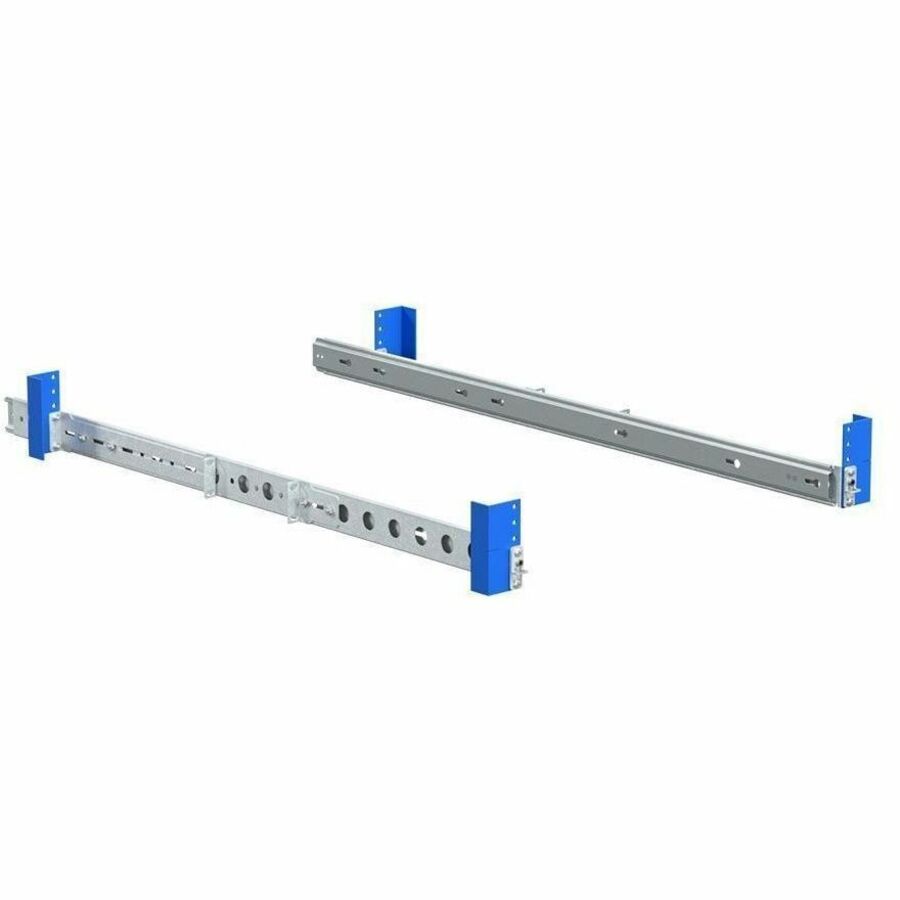

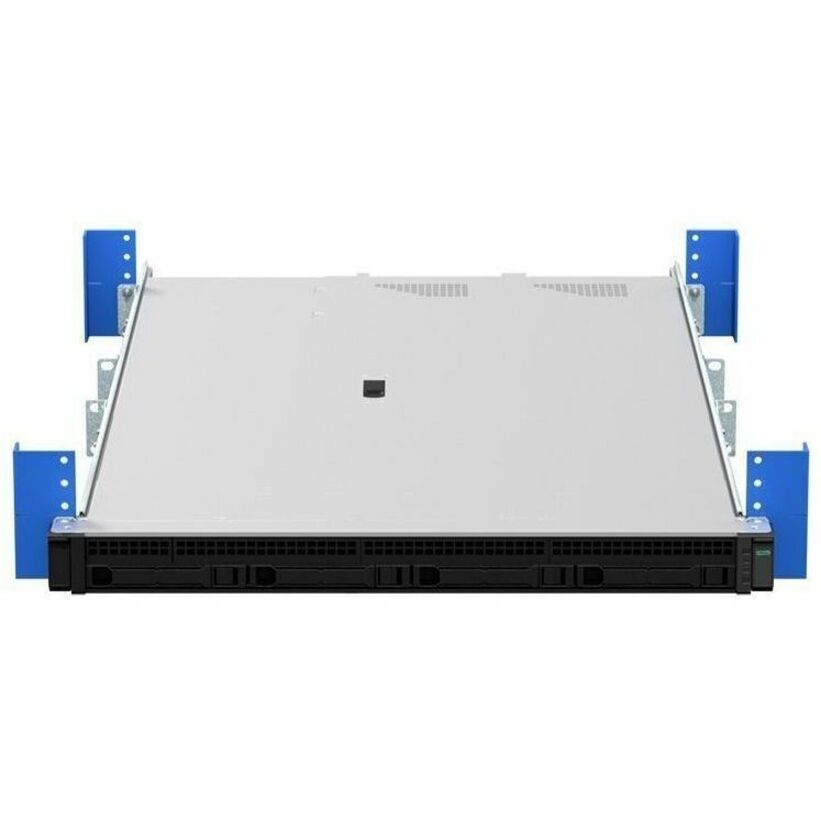

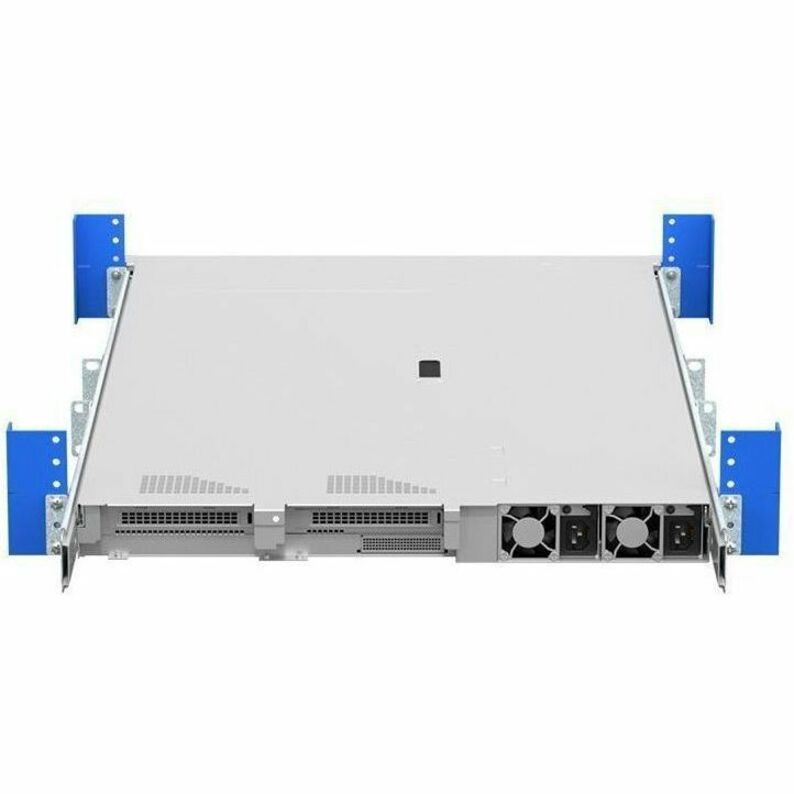

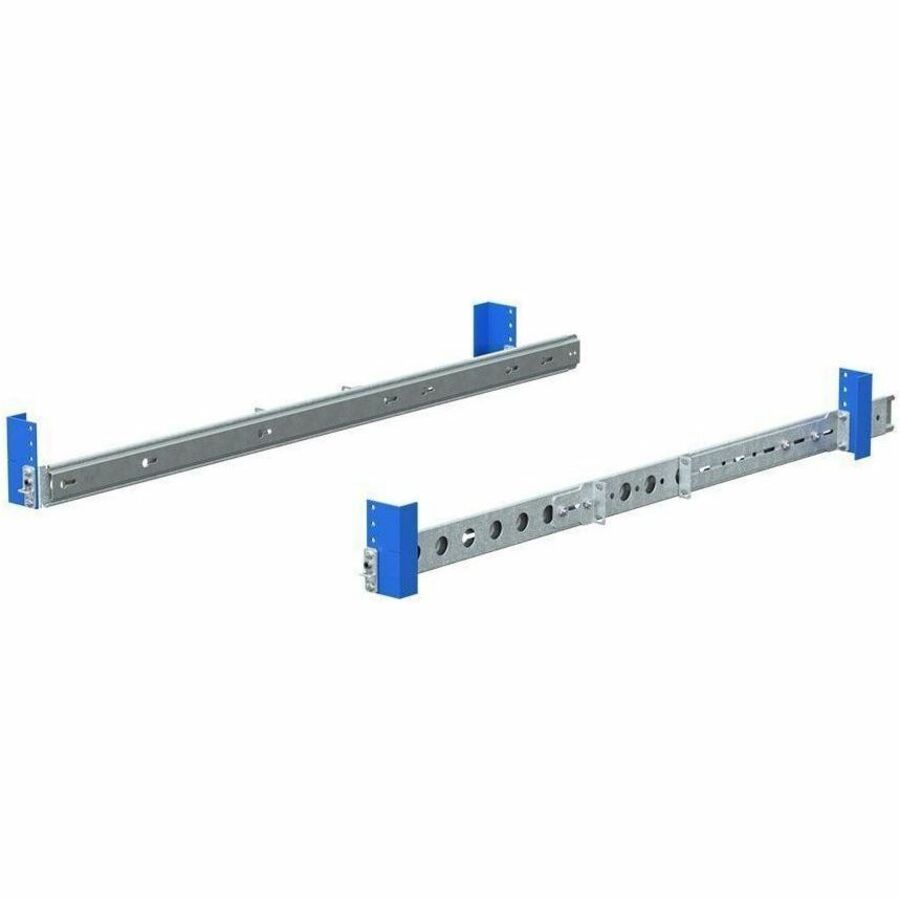

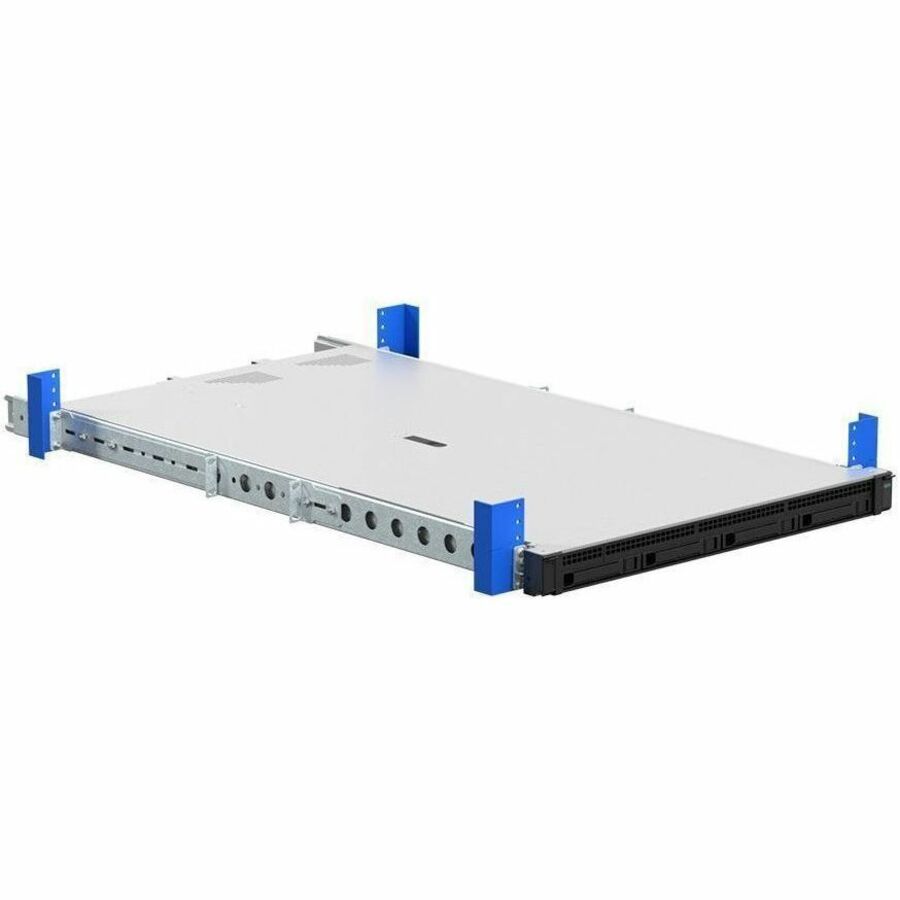

RackSolutions 1U Raven 195-A Rail for HPE Proliant servers is an alternative to HPE OEM rail kits. The sliding rack kit is compatible with select 1U HPE Proliant rack servers from the 11th generation. Our sliding rack rails are compatible with HPE ProLiant DL360 Gen11 (LFF), DL360 Gen11 (E3.S), DL320 Gen11 (Accelerator-Optimized), A4110 Gen11 (SFF), DL365 Gen11 (GPU-Optimized), DL325 Gen11 (GPU-Optimized) servers. Learn more about the Raven rack rails here.

HPE Slam Latch Retaining Plate

The 1U retaining plate allows the HPE Proliant server to be secured in place when using our server rail. The retaining plate provides full securement at the front of the chassis, ensuring the server maintains a fixed position when completely installed.

Mounts in 2-Post and 4-Post Racks

Unlike the HPE OEM Rail Kit, our sliding rack rail kit mounts in 2-Post and 4-Post racks that meet 19" EIA-310 standards. Designed to last longer than ball-bearing rail kits, the dry slides allow you to easily extend equipment in and out of your server rack. For 4-Post Racks, the rack rails feature an adjustable mounting depth between 13.50" - 39.00" (342.9 - 990.6 mm).

Rack Hole Type

The sliding rack rails occupy 1U of rack space and are compatible with threaded, round, and universal square holes.

• Galvanized Steel
• Cold-rolled Steel (CRS)

HP - Server

• A4110 Gen11 (SFF Drive Configuration)
• DL320 Gen11 (Accelerator-Optimized Configuration)
• DL325 Gen11 (GPU-Optimized Configuration)
• DL360 Gen11 (LFF and E3.S Drive Configurations)
• DL365 Gen11 (GPU-Optimized Configuration)
• DL360 Gen12 (10SFF, 4LFF and 20E3.S Drive Configurations)
• DL320 Gen12 (GPU Configuration)
• XD230
