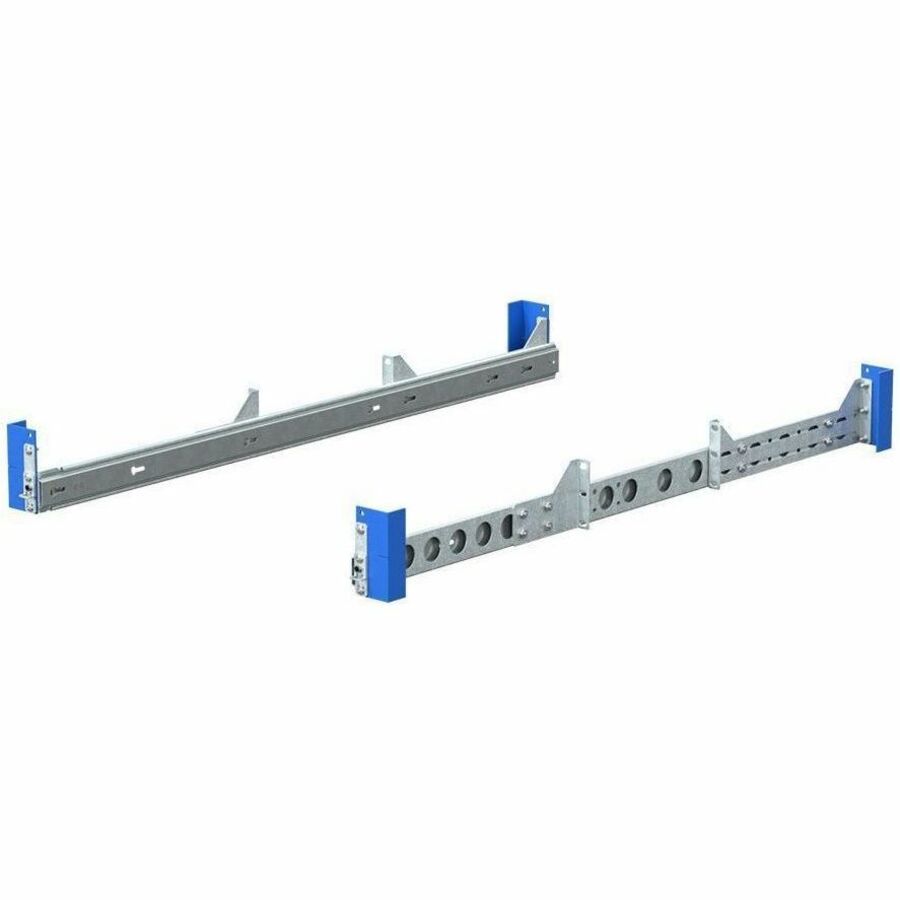

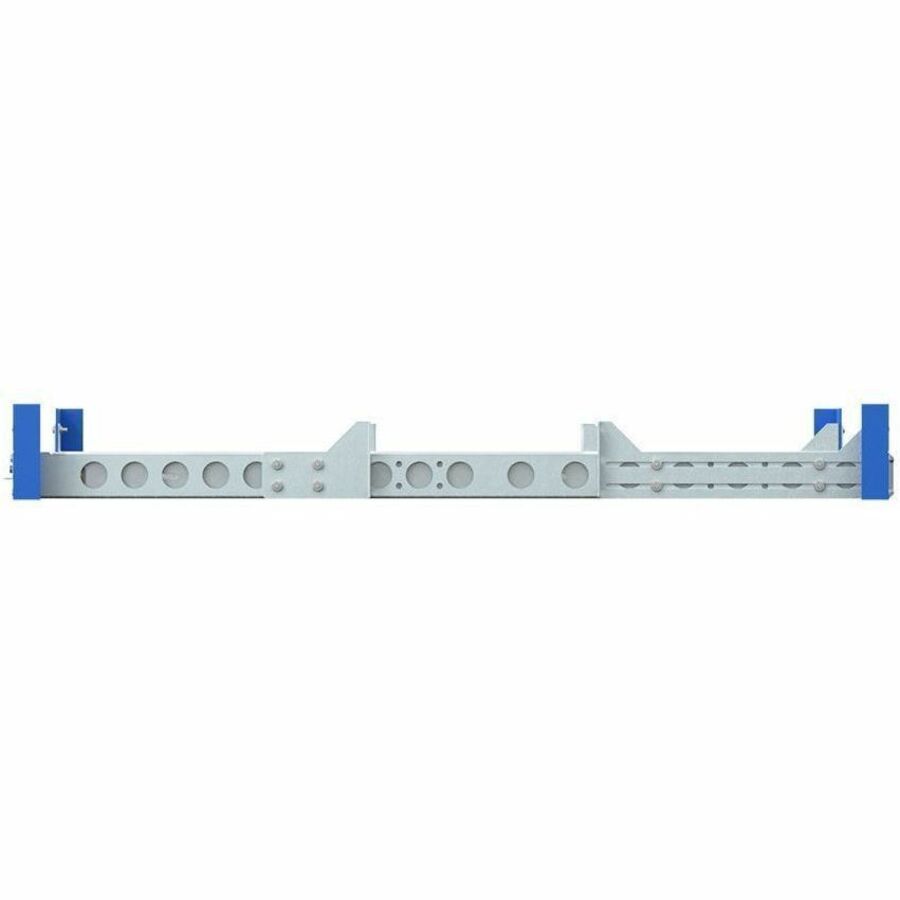

2U RAVEN 200-A RAIL FOR HPE

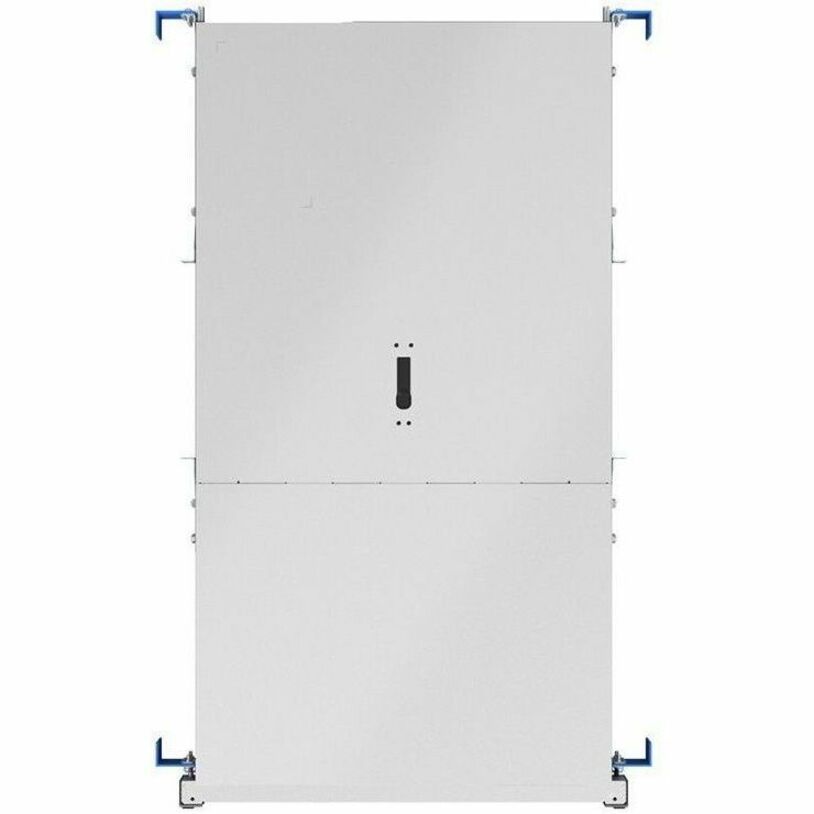

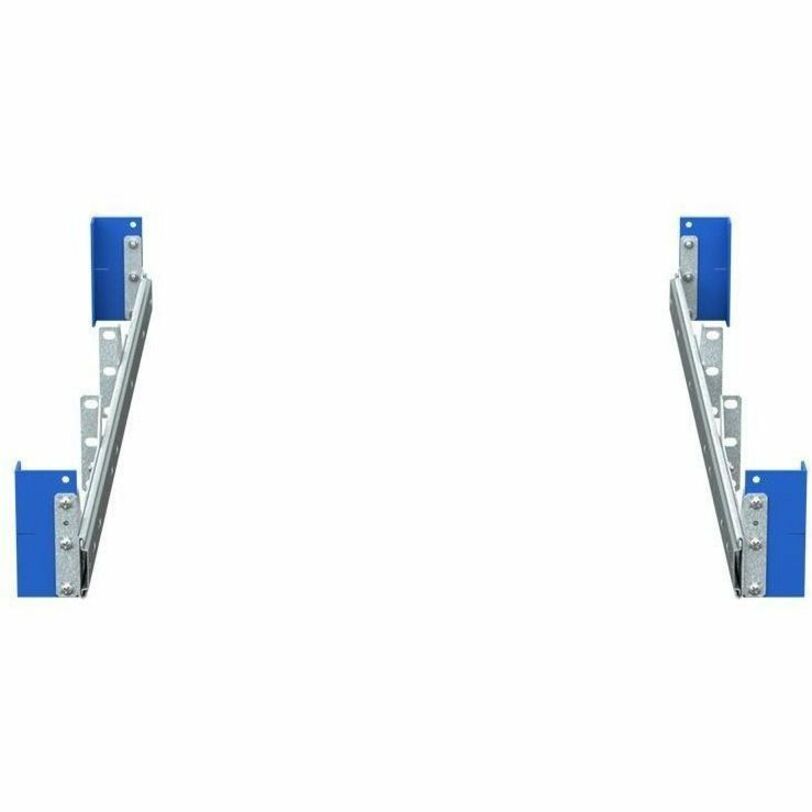

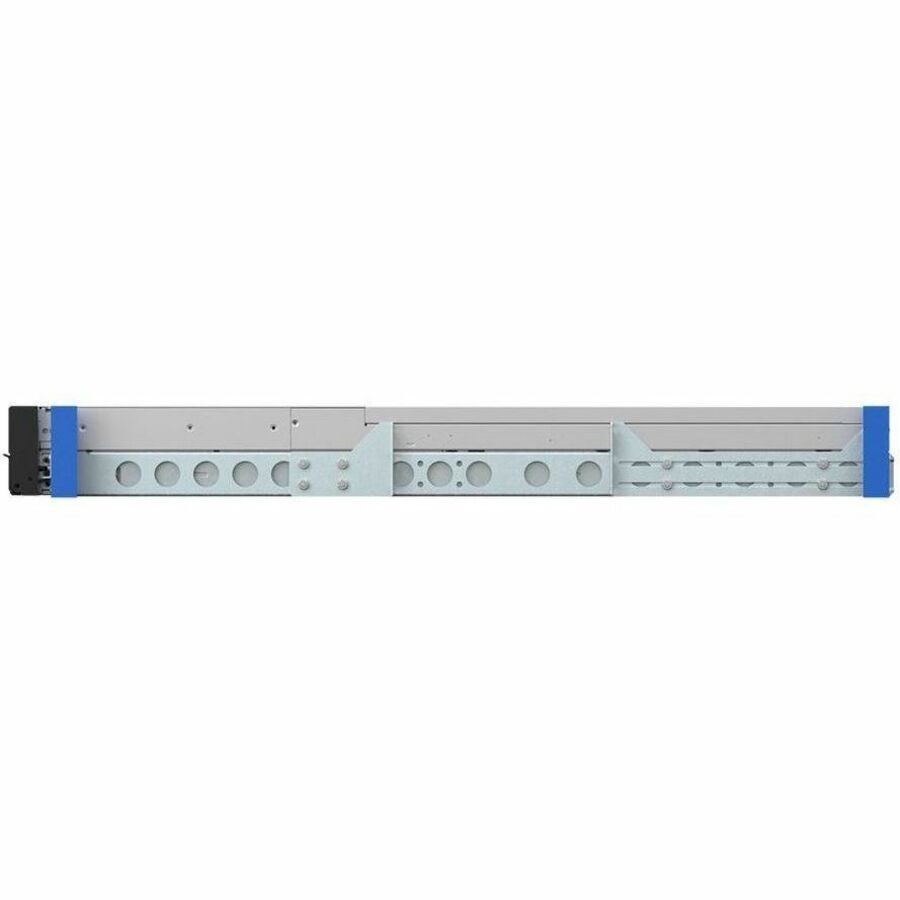

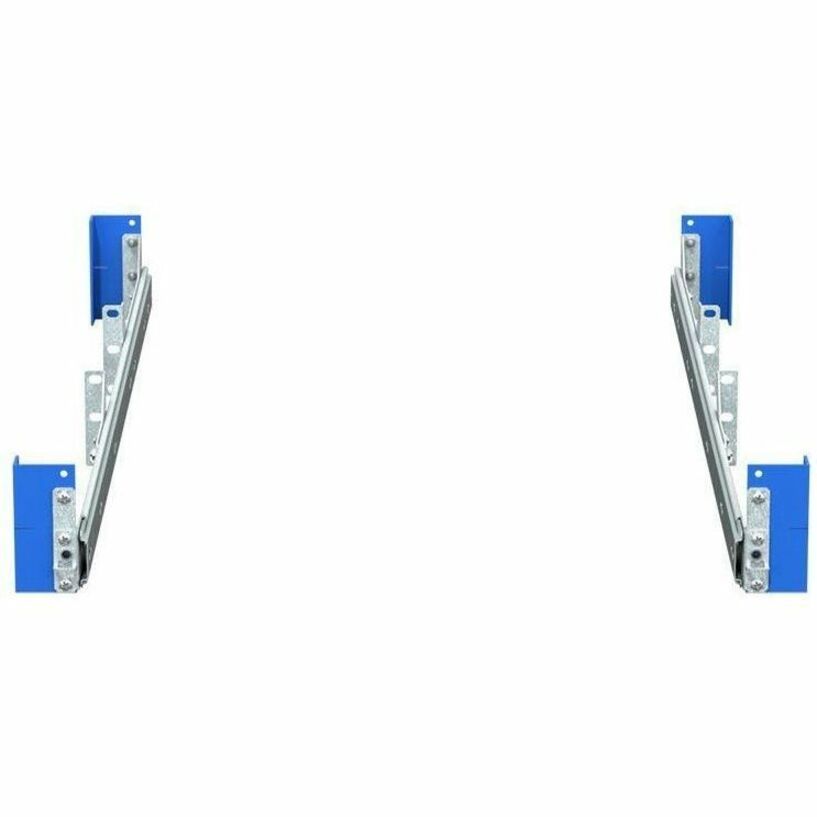

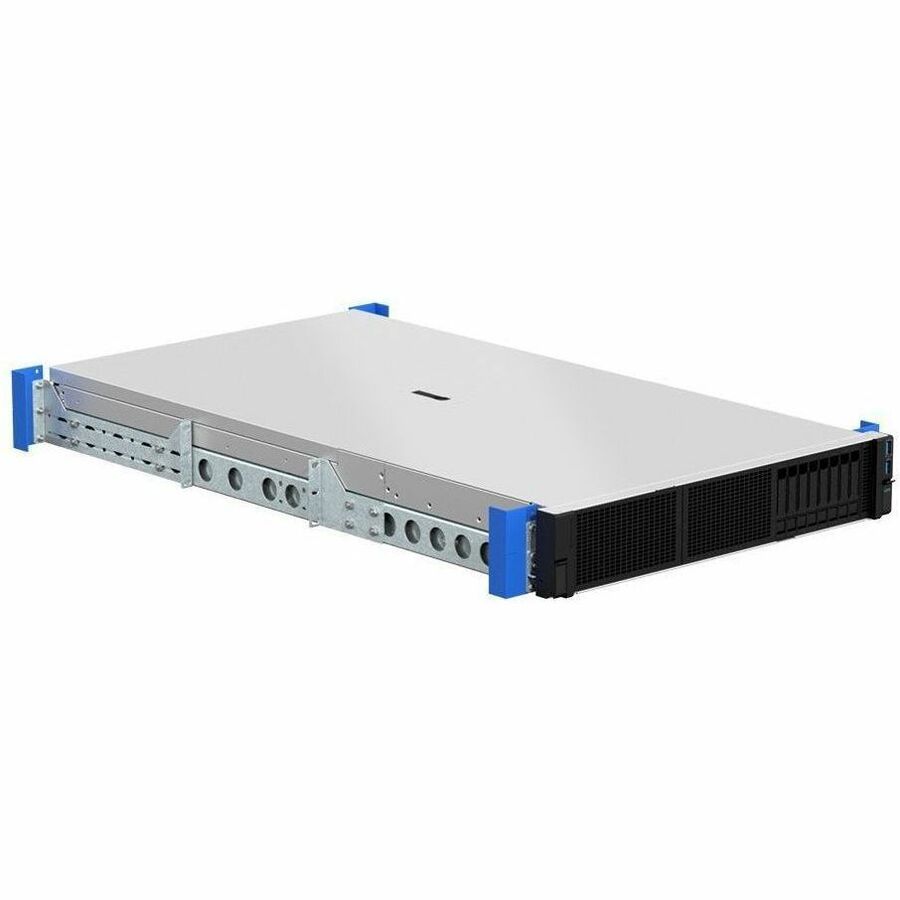

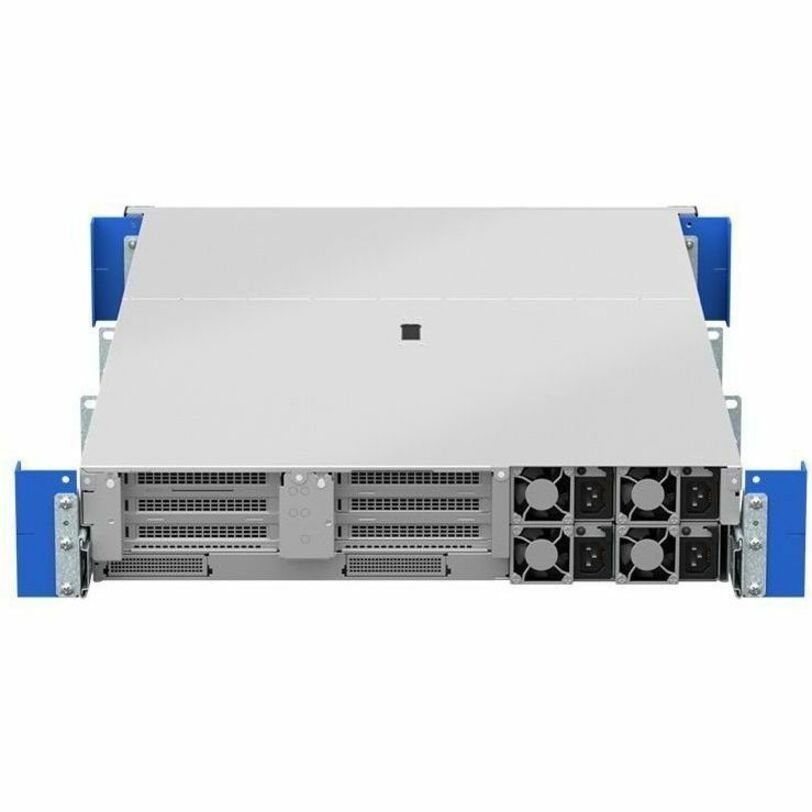

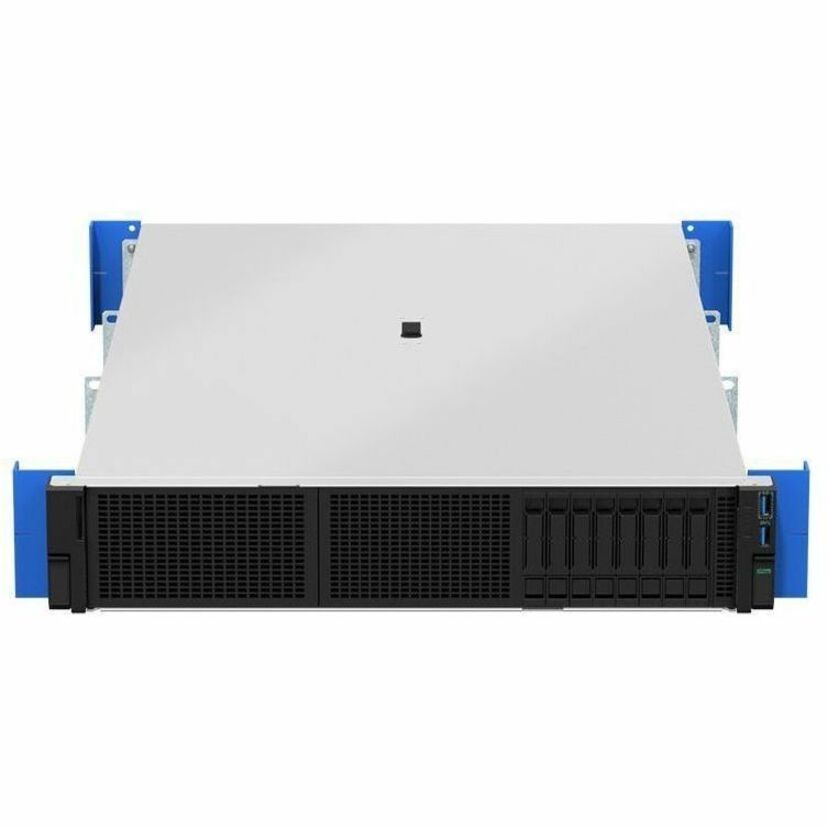

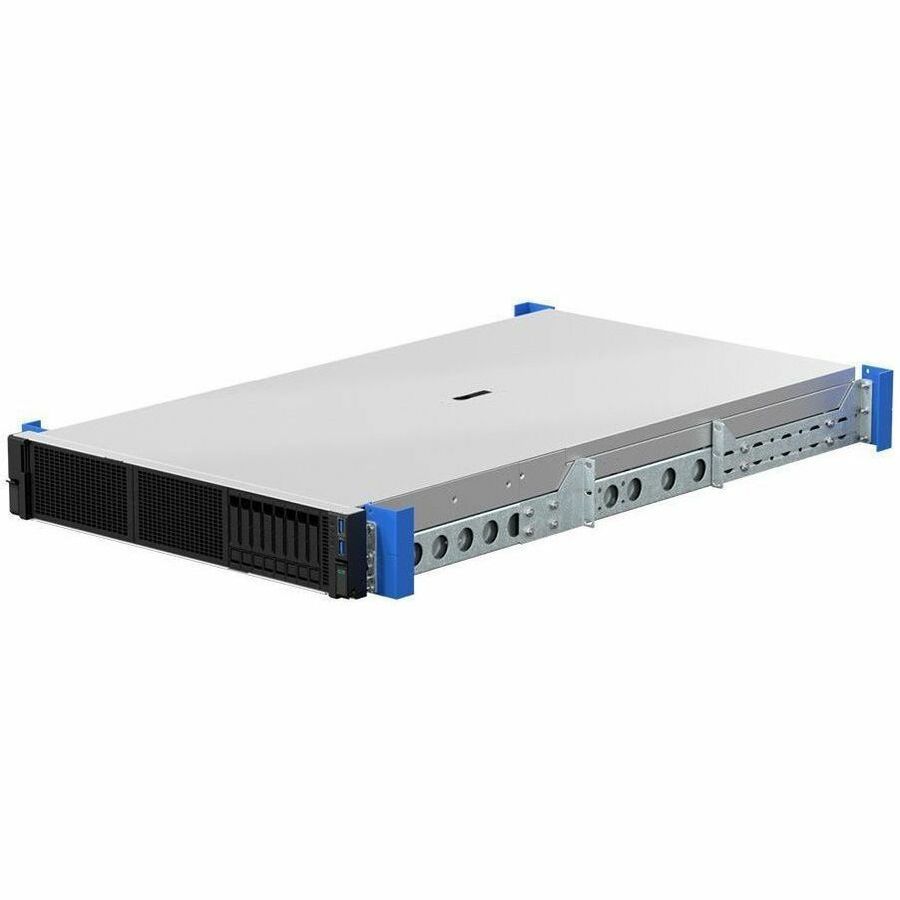

RackSolutions 2U Raven 200-A Rail for HPE Proliant servers is an alternative to HPE OEM rail kits. The sliding rack kit is compatible with select 2U HPE Proliant rack servers from the 11th generation. Our sliding rack rails are compatible with the HPE ProLiant DL385 Gen11 (Two-Row SFF) server.

HPE Slam Latch Retaining Plate

The 2U retaining plate allows the HPE Proliant server to be secured in place when using our server rail. The retaining plate provides full securement at the front of the chassis, ensuring the server maintains a fixed position when completely installed.

Mounts in 2-Post and 4-Post Racks

Unlike the HPE OEM Rail Kit, our sliding rack rail kit mounts in 2-Post and 4-Post racks that meet 19" EIA-310 standards. Designed to last longer than ball-bearing rail kits, the dry slides allow you to easily extend equipment in and out of your server rack. For 4-Post Racks, the rack rails feature an adjustable mounting depth between 12" - 39.50" (304.8 - 1003.3 mm).

Rack Hole Type

The sliding rack rails occupy 2U of rack space and are compatible with threaded, round, and universal square holes.

• Rack
• Server
• Chassis

• Galvanized Steel
• Cold Rolled Steel
• Zinc Plated

• 2U Raven 200-A Rail for HPE

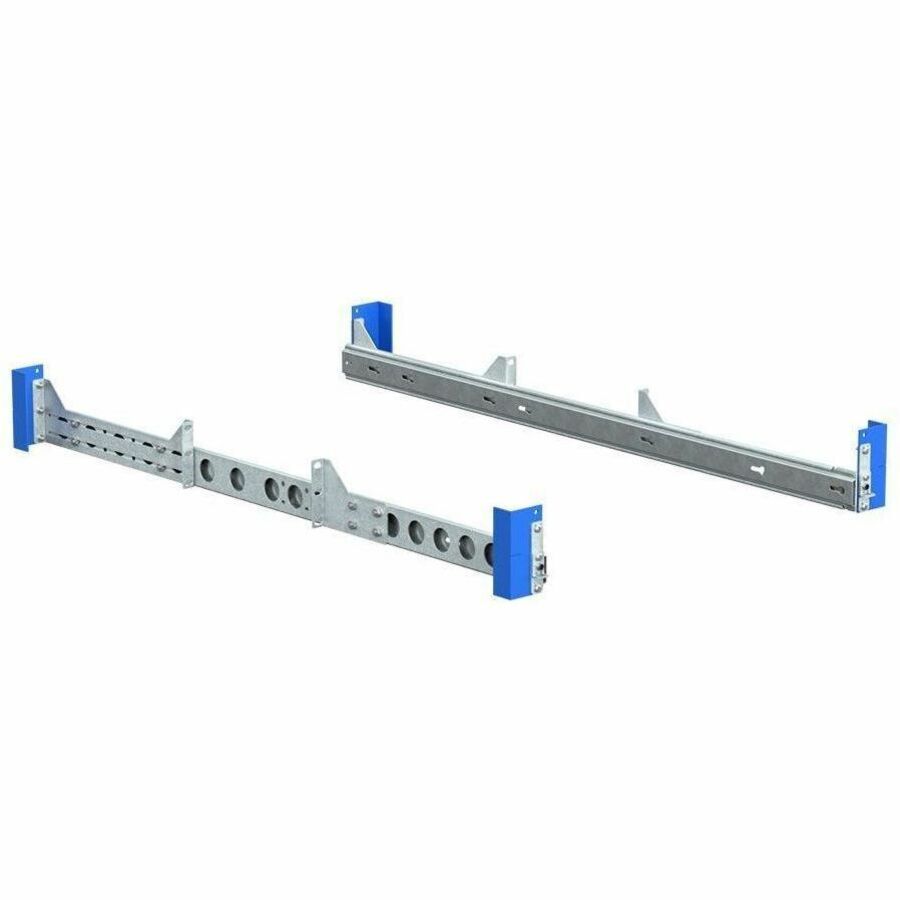

• 2x Outer Rail (Left & Right)
• 2x Inner Rail
• 2x Rear Bracket (Left & Right)
• 8x 8-32 x .312 Flat Head Screw
• 8x 8-32 Keps Nut
• 12x 8-32 x .500 Pan Head Screw
• 2x Retainer Plate (Left & Right)
• 2x Mounting Plate
• 2x Latch Plate (Left and Right)
• 4x 10-32 x .500 Pan Head Screw
• 4x 12-24 x .500 Pan Head Screw
• 4x 12-24 x Square Nut
• 4x 12-24 x Cage Nut
• 8x 10-32 x .500 Pan Head Screw
• 8x 12-24 x .500 Pan Head Screw
• 8x 12-24 x Square Nut
• 8x 12-24 x Cage Nut

HPE - DL340 Gen12 (GPU-Optimized), DL385 Gen11 (Two-Row SFF)
