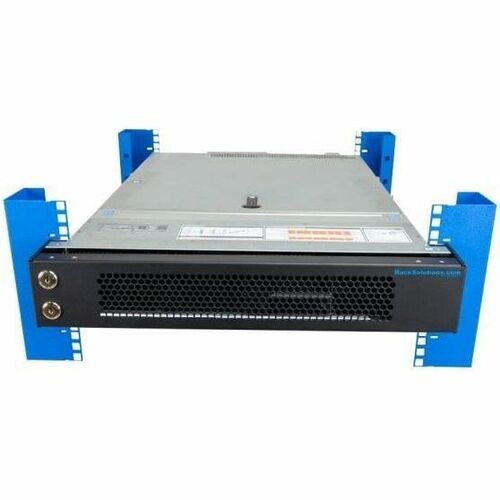

PCI DSS DUAL LOCK SECURE SERVER BRACKET

Step 1
Mount the Locking BracketsFirst, install the left and right Locking Brackets. These Locking Brackets take up 2 U-spaces and the Server Attachment Brackets connect to them. The Server Attachment Brackets replace the square mounting holes used by the Locking Brackets. Step 2
Adjust the Server Attachment BracketAfterward, you will be able to adjust to the appropriate depth by moving the Server Attachment Brackets. The correct depth will depend on the Server Ear Thickness. Step 3
Install Server and Secure Server AssemblyInstalling the rail kit and server works as usual, but instead of using a rack, you use the Server Attachment Brackets. Finally, attach the Secure Server Assembly bracket to the Locking Brackets and lock it into place using the provided keys.Product TypeMounting BracketProduct InformationDevice Supported

• Server
• Hard Drive
• Rack
• Cabinet
• Rack Rail

Features

• Adjustable
• Lockable

Mount Pattern Compatibility TypeUniversalRack Height1U/2UPhysical CharacteristicsColor FamilyBlackProduct ColorBlackFinishingPowder CoatedForm Factor

• Rail Mountable
• Rack-mountable

Height4.12"Width22.65"Depth4.12"Weight (Approximate)3.98 lbMiscellaneousPackage Contents

• 1x Secure Server Assembly
• 2x Server Attachment Brackets
• 1x Locking Bracket (Left)
• 1x Locking Bracket (Right)
• 8x 12-24 x .500 Pan Head Screw
• 8x 12-24 Cage Nut
• 4x 8-32 x .250 Countersink Screw
• 9x 10-32 x .500 Pan Head Screw
• 9x 10-32 Cage Nut

Country of OriginUnited StatesTAA CompliantYesUL ListedNoEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)
