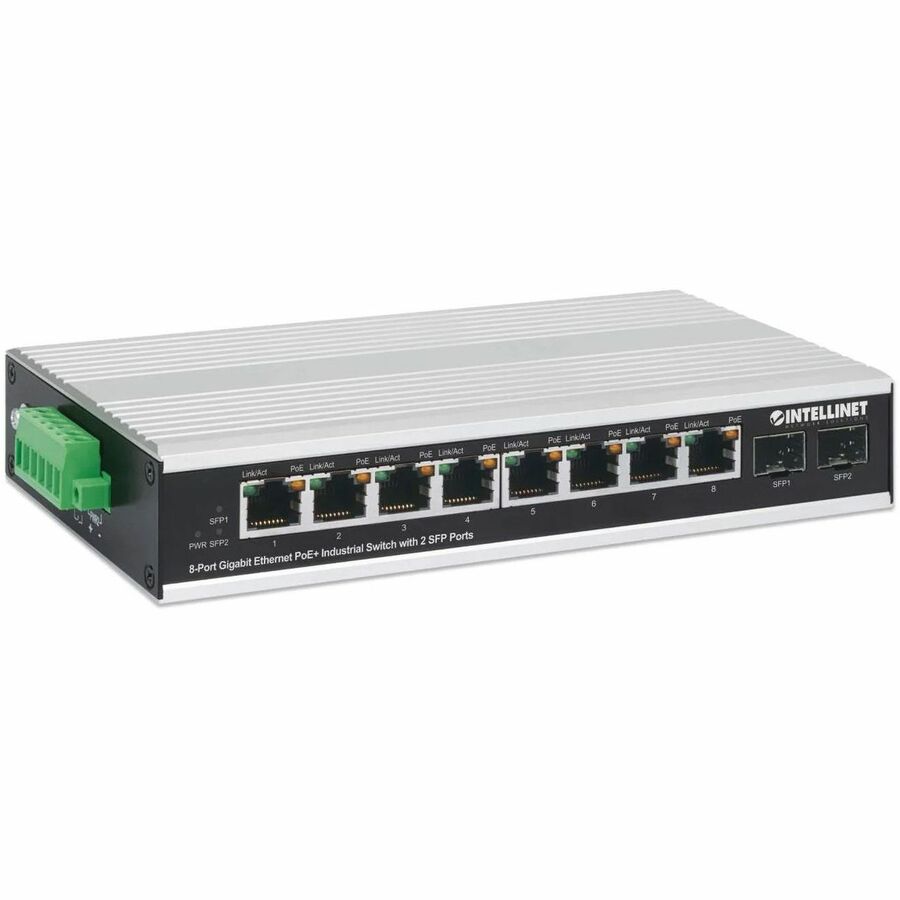

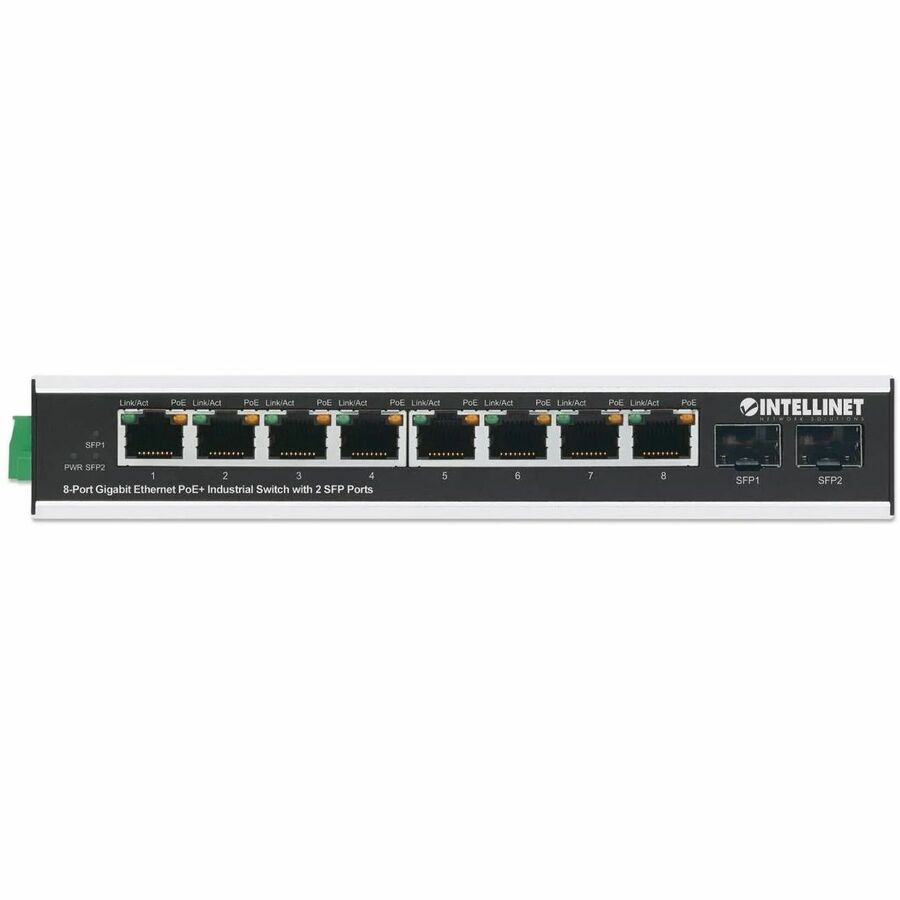

8-PORT POE+ INDUSTRIAL SWITCH W/ 2 SFPS

8-Port Gigabit Ethernet PoE+ Industrial Switch with 2 SFP Ports - high-power PoE+ connectivity for harsh industrial environments

The 8-Port Gigabit Ethernet PoE+ Industrial Switch with 2 SFP Ports from Intellinet Network Solutions was designed to give you the network connections and device power you need in places that are less than calm or temperate. With its rugged, IP40-rated protective metal housing, the switch operates reliably and quietly, even in extreme temperatures that range from -40 to 167°F (-40 - 75?). In combination with its DIN-rail mounting option and two safe redundant DC power inputs with power failure alarm and plenty of other safety features, this switch is ideal for IoT applications in Industry 4.0 and more.

Gigabit speeds paired with a large power budget

Featuring eight auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, this unmanaged switch offers plenty of performance for the devices in your network. The switch features a PoE power budget of 240 W and can distribute a full 30 W (per the IEEE 802.3at standard) to every RJ45 port simultaneously. Also, two small form-factor pluggable GBIC module slots (SFP) provide fiber connectivity for greater distances.

• Provides power and data connections for up to eight PoE network devices
• Saves installation costs by delivering data and power over existing network cables
• IP40 slim-type metal housing to withstand harsh industrial conditions
• Wide operating temperature: -40 - 75? (-40 - 167°F)
• Option for DIN-rail installation
• 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
• Two small form-factor pluggable GBIC module slots (SFP)
• IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
• Power output up to 30 watts per port
• PoE power budget of 240 watts (depending on the power supply used)
• Two redundant DC inputs (45 - 57 V) with I/O terminal block
• Power failure alarm (one-way relay output, current load capacity 1A @ 24 V DC)
• Port surge protection up to 6 kV
• Grounding point to protect equipment from external electrical surges
• Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6)

• Surge Protection
• Alarm Relay
• IP40
• LED Indicator
• Fanless

• 8 x Gigabit Ethernet PoE+
• 2 x Gigabit Ethernet Expansion Slot

• Twisted Pair
• Optical Fiber

• 10/100/1000Base-T
• 1000Base-X

• IEEE 802.3
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3i
• IEEE 802.3z

• 45 V DC
• 57 V DC

• Industrial 8-Port Gigabit Ethernet PoE+ Switch with 2 SFP Ports
• DIN-rail mount bracket

• Network
• Wireless Access Point
• VoIP Phone
• IP Camera
• Industrial
• IoT Devices

• FCC Class A
• CE
• UKCA
• NDAA
