FAST ETHERNET INDUSTRIAL MEDIA CONVERTER

Name: FAST ETHERNET INDUSTRIAL MEDIA CONVERTER
Brand: INTELLINET
SKU: 7945BQ
Price: 102.76 USD
Availability: InStock

INTELLINET

PCN#

7945BQ

MFG#

508322

$102.76

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Shipping Weight: 2 lbs.

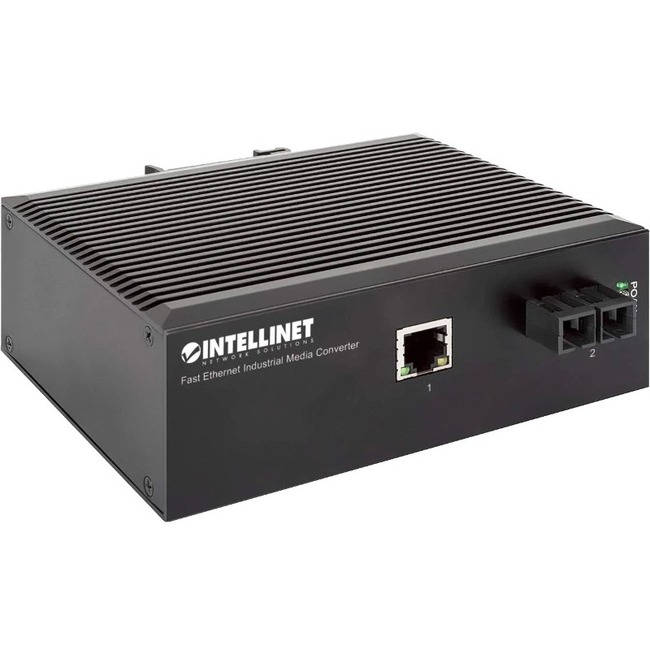

Intellinet Industrial Fast Ethernet Media Converter

Tech Specs

Specifications

Manufacturer	IC INTRACOM
Manufacturer Part Number	508322
Manufacturer Website Address	http://www.icintracom.com
Brand Name	Intellinet
Product Name	Industrial Fast Ethernet Media Converter
Marketing Information	Industrial Media Converter - expand your existing network in harsh industrial environments The Intellinet Network Solutions Fast Ethernet Industrial Media Converter offers the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now, migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network, so the network performs exactly the way it did before, only now it can support both copper and fiber media. It provides fiber connectivity to Ethernet segments, allowing for even greater networking expansion between extended workgroups. It also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers. Equipped even for challenging environment conditions With its rugged, protective, IP40-rated metal housing, the converter operates reliably, even in extreme temperatures from -40 - 75? (-40 - 167°F). In combination with its DIN-rail mounting option and two safe redundant DC power inputs with plenty of other safety features, this converter is ideal for IoT applications in Industry 4.0 and more.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Single-mode
Fiber Optic Cable Wavelength	1310 nm
Maximum Distance Supported	20 km
Fiber Optic Cable Core/Cladding Specification	8.3/125 µm 8.7/125 µm 8/125 µm 10/125 µm

Network & Communication

Ethernet Technology	Fast Ethernet
Network Technology	100Base-TX 100Base-FX

Power Description

Power Source	DC
Plug/Connector Type	Terminal Block

Physical Characteristics
