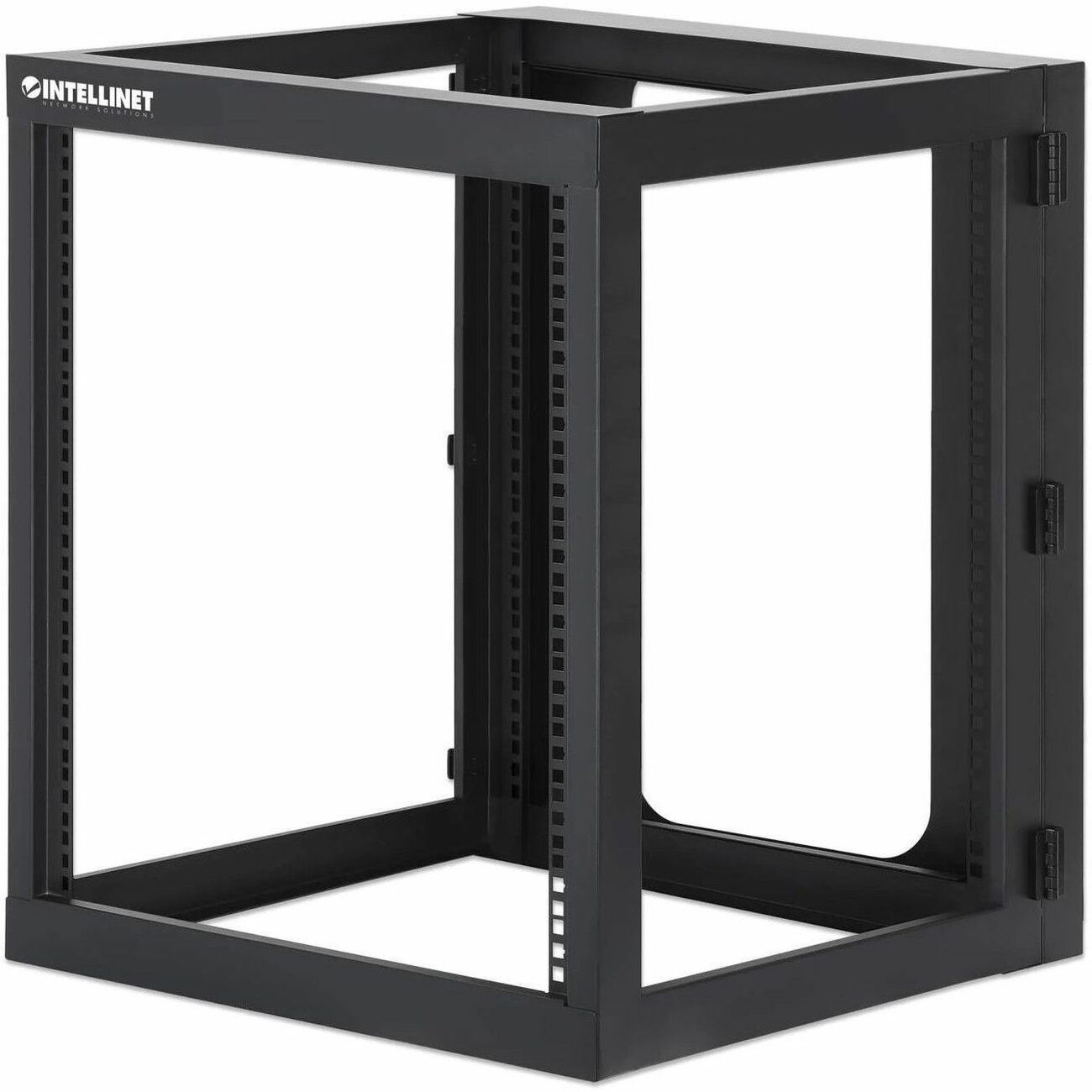

19 IN. WALL MOUNT 4-POST OPEN FRAME NETWORK RACK, 12U

Name: 19 IN. WALL MOUNT 4-POST OPEN FRAME NETWORK RACK, 12U
Brand: INTELLINET
SKU: 8066BQ
Price: 262.46 USD
Availability: InStock

INTELLINET

PCN#

8066BQ

MFG#

716055

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$262.46

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

For Equipment, IT Equipment, Network Equipment, Switch, Patch Panel
12U Rack Height21.26" Rack Depth
Wall Mountable Open Frame
4 Post
Signal Black
SPCC, Cold Rolled Steel
88.18 lb Static/Stationary Weight Capacity
3 Year Warranty

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 23 lbs.

Manhattan Wall Mount Open Frame Network Rack, 12U, Rear-hinged Swing Frame

Overview

Tech Specs

Space-savingThe wall-mountable swing frame is perfect for saving valuable floor space while organizing network and server equipment from telecom, surveillance and audio/video applications where space is at a premium and a full-size floor-standing rack or cabinet cannot be used. The 540 mm (21.26 in.) usable depth of the rack allows for the mounting of shelves, switches, patch panels and more. Easy accessThe open frame design ensures maximum airflow to your equipment for smoother operation and a longer lifespan. It also allows your cabling to enter through all sides. Hinges on the rear frame let the entire enclosure swing open for easy component exchange and maintenance. Three latches keep the frame closed. This construction makes it a smart choice as a test center rack for server and networking equipment. High-quality steelThe strong and durable housing, constructed of high-quality SPCC cold-rolled steel with antistatic powder coating, carries a load capacity up to 40 kg (88 lbs.). Its fully assembled shipping condition saves you the trouble of putting it together. The enclosure also saves you the expense of 20 rack screws and cage nuts to securely mount your equipment because it ships with them included. Features

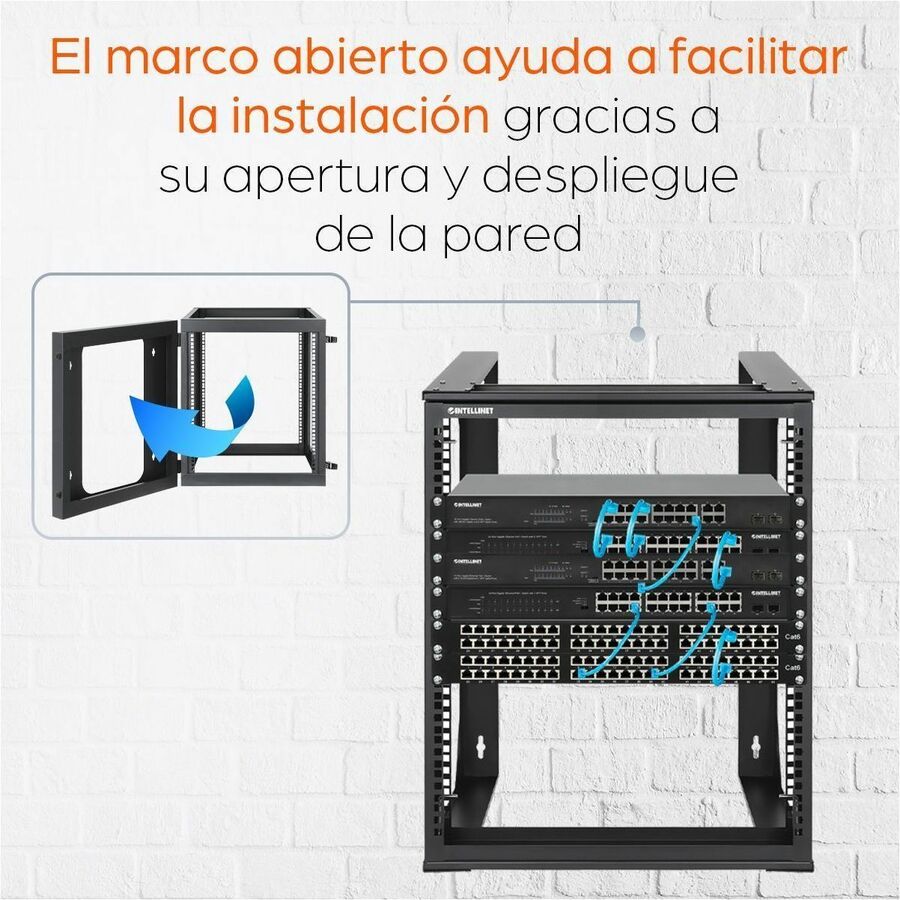

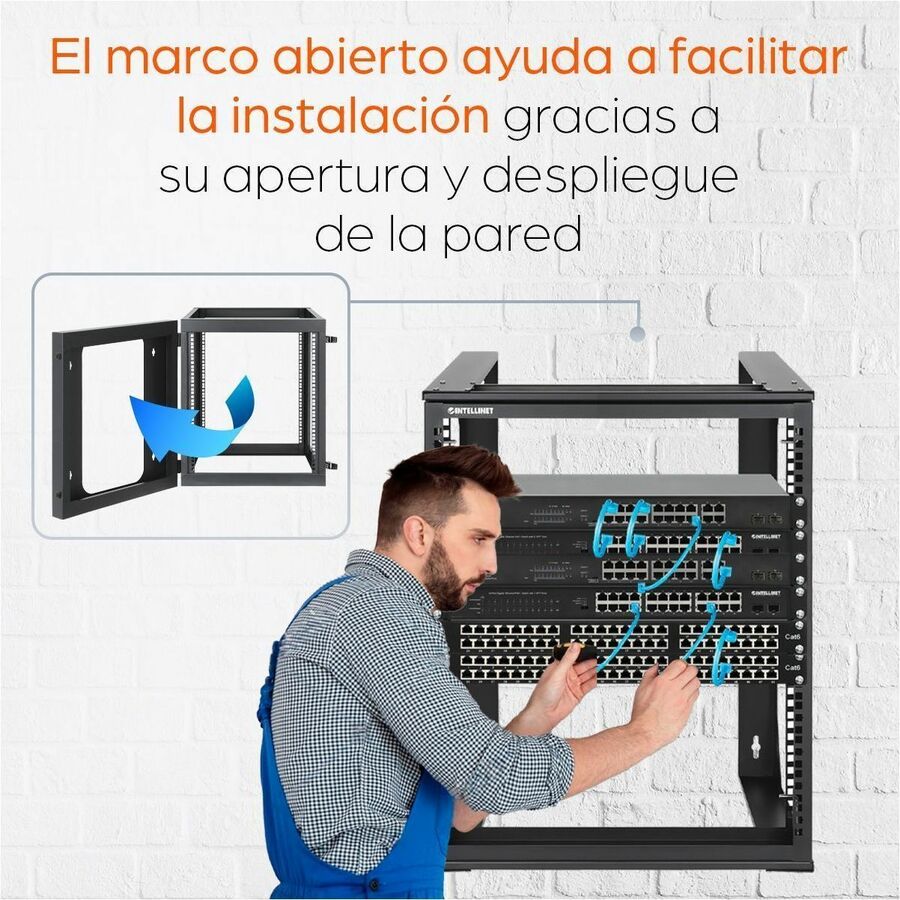

Open frame for easy access to equipment from all sides and for maximum airflow with efficient heat dissipation

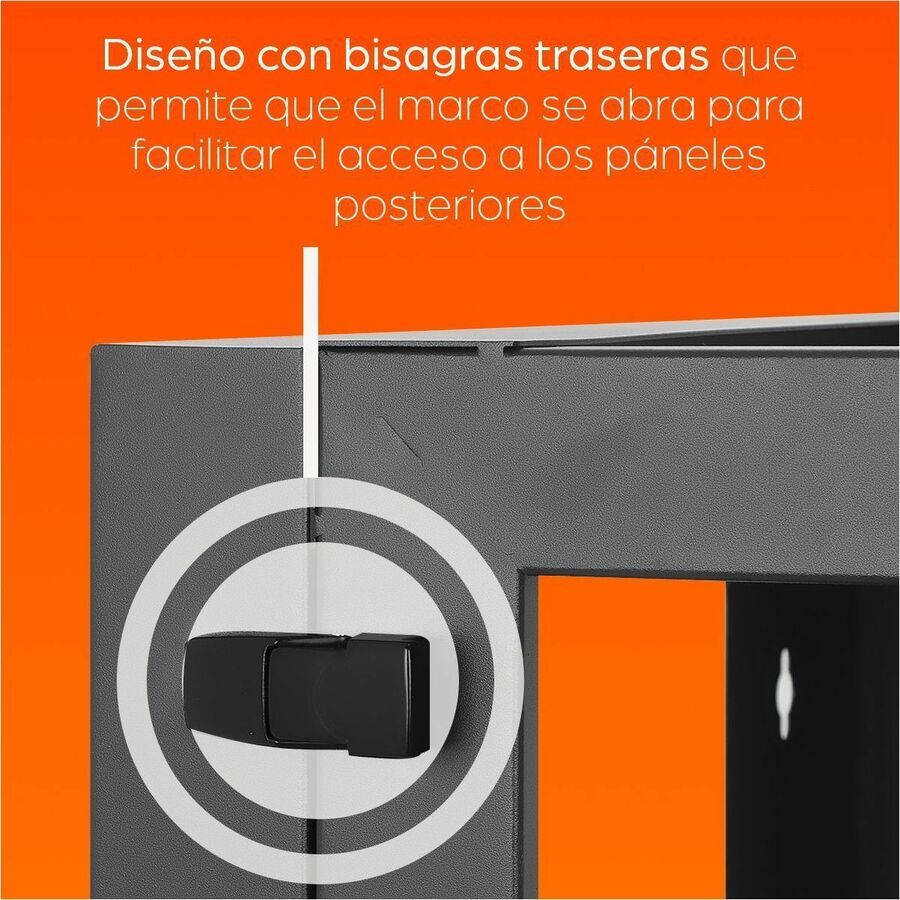

Rear-hinged design that lets the frame swing open for even easier access to rear panels
Wall-mountable for network areas with limited floor space (wall-mounting hardware not included)
Simple and cost-effective solution; great for testing IT equipment and for secure environments that do not require a lockable network cabinet
Sturdy, high-quality, cold-rolled SPCC steel construction with antistatic powder coating
Four posts with front and rear mounting rails for maximum strength and stability

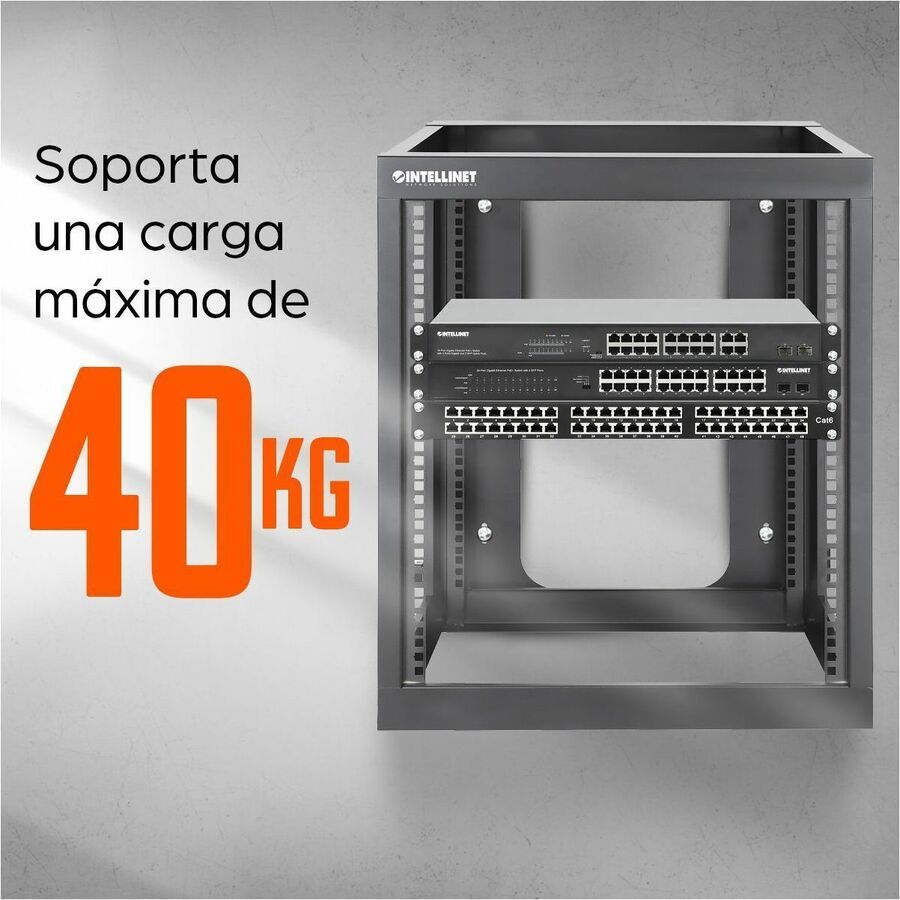

Maximum load capacity of 40 kg (88 lbs.)

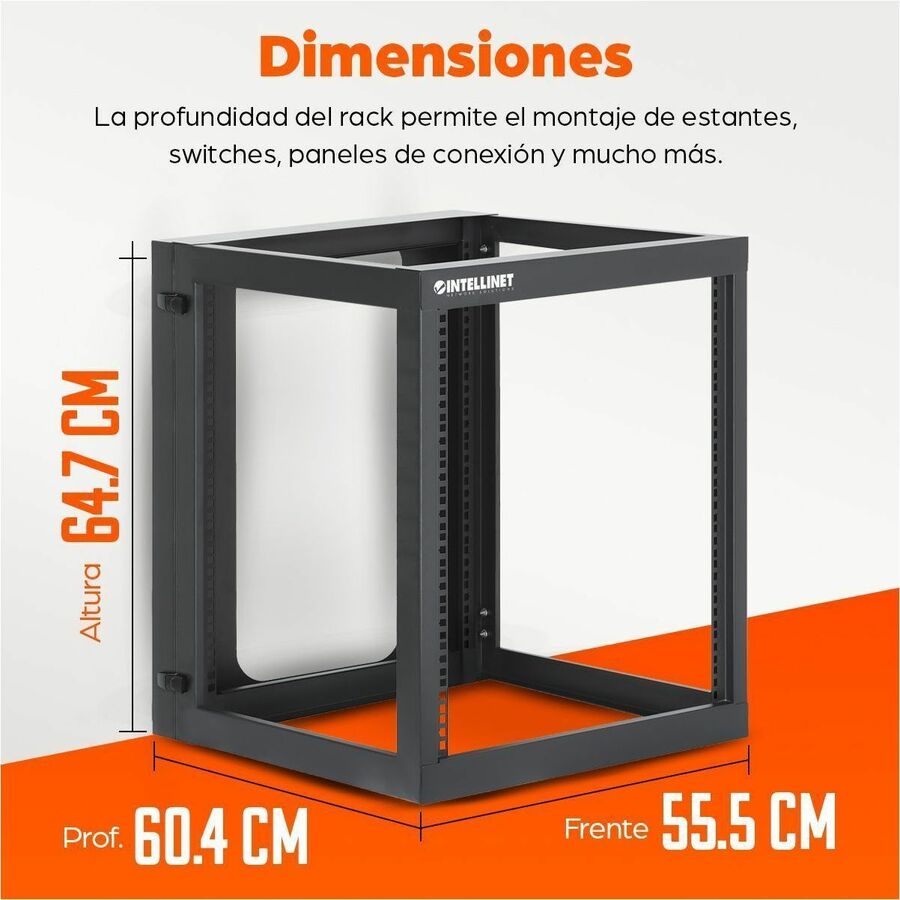

Usable installation depth
540 mm (21.26 in.)
IEC 60297 / EIA 310-compliant; compatible with all standard 19 in. / 482.6 mm rack-mount equipment
Ships fully assembled for quick installation

Product TypeRack FrameTechnical InformationRack TypeOpen FrameApplication/Usage

Equipment
IT Equipment
Network Equipment
Switch
Patch Panel

Features

Powder Coated
Side-to-side Airflow
Lockable
Adjustable Mounting Posts

Rack Post Quantity4Physical CharacteristicsForm FactorWall MountableColor FamilyBlackProduct ColorSignal BlackProduct Material

SPCC
Cold Rolled Steel

Static/Stationary Weight Capacity88.18 lbHeight25.5"Width21.9"Depth23.8"Weight (Approximate)26.90 lbRack Height12URack Depth21.26"MiscellaneousPackage Contents

19" Wall Mount 4-Post Open Frame Network Rack, 12U
Cage nut set for 19" rackmount equipment (20 x M6 screw, 20 x M6 cage nut, 20 x plastic washer)

Assembly RequiredNoEnvironmental ComplianceRestriction of Hazardous Substances (RoHS)WarrantyLimited Warranty3 Year
