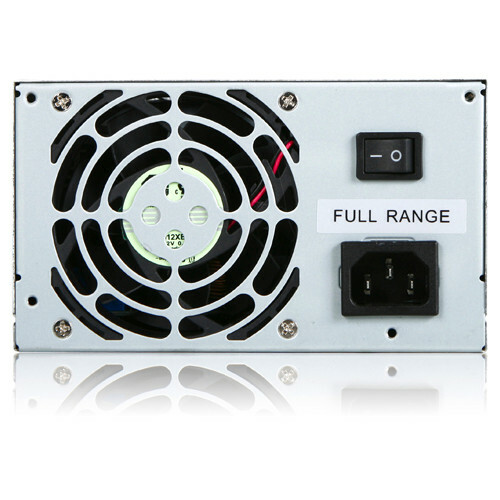

Xeal 700W PS2 ATX High Efficiency Switching Power Supply

Name: Xeal 700W PS2 ATX High Efficiency Switching Power Supply
Brand: ISTARUSA
SKU: 8990BQ
Price: 203.16 USD
Availability: InStock

ISTARUSA

PCN#

8990BQ

MFG#

TC-700PD8B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$203.16

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

Internal
3.3 V DC, 5 V DC, 12 V DC,
12 V DC Output
700 W
Active PFC
4 +12V Rails
1 Fan(s)
80% Efficiency

Product Condition: New and Factory Fresh

Shipping Weight: 6 lbs.

Xeal 700W PS2 ATX High Efficiency Switching Power Supply

Overview

Tech Specs

Specifications

Manufacturer	iStarUSA, Inc
Manufacturer Part Number	TC-700PD8B
Manufacturer Website Address	http://www.istarusa.com
Brand Name	Xeal
Product Model	TC-700PD8B
Product Name	700W PS2 ATX High Efficiency Switching Power Supply
Marketing Information	The TC-700PD8B high performance switching power supply. Front load ball bearing cooling fan provides optimal airflow to keep the system fully operating. 80 Plus high efficiency saves you on electric bills and less cooling requirement. TC-700PD8B is the ideal power supply for server and high-end gaming workstation.
Product Type	Power Supply

Technical Information

Specification Compliance	ATX12V/EPS12V
Efficiency	80%
Power Factor Correction (PFC)	Active
Number of Fans	1
Protection Type	Over Current Over Voltage Short Circuit

Reliability

MTBF	100000 Hour

Power Description

Number of +12V Rails	4
Input Voltage Type	AC
Output Voltage	3.3 V DC 5 V DC 12 V DC -12 V DC
Output Voltage Detail	3.3 V DC @ 24 A 5 V DC @ 30 A 12 V DC @ 16 A -12 V DC @ 500 mA 5 V DC @ 4 A
Output Current	24 A 30 A 16 A 500 mA 4 A
Output Power	700 W

Interfaces/Ports

Plug/Connector	On/Off Switch
Receptacles	1 x 20+4pin ATX Motherboard 1 x 4+4pin ATX12V Motherboard 1 x 8-pin EPS12V Motherboard 2 x 6+2pin PCI-E 5 x 4-pin LP4 Peripheral Device 4 x Serial ATA 1 x 4-pin SP4 Floppy Drive

Physical Characteristics

Form Factor	Internal
Height	3.4"
Width	5.9"
Depth	5.5"

Miscellaneous

Compatibility	iStarUSA Chassis: D-260HB D-260HN D-380HN D-380HB D-3100HN D-3100HB
Country of Origin	China
Environmentally Friendly	Yes
Energy Efficiency Certification	80 Plus Standard
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
