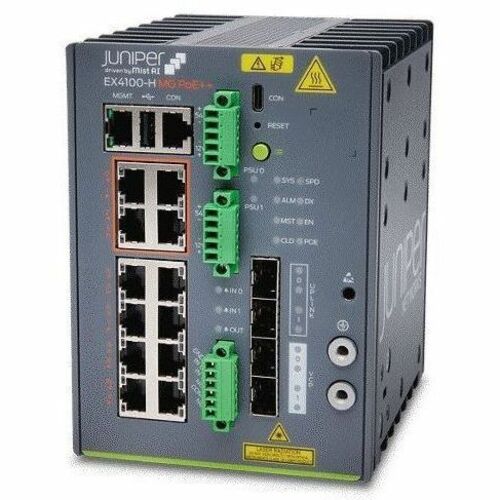

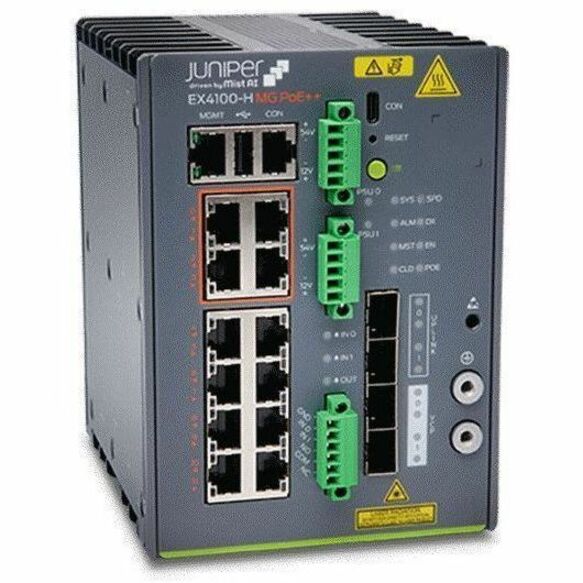

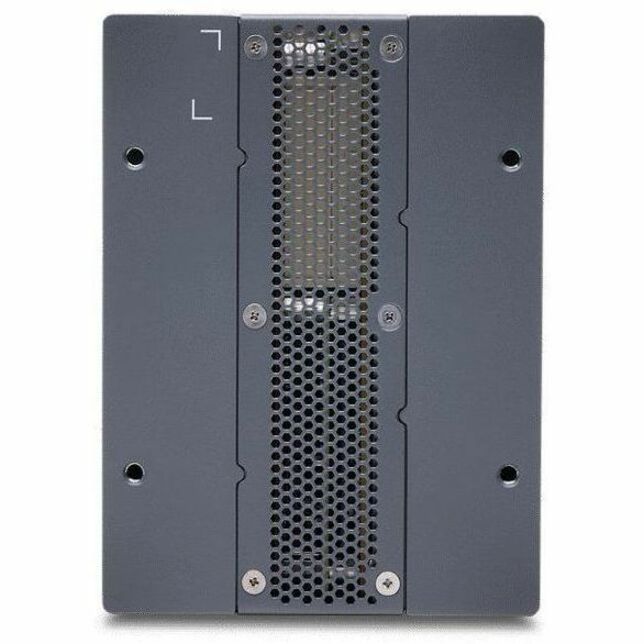

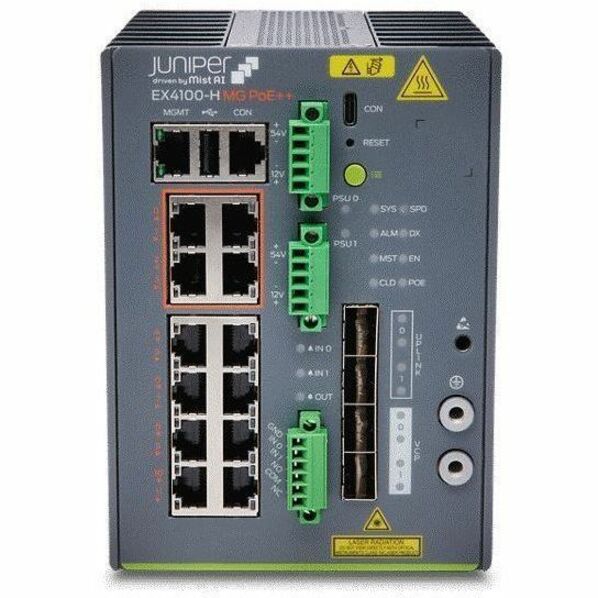

24 PORT EX HARDENED TAA SWITCH WITH DC PSU8X 1/2.5G 16X1G4X10G SFP

Product Overview

The EX4100-H ruggedized line of Ethernet access switches is tailored for harsh indoor and outdoor environments where extended temperature, potential physical impact, and vibration conditions are common. Use cases include but are not limited to:

• EV charging stations
• Petrol/gas stations
• Industrial automation and manufacturing
• Remote surveillance
• Transportation

As part of the underlying infrastructure for Juniper Mist Wired Assurance, the EX4100-H is purpose-built for and managed by the cloud. Mist AI provides visibility into the experience of connected devices, enabling streamlined operations while delivering an experience-first approach to access layer switching.

Product Description

The Juniper Networks® EX4100-H ruggedized line of Ethernet switches offers a fanless, secure, reliable, cloud-native portfolio delivering high-quality network services in extreme conditions, including freezing and scorching temperatures, with an extended operating temperature range for extreme indoor and outdoor applications. EX4100-H switches are ideal for use cases where extreme temperatures, potential physical impact, and vibrations are common.

EX4100-H switches combine the simplicity of the cloud, the power of Mist AI™, and a robust, high-performance hardware foundation to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper® Mist™Wired Assurance, you can effortlessly onboard, configure, and manage EX4100-H switches from the cloud. This simplifies operations and improves visibility and troubleshooting, ensuring optimal experiences for connected devices.

Key features of the EX4000 line include:

• Cloud-native, AI-Native switches with Wired Assurance and Marvis VNA
• Fanless with an extended operating temperature range of -40°C to +75°C for harsh environments
• Ruggedized, compact form factor for easy installation in tight spaces
• Compliant to IP30 and supports a relative humidity range of 5% to 95%, ensuring non-condensing operation
• Meets many industrial certifications, making it suitable for use in a wide range of applications that need high tolerances for constant vibrations, shocks, and electromagnetic immunity
• Dry contact alarm: two alarms in and one alarm out to signal external sensors
• Dual redundant PSUs: two AC PSUs or two DC PSUs or one AC and one DC PSU
• Ethernet VPN-Virtual Extensible LAN (EVPN-VXLAN) to the access layer
• Standards-based microsegmentation using group-based policies (GBPs)

• Access Control List
• Fanless
• Hot-swappable

• 8 x 2.5 Gigabit Ethernet PoE++
• 16 x Gigabit Ethernet PoE++
• 4 x 10 Gigabit Ethernet Uplink
• 4 x 10 Gigabit Ethernet Expansion Slot

• Twisted Pair
• Optical Fiber

• Gigabit Ethernet
• 2.5 Gigabit Ethernet
• 10 Gigabit Ethernet

• 1000Base-T
• 2.5GBase-T
• 10GBase-X

• IEEE 802.1ak
• IEEE 802.1p
• IEEE 802.1Q
• IEEE 802.1x
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3ae
• IEEE 802.3by
• IEEE 802.3x
• IEEE 802.3ah
• IEEE 802.1D
• IEEE 802.1s
• IEEE 802.3bz
• IEEE 802.3bt
• IEEE 802.1ae
• IEEE 802.1ab
• IEEE 802.3af
• IEEE 802.3at

• HTTP
• HTTPs

• Power Supply
• DC

• Network
• Business
• Campus
• Data Center
• Enterprise
• Indoor
• Outdoor

Electromagnetic Compatibility (EMC) Requirements

• FCC 47 CFR Part 15
• ICES-003 / ICES-GEN
• BS EN 55032
• BS EN 55035
• EN 300 386 V1.6.1
• EN 300 386 V2.2.1
• BS EN 300 386
• EN 55032
• CISPR 32
• EN 55035
• CISPR 35
• IEC/EN 61000 Series
• IEC/EN 61000-3-2 - harmonic current emission
• IEC/EN 61000-3-3 - Voltage fluctuations and flicker
• AS/NZS CISPR 32
• VCCI-CISPR 32
• BSMI CNS 15936
• KS C 9835 (Old KN 35)
• KS C 9832 (Old KN 32)
• KS C 9610
• BS EN 61000 Series
• IEC 61000-6-1
• IEC 61000-6-3
• NEBS GR-1089-CORE, Issue 8
• British Telecommunications (BT) GS7
• Deutsche Telekom (DT) 1 TR 9
• IEEE1613 and IEEE 1613.1
• IEC 61850-3 with IEC 61000-6-5
• EN50121-4
• EN 61000-4-11
• Voltage Dips and interruptions: EN 61000-4-11
• ElectroStatic Discharge (ESD): EN 61000-4-2 (air - 15kV, contact - 8kV)
• Radiated Immunity: EN 61000-4-3 (10V/m UTP, 20V/m STP)
• Electromagnetic Fast Transients (EFT)/Burst: EN 61000-4-4
• Surge: EN 61000-4-5
• Conducted Immunity: EN 61000-4-6
