SD3220U3 EQ USB-C DOCK

Name: SD3220U3 EQ USB-C DOCK
Brand: KENSINGTON
SKU: 090C90
Price: 145.56 USD
Availability: InStock

KENSINGTON

PCN#

090C90

MFG#

K32803NA

$145.56

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

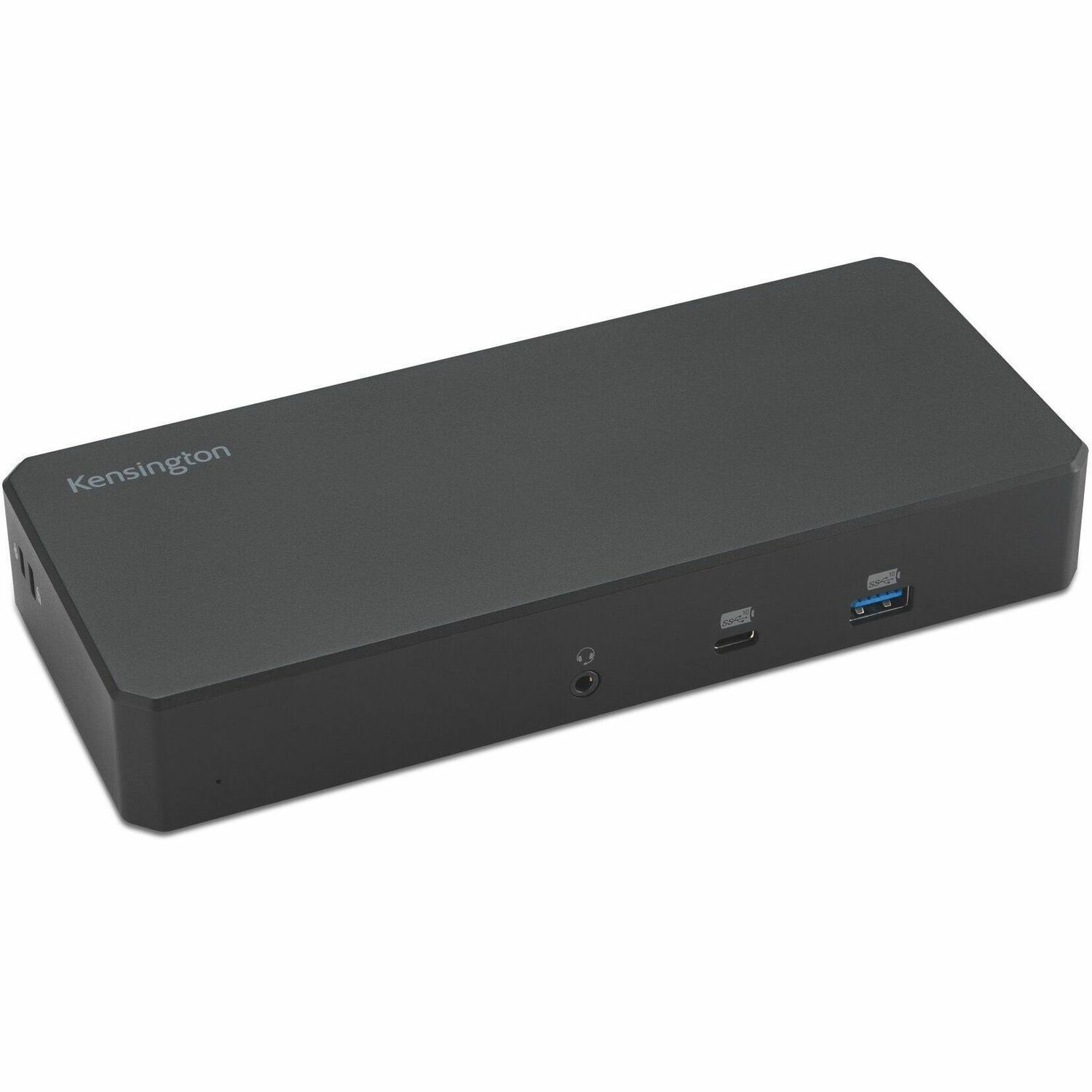

Kensington SD3220U3 EQ USB-C® 10Gbps Triple Video Driverless Dock

Tech Specs

Specifications

Manufacturer	Kensington Computer Products Group
Manufacturer Part Number	K32803NA
Manufacturer Website Address	http://www.kensington.com
Brand Name	Kensington
Product Model	SD3220U3
Product Name	SD3220U3 EQ USB-C 10Gbps Triple Video Driverless Dock 100W PD - DP/HDMI -Windows

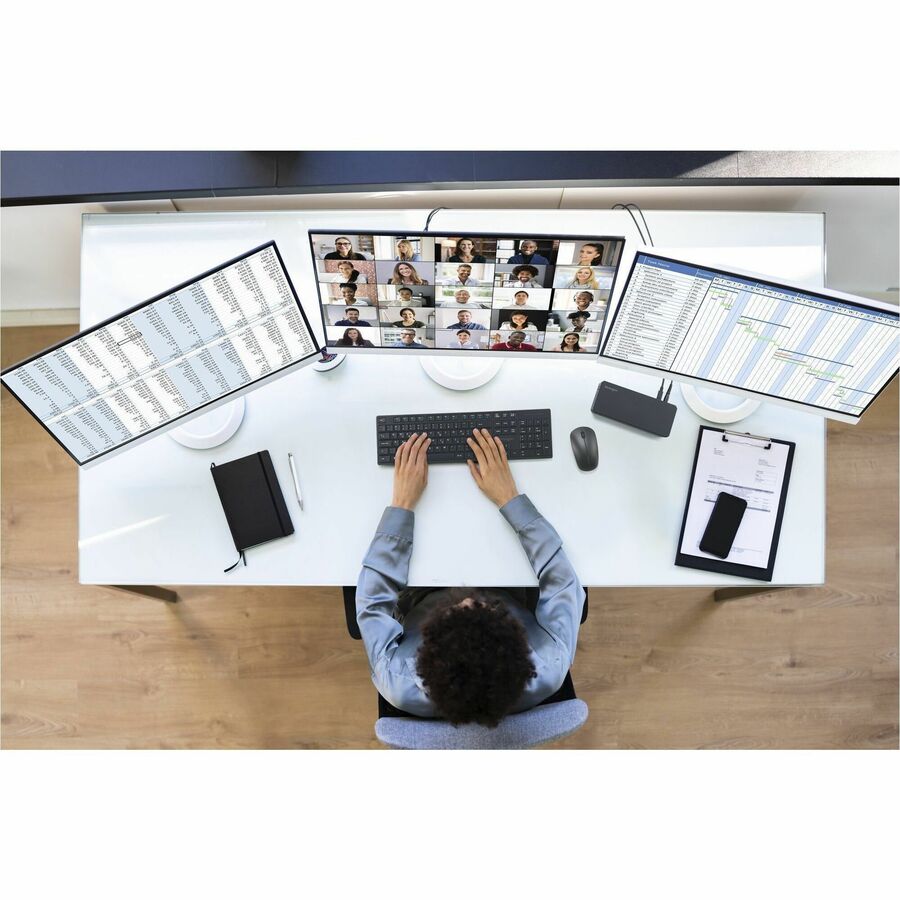

Marketing Information	IT buyers often struggle with managing different docks for various laptops, missing out on the advantages of a unified solution that supports multiple external monitors. The SD3220U3 EQ USB-C® 10Gbps Triple Video Driverless Dock addresses these issues with a hassle-free solution. Compatible with Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® Alt Mode Windows laptops, it provides all the essential ports needed for professional workflows, including support for up to three external 4K monitors, convenient front and back high-speed USB-A and USB-C® ports, laptop and phone charging, audio output, and Ethernet connectivity.
Packaged Quantity	1
Product Type	Docking Station

Technical Information

Connectivity Technology	Wired
Charging Capability	Yes
Device Supported	Notebook Monitor Smartphone
Cable Length	3.28 ft
Memory Card Reader	No
Features	Power Delivery Pass-through Plug and Play LED Power Indicator
Number of Displays Supported	3
Screen Mode Supported	8K @ 30Hz 4K @ 60Hz 4K @30Hz 2K @ 60Hz FHD @ 60Hz HD+
Supported Resolutions	7680 x 4320 3840 x 2160 2048 x 1080 1920 x 1080 1600 x 900
Maximum Data Transfer Rate	1.25 GB/s

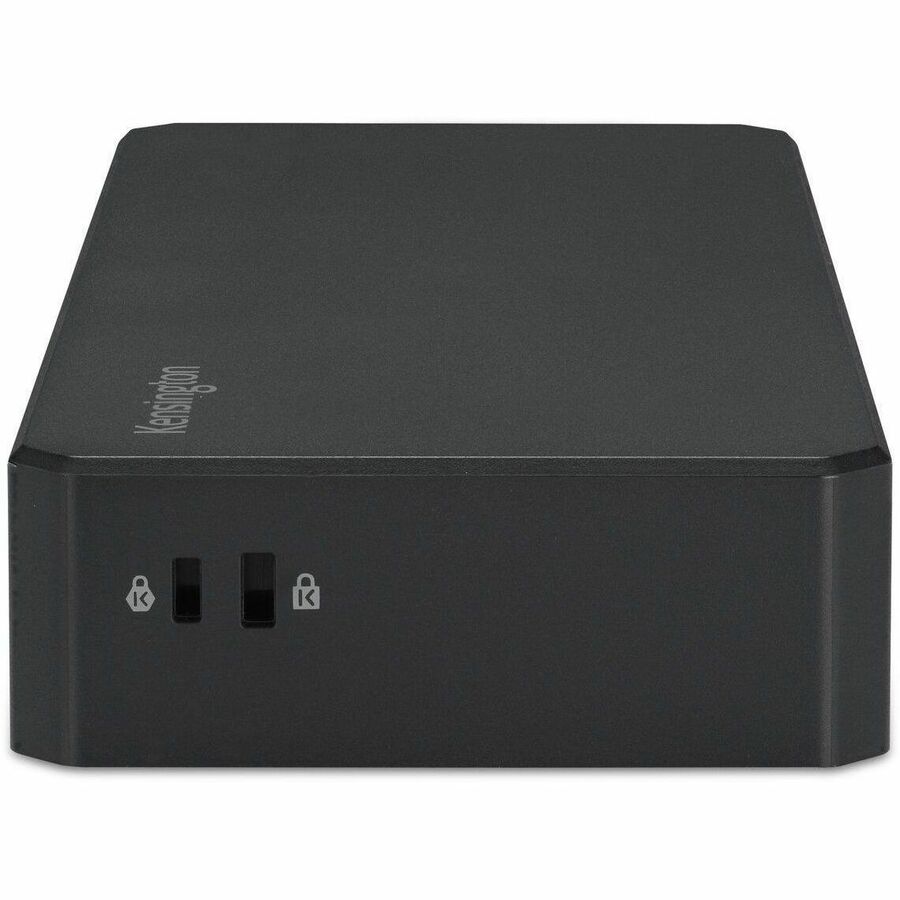

Security Slot Type	Kensington Security Slot Nano Security Slot

Network & Communication

Ethernet Technology

Gigabit Ethernet

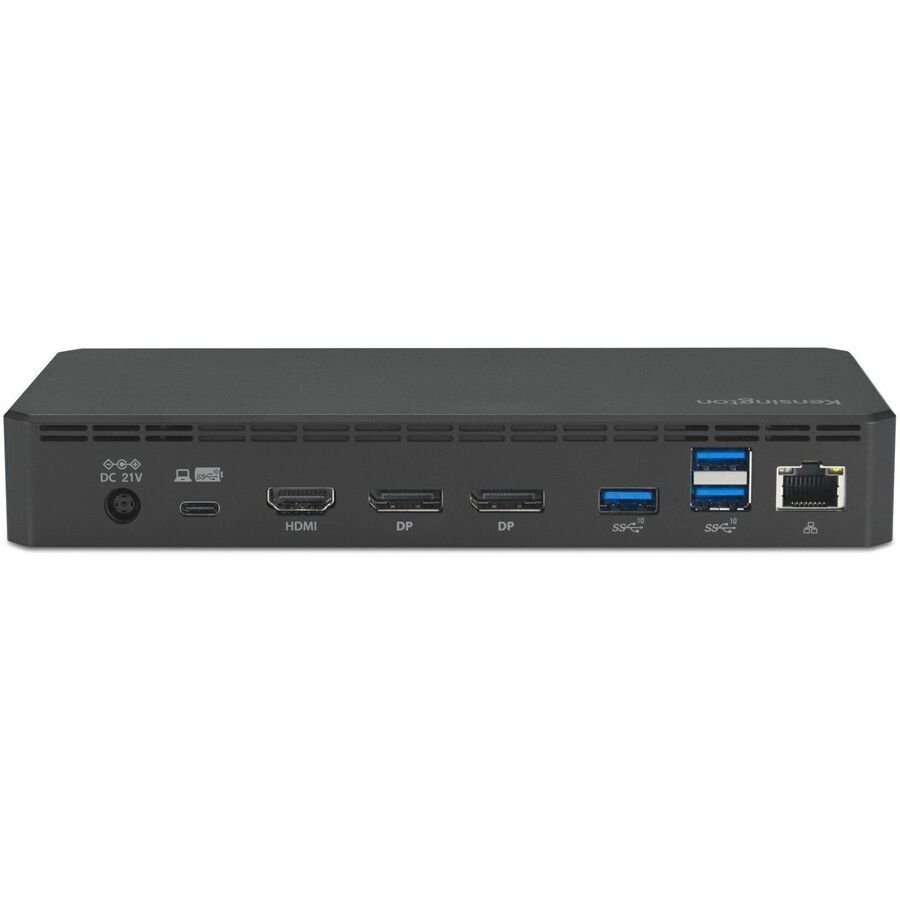

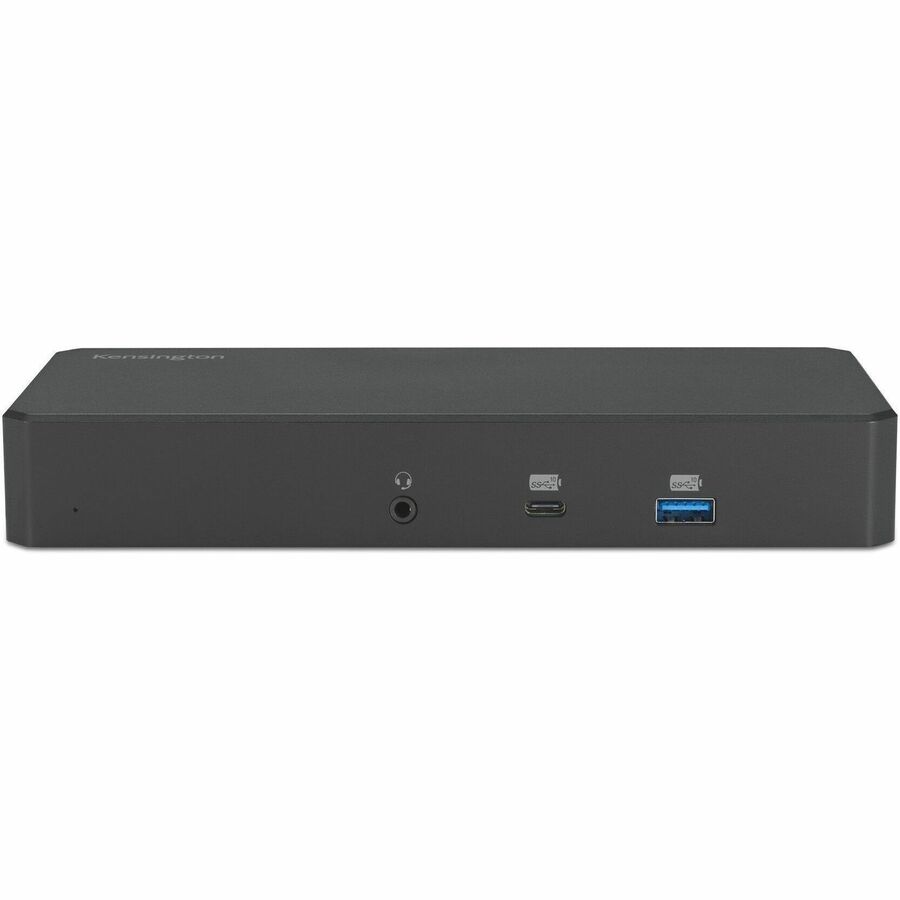

Interfaces/Ports

Host Interface	USB 3.2 (Gen 2) Type C
Total Number of USB Ports	5
USB Type-A	Yes
Number of USB 3.2 Gen 2 Type-A Ports	4
Number of USB 3.2 Gen 2 Type-C Ports	2
Number of USB Type-A Ports	4
USB Type-C	Yes
USB Type-C Detail	1 x USB-C® 3.2 Gen2 (5V/1.5A) BC 1.2, 1 x USB-C® Host Docking Connector with up to 100W Dynamic Power Delivery
Number of USB Type-C Ports	1
Network (RJ-45)	Yes
Number of RJ-45 Ports	1
DisplayPort	Yes
Number of DisplayPorts	2
DisplayPort Version	1.4
Headphone/Microphone Combo Port	Yes
HDMI	Yes
Number of HDMI Ports	1
HDMI Version	2.1
USB Power Delivery	100W

Software

Operating System Supported

Power Description

Maximum Power Supply Wattage	135 W
Power Source Type	DC Power Adapter

Physical Characteristics

Miscellaneous

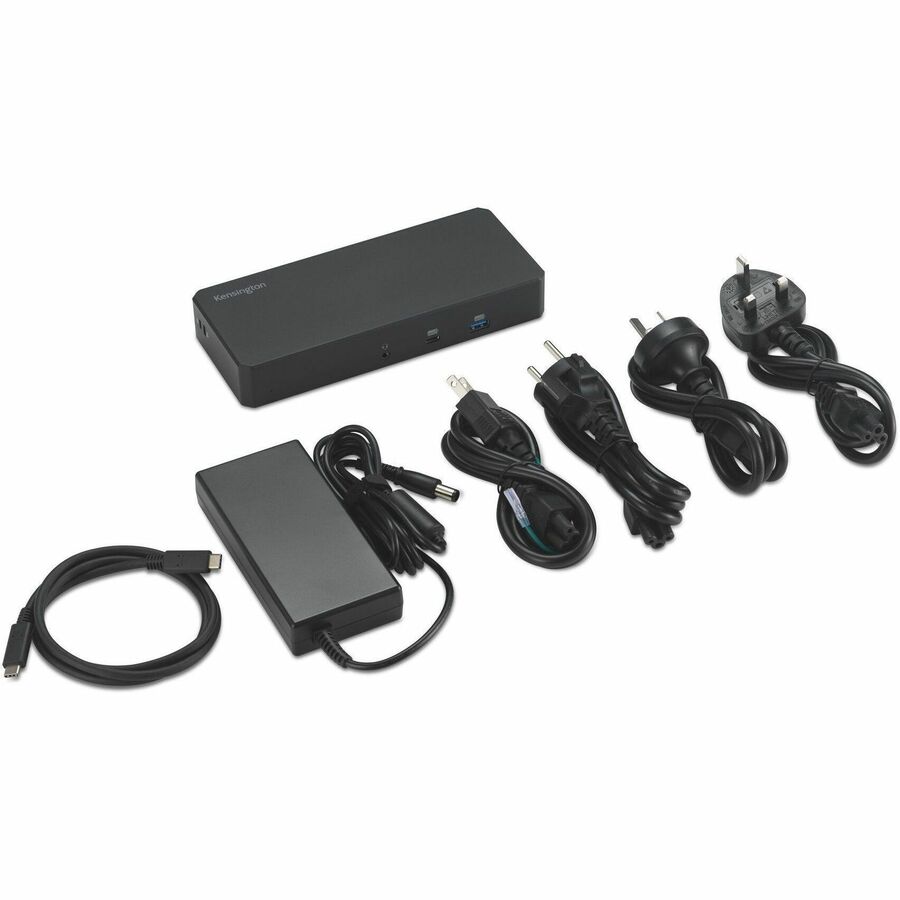

Package Contents	SD3220U3 EQ USB-C 10Gbps Triple Video Driverless Dock 1 x USB-C 3.2 Gen2 passive Cable 1 x 135W Power Supply Unit 1 x NA Power Cord 1 x Quick Installation Guide 1 x Compliance Sheet 1 x Warranty Card 1 x Welcome Card
Kensington Security Slot	Yes
Additional Information	Driverless: Yes Number of USB Ports: 5 USB Fast Charging: Yes Docking Station Family: The Task Master DockWorks: Yes (for Windows only) Features: EQ 4K Support: Yes
Compatibility	USB-C Laptops & Ultrabooks that support Power Delivery and Monitors that support up to triple 4K
Post-consumer-waste%	71%
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

3 Year
