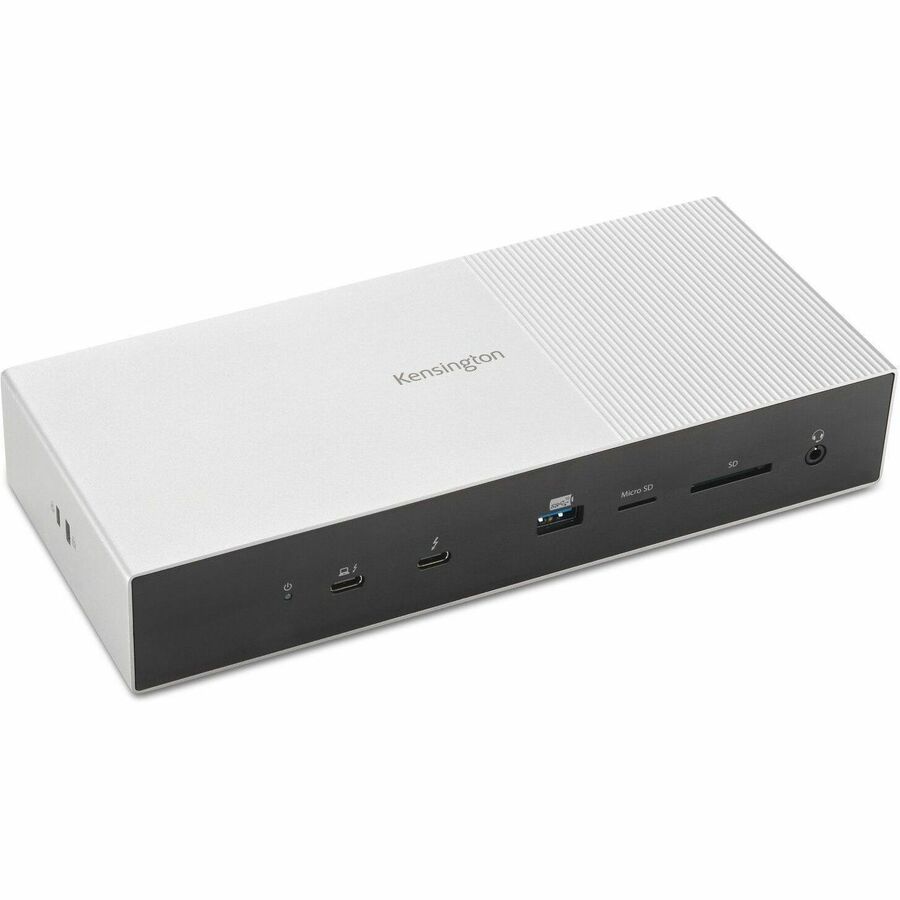

FSD5005T5 THUNDERBOLT 5 DOCK FSD5005T5 THUNDERBOLT 5 DOCK

Name: FSD5005T5 THUNDERBOLT 5 DOCK FSD5005T5 THUNDERBOLT 5 DOCK
Brand: KENSINGTON
SKU: 780R80
Price: 295.57 USD
Availability: InStock

KENSINGTON

PCN#

780R80

MFG#

K35202NA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$295.57

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

for Desktop PC, Notebook, Workstation, Monitor
Charging Capability
Memory Card Reader
SD, microSD, CompactFlash
180 W
Thunderbolt 5
3 Displays Supported
4K, 4K @ 144Hz, 8K @ 60Hz, FHD @ 540Hz, 8K, 4K @ 120Hz, QHD @ 240Hz, FHD @ 120Hz, 4K @ 60Hz, 6K @ 60Hz
3840 x 2160, 7680 x 4320, 1920 x 1080, 2560 x 1440, 6016 x 3384
3 x USB Ports
3 x USB Type
A Ports
USB Type
A
Network (RJ
45)
Space Gray, Black
Thunderbolt
4 x Thunderbolt 5 Ports
Wired
Windows 11

Product Condition: New and Factory Fresh

Limited WarrantyFree DockWorks™ software delivers the best connection, performance, and security from your Kensington dock. Backed by Kensington's professional support and a 3-year limited warranty.Sustainability AttributesThe outer case is composed of 100% post-consumer recycled (PCR) aluminum - and it is delivered in Forest Stewardship Council (FSC®) certified packaging.Packaged Quantity1 BoxPackage TypeRetailProduct TypeDocking StationTechnical Information

Shipping Weight: 5 lbs.

Kensington SD5005T5 EQ Thunderbolt 5 Docking Station (DFS)

Overview

Tech Specs

Specifications

Manufacturer	Kensington Computer Products Group
Manufacturer Part Number	K35202NA
Manufacturer Website Address	http://www.kensington.com
Brand Name	Kensington
Product Model	SD5005T5
Product Name	SD5005T5 EQ Thunderbolt 5 Docking Station (DFS)
Marketing Information	Surface users need a docking solution that maximizes their workstation's capabilities. For those seeking to connect high-resolution displays, transfer data at lightning speeds, and expand connectivity without the hassle of adapters, the SD5005T5 EQ Thunderbolt™ 5 Docking Station is the perfect choice. Enhancing productivity today and well into the future, this powerful dock provides a single-cable solution supporting up to three 4K monitors for expanded visual productivity, turbocharged speeds for working with large files, more ports for connecting accessories without using adapters, and amplified charging for high-power workstations. Designed Exclusively for Surface Kensington worked directly with Microsoft to ensure professional-level connectivity. Connect with confidence for a seamless dock and charge experience. Futureproof Thunderbolt™ 5 Performance Supports lightning-fast data, video, and audio transfers at up to 40Gbps for Thunderbolt™ 4 and up to 80Gbps for Thunderbolt™ 5 devices. Up to Triple 4K or Single 8K with Thunderbolt™ 5 Technology The SD5005T5 offers uncompromised visual quality for a high-performance workspace - supporting up to triple 4K or single 8K with a Thunderbolt™ 5 host device, and up to dual 4K or single 8K with a Thunderbolt™ 4 host device. Achieving triple displays with maximum resolution and high refresh rates depends on the capabilities of the host device, monitors, and cables used. Please check with your host device manufacturer for more details. Up to 140W Power Delivery Perfect for demanding workstations, the single-cable Thunderbolt™ 5 solution ensures seamless power and connectivity with up to 140W Power Delivery to a PD 3.1 host. Versatile 11-in-1 Design 3 x Thunderbolt™ 5 downstream ports, 1 x Thunderbolt™ 5 host, 3 x USB-A 3.2 Gen2 10Gbps ports, a combo audio jack, dual SD/Micro Card readers, and 2.5Gbps Ethernet for seamless productivity. Built-in SD and Micro SD Card Readers Perfect for graphic designers, video editors, and animators requiring fast and efficient data transfer speeds, the SD5005T5 transfers files at ultra-fast speeds via built in UHS-II SD and Micro SD card readers. Zero-Footprint Mounting Option and Security Cable Lock Slots Maximize desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Protect your investment with a Kensington cable lock (K65020WW or K65021WW), sold separately. Free Kensington DockWorks™ Software and 3-Year Limited Warranty Free DockWorks™ software delivers the best connection, performance, and security from your Kensington dock. Backed by Kensington's professional support and a 3-year limited warranty. Sustainability Attributes The outer case is composed of 100% post-consumer recycled (PCR) aluminum - and it is delivered in Forest Stewardship Council (FSC®) certified packaging.
Packaged Quantity	1 Box
Package Type	Retail
Product Type	Docking Station

Technical Information

Connectivity Technology	Wired
Charging Capability	Yes
Device Supported	Desktop PC Notebook Workstation Monitor
Cable Length	3.28 ft
Memory Card Reader	Yes
Memory Card Supported	SD microSD CompactFlash
Features	Power Delivery Pass-through Plug and Play Cable Lock Slot LED Power Indicator
Number of Displays Supported	3
Screen Mode Supported	4K 4K @ 144Hz 8K @ 60Hz FHD @ 540Hz 8K 4K @ 120Hz QHD @ 240Hz FHD @ 120Hz 4K @ 60Hz 6K @ 60Hz
Supported Resolutions	3840 x 2160 7680 x 4320 1920 x 1080 2560 x 1440 6016 x 3384
Maximum Data Transfer Rate	15 GB/s

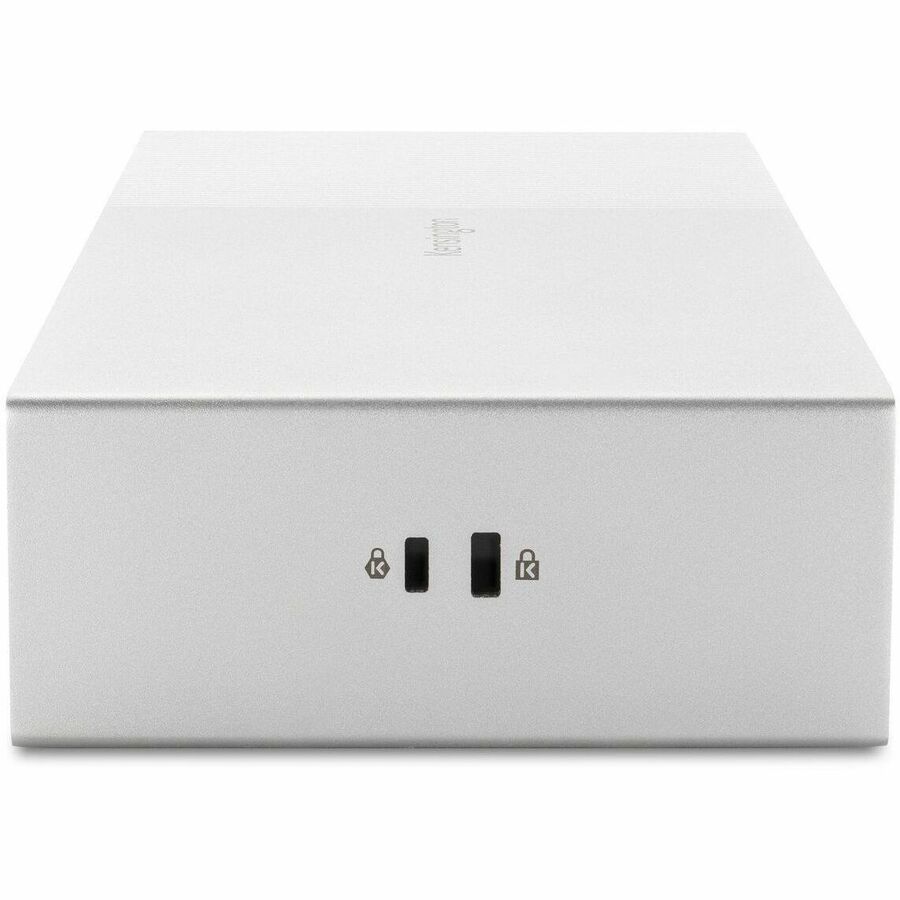

Security Slot Type	Kensington Security Slot Nano Security Slot

Network & Communication

Ethernet Technology

2.5 Gigabit Ethernet

Interfaces/Ports

Host Interface	Thunderbolt 5
Total Number of USB Ports	3
USB Type-A	Yes
Number of USB 3.2 Gen 2 Type-A Ports	3
Number of USB Type-A Ports	3
Network (RJ-45)	Yes
Headphone/Microphone Combo Port	Yes
Thunderbolt	Yes
Thunderbolt 5	Yes
Thunderbolt Ports Quantity	4
Number of Thunderbolt 5 Ports	4
USB Power Delivery	140W

Software

Operating System Supported

Windows 11

Power Description

Maximum Power Supply Wattage	180 W
Power Source Type	Power Adapter

Physical Characteristics

Color Family	Dual Color
Product Color	Space Gray Black
Form Factor	Desktop
Height	8.90"
Width	3.82"
Depth	1.57"
Weight (Approximate)	2.16 lb

Miscellaneous

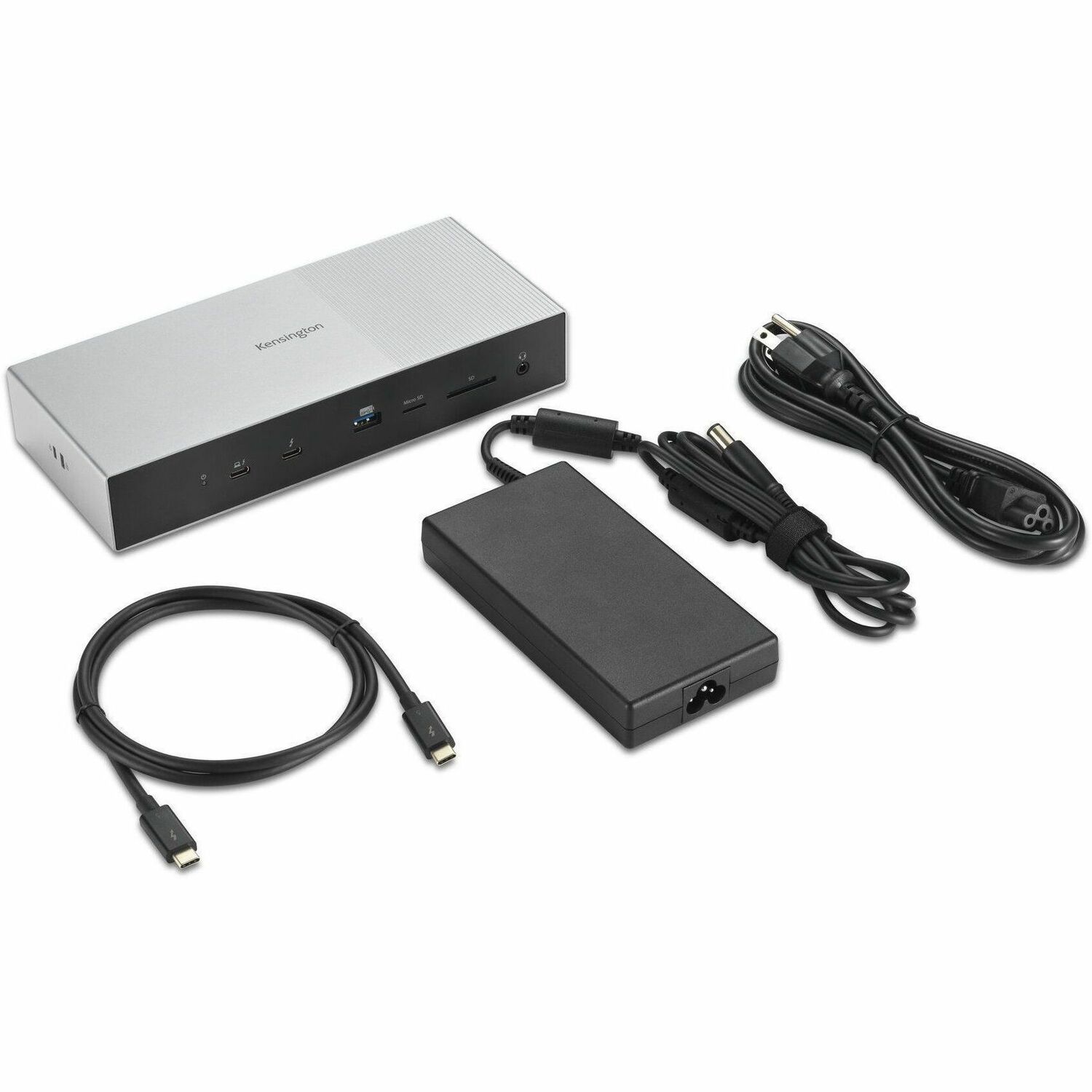

Package Contents	SD5005T5 EQ Thunderbolt 5 Docking Station (DFS) 1 x Thunderbolt 5 Cable 1 x 180W Power Supply Unit 1 x Power Cord 1 x Quick Installation Guide 1 x Compliance Sheet 1 x Warranty Card
Kensington Security Slot	Yes
Compatibility	Thunderbolt™ 5 laptop running Windows 11 (23H2 or later) with USB-C® PD 3.1 EPR support for up to 140W (28V/5A) charging Designed for Microsoft Surface
Brand Compatibility	Microsoft
Post-consumer-waste%	100%
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	Thailand

Warranty

Limited Warranty

3 Year
