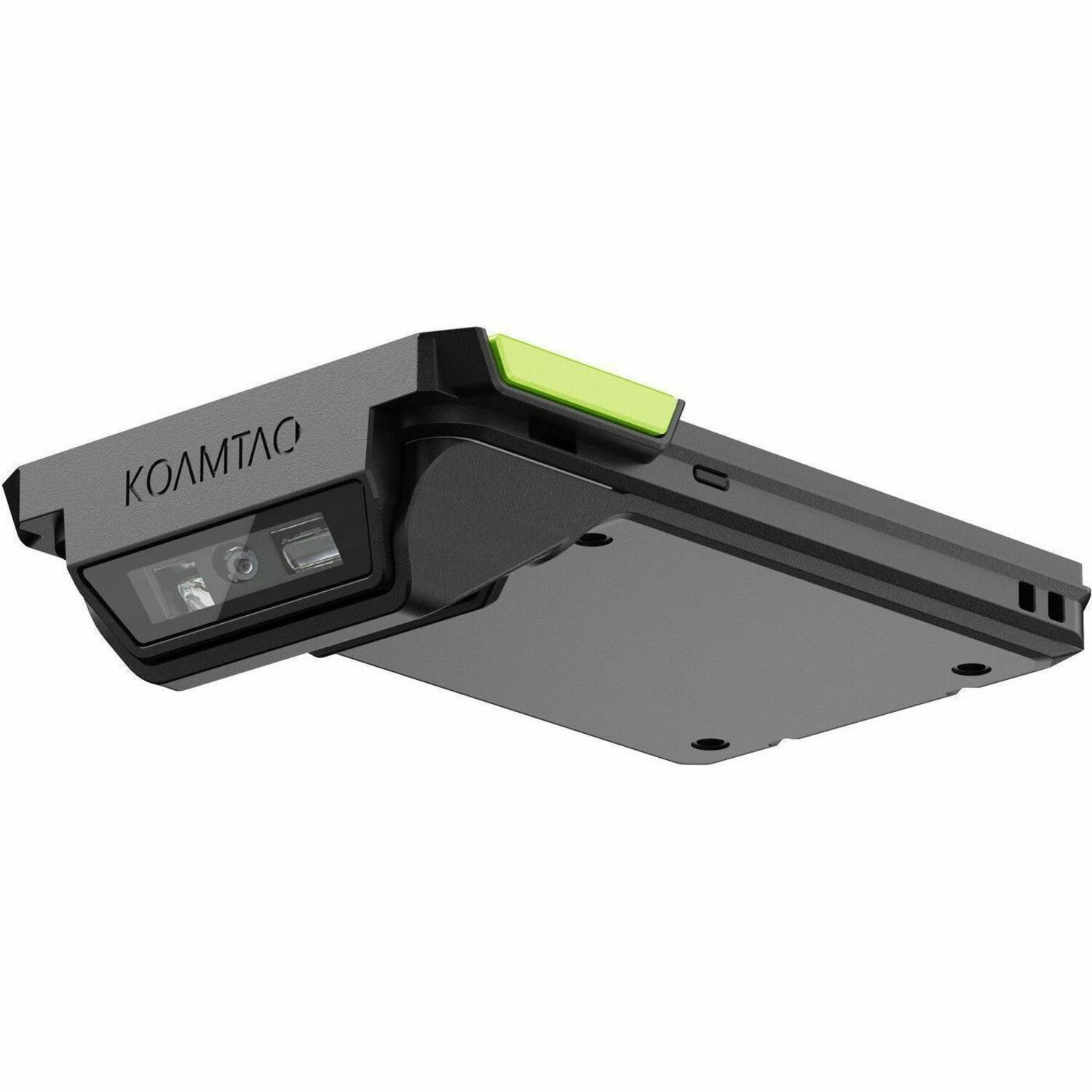

KDC1100-ER-AIP13 SMARTSLED SCANNER FOR IPHONE13

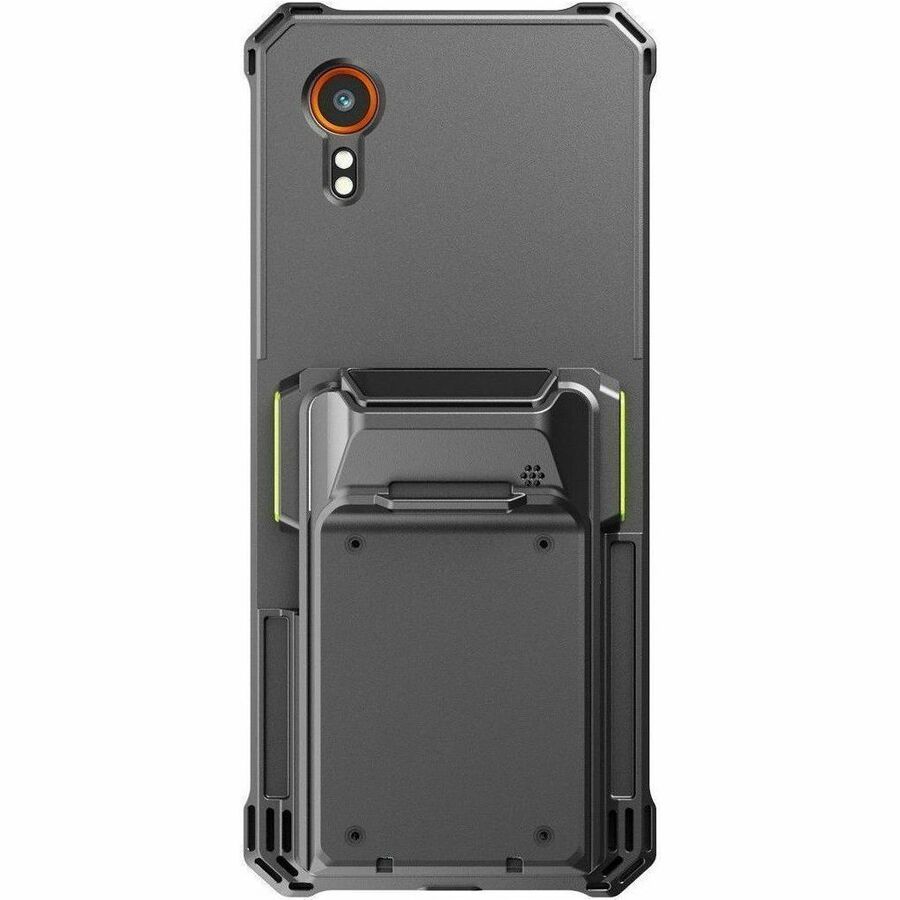

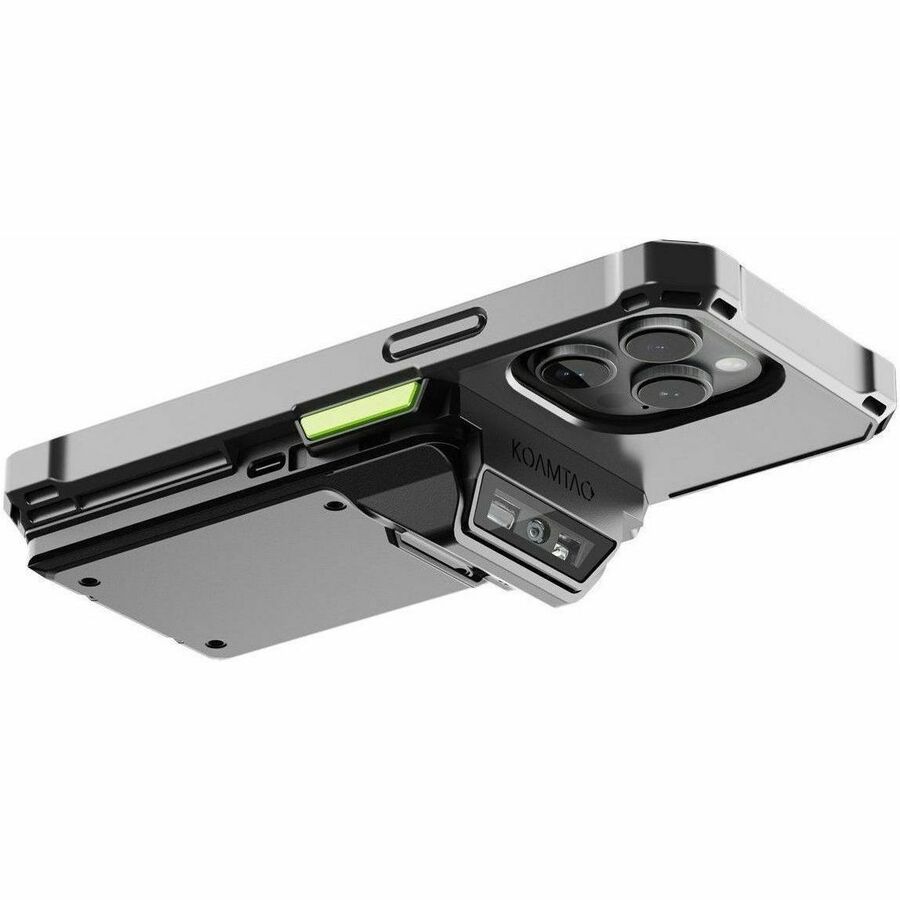

Well-EquippedKDC1100 SmartSled features a downward-angled scan engine for exceptional performance. With standard, medium, and extended-range 2D imager options, it offers flexibility for near- and long-distance tasks. Contact us for details on a flat-angled scan engine variant. Future-ReadyKDC1100 SmartSled effortlessly connects to Android and iOS devices via its Custom Case. It supports USB (for Android & iPhone 15), Lightning (for iPhone 13 & 14), and Bluetooth 5.0. Upgrading to a new device is simple with a Custom Case replacement, and its spacer system allows continued use during device changes. Modular Design for Added FunctionalityKDC1100 SmartSled offers a modular design, enabling users to attach various companions for enhanced functionality. Options include UHF Readers, an HF Reader, a 2,000mAh Extended Battery, and a Pistol Grip with a 6,000mAh Extended Battery. CompatibilityAvailable for Apple iPhone 13/Pro/Pro Max, iPhone 14/Pro/Plus/Pro Max, iPhone 15/Pro/Plus/Pro Max models, and iPhone 16/Pro/Plus/Pro Max models; and Samsung Galaxy A35 and XCover7.Product TypeBarcode ScannerTechnical InformationConnectivity TechnologyCable/WirelessScanning Capability

• 1D
• 2D

Barcode Symbology Supported 1D

• Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, TCL39, Telepen, Tri-Optic, UPC-A, UPC-E0, UPC-E1

2D

• Aztec Code, Aztec Runes, Codablock F, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, Han Xin Code

Postal Codes

• POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post

Image Sensor TypeImagerScanner RangeExtended RangeScanning Distance112.10"Drop Specification

• 5' (1.5 m)

Minimum Element Resolution (Code 39)20 milNetwork & CommunicationBluetoothYesInterfaces/PortsHost InterfaceUSBBattery InformationBattery ChemistryLithium Ion (Li-Ion)Battery Capacity750 mAhEnvironmental ConditionsOperating Temperature-4°F (-20°C) to 122°F (50°C)Storage Temperature-4°F (-20°C) to 140°F (60°C)Humidity (Non-condensing)5% to 95%MiscellaneousCompatibility

• APPLE iPhone13

Ingress Protection (IP) RatingIP65Platform Supported

• Android
• iOS
• Mac
• Windows
• Smartphone

Environmental ComplianceRestriction of Hazardous Substances (RoHS)
