KDC1100-PRO-AIP16PLUS KDC1100 PRO SMARTSLED SCANNER FOR I

Experience the Next Generation SmartSled

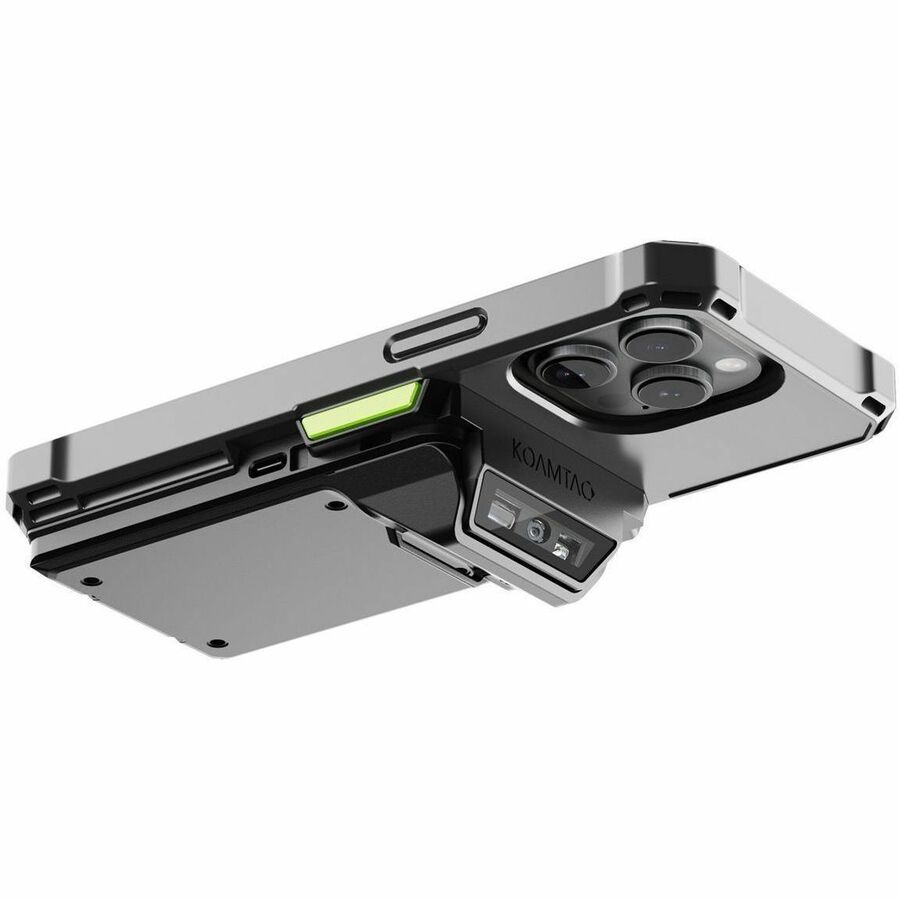

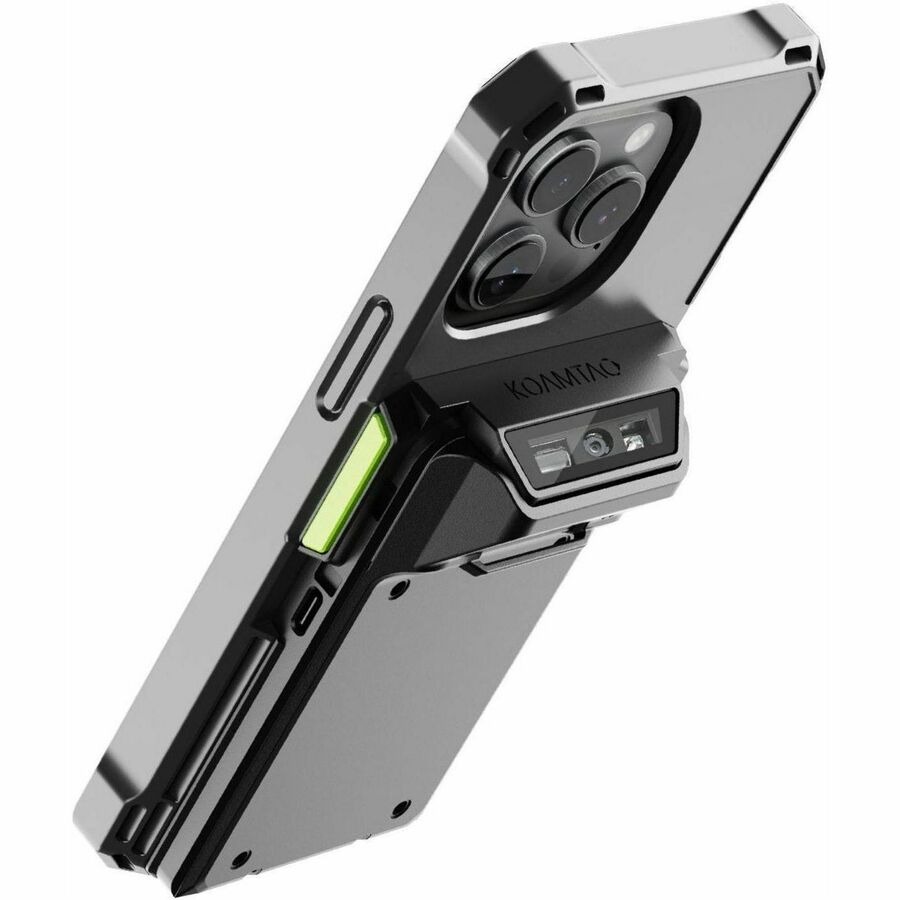

Introducing the KDC1100 Series SmartSled-an innovative leap forward in SmartSled technology! Its streamlined and modern design is equipped with high-quality components, delivering an exceptional scanning performance. It seamlessly integrates to select Android and iOS devices through a Custom Case, providing a cost-effective and future-ready scanning solution. With features like 1D/2D barcode scanning, IP65 rating, versatile charging, and a range of companions, it delivers an extraordinary scanning experience.

Universal Design

The KDC1100 SmartSled is designed to effortlessly connect with a range of compatible Android and iOS devices through its innovative Custom Case solution, enabling barcode scanning functionality on nearly any smart device. When it is time to upgrade to a new host device, a simple Custom Case replacement allows you to keep your current SmartSled solution without investing in a new one, providing you with a truly cost-effective and futureready scanning solution.

Well-Equipped

The KDC1100 SmartSled features a downward-angled scan engine that delivers exceptional scanning performance. Available with standard, medium, and extended-range 2D imager options, it offers businesses the flexibility to select the perfect scanning solution for both near- and long-distance tasks. Ask us for more information about a flat-angled scan engine variant.

Rugged

The KDC1100 has a 5' drop spec, and is IP65-rated. This means the device is dust tight and water resistant-ideal for any environment.

Powered

The KDC1100 utilizes the display and processing power of the connected smart device, providing accurate information in a form and appearance that is familiar to the user. Furthermore, the SmartSled establishes a seamless physical connection to the host device via USB OTG (for Android and iPhone 15 & 16), Lightning (for iPhone 13 & 14), or Bluetooth 5.0 connectivity. A variety of charging cradles are available for the KDC1100 and can be scaled to large and small operations.

Rich Companion Ecosystem

Leveraging a modular design, the KDC1100 offers users the flexibility to attach a range of companions, augmenting the functionality of the SmartSled. These companions include short and long-range UHF Readers, an HF (NFC) Reader, a 2,000mAh Extended Battery, and a Pistol Grip with an optional 6,000mAh Extended Battery.

Keyboard wedging and configuration features are included in the complementary SDK for Android, Xamarin, Cordova, React Native, Flutter, and Web. Additionally, receive technical support from top engineers and the development team to ensure ease of data collection in any situation.

• 1D
• 2D

Imager (1D)

• Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, TCL39, Telepen, TriOptic, UPC-A, UPC-E0, UPC-E1

Imager (2D)

• Aztec Code, Aztec Runes, Codablock F, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, Han Xin Code

Postal Codes

• POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post

OCR/MRZ

• OCR-A, OCR-B, MICR E13-B, SEMI

• 5' (1.5 m)

• Water Resistant
• Dust Resistant

• APPLE iPhone 16 Plus

• Android
• iOS
• Mac
• Windows
• Smartphone
