LANTRONIX LM4 CONSOLE SERVER 2-PORT 2 SERIAL PORTS 2 ETHERNET

Name: LANTRONIX LM4 CONSOLE SERVER 2-PORT 2 SERIAL PORTS 2 ETHERNET
Brand: LANTRONIX - IOT
SKU: SG5135
Price: 466.62 USD
Availability: InStock

LANTRONIX - IOT

PCN#

SG5135

MFG#

LM4-2S-NA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$466.62

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Estimated Shipment:

Product Highlights:

Console Server, 2 total serial ports, 2 USB 2.0, 1 GbE RJ45 Ethernet, 1 GbE SFP, Single AC power, TAA, North American Power Cord & Adapter

Product Condition: New and Factory Fresh

Shipping Weight: 301 lbs.

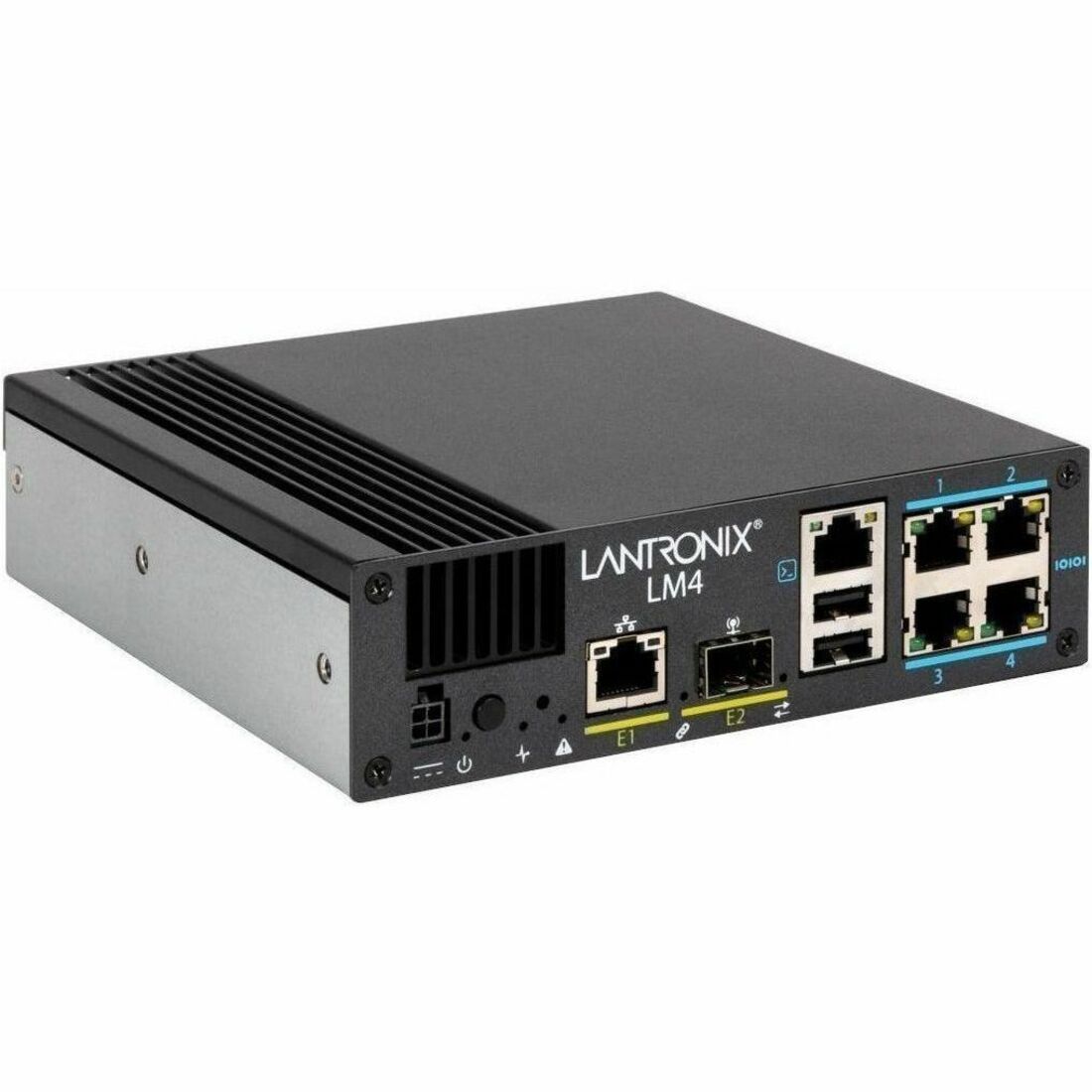

Lantronix LM-Series LM4 2-Port Console Server

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	LM4-2S-NA
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Series	LM
Product Model	LM4
Product Name	Lantronix 2-Port LM4
Marketing Information	The Lantronix LM-Series are console servers that also serve as a platform for network management automation. Managed devices are monitored over the console port at a default of every 30 seconds, providing data for rules-based decision-making and device remediation. Designed for IDFs and small sites, there are 2-4 RJ-45 serial ports. Virtual ports and port forwarding let you use the out-of-band platform as a resilient toolbox for secure access to all your network infrastructure.
Product Type	Device Server

Technical Information

Device Type	Console Server
Connectivity Technology	Wired

Memory

Standard Memory

15.63 GB

Media & Performance

Media Type Supported

Twisted Pair
Optical Fiber

I/O Expansions

Total Number of Expansion Slots	1
Expansion Slot Type	SFP

Wireless Specifications

Wireless LAN	No
ISM Band	No
UNII Band	No

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Standard	10/100/1000Base-T 1000Base-X

Interfaces/Ports

Network (RJ-45)	Yes
USB	Yes
Serial Port	Yes
Management Port	Yes
Total Number of Network Ports	1
Number of Network (RJ-45) Ports	1
Number of USB Ports	2
Number of Serial Ports	2

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	131°F (55°C)

Power Description

Input Voltage	120 V AC 230 V AC
Input Voltage Range	100 VAC to 240 VAC
Input Current	1.40 A
Frequency	50 Hz 60 Hz

Physical Characteristics

Form Factor	Compact
Height	1.8"
Width	6.3"
Depth	6.3"
Weight (Approximate)	3.13 lb

Miscellaneous

Package Contents	LM4 Console Server 2-Port North American Power Cord Adapter
Certifications & Standards	FCC Class A Sub Part B UL FIPS 140-2
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	Taiwan
