10/100/1000BASET TO 100BASELX10 SC SM 3.3V W/SA

Name: 10/100/1000BASET TO 100BASELX10 SC SM 3.3V W/SA
Brand: LANTRONIX - IOT
SKU: Z28091
Price: 765.95 USD
Availability: InStock

LANTRONIX - IOT

PCN#

Z28091

MFG#

S2220-1014-SA

$765.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 2 lbs.

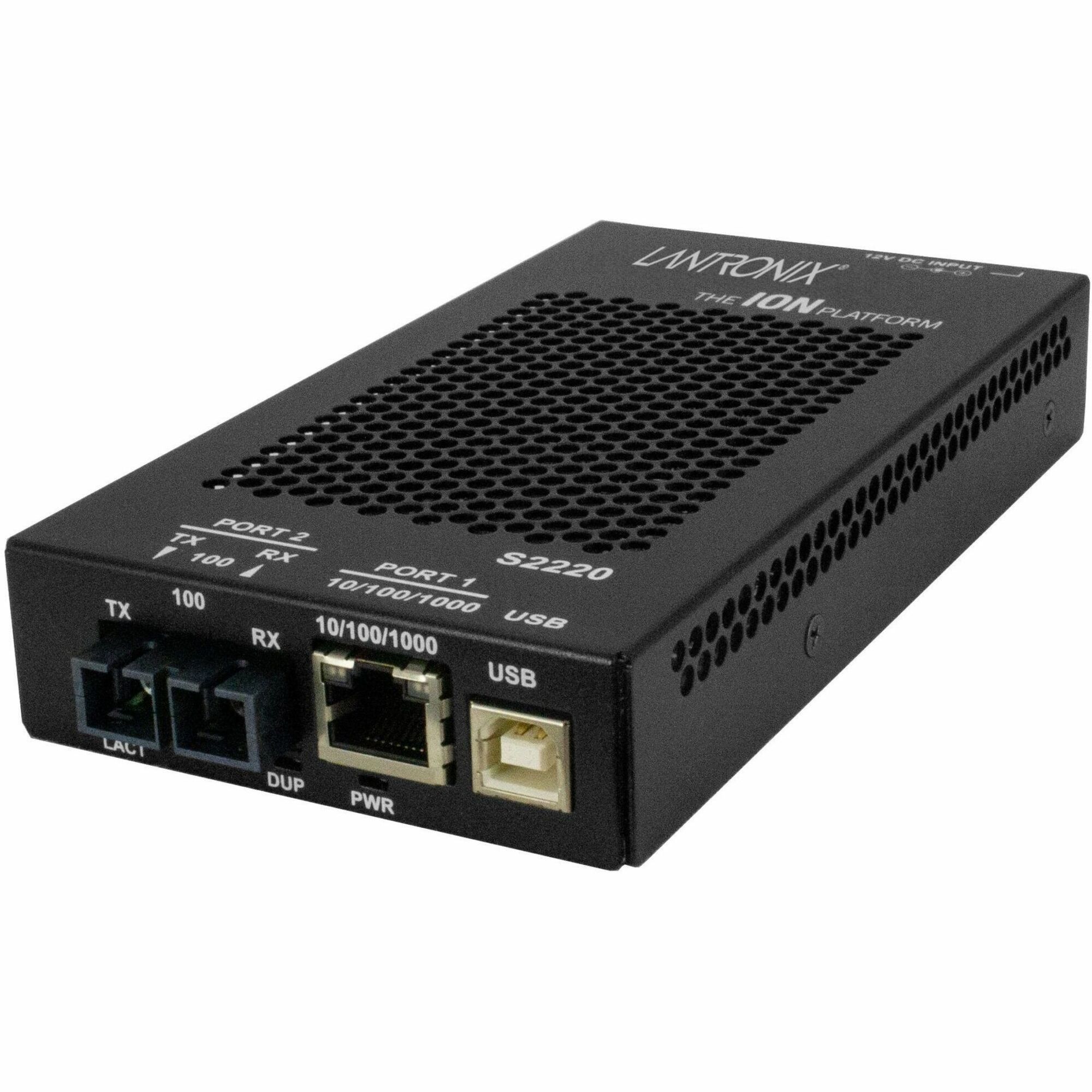

Transition Networks S2220-1014 Transceiver/Media Converter

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	S2220-1014-SA
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Transition Networks
Product Line	ION
Product Series	S2220
Product Model	S2220-1014
Product Name	S2220-1014 Transceiver/Media Converter
Marketing Information	Stand-alone Fast Ethernet Remotely Managed NID 10/100/1000Base-T to 100Base-FX with OAM/IP-Based Management The ION S2220 is a stand-alone managed Network Interface Device (NID) that provides an interface between 10/100/1000Base-T ports and 100Base-FX ports, allowing users to manage their links while integrating fiber optic cabling into 10/100/1000 copper environments. As a remotely managed device, the S2220 can be managed individually via an IP address or it can be managed in-band, over the fiber when linked to a C2220 card installed in a managed ION chassis. With advanced features like IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support, and bandwidth allocation, the S2220 offers a variety of methods for the secure delivery of Ethernet services in business and mobile backhaul applications.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode
Fiber Optic Cable Wavelength	1310 nm
Maximum Data Transfer Rate	1000 Mbit/s
Maximum Distance Supported	10 km

Network & Communication

Ethernet Technology	Fast Ethernet Gigabit Ethernet
Network Technology	10/100/1000Base-T 100Base-LX

Power Description

Power Source	Power Supply
Input Voltage	120 V AC 230 V AC

Physical Characteristics

Form Factor	Standalone Wall Mountable DIN Rail Mountable Shelf Mount
Height	1"
Width	3.3"
Depth	6.5"
Weight (Approximate)	2 lb

Miscellaneous

Package Contents	S2220-1014 Transceiver/Media Converter Power Supply - South Africa
Application/Usage	Network Data
Additional Information	10/100/1000Base-T (RJ-45) [100 m] to 100Base-LX 1310nm single mode (SC) [10 km/6.2 mi.] Link Budget: 16.0 dB
Certifications & Standards	EN55022 class A, EN55024, UL60950, CE Mark
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant	Yes
NDAA Compliant	Yes

Warranty

Limited Warranty

Lifetime
